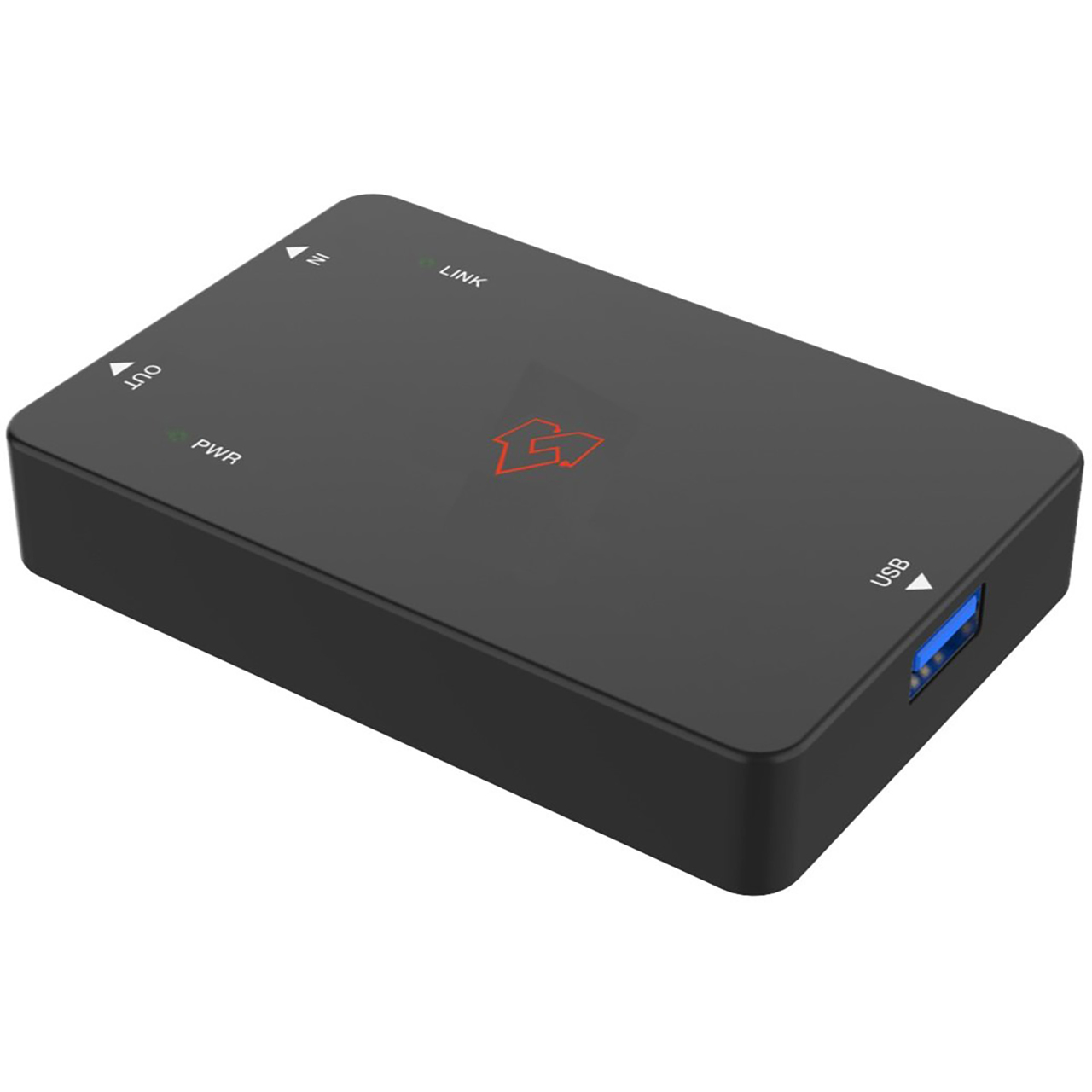

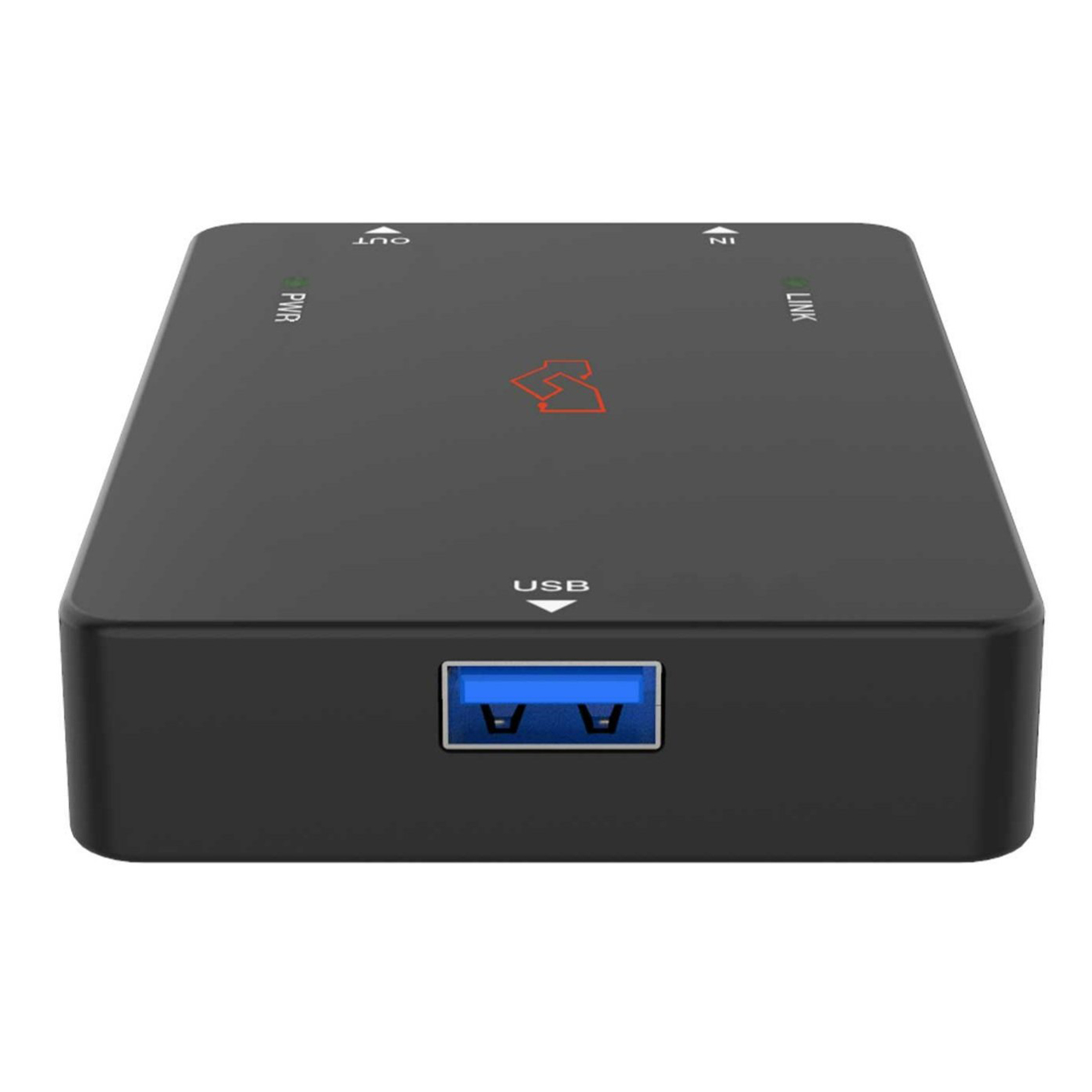

VigilLink VLUC-USB34K 4K60 HDMI to USB3.0 18Gbps Video Capture Dongle - HDMI 2.0b/HDCP 2.2/USB 2.0/USB 3.0 Compliant

ITEM #: VGL-VLUC-USB34K MFG #: VLUC-USB34K

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$261.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


VLUC-USB34K - Overview

VigilLink VLUC-USB34K is a 2x1 HDMI/USB-C KVM Switcher with hotkey switching. It supports resolutions up to 4K@60Hz 4:4:4 8bit and can transmit USB 3.0 signal up to 5Gbps for KVM function.

Input supports 1x HDMI port and 1x USB-C port with a USB-C charging port that can supply power to the USB-C device. The switcher features a virtual interaction function to automatically wake up the connected PC in standby mode, which can reduce the switching time. It also supports direct switching through buttons on the front panel, IR remote, and hotkey through keyboard/mouse connected to the unique USB port. It provides a wide compatibility choice for different operating systems, such as Windows, Mac OS, and Linux, with no driver required, and simple plug-and-play.

  • Features:

    • HDMI 2.0b, HDCP 2.2, USB 2.0, and USB 3.0 compliant
    • 18Gbps HDMI video bandwidth, 5Gbps USB video bandwidth
    • HDMI INPUT video resolution reaches up to 4K2K@60Hz; USB OUTPUT video resolution has a range between 480i to 1080p60Hz
    • Supports 4K2K@60Hz downscaling to 1080p60Hz
    • Supports 4K60 4:4:4 HDMI loop out
    • Operates in Windows, Linux, and OS X
    • USB transmission speed up to 300~350Mb/s
    • Compatible with VLC, OBS, XSPLIT, AMCAP,video-capturing, and other video capturing software.
    • Compacts in design, plug, and play

  • Specifications:

      Technical
    • HDMI Compliance: HDMI 2.0b
    • HDCP Compliance: HDCP 2.2
    • Video Bandwidth:
      - HDMI: 18 Gbps
      - USB: 5Gbps
    • Video Resolution: Up to 4K2K@60Hz 4:4:4
      *Video will be in YUV2 with no compression if outputting via a USB 3.0 port; Video will be compressed in MJPEG if outputting via a USB 2.0 port
    • USB OUTPUT Resolution: Support 4K24/25/30/50/60 INPUT downscaling to 1080P OUTPUT; For resolutions lower than 1080P, INPUT keeps the same as OUTPUT
    • Color Depth: 8/10/12-bit
    • Color Space: RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
    • HDMI Audio Format: PCM 2.0
    • USB Version: USB 3.1 GEN 1
    • ESD Protection: Human body model - ±8kV (air-gap discharge) & ±4kV (contact discharge)

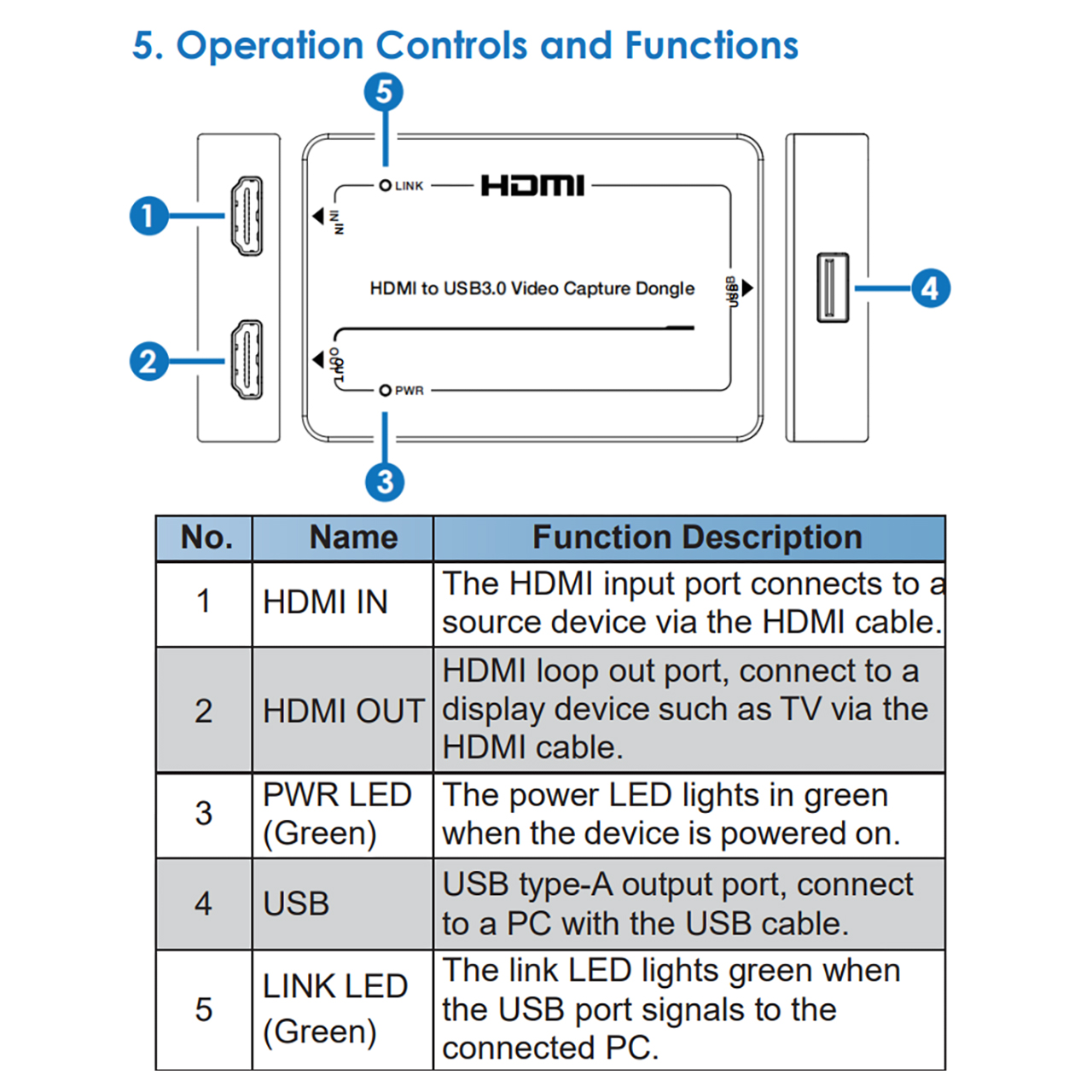

      Connection

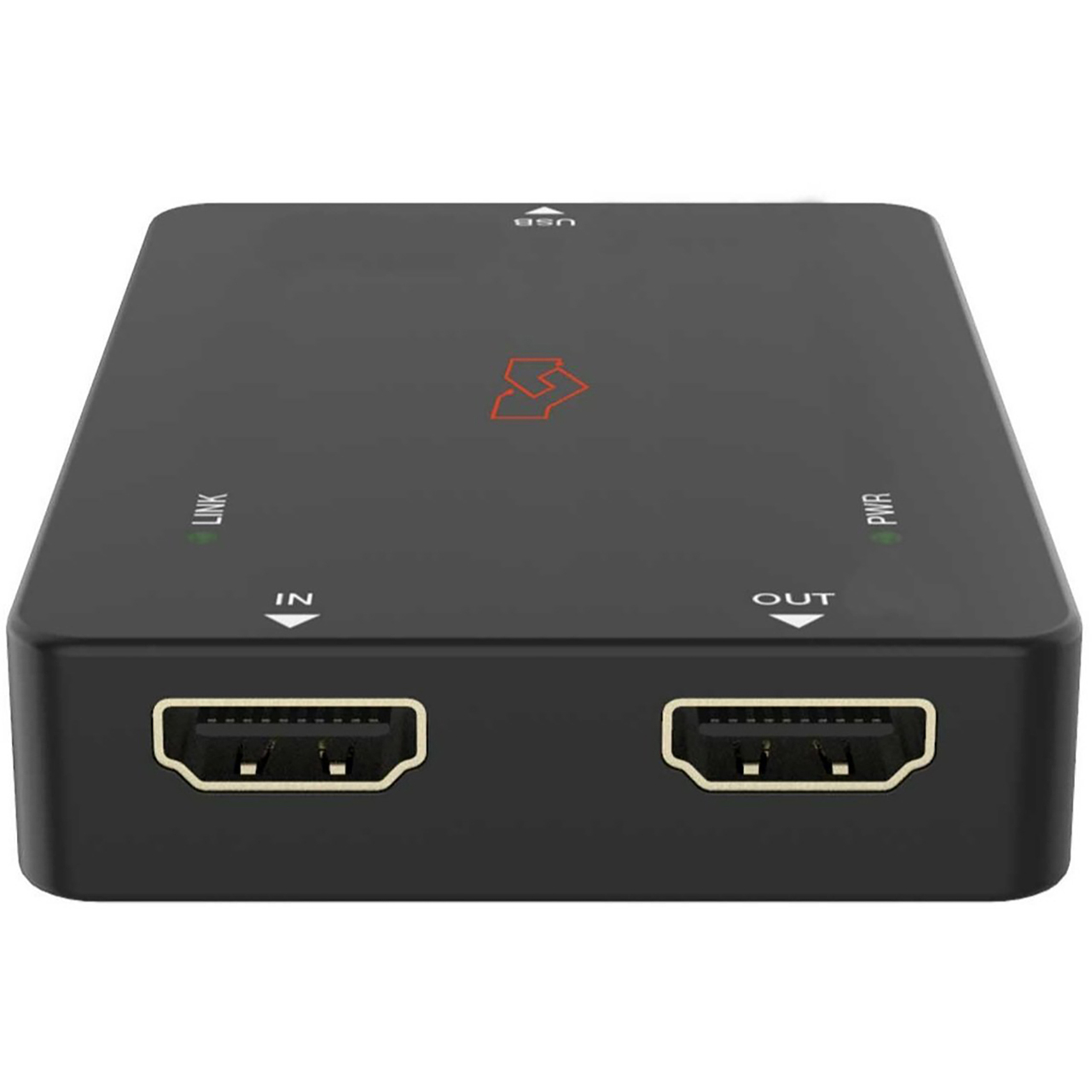

    • Input: 1x HDMI Type A [19-pin female]
    • Outputs:
      - 1x HDMI Type A [19-pin female]
      - 1x USB Type A [female]

      Mechanical
    • Housing: Plastic Enclosure
    • Color: Black
    • Dimensions: 3.54" x 2.36" x 0.63" / 90mm x 60mm x 16mm
    • Weight: 0.10 lb / 47g
    • Power Supply: USB 5V / 900mA
    • Power Consumption: 3.5W (Max)
    • Operating Temperature: 32°F ~ 104°F / 0°C ~ 40°C
    • Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
    • Relative Humidity: 20 - 90% RH (No condensation)

  • Item Includes:

    • 1x HDMI to USB Video Capture Dongle
    • 1x USB 3.0 Type-A Cable (0.5m, Blue)
    • 1x User Manual

  • Warranty:

    • 6 Years
