VigilLink VLVW-SMX44TW 4x4 18Gbps HDMI 2.0b 4K60 Seamless Matrix / Videowall Switcher - HDCP 2.2 & HDCP 1.4 Compliant

Name: VigilLink VLVW-SMX44TW 4x4 18Gbps HDMI 2.0b 4K60 Seamless Matrix / Videowall Switcher - HDCP 2.2 & HDCP 1.4 Compliant
Brand: VigilLink
SKU: VGL-VLVW-SMX44TW
Price: 1489.00 USD
Availability: InStock

ITEM #: VGL-VLVW-SMX44TW MFG #: VLVW-SMX44TW

VigilLink

Our Price:

$1,489.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VLVW-SMX44TW - Overview

Introducing VigilLink's VLVW-SMX44TW 4K60 4:4:4 seamless matrix - a powerhouse in high-speed video processing. This cutting-edge system offers flexibility with two output modes, serving as both a 4x4 seamless matrix switcher and a dynamic video wall solution in configurations like 2x2, 4x1, or 1x4. With a user-friendly web browser interface module, control and configuration are seamless whether used standalone or integrated with third-party control systems. Enjoy multiple control options including front-panel push buttons, IR remote control, RS-232 interface, and TCP/IP for effortless operation.

Features:
- Compliant HDCP 2.2 and HDCP 1.4
- Features 2 operational modes:
  - 4x4 Matrix (seamless switch)
  - Video wall (2x2, 4x1 or 1x4 etc configuration)
- Seamless video switching
- Video inputs support all industry standard video resolutions including VGA-WUXGA (up to 1920x1200 @ 60Hz) and 480i-4K (3840 x 2160 @ 60Hz 4:4:4, Z096 x 2160 @ 60Hz 4:4:4) as specified in HDMI 2.0b
- HDMI outputs support upscale or downscale to any resolution, up to 4096 x 2160 @ 60Hz 4:4:4
- Supports LPCM, DD, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
- Advanced EDID management
- Web interface module for control and configuration of Matrix

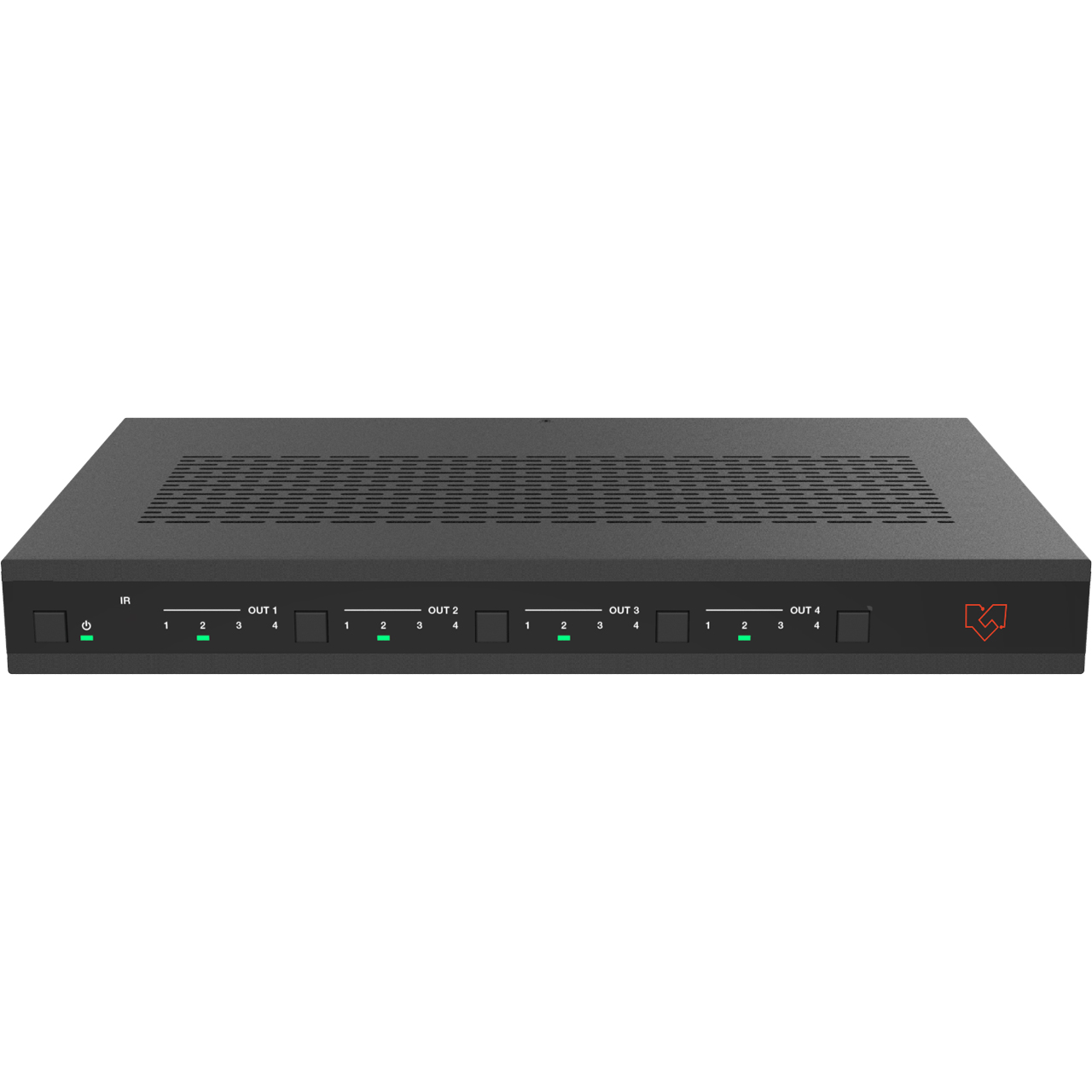

- Control via front panel, IR, RS-232 and TCP/IP
- 3rd Party drivers available for all major home control brands
Specifications:
- HDMI Compliance: HDMI 2.0b
- HDCP Compliance: HDCP 2.2/1.4
- Video Bandwidth: 594MHz/18Gbps
- Video Resolutions:
  - Input: VGA-WUXGA (up to 1920x1200 @ 60Hz), 480i-4K (3840x2160 @ 60Hz 4:4:4, 4096x2160 @ 60Hz 4:4:4)
  - Output: 4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50, 3840x2160p30, 1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50, 1920x1200p60rb, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60, Auto
- Color Space: RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0
- Color Depth: 8/10/12-bit
- Audio Format: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
- IR Level: 12Vp-p
- IR Frequency: 38kHz
- HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTSEX,DTS-96/24, DTS High Res, DTS-HD Master Audio
- ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

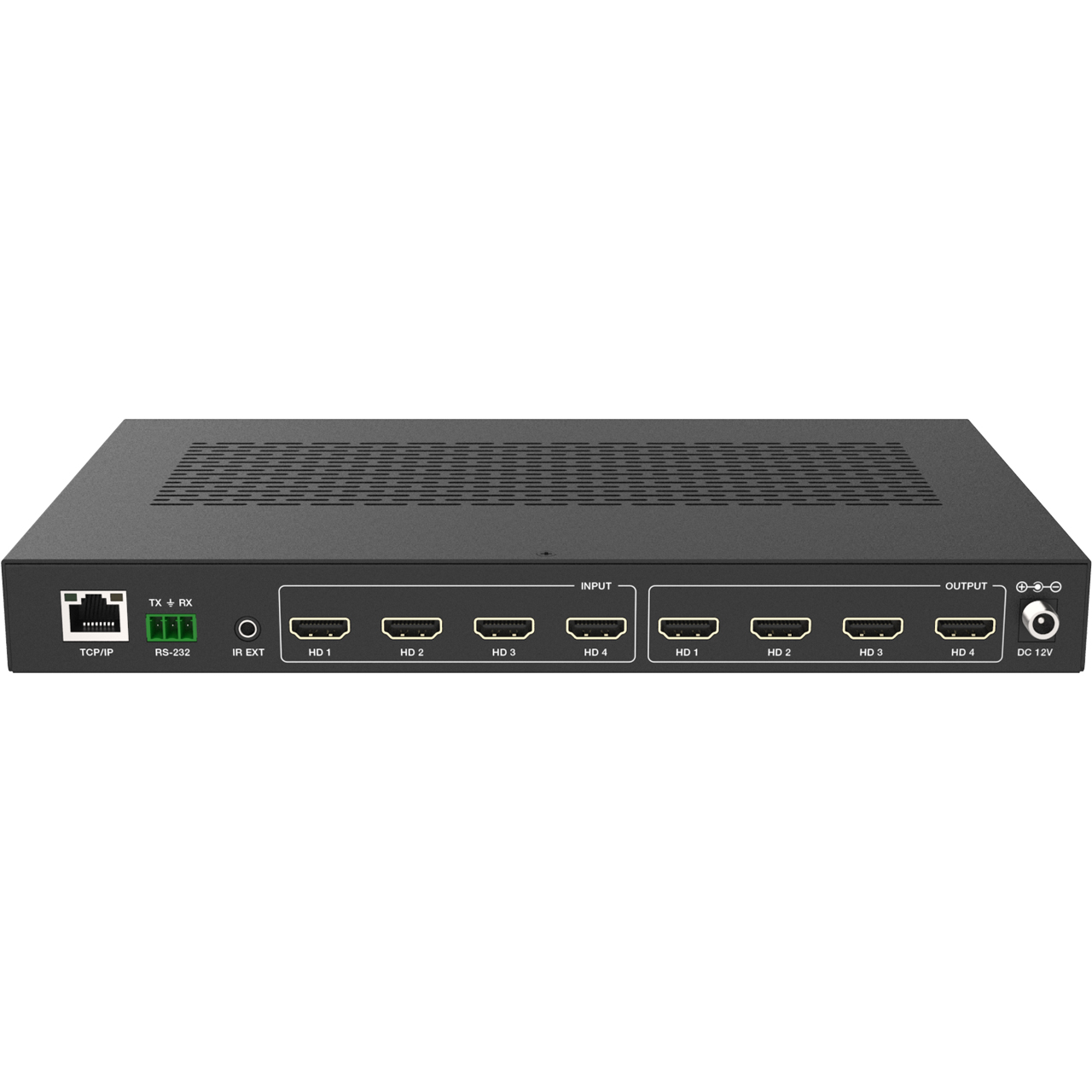

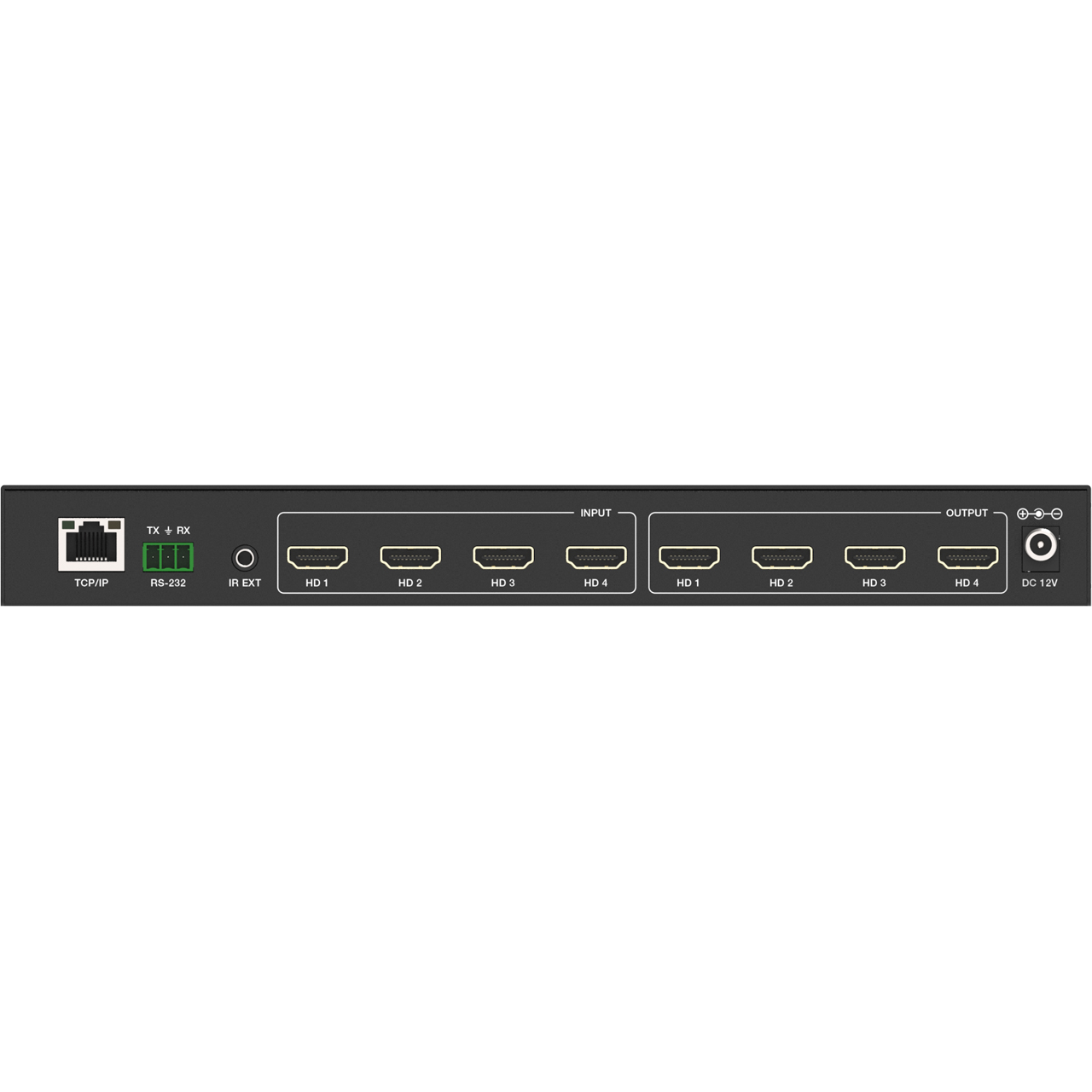

  Connections
- Input Ports: 4x INPUT (HDMI Type A, 19-pin female)
- Output Ports: 4x OUTPUT (HDMI Type A, 19-pin female)
- Control Ports:
  - 1x RS-232 (3pin-3.81mm phoenix connector)
  - 1x TCP/IP (RJ45)
  - 1x IR EXT (3.5mm Stereo Mini-jack)

  Mechanical
- Housing: Metal Enclosure
- Color: Black
- Dimensions: 10.63" x 6.54" x 1.18" (270mm x 166mm x 30mm)
- Weight: 2.57lbs (1165g)
- Power Supply:
  - Input: AC 100V - 240V, 50/60Hz
  - Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)
- Power Consumption: 19.56W (Max)
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -4°F - 140°F (-20°C - 60°C)
- Relative Humidity: 10% - 90% RH (No condensation)
Item Includes:
- 1x 18Gbps 4x4 Seamless Matrix
- 1x Matrix IR Remote
- 1x 3pin-3.81mm Phoenix Connector (male)
- 1x 20-60KHz IR Wideband Receiver Cable (1.5 meters)
- 2x Mounting Ears
- 4x Machine Screws (KM3*4)
- 1x 12V/2.5A Locking Power Adapter
- 1x User Manual
Warranty:
- 6 Years
