A Video Streaming Kit with Roland V-1SDI Switcher and Matrox Monarch HD Video Streaming and Recording Appliance
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

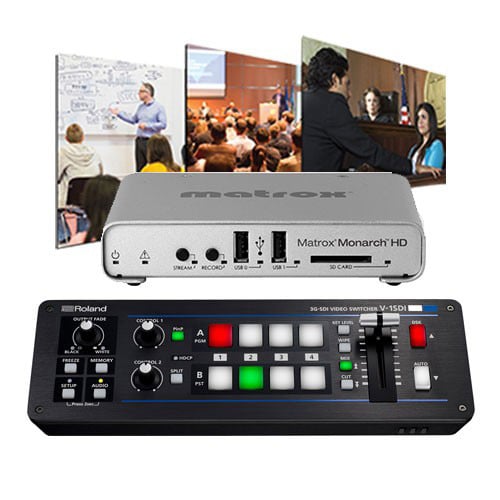

    A Video Streaming Kit with Roland V-1SDI Switcher and Matrox Monarch HD Video Streaming and Recording Appliance

    Manufacturer: Matrox



    List Price:$2,490.00
    Our Price:$2,299.00

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



      A bundle that pairs the power of the Roland V-1SDI Video Switcher with the Matrox Monarch HD, a professional video streaming and recording appliance. Super easy to use and set up, this bundle is perfect for getting started with multi-camera live streaming!

      The Roland V-1SDI is a flexible and versatile video switcher that makes it easy to connect and switch professional 3G SDI cameras and playback sources along with HDMI sources including cameras, smart phones, computers, tablets, Blu-ray players.

      Compact and portable, the V-1SDI delivers professional switching results with its easy to use hardware interface complete with T-Fader and easy-to-see backlit buttons.

      With support for 3G-SDI, the V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance of SDI making this compact solution suitable for events and applications in even large spaces with the most professional level of SDI camera sources.

      Matrox Monarch HD is a small, easy-to-use video streaming and recording appliance designed for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing. By separating the task of recording from streaming in a single integrated unit, Matrox Monarch HD ensures that the Content Delivery Networks (CDNs) are focused on delivering quality video to your audience while you control the quality of the archive.

      From any HDMI input source such as a camera or switcher, Matrox Monarch HD generates an H.264-encoded stream compliant with RTSP or RTMP protocols. While encoding the video at bitrates suitable for live streaming, Matrox Monarch HD simultaneously records a high-quality MP4 file to an SD card, a USB drive, or a network-mapped drive. Matrox Monarch HD is remotely controlled using any computer or mobile device with a web browser.

      • Features

        • Roland V-1SDI
        • 3 x 3G-SDI and 2 x HDMI inputs
        • 2 x 3G-SDI and 1 x HDMI outputs
        • Supports full 1080p
        • Compact with hardware control
        • Multiviewer with audio metering DSK (downstream keyer)
        • PiP, Split, Quad, and Chromakey effects
        • 14-channel audio mixer
        • Remote software control Mac/PC
        • RS-232 Remote Control

          Matrox Monarch HD
        • Record master quality video while streaming
        • Ready to edit and upload with MP4
        • Connect with HDMI
        • Robust appliance
        • Easily reach your audience
        • Record to anything
        • Remote command and control
      • Specifications

        • Roland V-1SDI

          Inputs and Outputs
        • Video Processing: 8-bit 4:2:2 (YPbPr)
        • Audio Processing: 24-bit at 48 kHz
        • Channels: 4
        • Video Input Connectors: 3 X SDI, 2 x HDMI
        • Video Output Connectors: 2 x SDI, 1 x HDMI
        • Audio Input Connectors: 2 x RCA, 1 x 1/8"
        • Audio Output Connectors; 2 x RCA, 1 x 1/8"
        • Other Connectors: USB: B Type (for remote control from PC); RS-232: DB-9 type
        • Physical
        • Power Supply: AC Adaptor
        • Current Draw: 2.1 A
        • Power Consumption: 25 W
        • Operation Temperature: +0 to +40 degrees Celsius; +32 to +104 degrees Fahrenheit
        • Dimensions: 313 (W) x 108 (D) x 59 (H) mm; 12-1/3 (W) x 4-1/4 (D) x 2-1/3 (H) inches
        • Weight (excluding AC adaptor): 1.2 kg; 2 lbs 10-2/5 oz

          Matrox Monarch HD

          Inputs and Outputs
        • HDMI Video Input Progressive:
        • 1920x1080 @ 60/59.94/50/30/29.97/25/24/23.98 Frames per second
        • [email protected] 60/59.94/50 Frames per second
        • HDMI Video Input Interlaced:
        • 1920x1080i 29.97/25 frames per second
        • Video Input Format is Auto-Detected
        • HDMI Video Output: Preview output of video input signal. 2 Frame delay from input to output.
        • Audio Input: Processes first two channels of audio embedded in HDMI input signal. Unbalanced analog stereo input via 1/8" (3.5mm) jack. Line Level
        • Audio Output: Passthrough of all embedded audio channels in HDMI signal. Unbalanced analog stereo output via 1/8" (3.5mm) jack - passthrough of input. Line Level
        • Physical
        • Dimensions: 5.60 in. long (14.2 cm) 4.30 in. deep (10.9 cm) excluding inserted SD-CARD 4.40 in. deep (11.2 cm) including inserted SD-CARD 1.22 in. (3.1 cm) high including rubber feet
        • Weight: 0.66 lbs (300 grams) excluding power supply
        • Operating conditions: 32 to 104 deg. F (0 to 40 deg. C), 20 to 80% relative humidity (non-condensing)
        • Power: Line Voltage: 100-240V AC, 0.5A
        • Frequency: 50-60 Hz
        • Input: External AC/DC adapter - IEC320-C8
        • Output: +5VDC, 3A max
        • Total power consumption: 15 Watts
        • DIN4 Locking Power Connector
        • Transport and Storage:
        • Max Operating Altitude: 3000 meters
        • Max Transport altitude: 12,000 meters
        • Storage Humidity 5 to 95% relative humidity (non-condensing)
        • Regulatory: FCC Class B, CE Mark Class B, ACMA C-Tick Mark, VCCI; RoHS Directive 2002/95/EC
