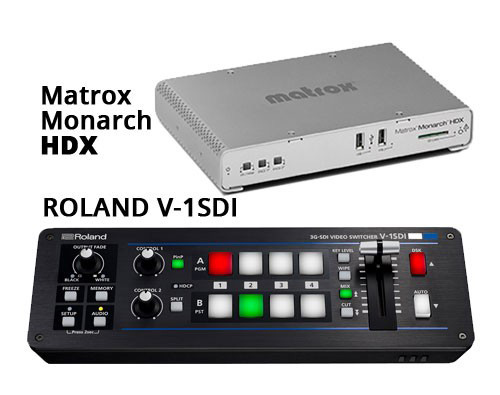

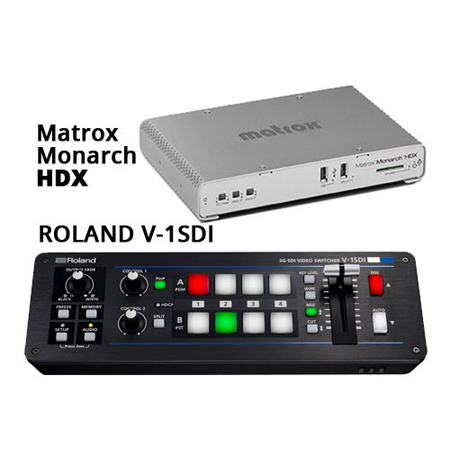

A Video Streaming Kit with Roland V-1SDI Switcher and Matrox Monarch HDX Dual Channel Video Streaming Appliance


Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the VIDSTREAMKIT-3


Roland V-1SDI and Matrox Monarch HDX H.264 Encoder for Broadcast Streaming and Recording. Live Production Bundle!

Roland's V-1SDI is a flexible and versatile video switcher that makes it easy to connect and switch professional 3G SDI cameras and playback sources along with HDMI sources including cameras, smart phones, computers, tablets, Blu-ray players.

Compact and portable, the V-1SDI delivers professional switching results with its easy to use hardware interface complete with T-Fader and easy-to-see backlit buttons.

With support for 3G-SDI, the V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance of SDI making this compact solution suitable for events and applications in even large spaces with the most professional level of SDI camera sources.

The Matrox Monarch HDX is a simple and versatile video encoding appliance specifically designed for broadcasters and webcasters who need a flexible solution that is powerful enough to take on today's demanding video delivery workflows. Monarch HDX offers 3G-SDI and HDMI inputs with frame-synchronization to correct any discontinuity at the input, and two independent H.264 encoders that can be assigned to individual tasks. By providing two encoders in a single device, Monarch HDX can tackle any job; from streaming to two different locations, to recording a proxy quality file while simultaneously recording master quality version for post-event editing, to using one encoder for streaming while the other records at higher quality for VOD downloads. Whether used as a live streaming encoder or video recorder, the Monarch HDX can integrate seamlessly into virtually any SD and HD installation.

  • Features:

    • Roland V-1SDI
    • 3 x 3G-SDI and 2 x HDMI inputs
    • 2 x 3G-SDI and 1 x HDMI outputs
    • Supports full 1080p
    • Compact with hardware control
    • Multiviewer with audio metering
    • DSK (downstream keyer)
    • PiP, Split, Quad, and Chromakey effects
    • 14-channel audio mixer
    • Remote software control Mac/PC
    • RS-232 Remote Control

      Matrox Monarch HDX
    • Powerful, High Quality H.264 Encoding Engine
    • Simultaneous Streaming and Recording
    • Dual-Channel Streaming
    • Easily Webcast to Your Audience
    • Dual-Channel Recording
    • Secure Back-Up with Disaster Recovery
    • Matrox File Consolidator Application
    • Selectable HDMI and SDI Inputs and Simultaneous Outputs
    • Closed Captioning Support
    • Control from Anywhere
    • Robust and Practical Design
  • Specifications:

    • Roland V-1SDI

      Inputs and Outputs
    • Video Processing: 8-bit 4:2:2 (YPbPr)
    • Audio Processing: 24-bit at 48 kHz
    • Channels: 4
    • Video Input Connectors: 3 X SDI, 2 x HDMI
    • Video Output Connectors: 2 x SDI, 1 x HDMI
    • Audio Input Connectors: 2 x RCA, 1 x 1/8"
    • Audio Output Connectors; 2 x RCA, 1 x 1/8"
    • Other Connectors: USB: B Type (for remote control from PC); RS-232: DB-9 type
    • Physical
    • Power Supply: AC Adaptor
    • Current Draw: 2.1 A
    • Power Consumption: 25 W
    • Operation Temperature: +0 to +40 degrees Celsius; +32 to +104 degrees Fahrenheit
    • Dimensions: 313 (W) x 108 (D) x 59 (H) mm; 12-1/3 (W) x 4-1/4 (D) x 2-1/3 (H) inches
    • Weight (excluding AC adaptor): 1.2 kg; 2 lbs 10-2/5 oz

      Matrox Monarch HDX
    • HDMI Video Input
    • Progressive:
    • 1920x1080 @ 60/59.94/50/30/29.97/25/24/23.98 Frames per second
    • 1280x720 @ 60/59.94/50 Frames per second
    • Interlaced:
    • 1920x1080i 29.97/25 Frames per second
    • Supported SDI Video Input
    • Progressive:
    • 1920x1080 @ 60/59.94/50/30/29.97/25/24/23.98 Frames per second
    • 1280x720 @ 60/59.94/50 Frames per second
    • Interlaced:
    • 1920x1080i @ 29.97/25 Frames per second
    • 720x486i @ 29.97 Frames per second
    • 720x576i @ 25 Frames per second
    • SDI Video Output: 0 frame latency passthrough of Input signal. Output is a clean distribution of SDI incoming signal. Hardware bypass relay present in SDI signal path is "closed" on power failure.
    • Audio Input: Processes the first two channels of audio embedded in HDMI or SDI input signals.
    • Unbalanced analog stereo input via 1/8" (3.5mm) jack.
    • Line Level
    • Audio Output: Passthrough of 8 channel of embedded audio channels in HDMI and SDI signals.
    • Unbalanced analog stereo output via 1/8" (3.5mm) jack-passthrough of input.
    • Line Level
    • 2 x USB.2.0
    • 1 x SD Card Slot
    • Dimensions: 5.6" x 8.5" x 1.4"
    • Weight: 1.3 lbs
