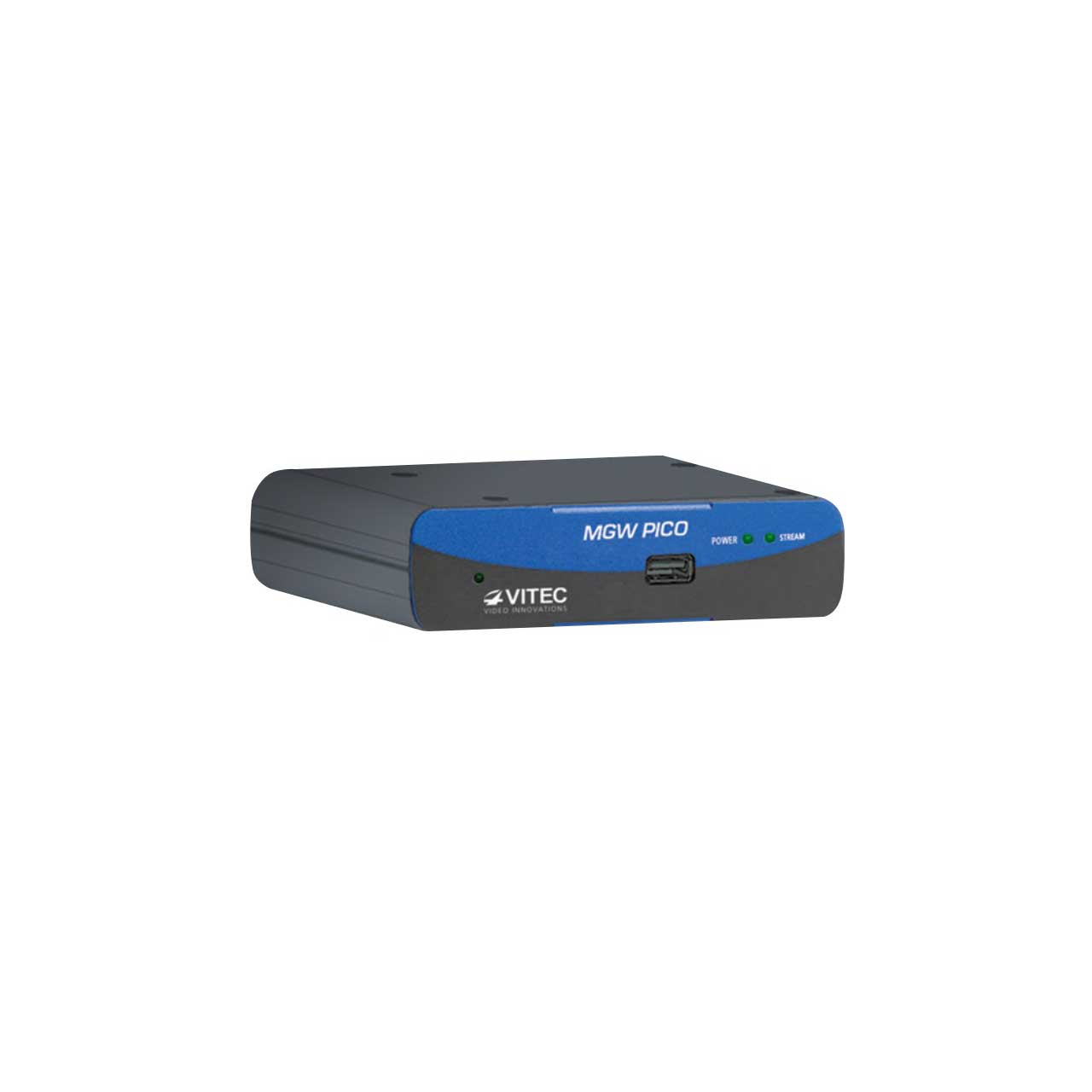

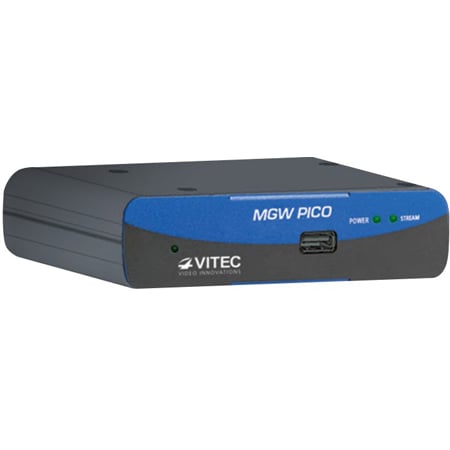

VITEC 17366 MGW Pico Connect Ultra-Compact HD/SD H.264 Encoder

ITEM #: VIT-MGW-PICO-CT MFG #: 17366

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$3,490.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    17366 - Overview

    The Vitec 17366 MGW Pico Encoder is the world's smallest H.264 HD/SD portable encoding appliance. With 3G/HD/SD-SDI and Composite inputs, low power consumption and robust industrial design, the appliance is ideal for any video field-based streaming application.

    The MGW Pico Encoder features a unique ultra-compact design with no moving parts and is 100% silent. It provides two simultaneous H.264 encoding channels (HD+SD) with on-the-fly bit rate change, advanced scaling and frame rate sampling. Additionally, while streaming, MGW Pico Encoder provides full-frame snapshot capture delivered over IP or stored in internal memory.

    To ensure reliable stream delivery on private and public networks including the Internet, MGW Pico encoder features Zixi™ stream protection or industry standard SMPTE 2022 Pro-MPEG error correction technology. With Zixi, the appliance protects video, audio and metadata on networks which exhibit up to 30% packet loss or data corruption, and provides low latency adaptive bitrate streaming (ABR) to adjust the video quality to the available network bandwidth in real time.

    For sensitive applications, the MGW Pico Encoder supports KLV metadata ingest from SDI, IP or Serial and delivers stream in compliance with STANAG 4609 and MISB standards.

    The MGW Pico Encoder is also available as a PCB-only subsystem in two selectable integration options with a comprehensive API for command and control over IP.

    • Features:

      • World's smallest professional HD H.264 encoder with 3G/HD/SD-SDI and Composite inputs
      • Superb HD/SD H.264 compression quality up to 1080p
      • Up to 2 simultaneous H.264 encoding channels
      • Zixi Error Correction and Pro-MPEG FEC built-in for reliable stream transmission
      • Full-frame snapshots while streaming
      • Metadata support: MISB KLV / STANAG and CoT (SDI, IP and Serial)
      • Under 6 Watts power consumption
      • Industrial-grade, fanless design

        Applications
      • Point-to-Point video contribution with low delay
      • Satellite News Gathering and Field Broadcasting
      • Intelligence security and surveillance (ISR) video from mobile and airborne / ground vehicles over RF link or satellite
      • Dissemination of situational awareness and full motion video (FMV) content across LANs and WANs
      • Full HD 1080p monitoring

    • Specifications:

      • Video Inputs
      • 1x 3G/HD/SD-SDI: SMPTE 259M-C, SMPTE 292M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A (BNC, 75 Ohm);
      • 1x Analog Composite: PAL/NTSC (BNC, 75 Ohm)

        Input Resolutions / Frame Rates:
      • 1920x1080p @ 60, 59.94, 50, 30, 29.97, 25, 24 Hz /1920x1080i @ 60, 59.94, 50 Hz /1280x720p @ 60, 59.94, 50, 30, 29.97, 25 Hz /720x480i @ 59.94 Hz /720x576i @ 50 Hz

        Audio Inputs
      • 1x SDI Embedded audio (Stereo or Mono)
      • 1x Analog unbalanced audio (via breakout cable)

        Video Output
      • H.264 (ISO\IEC 14496-10 AVC MPEG-4 part 10) Modes: Baseline Profile L3; Main Profile L3 and L4; High Profile L4 and L4.1
      • Bit Rate: 100 Kbps - 15 Mbps
      • Frame Rate: 5-60 fps.
      • Down sampling modes: 3/4, 2/3, 1/2, 1/3, 1/4
      • Bit Rate Regulation Modes: Constant (CBR), Variable (VBR)
      • Output Resolutions: Configurable from QCIF up to 1920x1080p30 / 1280x720p60
      • Encoding Latency: 65 milliseconds

        Audio Output
      • MPEG-4 AAC-LC (ISO/IEC 14496-3)
      • Stereo and mono modes
      • Bit Rate: 32Kbps - 192Kbps in Stereo, 16Kbps - 192Kbps in Mono
      • Sampling Rate: 48 kHz

        Network Protocols
      • Streaming: UDP TS; RTP TS; RTP ES (RTSP); Unicast and Multicast modes
      • Error Correction: Zixi™ technology for up to 30% packet loss recovery; RTP TS with Forward-Error-Correction (FEC SMPTE 2022)
      • Peripheral: HTTPS, NTP, SSH, SAP

        Environmental / Regulation
      • Operating Temperatures: -40° to +122° F ( -40° to +50° C )
      • Relative Humidity: 5% to 95% (non-condensing)
      • EMC Standards: FCC part 15 class A and CE
      • Power: 12VDC, 6W Max
      • MTBF: Ground - 9.00 years. Airborne - 12.70 years. Naval Sheltered 10.30 years. (As per MIL-HDBK-217F)
      • Not controlled under ITAR
      • TAA Compliant

        Physical
      • Dimensions (HxWxD): 1.02 x 4.33 x 2.91" D (26 x 110 x 74mm)
      • Weight: 0.55lb (0.25Kg)
      • Enclosure: Industrial-grade rugged case, rack-mount kit available as add-on

    • Item Includes:

      • 1x MGW Pico Encoder Ultra-Compact, Low Latency H.264 Encoding & Streaming Appliance
