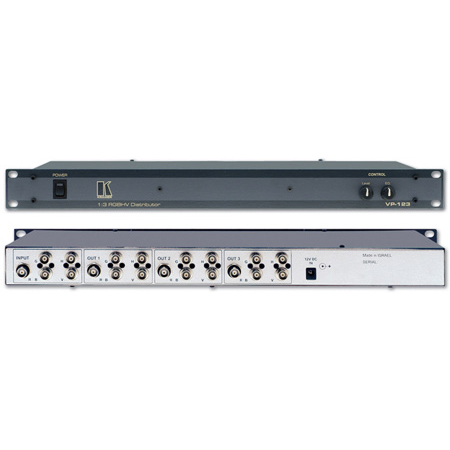

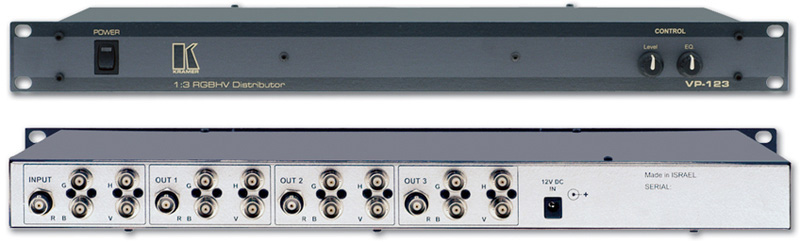

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the VP-123

VP-123 - Overview

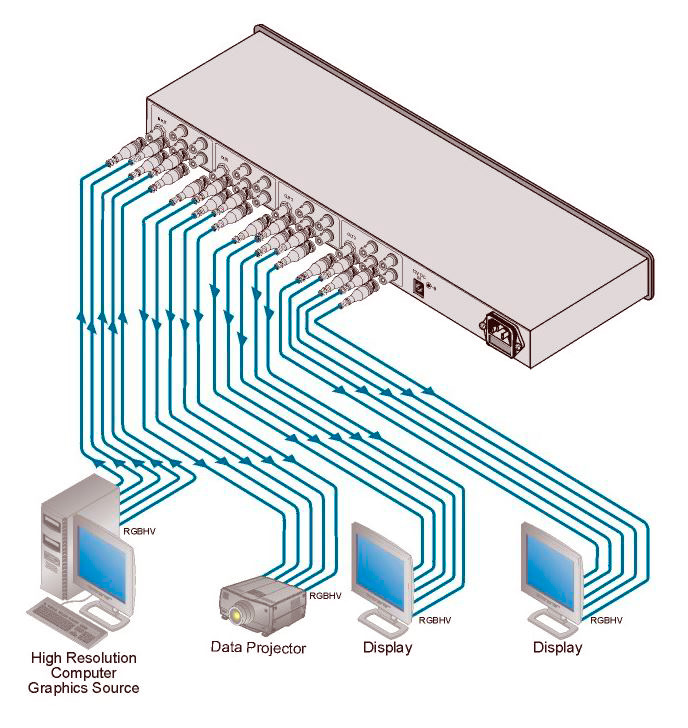

A pair of high performance 1x3 distribution amplifiers for RGBHV video signals. Each unit uses 5-BNC connectors for each output, however, the VP-123 uses 5-BNC inputs while the KR-VP123V uses a "VGA/XGA" HD15 connector. Each model has three high bandwidth analog video channels, Red, Green and Blue, that can be operated independently allowing them to be used for other video signal formats such as composite, Y/C and component (a breakout cable would be required for the KR-VP123V to input the desired signal format).

Use as a 1x3 Composite DA, 1x3 YC DA and a 1x3 Component DA, or as three 1x3 Composite DAs. The remaining two channels are for H Sync and V Sync. These remaining two channels are digital/logic channels that include special circuitry for syncreconstruction and shaping. Bandwidth of over 450MHz ensures that the VP-123 and KR-VP123V remain transparent even in critical broadcast and high resolution applications. 12V powering also makes them ideal for fieldwork as well.

  • Specifications:

    • INPUT: 1x3 component/RGB/composite video, 1Vpp/75Ω on BNC connectors; H Sync and V Sync, TTL level.
    • OUTPUT: 3x3 component/RGB/composite video, 1Vpp/75Ω on BNC connectors 3 x H Sync, V Sync TTL level on BNC connectors.
    • BANDWIDTH (-3dB): 450MHz.
    • MAX. OUTPUT LEVEL: 2.1Vpp/75Ω (R, G, B).
    • DIFF. GAIN: 0.13%.
    • DIFF. PHASE: 0.02Deg.
    • K-FACTOR: <0.05%.
    • S/N RATIO: 82.3dB.
    • CROSSTALK: 55.9dB, all hostile.
    • CONTROLS: Level: -0.8 to +6.3 dB; EQ.: 0 to +13.6 dB @50MHz.
    • COUPLING: DC.
    • POWER CONSUMPTION: 12V DC, 100mA.
    • DIMENSIONS: 19" x 7" x 1U W, D, H, rack mountable.
    • WEIGHT: 2.36kg (5.2lbs) approx.
    • ACCESSORIES: Power supply.

  • GTIN:

    7291063011871
