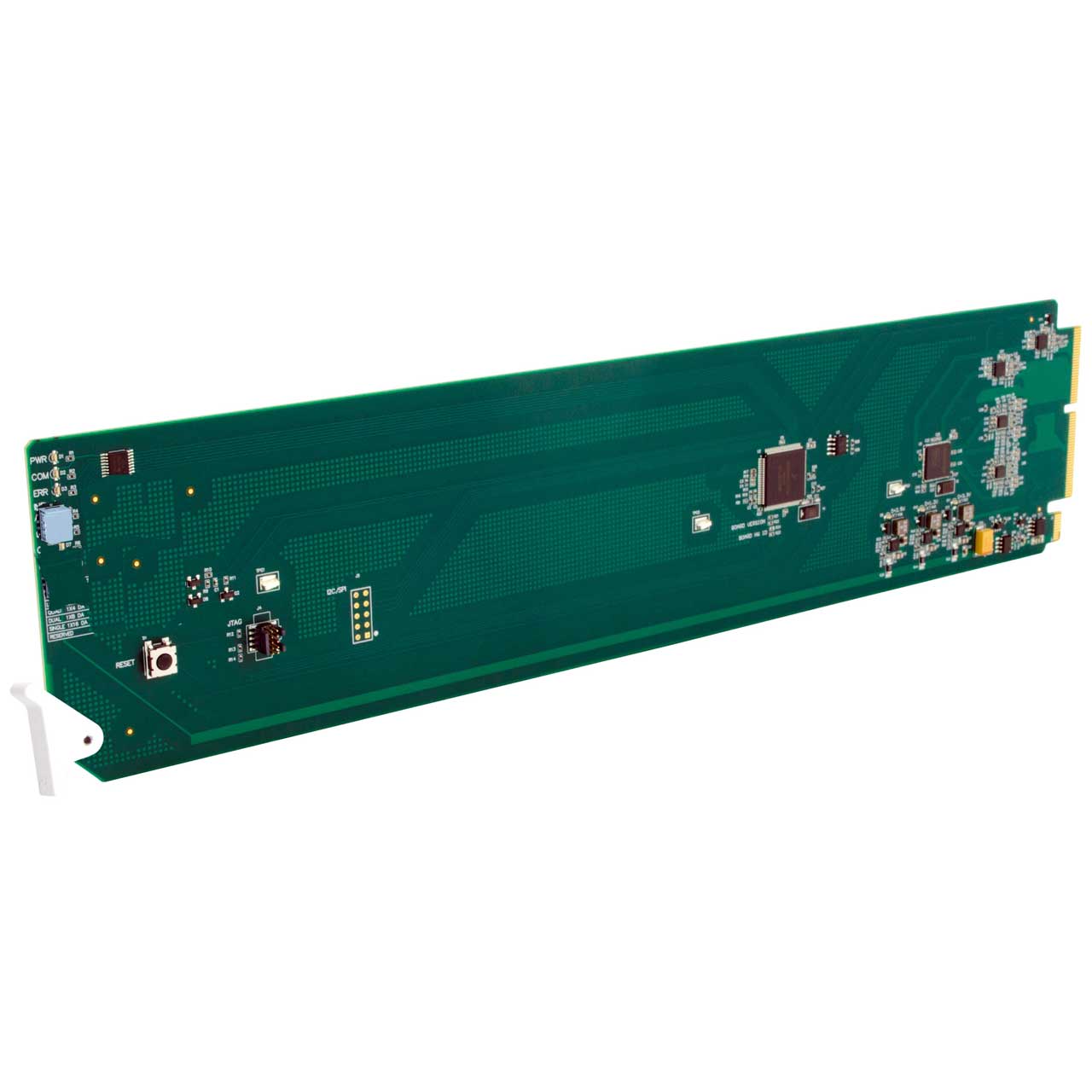

Cobalt Digital ROYAL 9910DA-AV Analog Video Distribution Amplifier openGear Card

ITEM #: CB-9910DA-AV MFG #: ROYAL 9910DA-AV

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$422.00

Availability: In Stock
iAvailability Description Popup


    ROYAL 9910DA-AV - Overview

    openGear Analog Video Distribution Amplifier

    The Cobalt 9910DA-AV Analog Video Distribution Amplifier is perfect for use as a black burst and tri-level reference DA. It provides 1x8 distribution with one analog input and eight 75Ω analog outputs. Card jumpers allow setting the input as differential (floating ground) or single-ended, and Hi-Z looping input or on-card 75Ω terminated. A trim control located on the front of the card allows gain control. The card can be accessed using DashBoard remote control for status monitoring.

    • Features:

      • Usefull as a black burst and tri-level reference DA
      • Multi-mode input provides differential or single-ended input and hi-Z looping or card-terminated operation
      • Remote monitoring via DashBoard software or OGCP-9000 Remote Control Panel
      • Five year warranty

    • Specifications:

      • Power 2 Watts

      • Analog Video Input:
      • Number of inputs: (1)
      • Impedance: User selectable as hi-Z looping or card-terminated 75Ω
      • Level: 1 Vp-p, nominal
      • Return Loss: 46 dB @ 3.58 MHz
      • Input modes: User selectable as differential/single-ended and AC or DC coupled

      • Analog Video Outputs:
      • Number of DA outputs: up to (8)
      • Impedance: 75Ω
      • Level: 1 Vp-p, nominal
      • Looping Output: (1)

      • Performance:
      • Frequency response: >0.05 dB @ 3.58 MHz
      • Differential Gain: >0.15% @ 3.58 MHz
      • Differential Phase: >0.15° @ 3.58 MHz
      • S/N: >60 dB; 5 MHz BW

    • Warranty:

      • 5 Year
