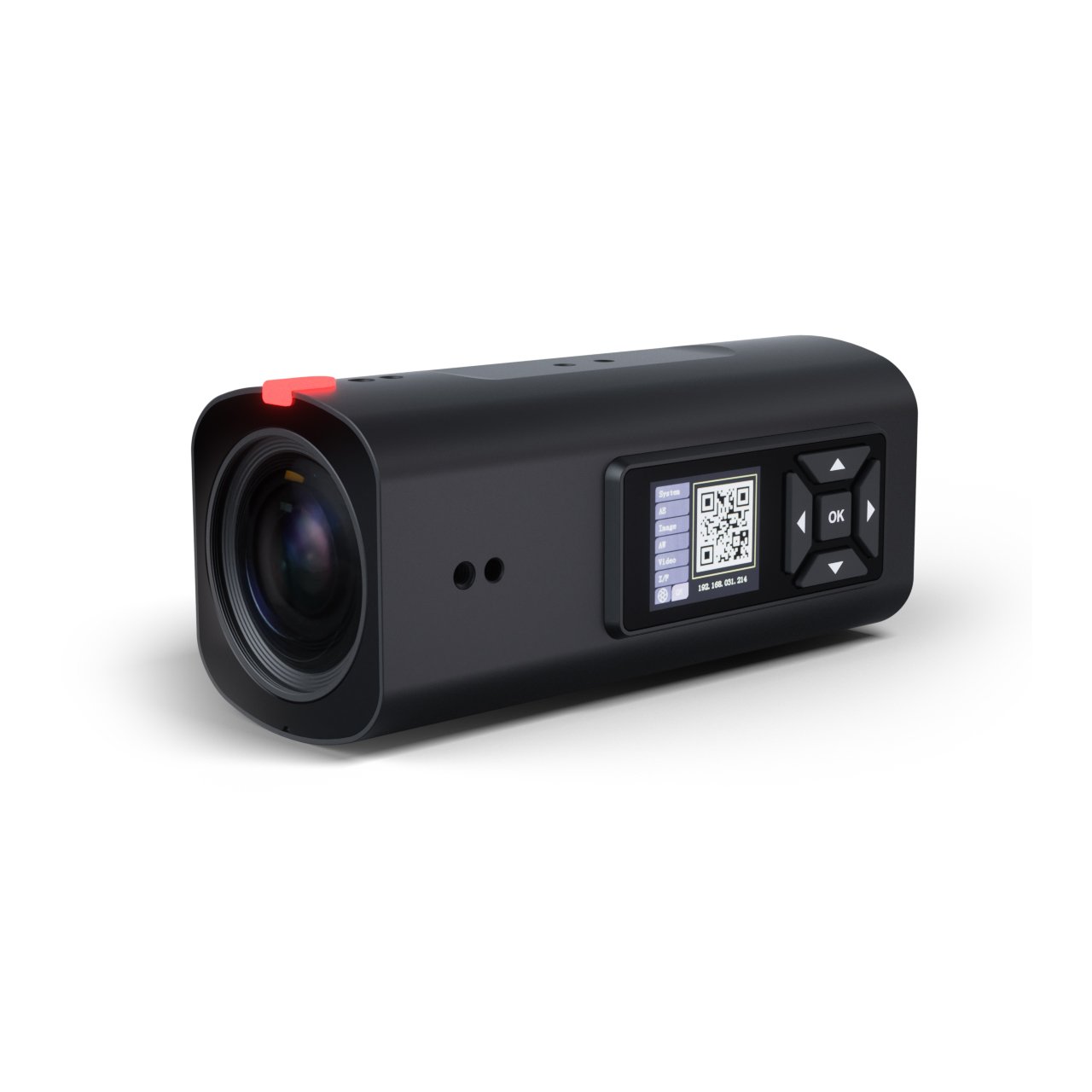

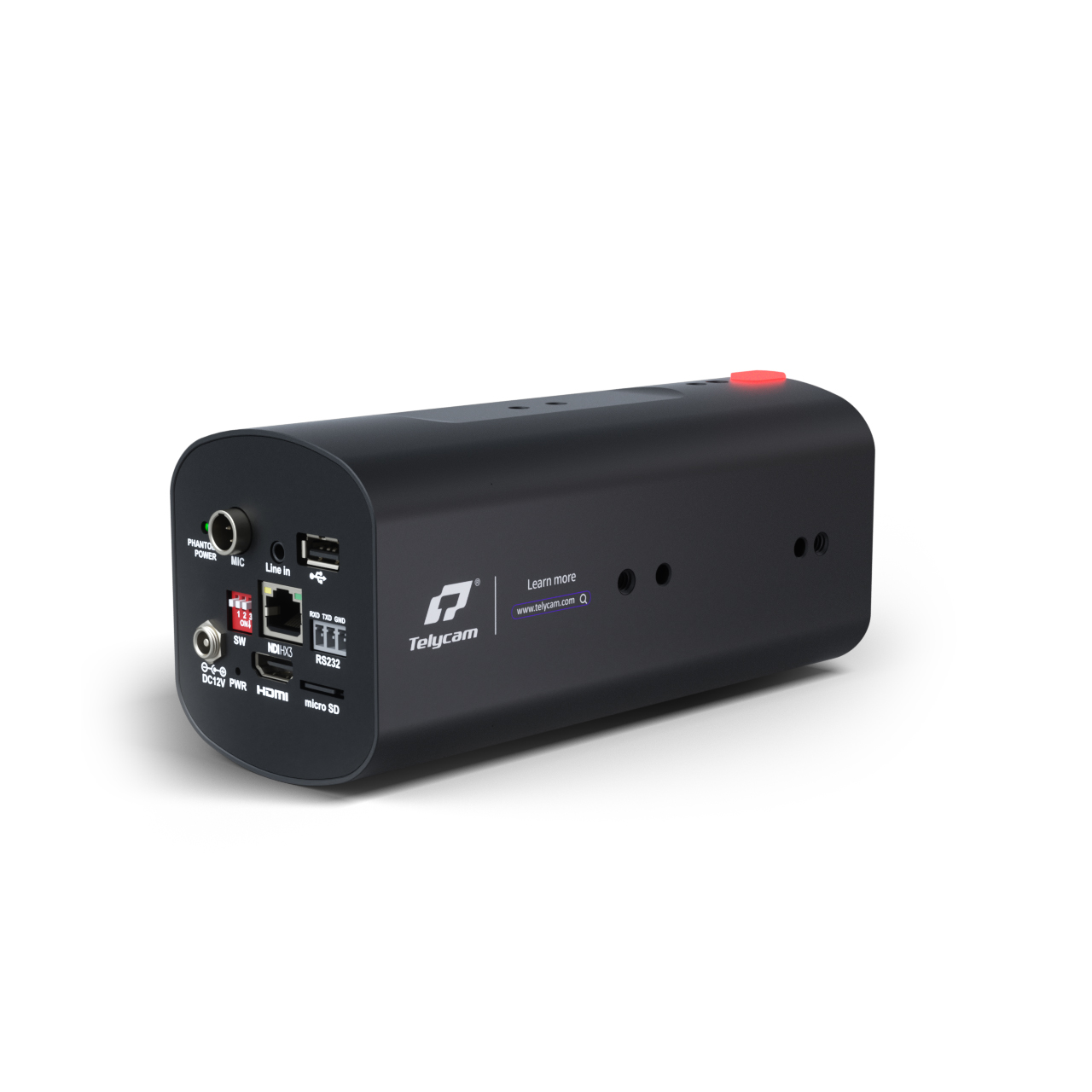

Telycam VP600-20-4KZ-B Vision+ 4KZ 4K60 e-PTZ Box Camera with 20x Optical Zoom and NDI-HX3 Support

ITEM #: VP600-20-4KZ-B MFG #: VP600-20-4KZ-B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


VP600-20-4KZ-B - Overview

The Telycam Vision+ 4KZ is a professional-grade 4K 60fps box camera with a 20x optical zoom, designed for a wide range of video production applications. This versatile camera boasts an integrated color LCD screen with tactile controls, enabling direct on-camera adjustment of key parameters. With comprehensive connectivity options like NDI HX3, SRT, RTMP, and HDMI, it seamlessly integrates into any workflow. The camera supports professional audio inputs, including XLR with phantom power. Its robust chassis offers multiple mounting points for flexible rigging. Advanced features include simultaneous 4K and 1080p cropped output, Dual Smart Tracking Modes: Auto Framing and Auto Tracking, and onboard MicroSD recording.

Perfect Color Match for Multi-Camera Productions
The Vision+ 4KZ box camera solves color and visual inconsistency in multi-camera productions by using the same high-quality lens, sensor, and processor as the Vision+ 4KZ 20x PTZ, ensuring a consistent look across fixed and PTZ setups.

Side Control Panel for Key Image Parameters & IP Address
Quickly access and adjust essential image parameters and view the IP address directly on the camera's side panel, streamlining your workflow.

Built-in CROP Dual Smart Tracking Modes (1080P and Below)
In CROP mode, two intelligent tracking options are available: Auto Framing and Auto Tracking. Auto Framing dynamically adjusts the frame to keep the subject perfectly centered. Auto Tracking uses advanced AI algorithms to identify and follow the subject even in complex environments.

Embed the Latest NDI SDK
Leverage the power of Newtek's NDI for plug-and-play compatibility with various live streaming products and platforms, creating diverse and engaging content.

Robust Audio Capabilities
The Vision+ 4KZ features 3.5mm line-in and Mini XLR with Phantom power, providing compatibility with various microphones and audio equipment.

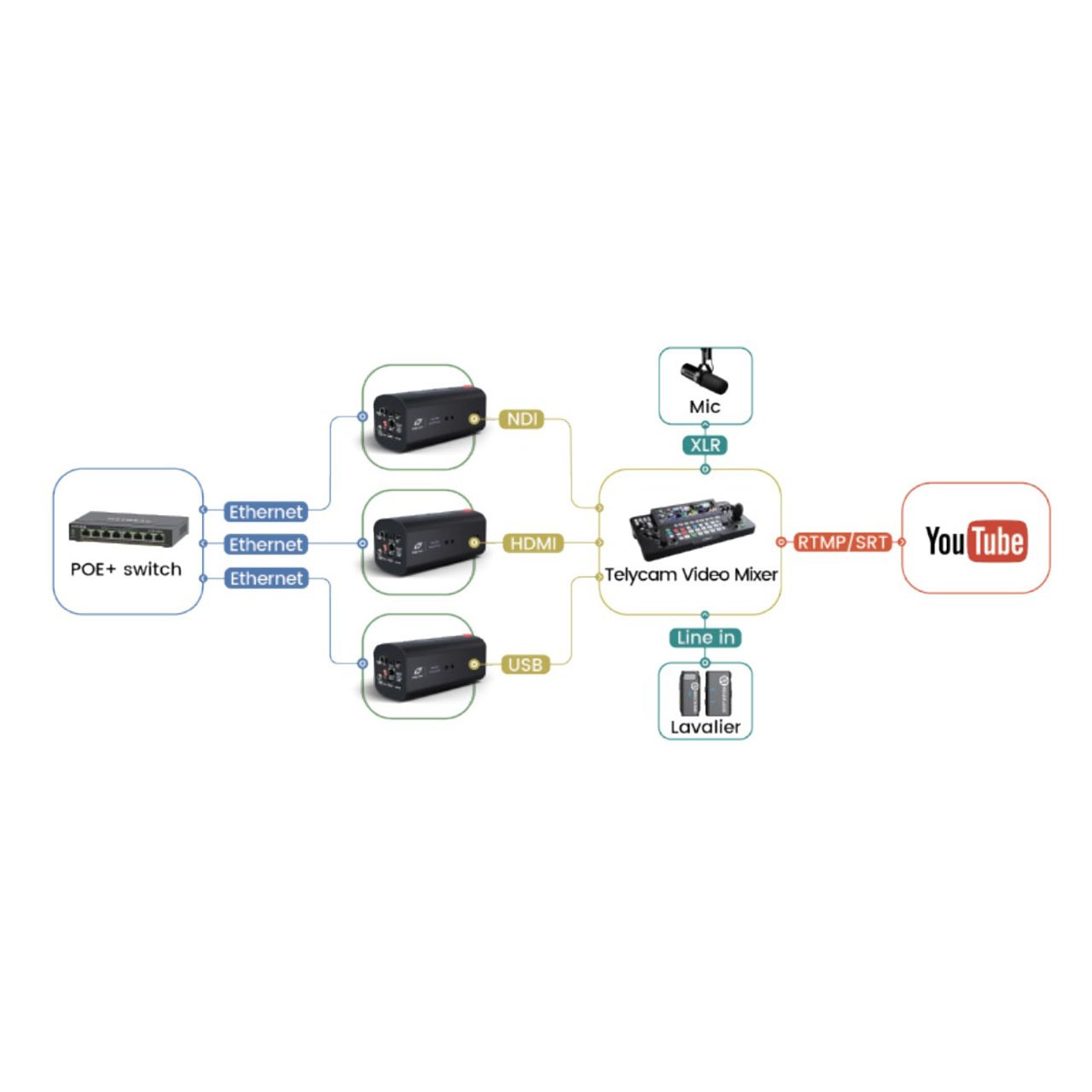

All-in-One Live Streaming Camera
It features multi-interface output support via NDI HX3, HDMI, or USB 2.0. For professional audio integration, it offers dual connectivity: a 3.5mm line-in and a Mini XLR port with +48V phantom power, ensuring compatibility with studio-grade microphones. An integrated tally light delivers clear visual status feedback during live streaming.

  • Features:

    • 4K UHD Resolution
    • 20X Optical Zoom
    • Side Control Panel
    • Dual Smart Tracking Modes
    • Perfect Color Match
    • Tally Lights for Effortless Production Cues
    • Local Recording for Backup and Cloud Production with MircoSD Card
    • Robust Audio Capabilities
    • Seamless Camera Setup with SSDP

  • Specifications:

      General
    • Dimension(LxWxH): 3.2" x 3.4" x 7.3" (82mm x 85.3mm x 186.5mm)
    • Weight: 2.09lbs (0.95kg)
    • Input Voltage: DC12V, POE+(IEEE802.3bt)
    • Operating Temperature: 14°F - 122°F (-10°C - 50°C)

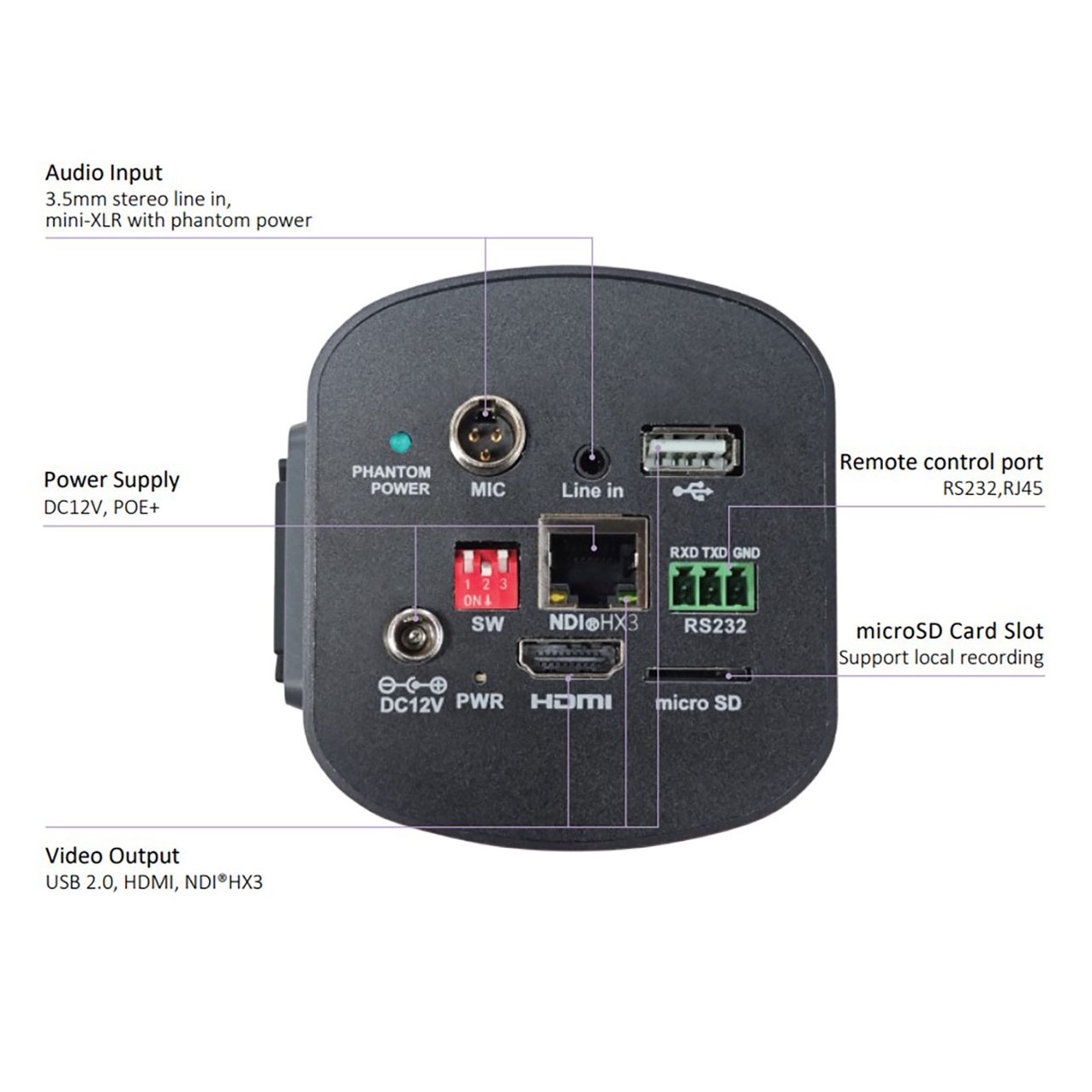

      I/O Interface
    • Control Port: RS232, RJ45
    • Video Port:
      - 1x NDI HX3
      - 1x HDMI 2.0
      - 1x USB Type-A
    • Audio Port:
      - 1x Stereo 3.5mm Linear Inputs
      - 1x Mini XLR
    • Tally: Support
    • POE: Support

      Camera
    • 1/1.8", 9MP UHD CMOS sensor
    • 20x optical zoom
    • Lens: f = 6.25mm - 112.5mm, F1.58 - F3.96
    • Horizontal View Angle: 61° (Wide) - 3.5° (Tele)
    • Vertical Viewing Angle: 34.1°-1.9°
    • Diagonal Viewing Angle: 60.7°-3.5°
    • Minimum Working Distance: 1.0m
    • S/N Ratio: ≥50dB

      Image Parameters
    • Noise Reduction: 2D&3D
    • Minimum lux: 0.5Lux(50 IRE Max AGC, 1/30, F1.8)
    • White Balance: Auto/Manual/Auto tracking/Push/Indoor/Outdoor/Color Temperature
    • Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
    • Anti-Flicker: OFF, 50Hz, 60Hz
    • Image Flip/Mirroring: Support
    • Focus/Iris/Electronic-shutter: Auto/Manual
    • Gamma: Support
    • Backlight Compensation: Support

      IP Streaming
    • Video Encoding: H.264/H.265
    • Bitrate Control: Variable bitrate(VBR), Constant bitrate(CBR)
    • Bitrate Range: 1024Kbps - 61440Kbps
    • Network Port Speed: 1000M
    • Protocol: NDI HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, NTP, RTP Multicast, WebRTC

  • Item Includes:

    • 1x Vision+ 4KZ 4K60 e-PTZ Box Camera
    • 1x Power Cord

  • Warranty:

    • 1-Year Limited Warranty
