Viewz VZ-215LED-SN 21.5 Inch Low-Cost Broadcast Quality SDI LED Monitor
  • Viewz VZ-215LED-SN 21.5 Inch Low-Cost Broadcast Quality SDI LED Monitor
  • Viewz VZ-215LED-SN 21.5 Inch Low-Cost Broadcast Quality SDI LED Monitor
  • Viewz VZ-215LED-SN 21.5 Inch Low-Cost Broadcast Quality SDI LED Monitor
  • Viewz VZ-215LED-SN 21.5 Inch Low-Cost Broadcast Quality SDI LED Monitor
  • Viewz VZ-215LED-SN 21.5 Inch Low-Cost Broadcast Quality SDI LED Monitor

Questions? Ask a Markertek Expert:
800-522-2025 Email

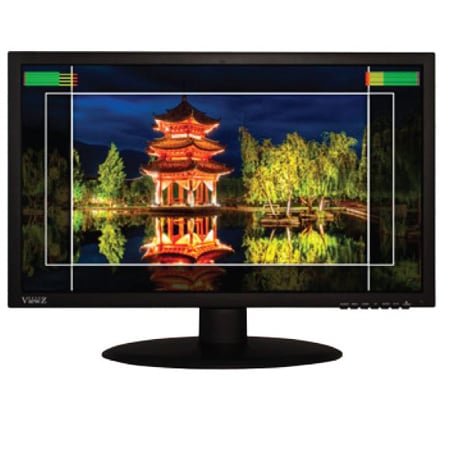

Viewz VZ-215LED-SN 21.5 Inch Low-Cost Broadcast Quality SDI LED Monitor

Manufacturer: Viewz

Item #: VZ-215LED-SN   •   MFG #: VZ-215LED-SN



List Price:$791.00
Our Price:$751.45

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!





    3-Gbps (3G)-SDI, higher resolution (FHD) of picture quality required Serial Digital Interface (SDI) for 1080p.

    1:1 pixel mode displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

    Viewing of the blanking area and sync/burst signal by displaying the horizontal and vertical intervals in the center of the screen.

    All of ViewZ broadcasting monitors are calibrated using our CS-2000 Spectroradiometer to analyze our panels specifications and test with an I-one & K-10 colorimeter to apply custom color calibration values at the factory.

    Off, 16:9, 4:3, 4:3(on air), 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1 and 4:3, line, safety, corner marker on/off, blue/green/red/gray/black and white marker color option.

    Internal test pattern generator for full ramp color bars, SMPTE color bars, and luminance ramp display.


    • Features

      • 3G SDI 425M-A YCbCr 4:2:2 Support
      • Factory Color Ccalibration - GAMUT, GAMMA and COLOR TEMP.
      • Scan - Zero, Over pixel to pixel
      • LED Backlight Display
      • Y Clip Guide Min/Max Select (SD/HD SDI)
      • SDI Active Loop Through Out
      • Programmable Function Key
      • H/V Delay
      • Aspect Setting
      • Various Markers
      • On-Screen Menu
      • Screen Color Mode: Blue & Mono
      • Built-in Speaker
      • SDI Embedded 16CH Audio Level Meter
      • RJ-45 Remote Control

    • Specifications

      • Screen Size 21.5 inch
      • Max Resolution 1920 x 1080
      • Brightness 250cd/m²
      • Contrast Ratio 1000:1
      • Aspect Ratio 16:9
      • Viewing Angle (H/V) 170°/160°
      • Color Depth 16.7 Million
      • Response Time 5 ms
      • Color Temp. 3200K, 6500K, 9300K and User settings
      • Line Marker Option 16:9, 4:3, 4:3(on air), 15:9, 14:9, 13:9, 1.85:1,
      • 2.35:1, 1.85:1 & 4:3
      • Safety Area Option Off, 80%, 85%, 88%, 90%, 93% and 100%
      • RGB Gain -128 to 128
      • RGB Bias -50 to 50

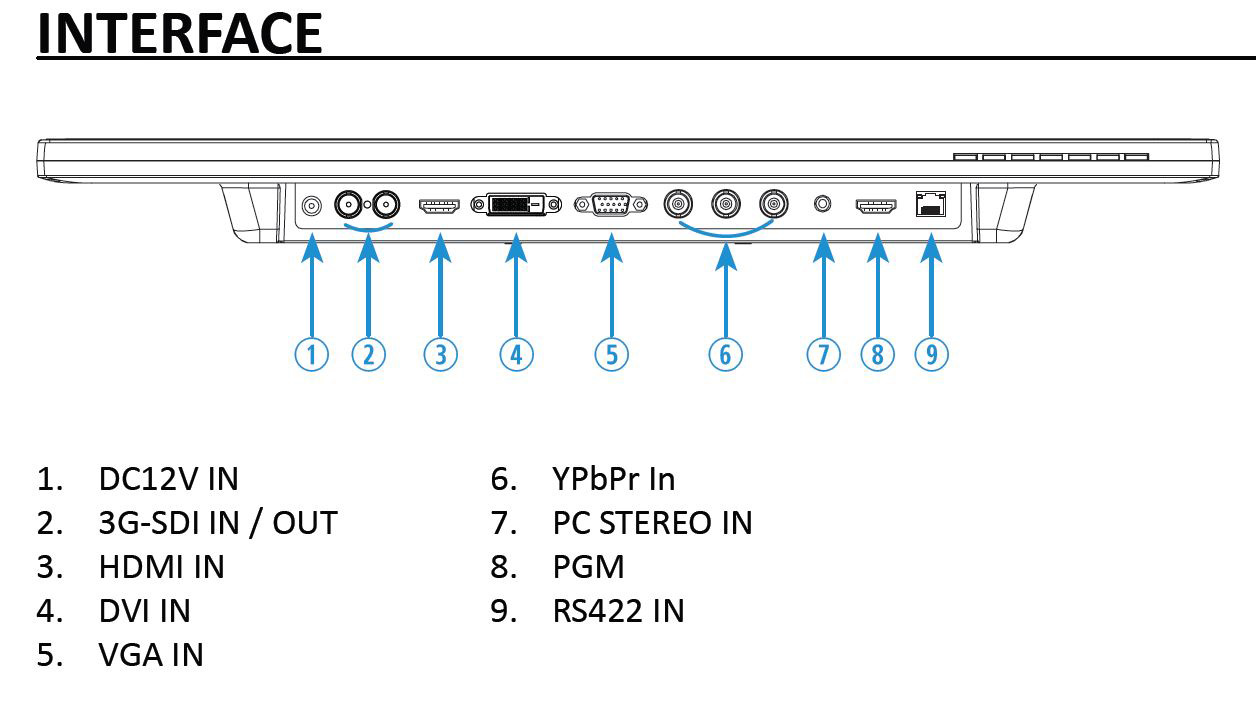

      • SDI In / Out 1 / 1
      • HDMI In 1
      • DVI In 1
      • Component In (BNC jack) - (3CVBS, S-Video, Component) 3
      • VGA In (15Pin D-Sub) 1
      • Audio In (PC Stereo) 1
      • RJ45 In ( Color Calibration Port ) 1
      • PGM Port ( Program Update / HDMI Connector ) 1
      • Built-in Speakers 2W x 2

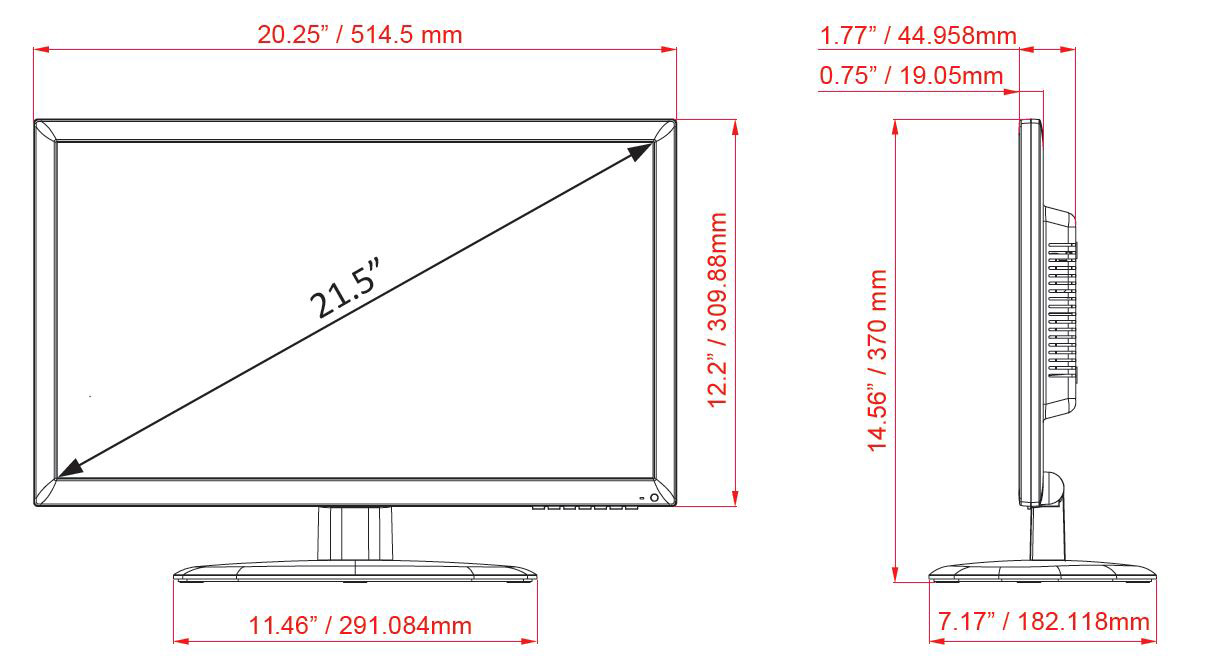

      • Outline Dimension (W x H x D) inch 20.25 " x 14.56 " x 1.77"
      • (W x H x D) millimeter 514.5 mm x 370 mm x 44.958 mm
      • Net Weight 8.4 lbs ( 3.8 kg )

      • Input Signal Format
      • SDI - SMPTE 425M-A 1080p ( 60/59.94/50 )
      • SDI - SMPTE 274M 1080P (30/29.97/25/24/23.98)
      • 1080i (60/59.94/50)
      • 1080Psf (30/29.97/25/24/23.98)
      • SDI - SMPTE 296M 720P(60/59.94/50/30/29.97/25/24/23.98)
      • SDI - SMPTE 125M 525i (NTSC 59.94)
      • SDI - ITU-R BT.601 625i (PAL 50)
      • SDI - 2K Format 2048 x 1080P (24/23.98/24sF/23.98sF)
      • Analog - COMPONENT 1080P (60/59.94/50/ 30/29.97/25/24/23.98)
      • 1080i (60/59.94/50)
      • 720P(60/59.94/50)
      • HDMI 480i/480P/576i/576P/1080i/1080P
      • DVI VGA, SVGA, XGA, SXGA, WXGA, WUXGA
      • VGA VGA, SVGA, XGA, SXGA, WXGA, WUXGA

    • Warranty

      • 2-Year Warranty
