VariZoom VZCPM-K5 CP Micro Head with Jibstick JR Controller with 25 Foot Control Cable and Power Supply - 12lb Max

ITEM #: VZ-VZCPM-K5 MFG #: VZCPM-K5

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$5,995.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    VZCPM-K5 - Overview

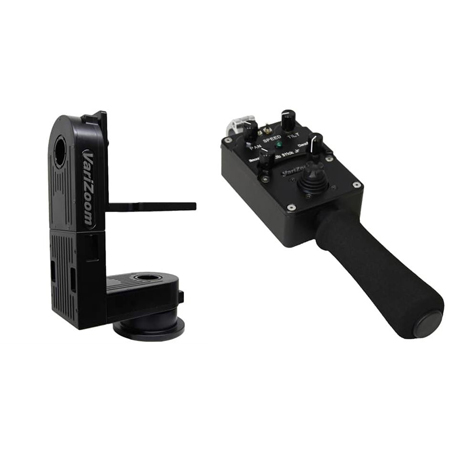

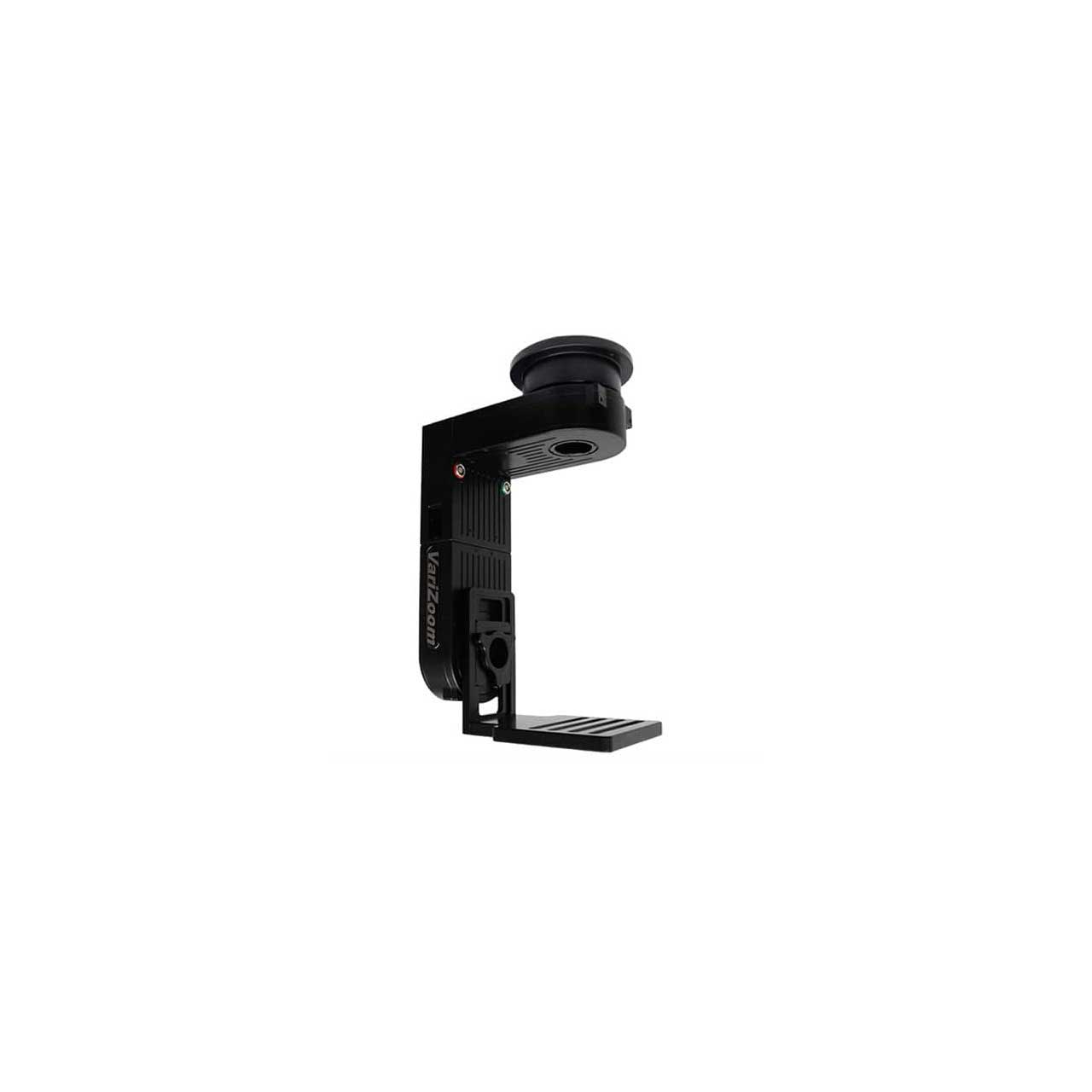

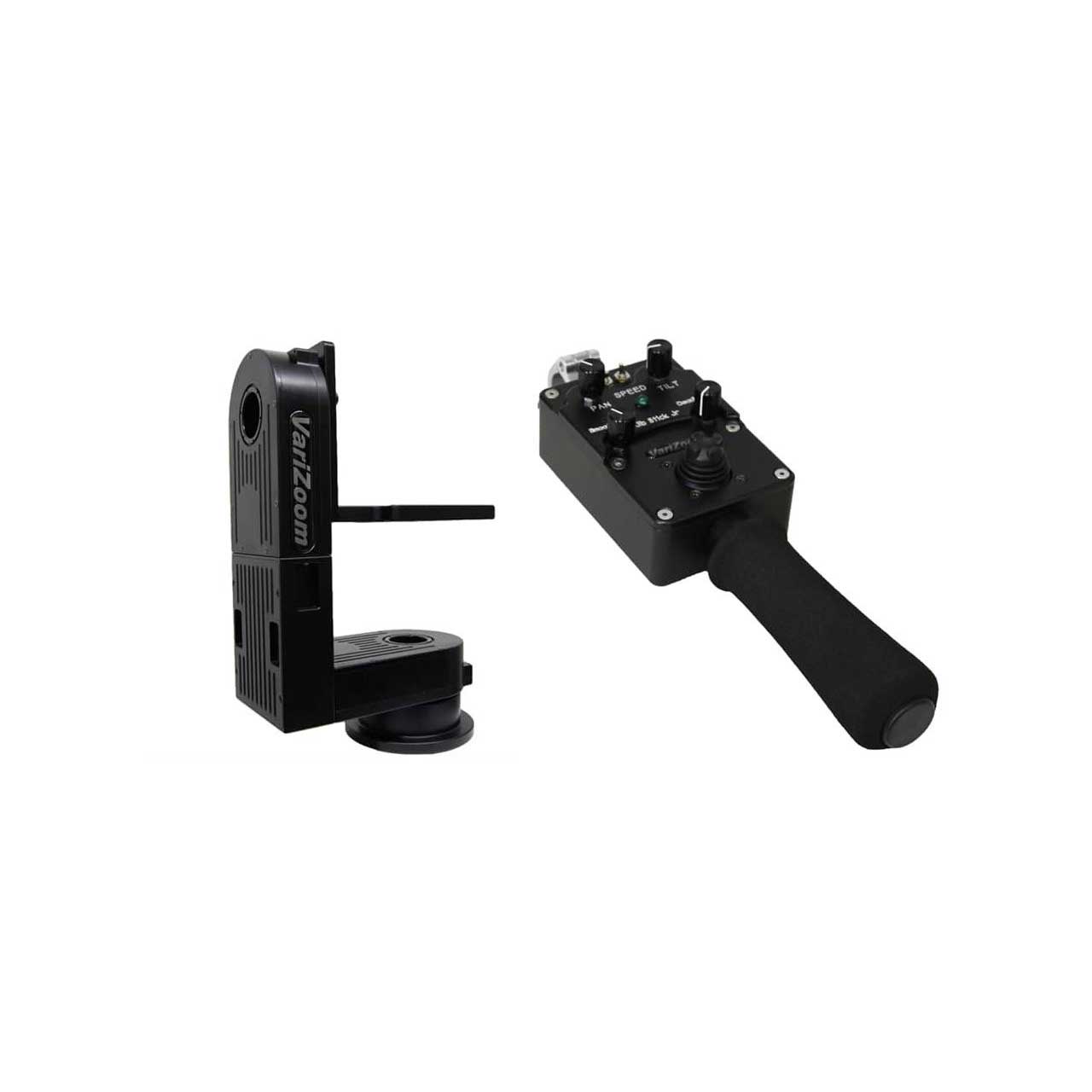

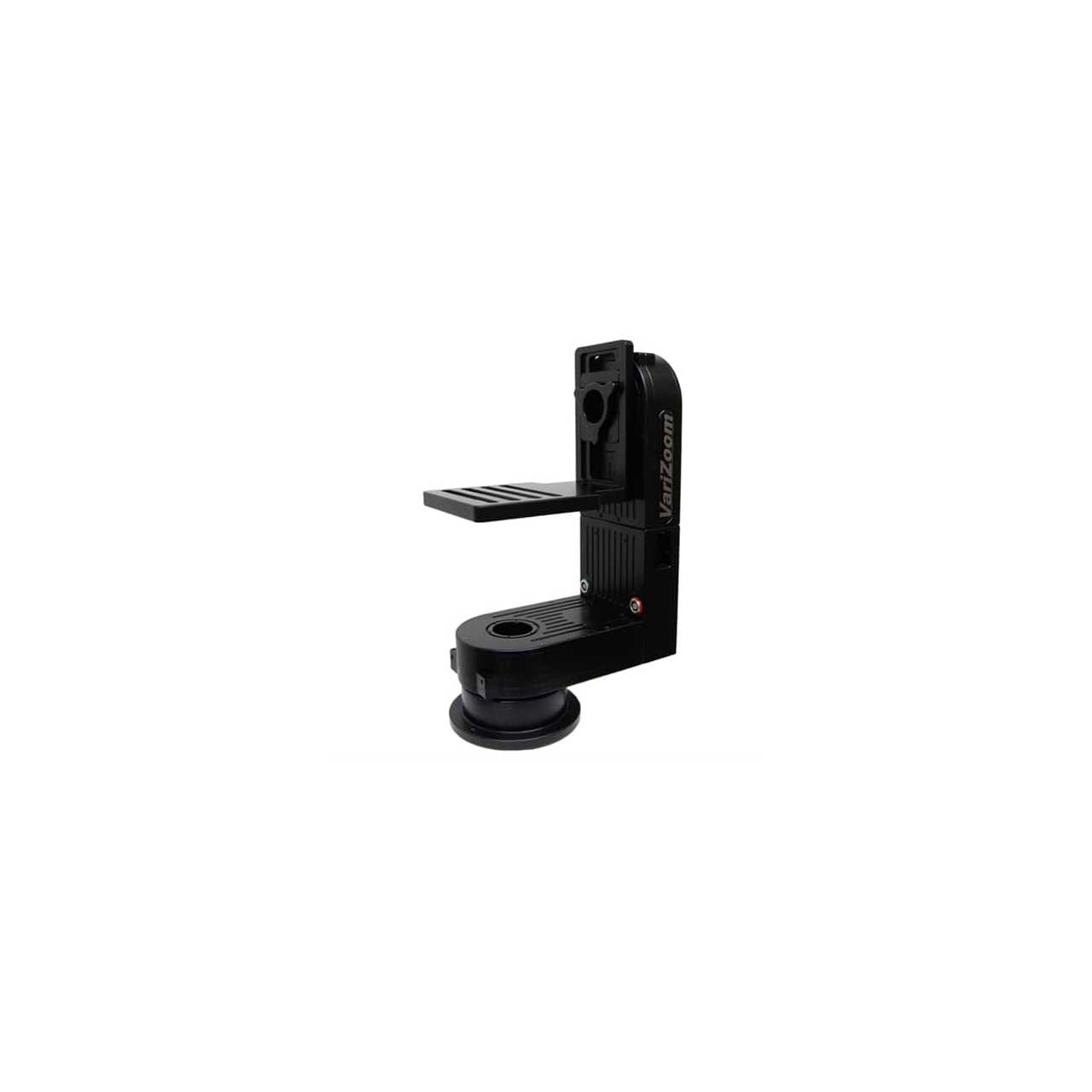

    The Varizoom VZCPM-K5 CP Micro comes in at roughly half the size & weight of the JR and one-third the original CP. Despite its small form factor, the CP Micro is a real powerhouse, utilizing a high-efficiency, low-mass, enclosed drivetrain that will literally make heads spin. Capable of moving at an imperceptible creep up to 80 degrees/second, the CP Micro is also a true motion control head with frame-accurate capability and full compatibility with our existing and future line of control modules, including wheels, pan bars, jibstick, and advanced consoles (single and multi-head).Item includes: CPM head, Jibstick Jr controller, case, cables, power supply. Customer must specify mount type: Mitchell or 100mm ball.

    Using the same control system as our acclaimed CP and CP JR heads, the CP Micro offers the same frame-accurate, fully enclosed drivetrain, high-performance design at a much more affordable price and in a much smaller and lighter package. Ideal for Canon C100 & C300, Sony FS5, Sony A7RII, RED Raven, DSLRs, and any other compact cameras under 12lbs, the CP Micro sacrifices nothing in quality but is tailored to meet the needs of shooters requiring a smaller and lighter package.

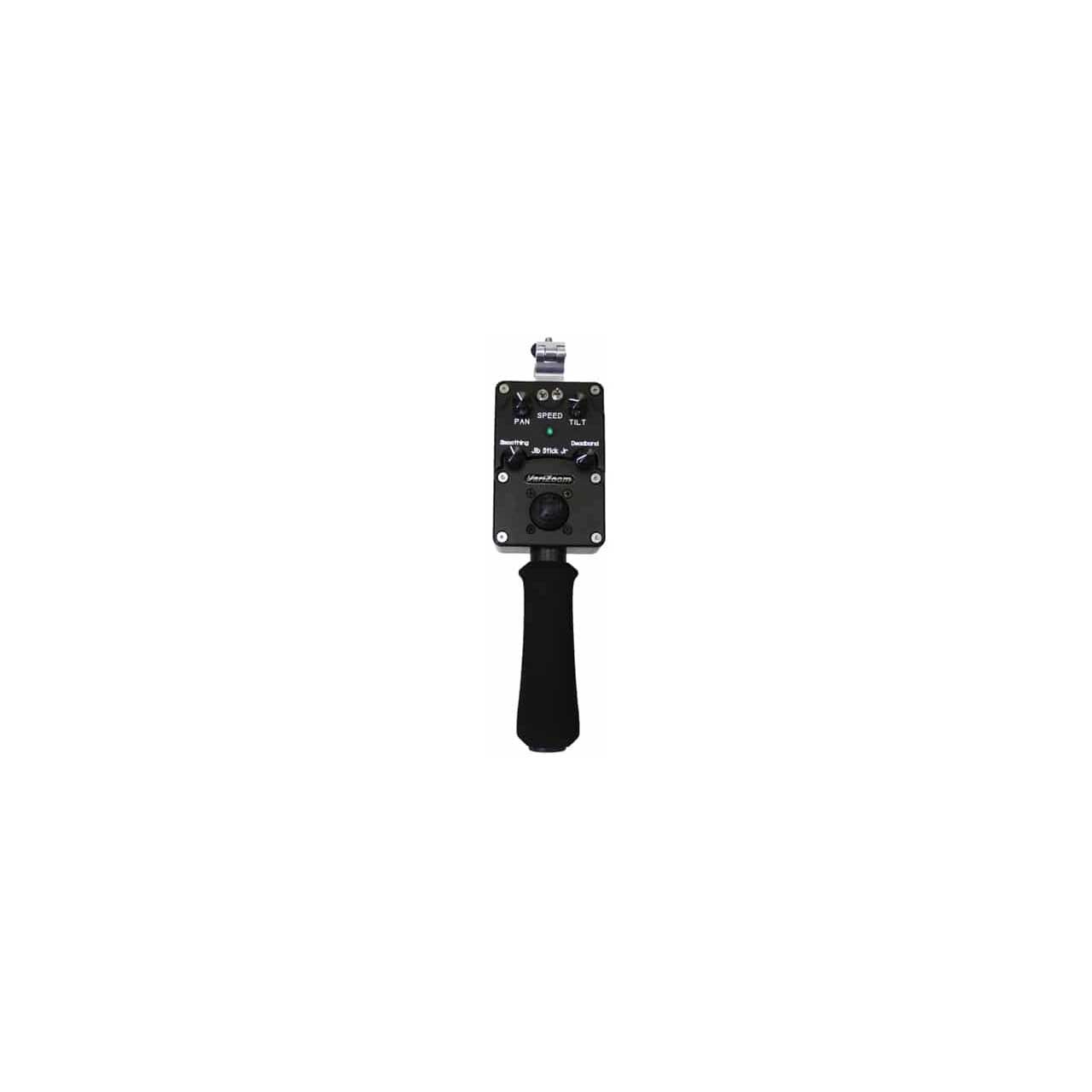

    The CP Micro works with all of the existing CinemaPro control devices, including pan bars, hand wheels, advanced console, new "River" multi-head 28-axis console, Jibstick Pro, and Jibstick JR.

    • Features:

      • Dynamic speed control from an imperceptible creep up to 80 degrees/second
      • Maintenance-free, high-power drivetrain holds camera position
      • Cable pass-thru ports on pan and tilt rotators
      • Native frame-accurate motion control capability (repeatability depends on controller)
      • Independent speed and direction controls
      • Smoothing adjustment
      • Thumb joystick
      • Easily adjustable single-lock camera platform
      • User choice of Mitchell mount or 100mm ball mount at no charge
      • Flexible mounting base allows field change of mount type with no special tools
      • Lemo connectors for power and control
      • AC power supply with 25ft cable
      • 25' control cable
      • Hard carrying case

    • Specifications:

      • Camera Clearance: Vertical - Camera pointing straight down/up: 7" from center of cam plate to base. Horizontal - Camera pointing level horizon, underslung: 8.25" min / 10.5" max. With 3" head extension: Vertical 10", Horizontal 11.25" min / 13.5" max
      • Max Cable Extension: 300 feet, longer with optional power booster
      • Max Camera weight: 12 lbs
      • Pan/Tilt speed: 80 degrees/second (limited for optimal performance)
      • Mechanical travel: Limited only by cable twist
      • Power Requirements: 24VDC regulated, 4A max
      • Dimensions: 13" x 4" x 8"
      • Weight: 7 lbs
      • Shipping Dimensions: 26" x 20" x 9"
      • Shipping Weight: 35 lbs

    • Item Includes:

      • 1x CP Micro Head
      • 1x Jibstick JR Controller
      • 1x 25 Foot Control Cable
      • 1x Power Supply

    • Warranty:

      • 2 year

    • GTIN:

      0877038007352
