    PTR-10 MK II - Overview

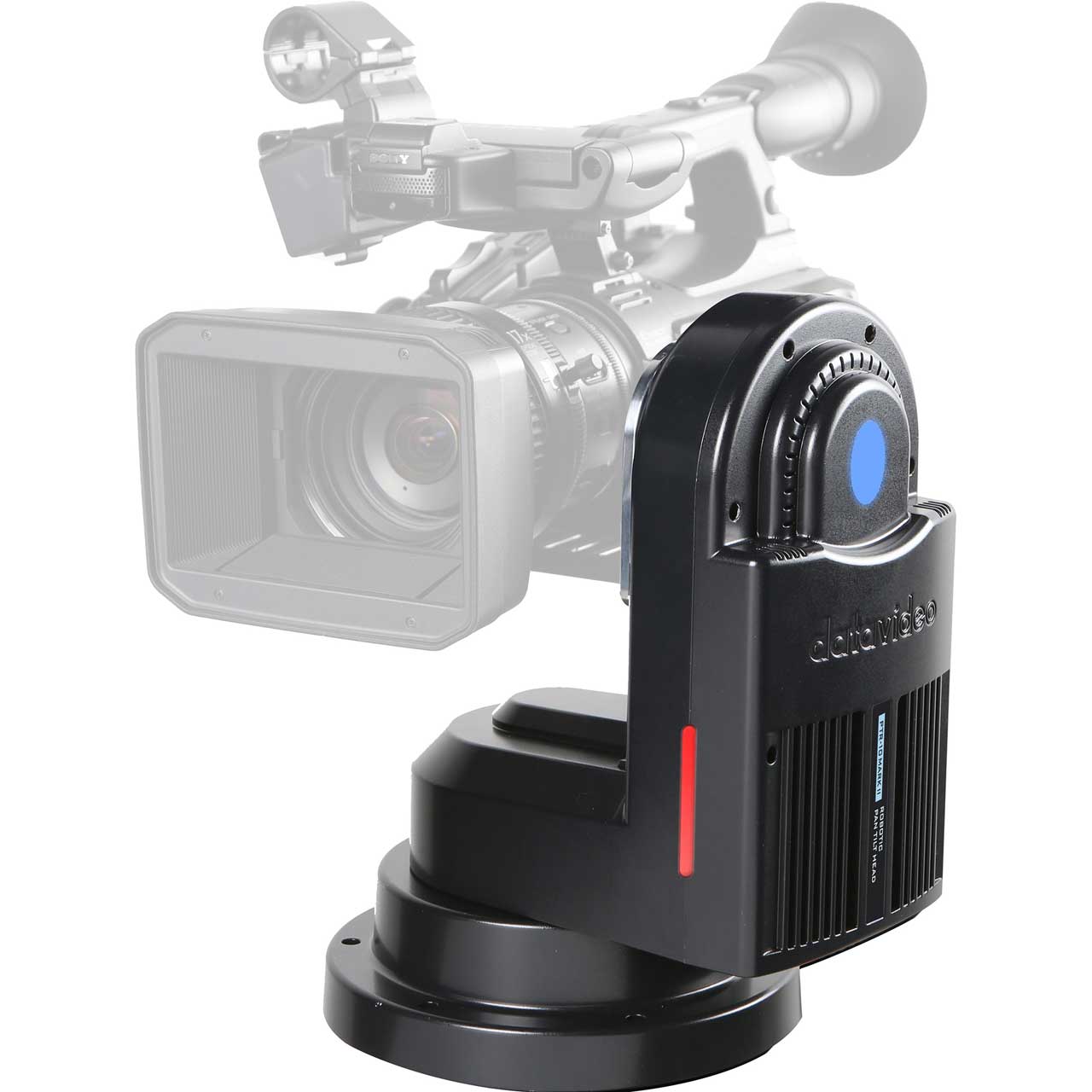

    Datavideo's PTR-10 MARK II is a robotic pan-tilt head that is designed to turn any small size video camera or block cameras into a robotic. A sleek design fits seamlessly in your studio. With its weight of 3.4 Kg, it can be placed on any heavy-duty tripod or mounted on the wall and ceiling which brings up a lot of flexibility for your video production.

    The PTR-10 MARK II can be controlled by the included IR controller, VISCA protocol controller, Datavideo RMC-180 Camera controller, RMC-300A Universal Remote-Control Panel, and compatible with DVIP over Ethernet and other integration solutions such as Crestron.

    PTR-10 MARK II makes the change from regular camcorder cameras to remote controlled PTZ very cost effective. Multi-camera remote operations can be handled by a single person.

    Wide Range of Compatible Cameras Supported
    The PTR-10 MARK II implements LanC control that is compatible with a wide range of professional video camcorders, allowing you to select the best camcorders for your needs.

    Light Weight, Strong, and Sturdy Design
    With a weight of 3.4 kg, PTR-10 MARK II is built from aluminum alloy, making it a very sturdy base for your camera. It can support cameras up to 4 kilograms.

    Diversified Controller Options

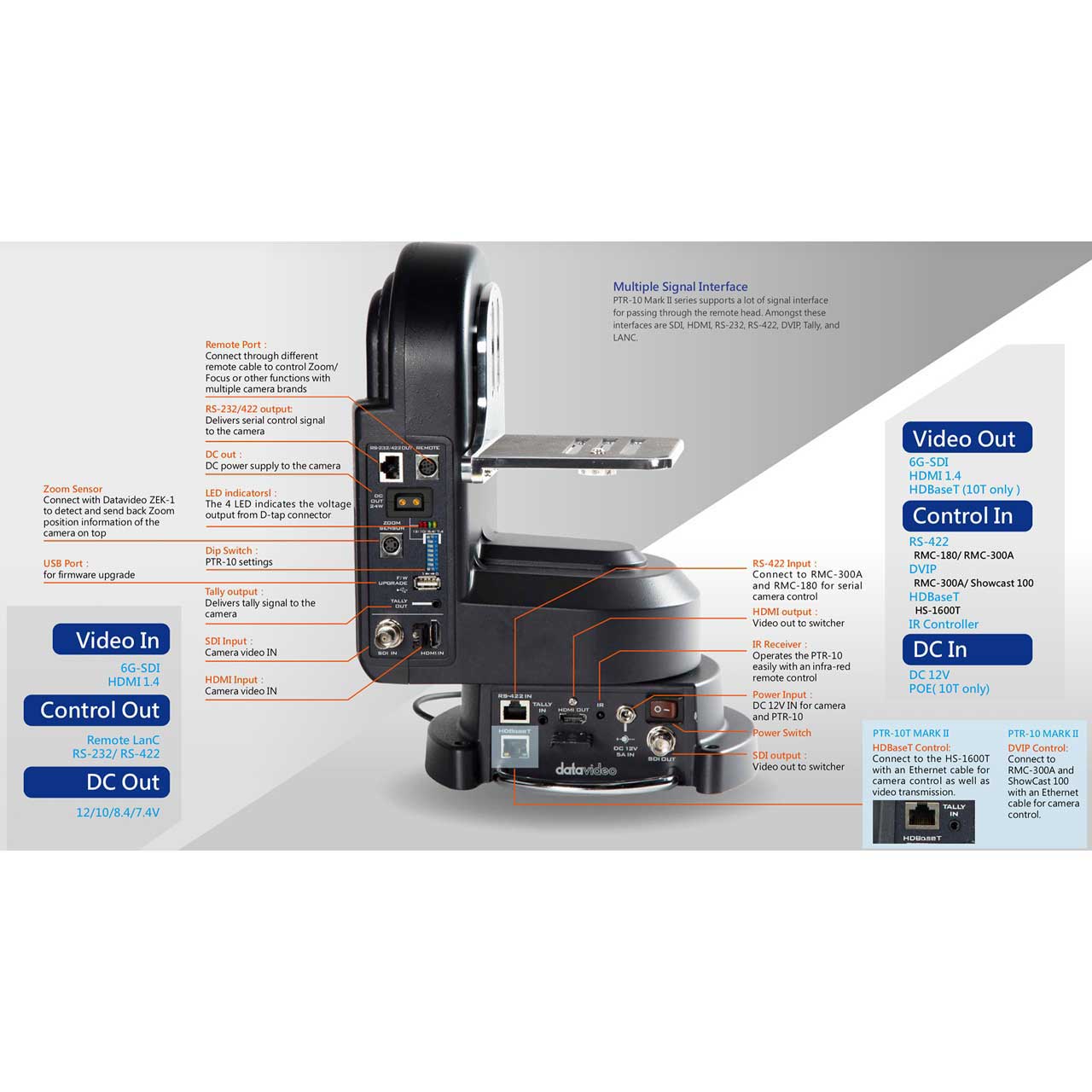

    Compatible with Serial, Ethernet, and Lanc. Datavideo RMC-180 series, RMC-300A, and HS-1600T series (T model only) will fit your need.

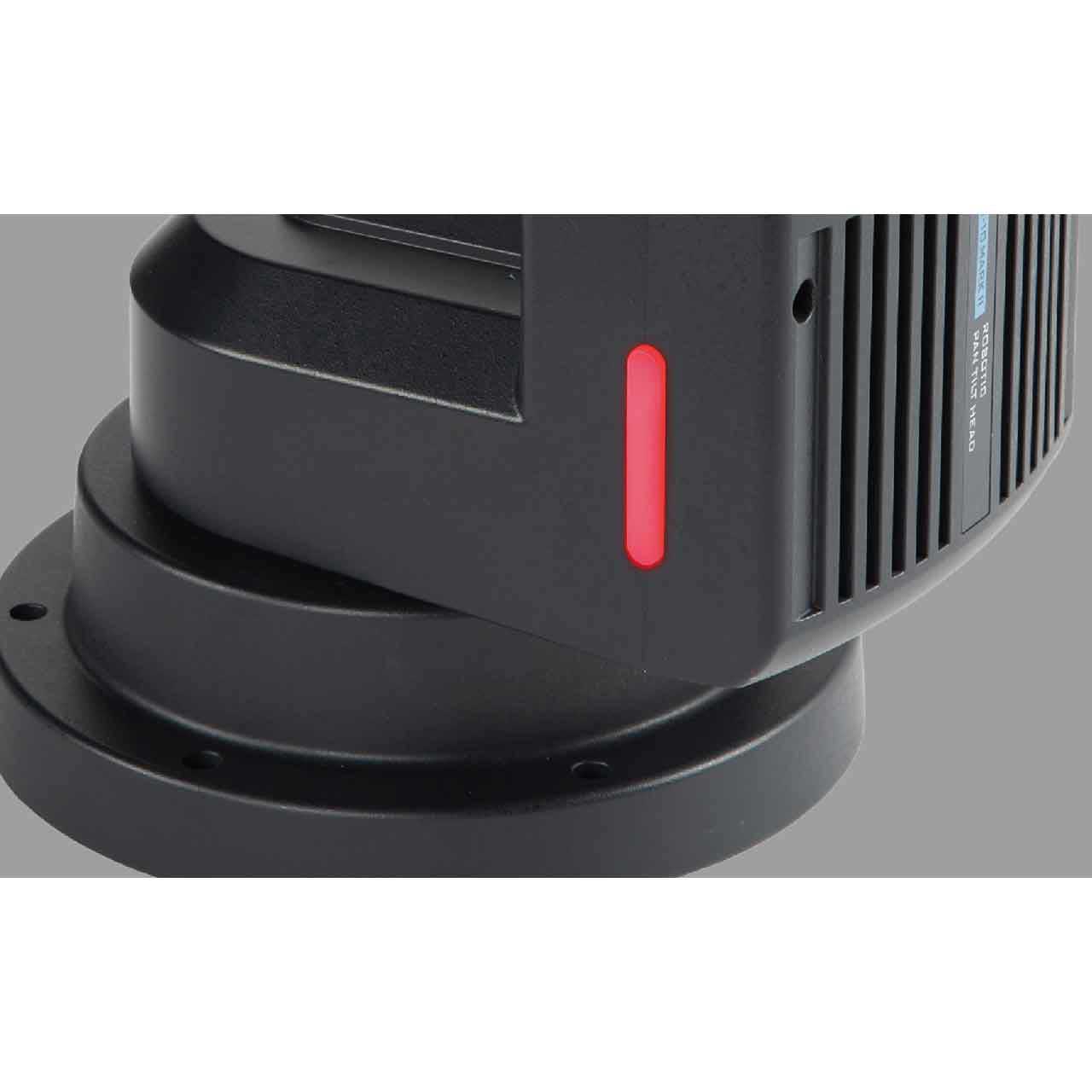

    Built-in Tally Light
    With the big tally light in the front to show the status of your camera.

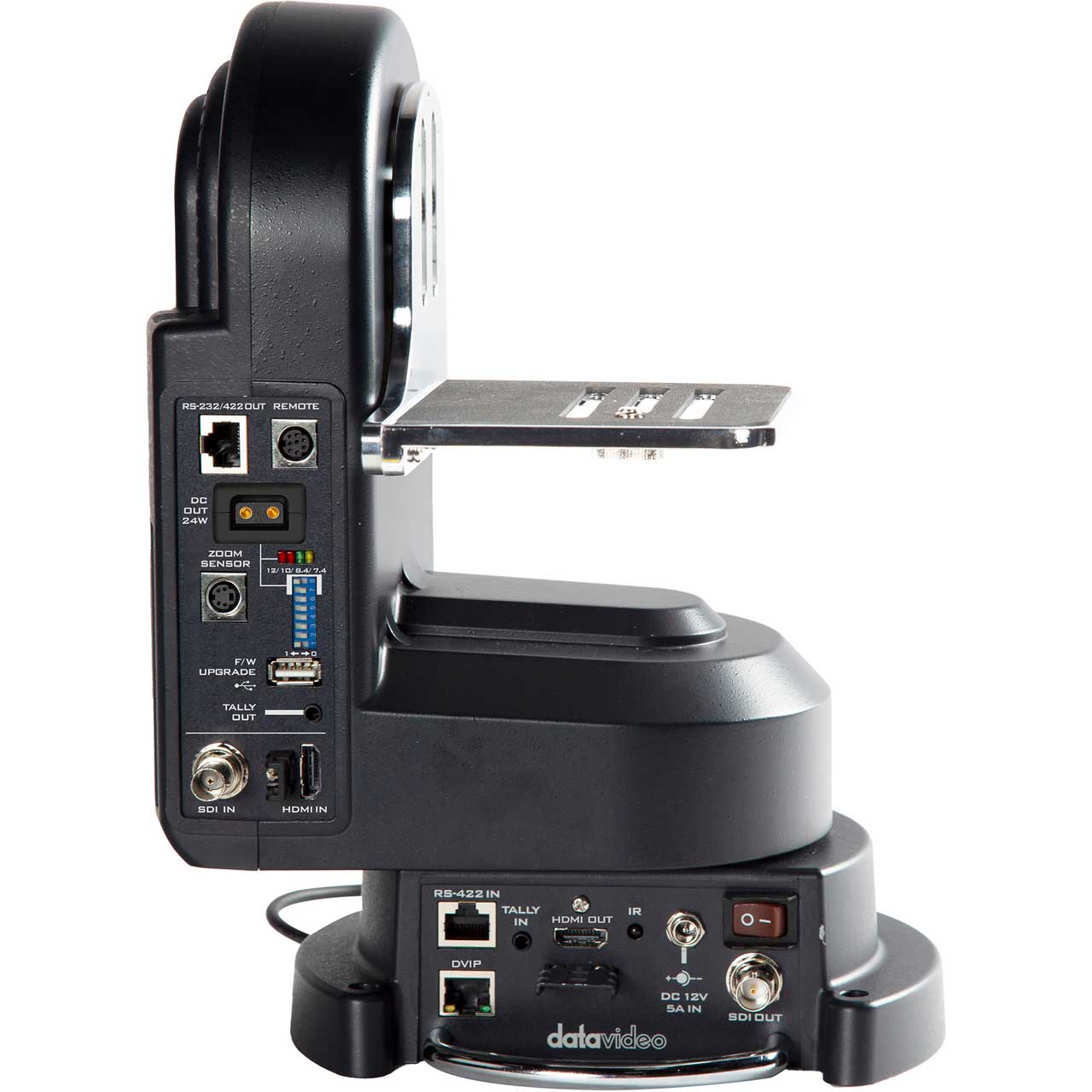

    D-tap Connector for DC Output
    The D-tap connector is widely used in the broadcast industry as a standard for powering accessories from battery or mains power. This will make it easier for you to find a ready-made power cable for your specific camera. Included is a D-tap to DC 5.5mm with lock for Datavideo cameras. Selectable DC voltage output for different cameras (7.4 / 8.4 / 10 / 12V )

    • Features:

      • Cost-Effective
      • Wide Range of Compatible Cameras Supported
      • Light Weight, Strong, and Sturdy Design
      • Diversified Controller Options
      • Built-in Tally Light
      • D-tap Connector for DC Output
    • Specifications:

      • Video Interface: HDMI x 1, SDI x 1
      • Video Output: 2160p 29.97/25, 1080p 59.94/50, 1080i 59.94/50, 720p 59.94/50
      • Control Unit: RMC-180, RMC-300A, VISCA Protocol Controller, IP Control, IR remote
      • Panning / Tilting Range: Pan: 340°, Tilt: ±45°
      • Panning / Tilting Speed: Pan: 0.12~15° /Sec, Tilt: 0.06~10° /Sec
      • Preset: Pan/Tilt position 50
      • Control Distance: Sony VISCA, DVIP
      • Control Protocal: Sony VISCA, DVIP
      • Control Input: RS-422, DVIP
      • Maximum Load: 4 KG Max
      • Control Output: RS-232, RS-422, BX-Lens, LanC
      • Power Requirement: DC 12V~ 18V, 3A (Without Camera) / DC 12V~ 18V, 5A (With Camera)
      • Power Supply: DC 12/10/8.4/7.4V, 24W Max
      • Operating Temp. Range: 0~40 C°
      • Operating Humidity Range: 10~80%
      • Storage Temp. Range: -10~60C°
      • Storage Humidity Range: 5~80%
      • Weight: 3.4 kg
      • Dimension (LxWxH)t: 230 x 190 x 300 mm
    • Item Includes:

      • 1x PTR-10 Mark II Main Unit
      • 1x DC 12V power adaptor
      • 1x AC cord
      • 1x IR remote control
      • 1x DC with lock to D-Tap cable
      • 1x HDMI cable
      • 1x SDI cable
      • 1x Remote cable (2.5mm phone-jack to mini-din 8pin)
      • 2x 1/4" screw (14mm)
      • 1x 1/4" screw (10mm)
      • 1x 1/4" to 3/8" screw adaptor
      • 1x PTR-10 Mark II Thank You Card
