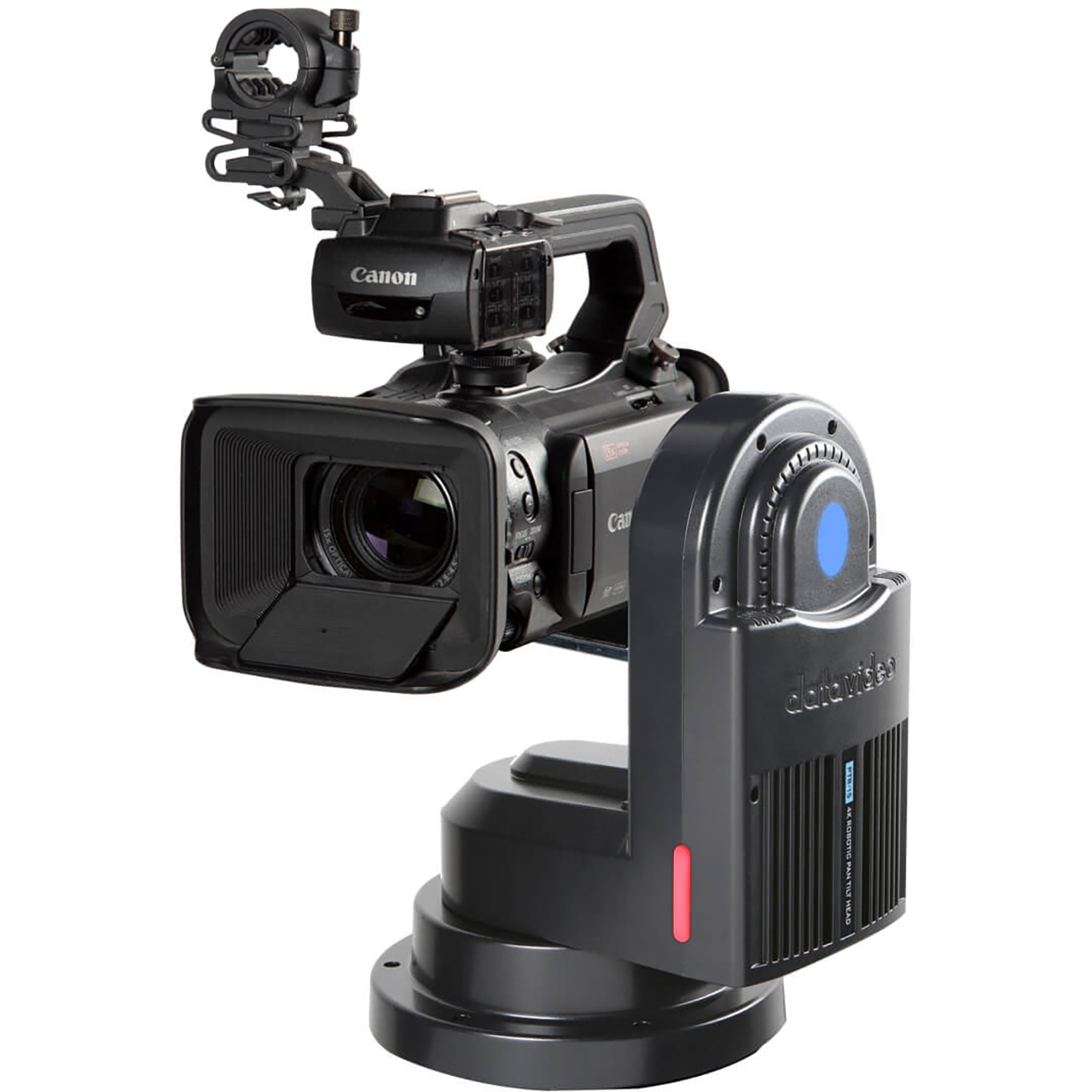

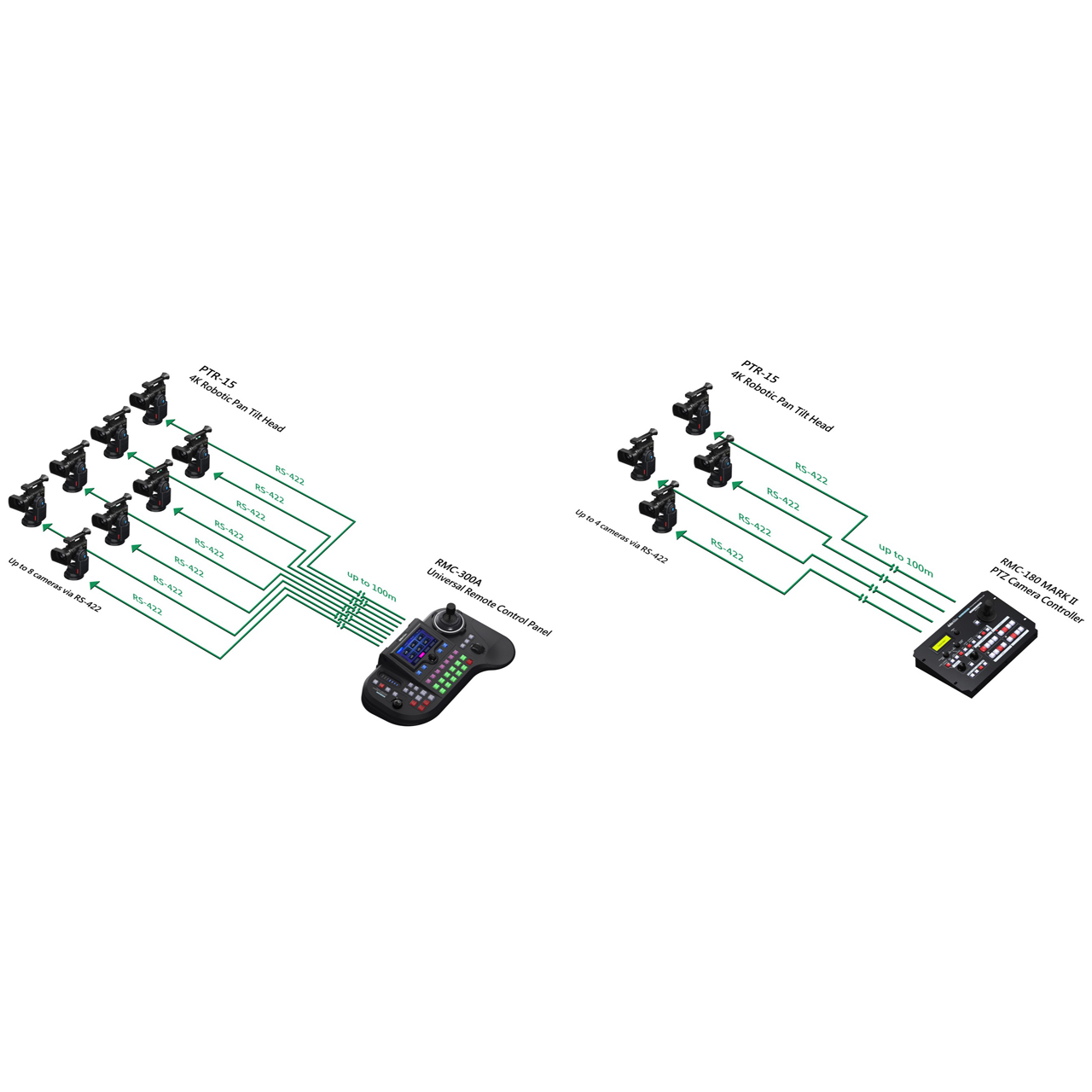

Datavideo's PTR-15 employs an efficient driving system to achieve smooth and precise robotic pan and tilt movements. It can be paired with most models of broadcast-grade cameras available in the market, enabling remote control of camera parameters such as pan, tilt, zoom, and aperture. The PTR-15 comes equipped with the built-in FreeD virtual tracking feature, which utilizes computer vision sensor technology to recognize and track the position and movements of the subject being filmed. The PTR-15 can be controlled using an IR controller, VISCA protocol controller, Datavideo RMC-180 MARK II camera controller, RMC-300A universal remote control panel, and is compatible with both serial and Ethernet (DVIP) connections.
Versatile Signal Connectivity

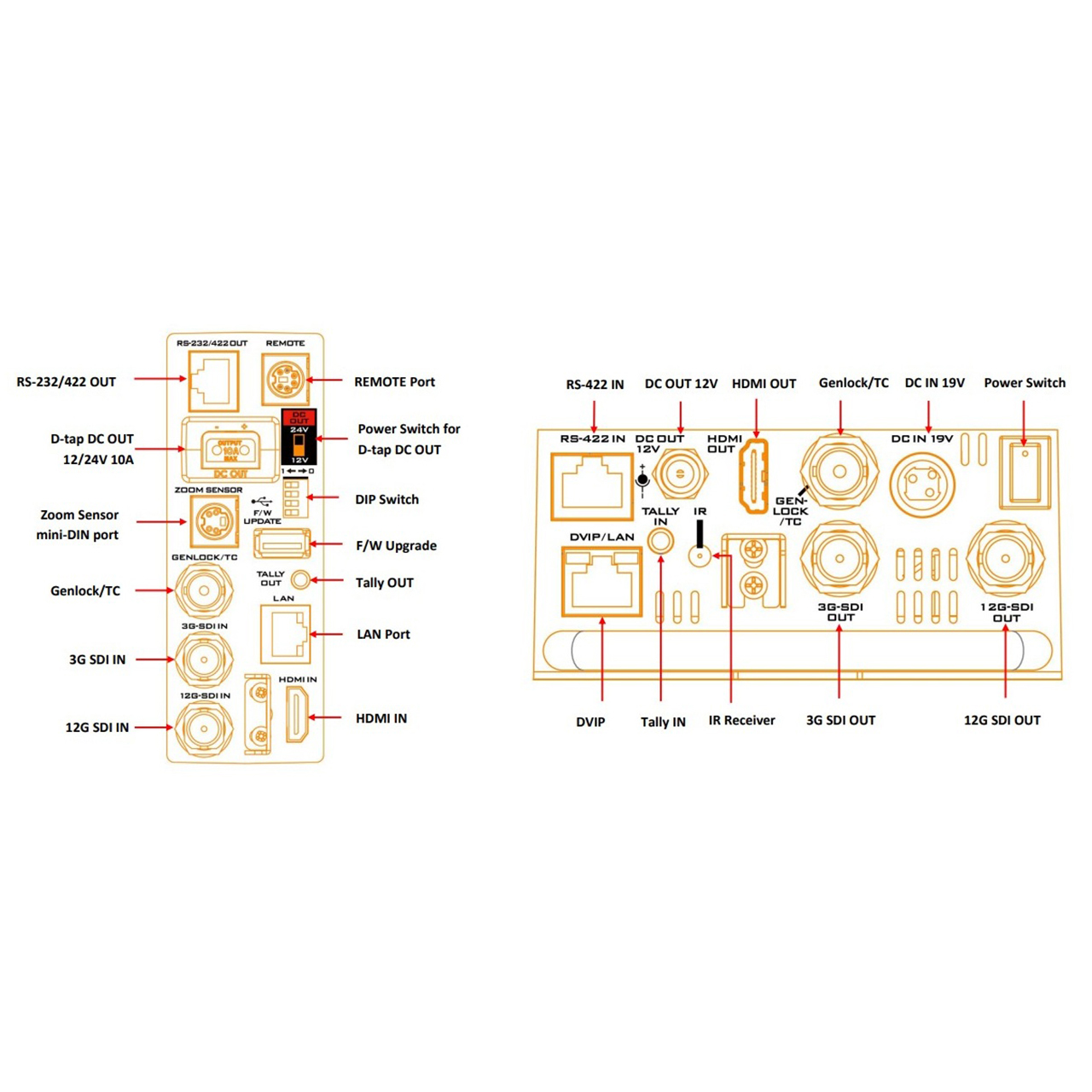

The PTR-15 boasts an extensive range of signal interfaces for seamless integration with the remote head. These interfaces encompass SDI, HDMI, RS-232, RS-422, DVIP, Tally, and LANC, providing diverse connectivity options.
Cost-Effective Transition to Remote PTZ Control
With the PTR-15, transitioning from conventional camcorder cameras to remote-controlled PTZ becomes a cost-effective solution. The system empowers a single operator to efficiently manage multi-camera remote operations.
Wide Range of Compatible Cameras Supported

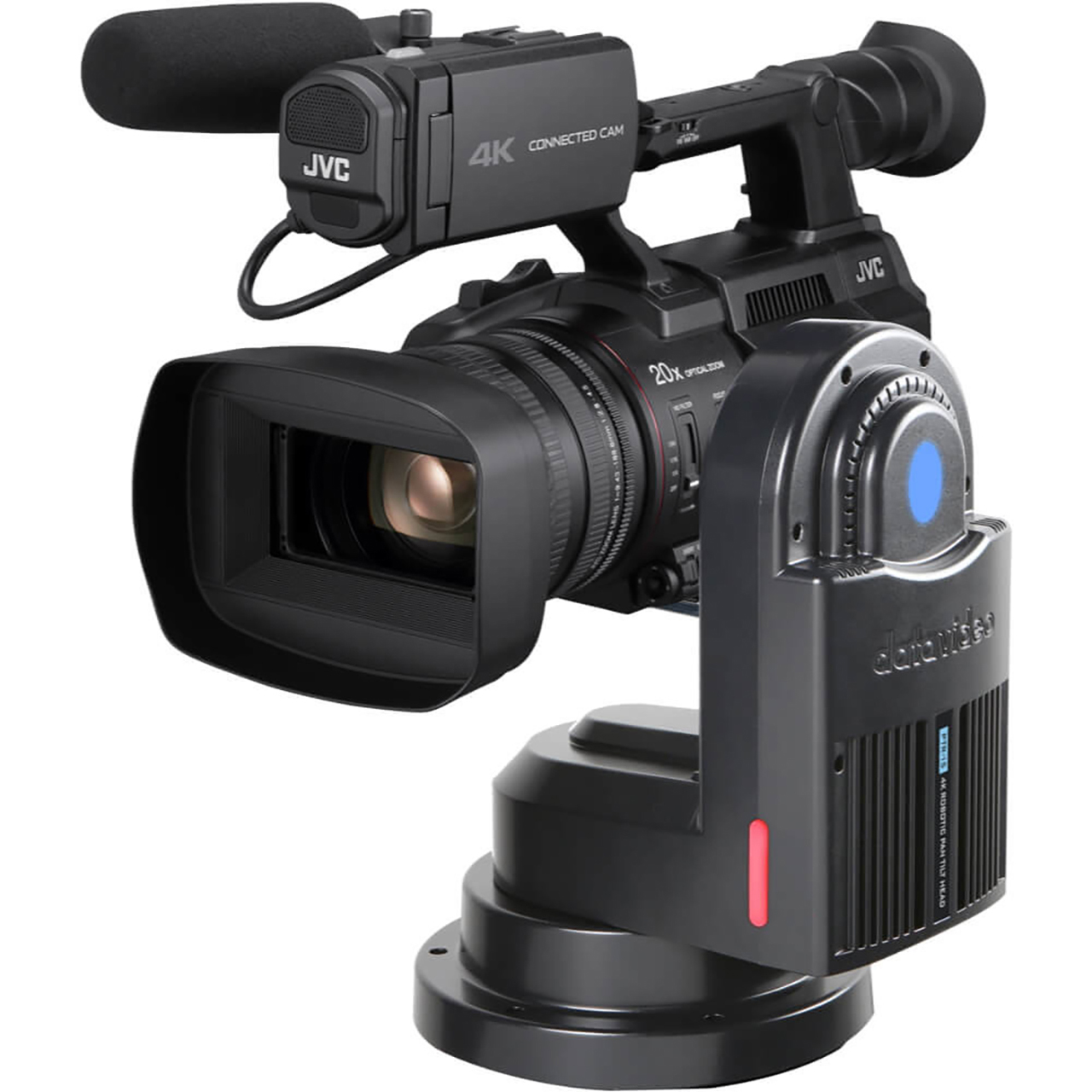

Benefit from PTR-15's LanC control, which seamlessly integrates with a diverse selection of professional video camcorders. This compatibility empowers you to choose the optimal camcorders that align with your specific requirements.
Light Weight, Strong, and Sturdy Design

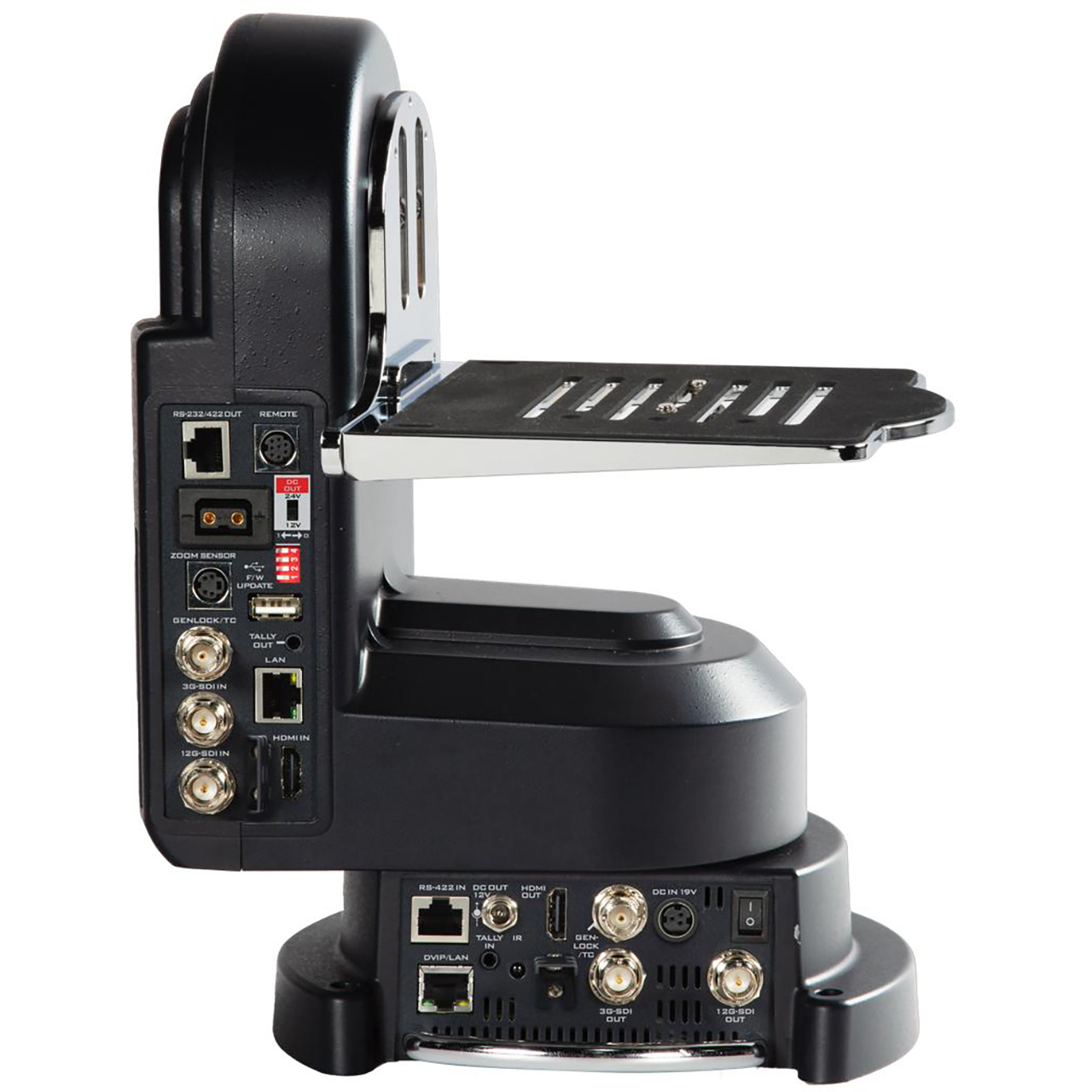

Crafted from aluminum alloy, the PTR-15 boasts a mere weight of 8lbs (3.7kg). Its robust design serves as a stable foundation for your camera setup, offering the strength needed to support cameras weighing up to 4 kilograms.
Comprehensive IP Control
In addition to the standard RS-232/422 control, the PTR-15 provides robust IP-based control, keeping up with the modern trend of IP-based systems. This technology migrates the camera control protocols and technical parameter adjustments used in high-end broadcast studios to an open IP environment. This transformation breaks away from the previous limitations of exclusive one-to-one control, enabling the free switching of different cameras and achieving precise adjustments of camera parameters such as aperture, shutter, red/blue gain, inflection point, and more. This advancement allows on-site camera operations to enter an unprecedented era of convenience.
Genlock/Timecode Synchronization and Calibration
This is one of the criteria that differentiates broadcast-grade equipment from regular cameras. The genlock function allows interconnection of all cameras and display devices, ensuring precise synchronization at every frame, all operating on the same clock frequency. This prevents issues like tearing due to unstable frame transmission.
Dual Voltage Output: 12V/24V Compatibility
To accommodate the diverse range of camera power specifications, the PTR-15 provides dual-voltage power outputs. This feature easily adapts to the majority of business and professional-grade cameras available on the market. Through a toggle switch on the rear panel, you can switch between power output specifications, ensuring a stable power supply. The design includes surge protection circuits for enhanced safety during use.
Cameras Shown in Photos Not Included
