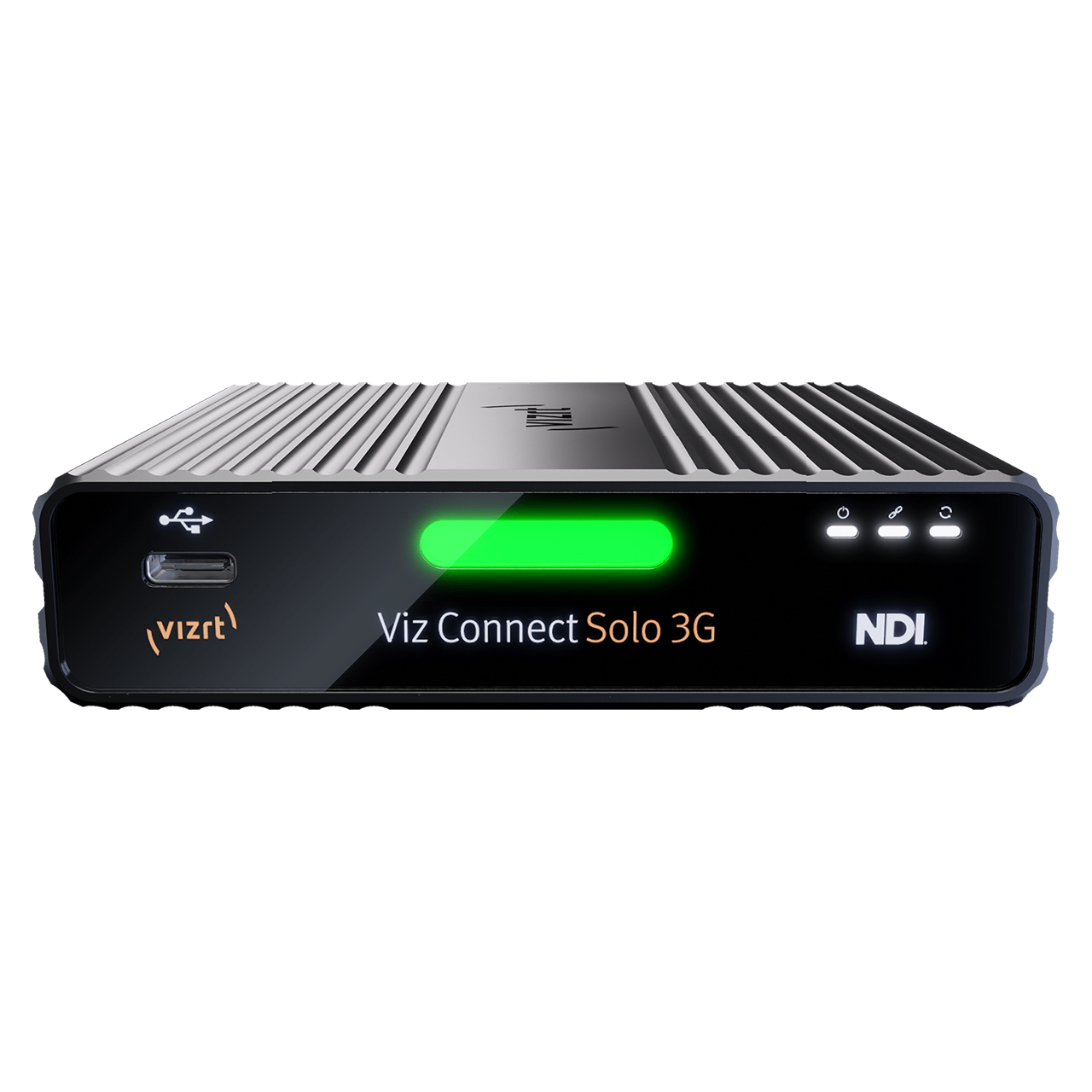

VIZRT VIZ Connect Solo 3G-SDI to NDI Bi-Directional I/O Converter - 16 Encode / 8 Decode Audio Channels

ITEM #: VZT-CNTSOLO-3G MFG #: FG-003291-R001

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$895.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


FG-003291-R001 - Overview

Works with Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and more

Your Workflow, Your Choice
The VIZRT Viz Connect Solo 3G video converter is the fastest, easiest, and best way to video over IP. Ultra-portable enclosures with resolutions up to UHD 60p, the groundbreaking benefits of NDI, and a host of tools and capabilities makes Viz Connect Solo video converters the right choice for the full spectrum of video production needs.

There is a Viz Connect Solo that's perfect for you
VIZRT's family of Viz Connect Solo converters all offer bi-directional conversion from 4K HDMI, 3G-SDI to 12G-SDI. Catering to the full spectrum of video production needs, each Viz Connect Solo offers Tally support, are portable and mountable, and offer the groundbreaking benefits of NDI.

Compatible With Any NDI Workflow
Share video over IP with any compatible system, device, or application that supports NDI, including Viz Connect Solo solutions and products from third-party manufacturers and developers.

NDI Transfer Modes
Transmit video to your network using your choice of supported NDI transfer modes, to include unicast and multicast UDP with forward error correction (FEC), and unicast TCP.

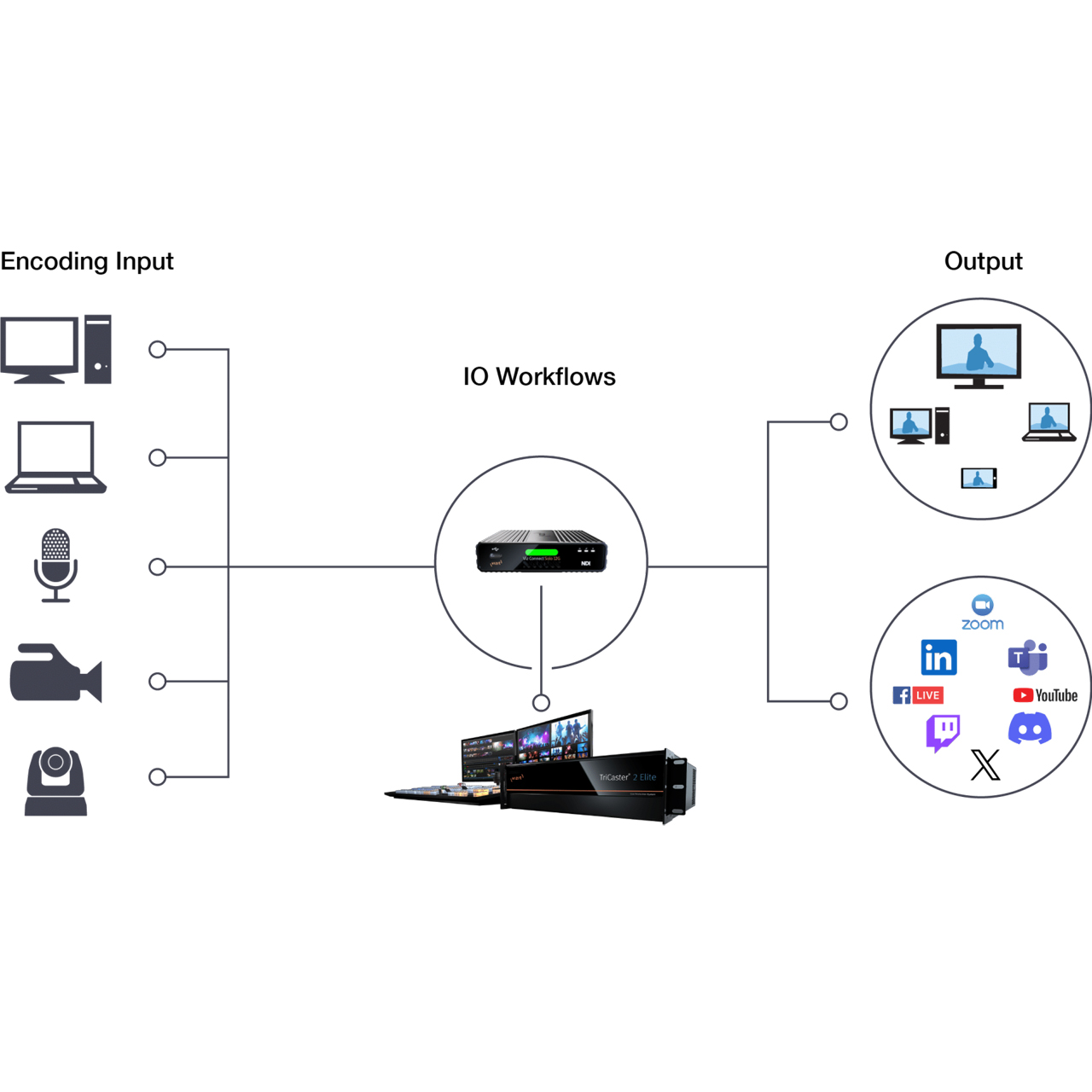

NDI Input and Output
Acquire video from connected devices such as cameras and deliver as IP to networks with NDI or provide IP with NDI from networks to destinations such as displays.

Connectivity
Send and receive video with networks via Ethernet and be instantly available as NDI sources and endpoints for any compatible system, device, or application.

Portable and Mountable
Carry Viz Connect Solo video converters with you wherever you go, or optionally mount to a compatible camera or support using the industry-standard threaded screw mount.

Audio
Present high-quality audio with support for analog and embedded digital sources.

Program and Preview Tally
Receive tally notification from compatible NDI devices via a physical LED when video output from any Vis Connect Solo product is visible on Program and/or Preview.

NDI Virtual Input
Designate your video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and more using the NDI Virtual Input tool.

* NDI Virtual Input included with NDI Tools download at no charge.

Web-Based Interface
Monitor video, manage login credentials, access recording controls, and configure audio, video, and network settings from any supported Web browser on any compatible networked device.

Multicast Mode
Permit multiple destinations as an option to receive your video source without individual point-to-point connections to conserve network bandwidth.

Network Identification
Easily identify devices on your network with the ability to apply custom device and channel names.

Network Visibility
Access devices connected to other networks via IP address and make them visible within your production environment using NDI Access Manager.

Firmware Updates
Download and install firmware updates at no charge with the latest features, capabilities, and performance enhancements.

  • Features:

    • NDI® Compatible Workflows
    • NDI® Transfer Modes
    • Lower operational costs
    • Portable and Mountable
    • Program and Preview Tally
    • Increased output
    • Web-Based Interface
    • Multicast Mode
    • NDI® Virtual Input

  • Specifications:

    • Video Input: 1x 3G/HD/SD-SDI
    • Video Output: 1x 3G/HD/SD-SDI
    • Audio Input:
      - 3.5mm Analog Stereo Line Level
      - Embedded 3G-SDI
    • Audio Output:
      - 3.5mm Line Level
      - Embedded 3G-SDI
    • Audio Channels:
      - 16 Encode
      - 8 Decode
    • Encoding/Decoding: NDI
    • Network: RJ-45 port Gigabit Ethernet
    • Interface: Web-based user interface for configuration and monitoring
    • Tally: Tally support via NDI
    • Formats:
      - 1080p: 60, 59.94, 50, 29.97, 25
      - 1080i: 59.94, 50
      - 720p: 60, 59.94, 50, 29.97, 25
    • SDI: 75Ω impedance SMPTE ST-424M, ST-292M
    • Power: Power over Ethernet or External Power Adaptor DC 5V - 18V Power Supply
    • Dimensions: 4.33" x 3.7" x 1.1" (110mm x 95mm x 28mm)
    • Weight: 0.66lbs (0.30kg)

  • Item Includes:

    • 1x Vizrt Viz Connect Solo I/O Converter
    • 1x Power Adapter
