Magewell 64060 Pro Convert SDI TX 1-Channel 3G-SDI to NDI Signal Converter

ITEM #: MGW-64060 MFG #: 64060

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:


Availability: In Stock
iAvailability Description Popup

    64060 - Overview

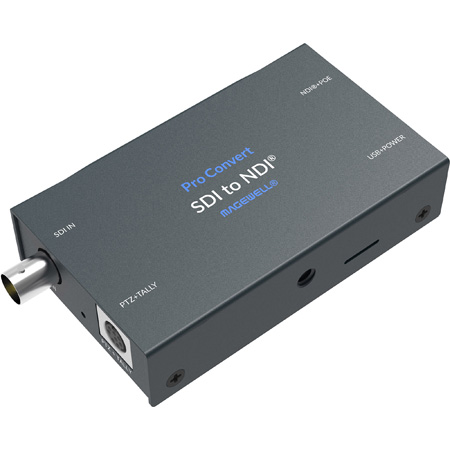

    The Magewell 64060 Pro Convert SDI TX 1-Channel HD SDI to NDI Converter/Encoder from Magewell allows you to convert an SDI signal with embedded audio to an NDI stream. It supports resolutions up to 2048 x 1080 at 60p on both input and NDI output. The device can be powered via an included power adapter or over PoE using the NDI port. It features a 1/4"-20 thread for camera mounting and can be used in the studio or in the field thanks to a compact and robust design. There's also a PTZ+tally shared mini-DIN port for connecting tally lights or setting up NDI-based PTZ camera control. A tally light accessory comes included.

    A companion Web UI allows assigning the device name, source name, and other settings. The encoder also has an on-board SD card slot but it is not functional at the time of this writing. Any future firmware updates will also be accessible via the Web UI.

    The Pro Convert SDI TX Encoder additionally features an integrated cable equalizer that allows for SDI cables lengths up to 590'.

    • Features:

      • Integrated cable equalizer allows SDI cable lengths up to 590'
      • Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS (SMPTE 2081) standards
      • RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
      • 8-/10-/12-bit color depth
      • Support for extraction of SMPTE 352 payload identifier
      • Supports 16-input (mono) and 16-output audio channels
      • Allows extraction of audio formation information and channel status data
      • YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
      • YCbCr 4:4:4 10-bit: captured as 4:2:2
      • RGB 4:4:4: R/B sub-sampled
    • Specifications:

      • Input
      • Video Input Connectors: 1 x BNC (3G-SDI / HD-SDI / SD-SDI / HDMI 1.4)
      • Input Video Format: SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC)
      • DCI 2K: 60 fps

      • Video Output Connectors: 1 x RJ45 (NDI)
      • Output Video Format: RJ45 (8-Bit 4:2:2)
      • DCI 2K: 60 fps
      • Embedded Audio Output: SDI

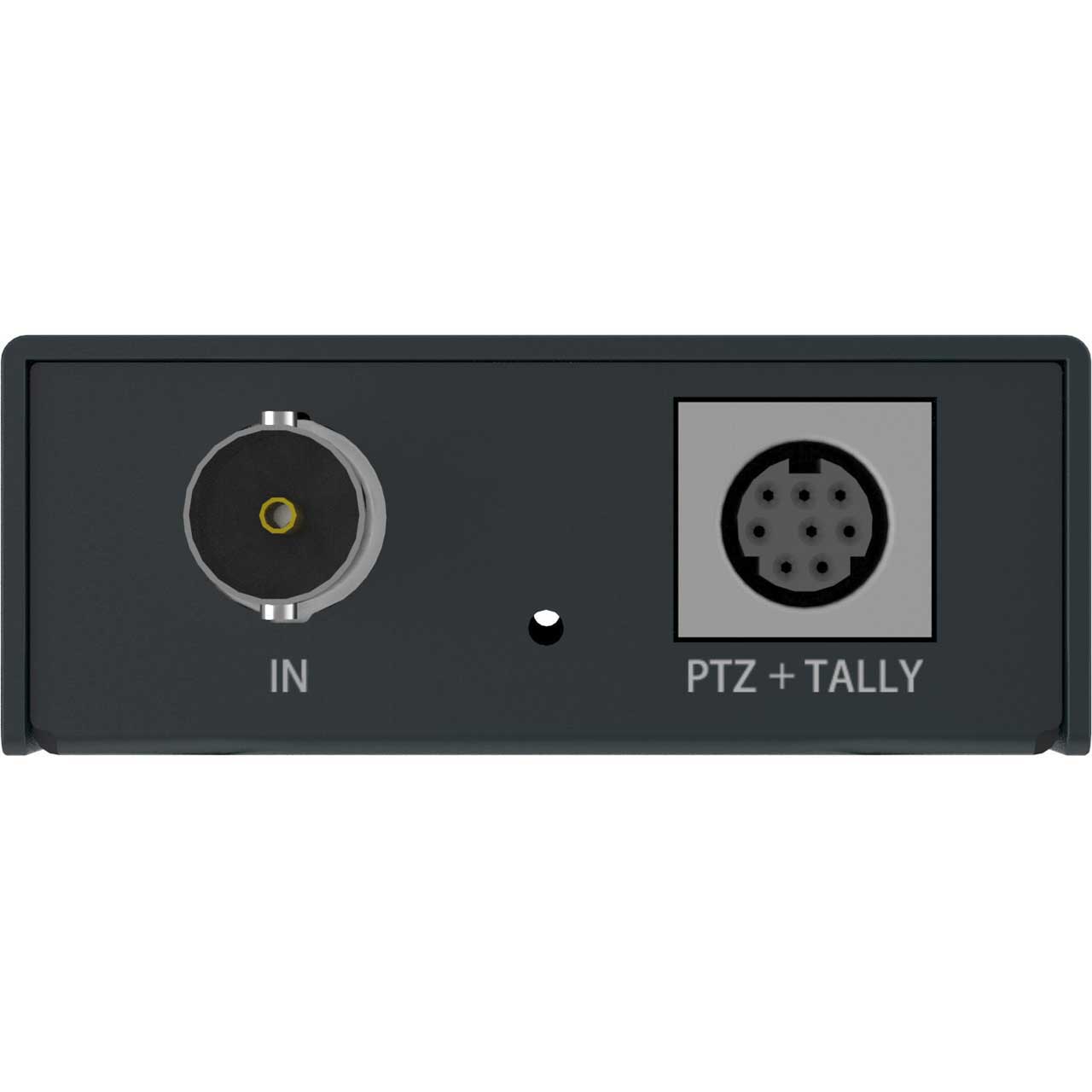

      • Other I/O: 1 x 8-Pin Mini-DIN PTZ, Tally (Shared)

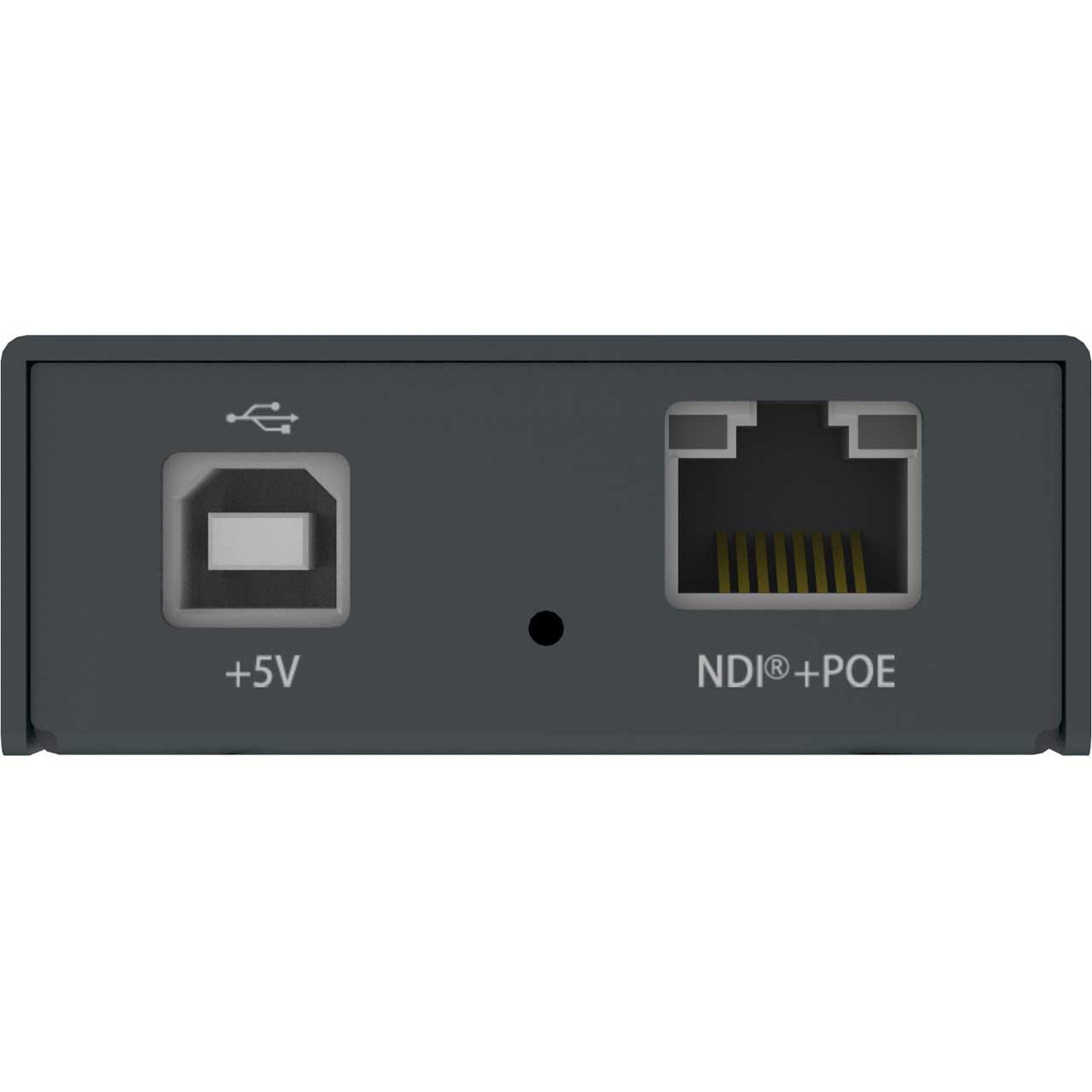

      • Power Connector: 1 x USB Type-B Input
      • PoE Support: PoE 802.3af
      • Power Consumption: Device: 6 W

      • Operating Temperature: 32 to 113°F / 0 to 45°C
      • Storage Temperature: -4 to 158°F / -20 to 70°C
    • GTIN:
