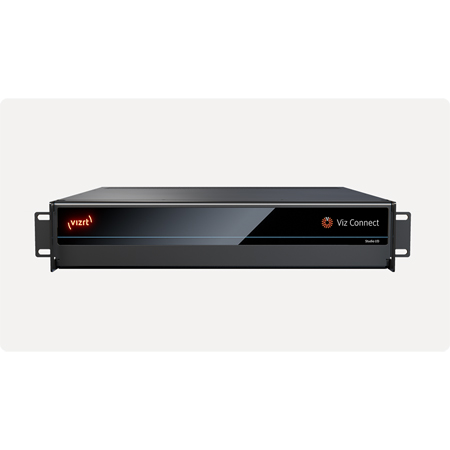

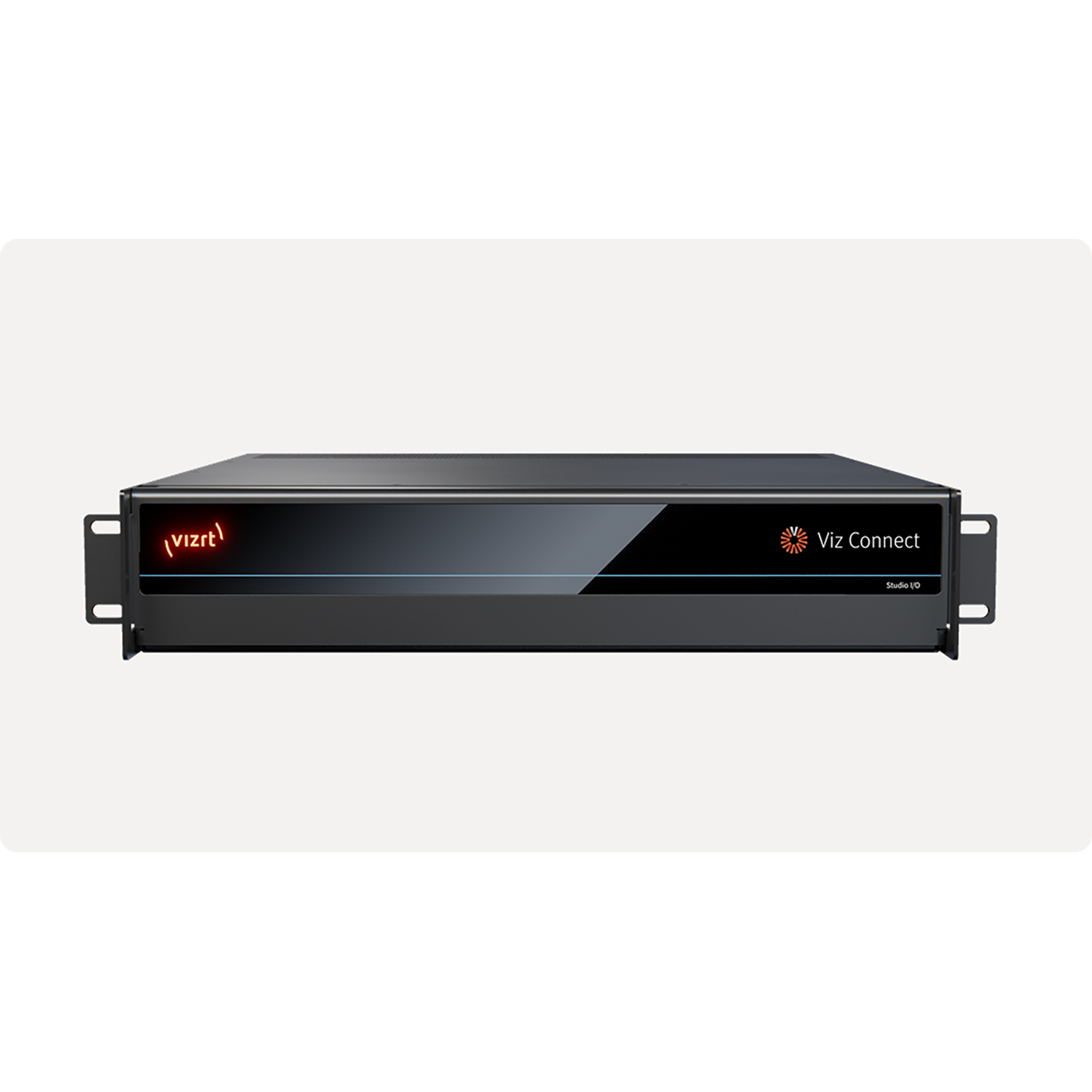

VIZRT VCSTUDIOI/O Viz Connect Studio I/O Module - 2RU Chassis with Single PSU

VCSTUDIOI/O - Overview

• Features:

  • Color Correction: Independently adjust the color characteristics of each channel, manually configuring brightness, contrast, hue, saturation, white balance, and more with integrated proc amp controls, or optionally enable automatic color matching between channels.
  • Configurable A/V Sources: Independently configure the video and audio for each channel, selecting from any source accessible to your Studio I/O Module.
  • Multi-Format Processing: Accept and deliver video in any combination of compatible formats, with resolution and frame rate configurable per channel.
  • NDI KVM: Access the user interface and control your Studio I/O Module remotely from any compatible computer, device, or touchscreen connected to the same network.
  • Remote Access: Monitor live signals and control your Studio I/O Module remotely from the browser of any networked device, including iOS and Android mobile devices, with a system-specific webpage.


• Specifications:

  • Video In: NDI SRT, SDI, RTMP, RTSP
  • Video Out: NDI, SDI
  • IP I/O: Up to 8x
  • SDI I/O: Up to 8x via HD-BNC
  • 4K UHD SDI I/O: Up to 2x via 12G-SDI, 6G-SDI, or quad-link 3G-SDI
  • Media Playback Channels: Up to 8x
  • Recording Channels: Up to 8x SDI Inputs Only
  • Supported Video Formats:
    - 2160p: 59.94, 50, 29.97, 25, 24, 23.976
    - 1080p: 59.94, 50, 29.97, 25, 24, 23.976
    - 1080i: 59.94, 50
    - 720p: 59.94, 29.97, 25, 24, 23.976
    - 576i 50
    - 480i 59.94
    - 1080p: 60, 59.94, 50
    - 1080p/PsF: 30, 29.97, 25, 24, 23.98
    - 1080i: 30, 29.97, 25
    - 720p: 60, 59.94, 50
    - 576i: 25
    - 480i: 29.97
  • Supported Media Formats:
    - Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
    - Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
    - Audio: AIFF, MP3, WAV, and more
  • Audio I/O: Up to 8x SDI embedded
  • Audio Networking:
    - Native support for network audio input and output via NDI
    - Embedded SDI audio supported for all NDI input and output video signals
    - Support for Dante, AES67, and ASIO protocols via compatible audio drivers
  • Timecode: LTC and VITC
  • Signal Monitoring: Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
  • A/V Standards:
    - 12G-SDI (ST 2082-10)
    - 6G-SDI (ST 2081-10)
    - 3G-SDI Level A (ST 425-1 Level A Mapping)
    - Quad Link 3G-SDI (ST 425-5)
    - HD-SDI (ST 292)
    - SD-SDI (ST 259)
  • Video Processing: YCbCr + Alpha color space, using 4:2:2:4
  • Audio Processing: Floating Point, 96kHz
  • Genlock: Reference input supporting SD (Bi-level), HD (Tri-level), or network (NDI) supported
  • Multiviewer: Via HDMI or DisplayPort
  • NIC:
    - 1x 10 Gigabit NIC (10GBASE-T over RJ45)
    - 1x 2.5 Gigabit LAN
    - 1x 1 Gigabit NIC (RJ45)
  • System Physical:
    - 2 RU chassis with 500W PSU
    - Dimensions: 19" x 3.5" x 19.57" (48.3cm x 8.9cm x 49.7cm)(with rack ears)
    - Weight: 36lbs (16.3kg)
    - Rack rails sold separately


• Item Includes:

  • 1x Viz Connect Studio IO


• Warranty:

  • 1 Year Limited Warranty
