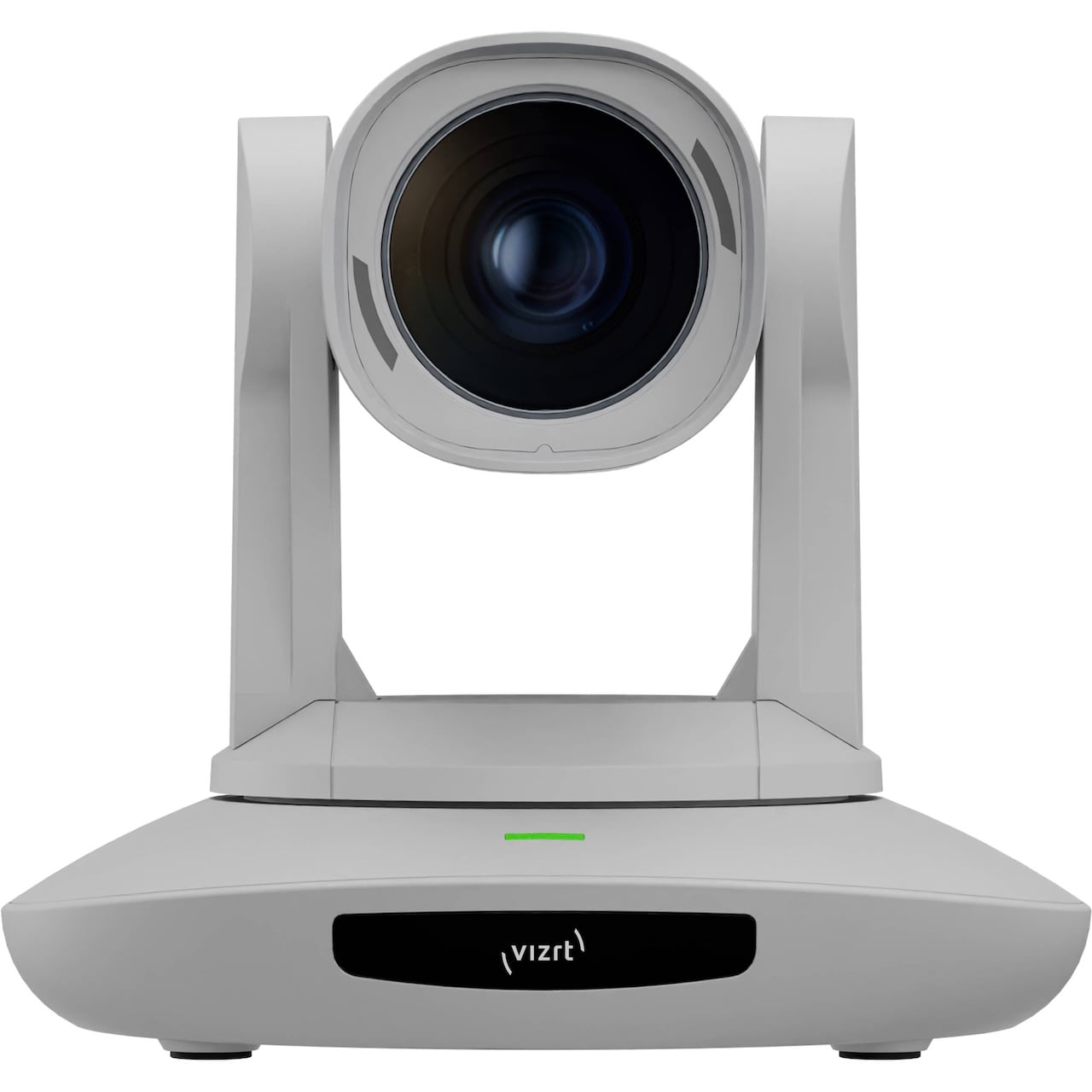

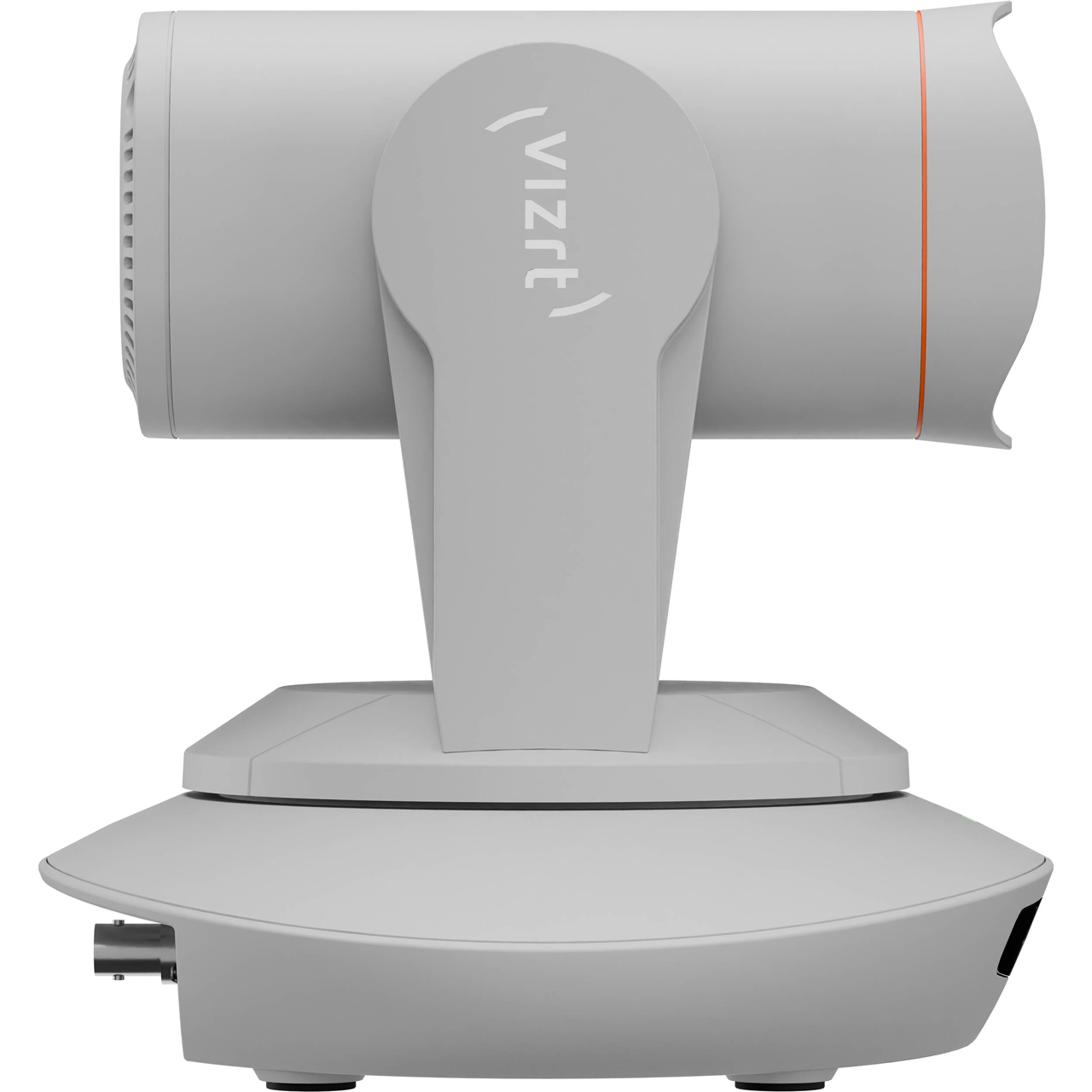

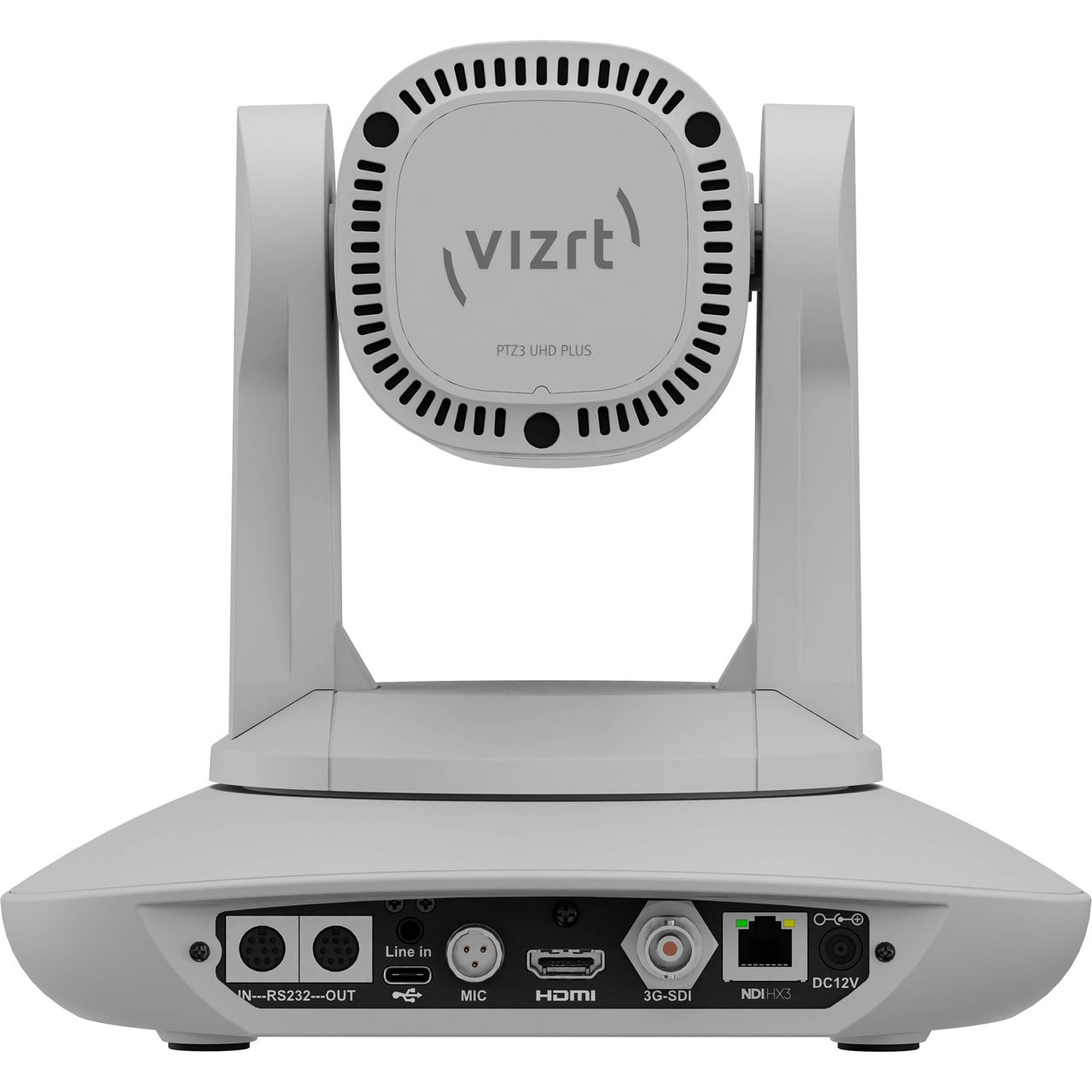

VIZRT PTZ3 UHD PLUS 30x UHD PTZ Camera with NDI / 3G-SDI / HDMI Outputs & RS232 Control - White

FG-003301-R001 - Overview

• Features:

  • AI Presenter Tracking: AI presenter tracking ensures seamless shots, face detection, blackboard mode, and target switching for dynamic, effortless presentations.
  • Professional Audio: Mini XLR port supports powered/non-powered mics, +48v phantom power, and NDI|HX audio, ensuring top-quality sound with easy setup and two-step phantom power confirmation.
  • Embedded Free-D: Create immersive experiences with the first PTZ camera supporting FreeD-over-NDI, embedding precise tracking data for seamless AR/VR setups like Viz Virtual Studio Go.
  • Intuitive Control: Intuitive software panel simplifies PTZ3 PLUS setup, managing video, audio, AI tracking, and device settings with precision.
  • Discreet Design: Vizrt PTZ3 PLUS cameras, in black or white, feature minimal branding and swappable panels to seamlessly blend into any environment.
  • NDI at its Best: NDI|HX3 delivers full NDI quality and low latency with efficient bandwidth usage, ensuring optimal control and performance.


• Specifications:

  • Face and Posture Presenter Tracking AI: Yes
  • Presenter Tracking Pan/Tilt Limit: Yes - tracking area limited within top-left and bottom-right boundary
  • Target Timeout (Return to Home): 0.5s to 10s selectable
  • Presenter Target Scaling: 1/6, 1/8, 1/10, 1/12, 1/16, 1/20
  • Presenter Target Switching: Yes - left to right selectable
  • Blackboard Detection: Yes - reduces tracking in front of presentation area to minimize distractions
  • NDI Codecs: H.264 or HEVC
  • Bit Rate: CBR/VBR
  • Datarates: Low, Med, High, HX 3 Ultra
  • NDI Multicast: Yes
  • NDI Discovery Server: Yes
  • Lens: 30x Optical & 20x Digital Zoom
  • Sensor: Sony 1/1.8" 12MP sensor
  • Shutter Speed: 1/30 to 1/10,000 se
  • Horizontal Viewing Angle: 60° (Far) - 2° (Near)
  • Focal Length: 6.91mm - 214.64mm
  • Aperture: F1.8 - F14
  • Min. Object Distance: (Tele) 1.5M
  • Min. Illumination: 0.5lux (50 IRE Max AGC, 1/30, F1.8)
  • Focus Control: Auto or Manual
  • Iris Control: Auto or Manual
  • Shutter Control: Auto or Manual
  • Picture Control: Brightness, Contrast, Saturation, Sharpness
  • Noise Reduction: 2D/3D
  • Mirror: On/Off
  • Flip: On/Off
  • White Balance Modes: Auto/Indoor/Outdoor/One-Push/Auto-tracking/Manual
  • Panning Angle: -170° - +170°
  • Tilting Angle: 30° - +90°
  • Audio Input: Mini XLR, 3.5mm stereo audio input (line)
  • Mic Gain/Volume Control: Yes
  • Phantom Power to Mini XLR: Enabled through Web GUI with double confirm
  • Networking: 1 Gigabit Ethernet
  • Control: NDI®
  • Power: PoE+ (IEEE 802.3 at) or DC12V Power Supply
  • Tracking Data:
    - FreeD-over-NDI|HX
    - FreeD via UDP
  • Video Output:
    - NDI|HX 3
    - NDI|HX 2
    - 3G-SDI
    - HDMI
  • Video Formats:
    - 2160p:60, 59.94, 50, 30, 29.97, 25
    - 1080p:60, 59.94, 50, 30, 29.97, 25, 24
    - 720p:60, 59.94, 50, 30, 29.97, 25
  • Picture Control:
    - Brightness
    - Contrast
    - Saturation
    - Sharpness


• Item Includes:

  • 1x Mini XLR to XLR adapter
  • 1x Wall Mount
  • 1x Ceiling Mount
  • 1x Mount Fixings
  • 1x IR Remote Control for up to 4x cameras


• Warranty:

  • 3 Year Limited Warranty
