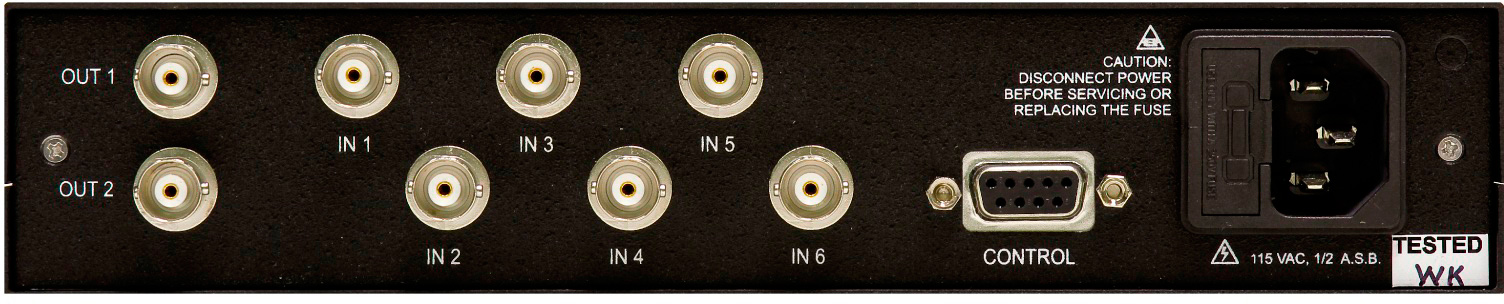

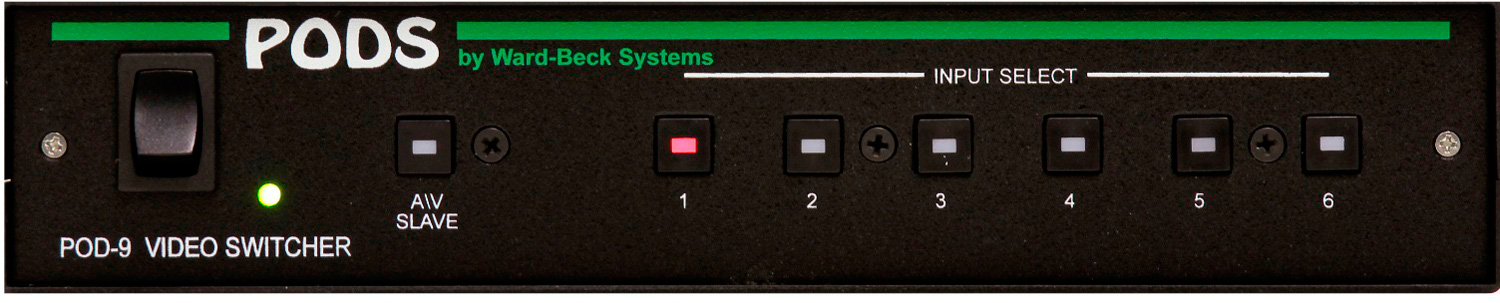

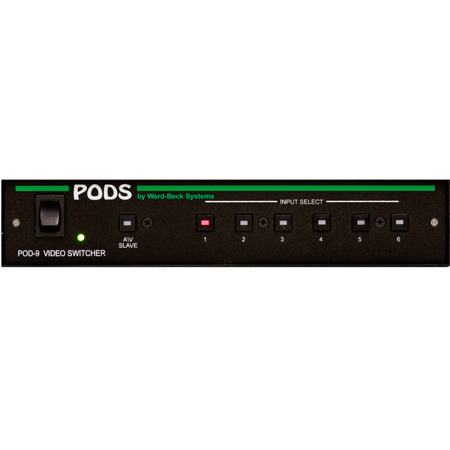

Ward Beck POD9 6x1 Analog Video Switcher

Manufacturer: Ward-Beck Systems Ltd.

Item #: WARD-POD9   •   MFG #: POD9




Share!





POD9 is a six by one analog video switcher. POD9 may be used in conjunction with an analog audio switcher (POD2), or a digital audio switcher (POD10) for audio follow video applications. When slave mode is engaged, any channel selection on the video switcher will result in the same selection on the audio switcher and vice versa. The video switching on POD9 occurs in the vertical interval. If the currently selected input does not have valid sync, POD9 will switch randomly. POD9 may also be controlled remotely using its RS422 serial interface.


  • Features

    • 6 x 1 analog video switcher
    • may be used in conjunction with an analog audio switcher (POD2), or a digital audio switcher (POD10) for audio follow video applications
    • in slave mode, any channel selection on the video switcher will result in the same selection on the audio switcher and vice versa
    • video switching occurs in the vertical interval
    • may also be controlled remotely using its RS422 serial interface.

  • Specifications

    • Crosstalk better than 60dB @ 3.58M
    • Differential Gain better than 0.1% @ 3.58M
    • Output Level 1 Vp-p, terminated
    • Response better than 0.05db @ 3.58M
    • Output Impedance (2 splits) 75 Ohms
    • Input Return Loss 46dB typical @ 3.58M
    • Input Level 1 Vp-p nominal
    • Input Impedance (6) 75 Ohms
    • Differential Phase better than 0.1 deg @ 3.58M
    • S/N better than 60dB 5MHz B.W

  • Item Includes

    • All PODS are supplied in a stand alone desktop POD-PACKAGE, manual and AC power cord. PODS in rack mount assemblies may be ordered as a factory option.
