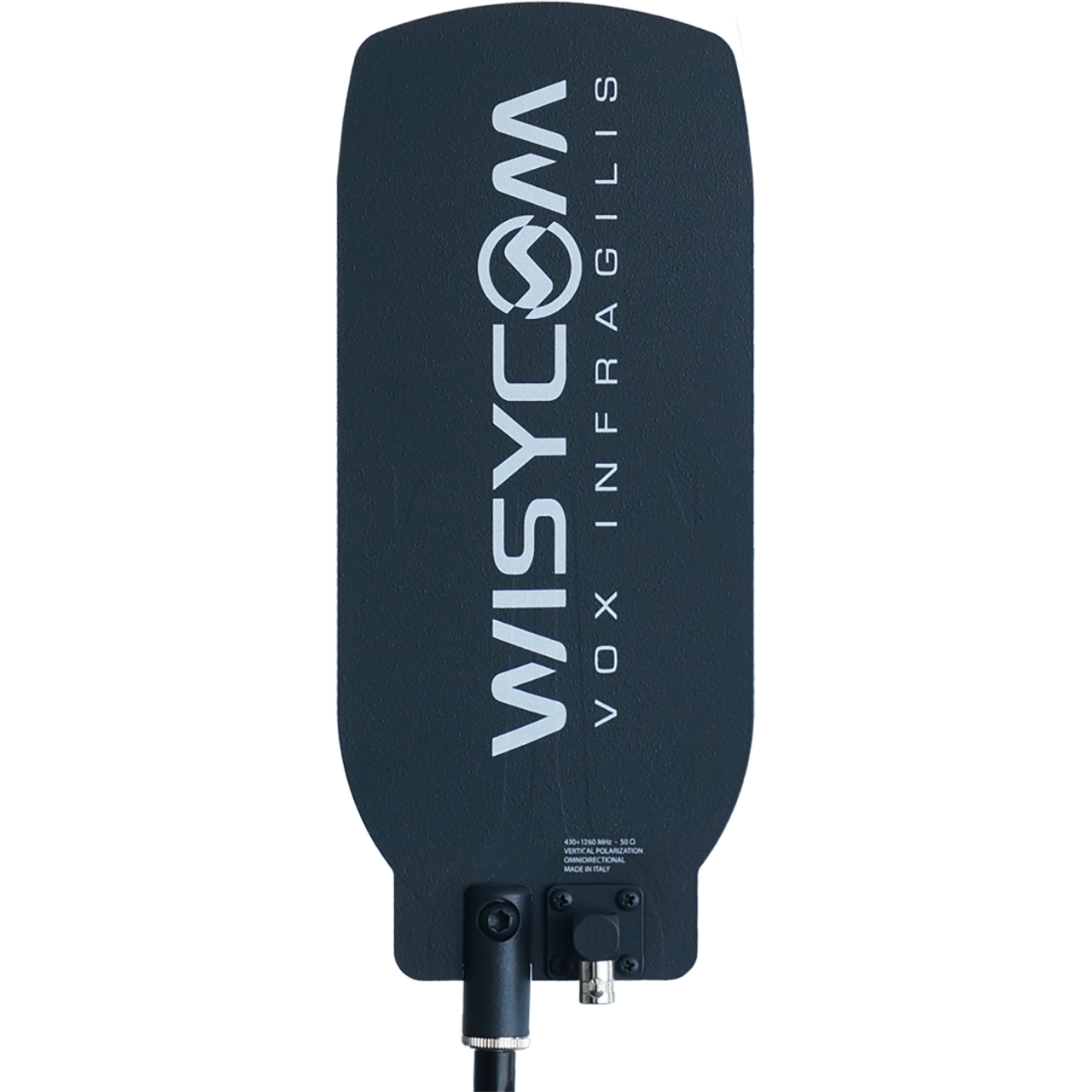

Wisycom ADB3 IP67-Rated Omnidirectional Wideband Passive Antenna with BNC-F Connector and 3.2dBi Max Gain - 430-1260MHz

ADB3 - Overview

• Features:

  • Agile: Working bandwidth of 430MHz - 1260MHz
  • Ruggedized: Sturdy metal body construction
  • High-Performances: Optimized 3.2dB gain
  • High Protection: Its IP67-rated provide high-level protection due to their high water and dust ingress protection ability.


• Specifications:

  • Frequency Ranges: 430MHz - 1260MHz
  • SWR:
    - <1:1.5 in the range 430MHz - 960MHz
    - <1:1.9 in the range 430MHz - 1260MHz
  • Polarization: Vertical
  • Radiation: Omnidirectional
  • Connector: BNC-F
  • Impedance: 50Ω
  • Material: Epoxy fiberglass (copper - clad)
  • Finishing: Black matte textured weather resistance coating
  • Mounting: ⅝" & ⅜" thread (metal support and mounting base)
  • Dimensions (HxWxD): 18.11" x 12.99" x 0.43"
  • Weight: 0.50lbs (225g)


• Item Includes:

  • 1x Wisycom ADB3 IP67-rated Omnidirectional Wideband Passive Antenna with 50 Ohm BNC and 3.2 dBi Max Gain - 430-1260MHz


• Warranty:

  • 1 Year
