WILLIAMS AV BA CT1 Infinium Assistive Listening Dante Controller and Transmitter Package with 10 Foot Ethernet Cable

BA CT1 - Overview

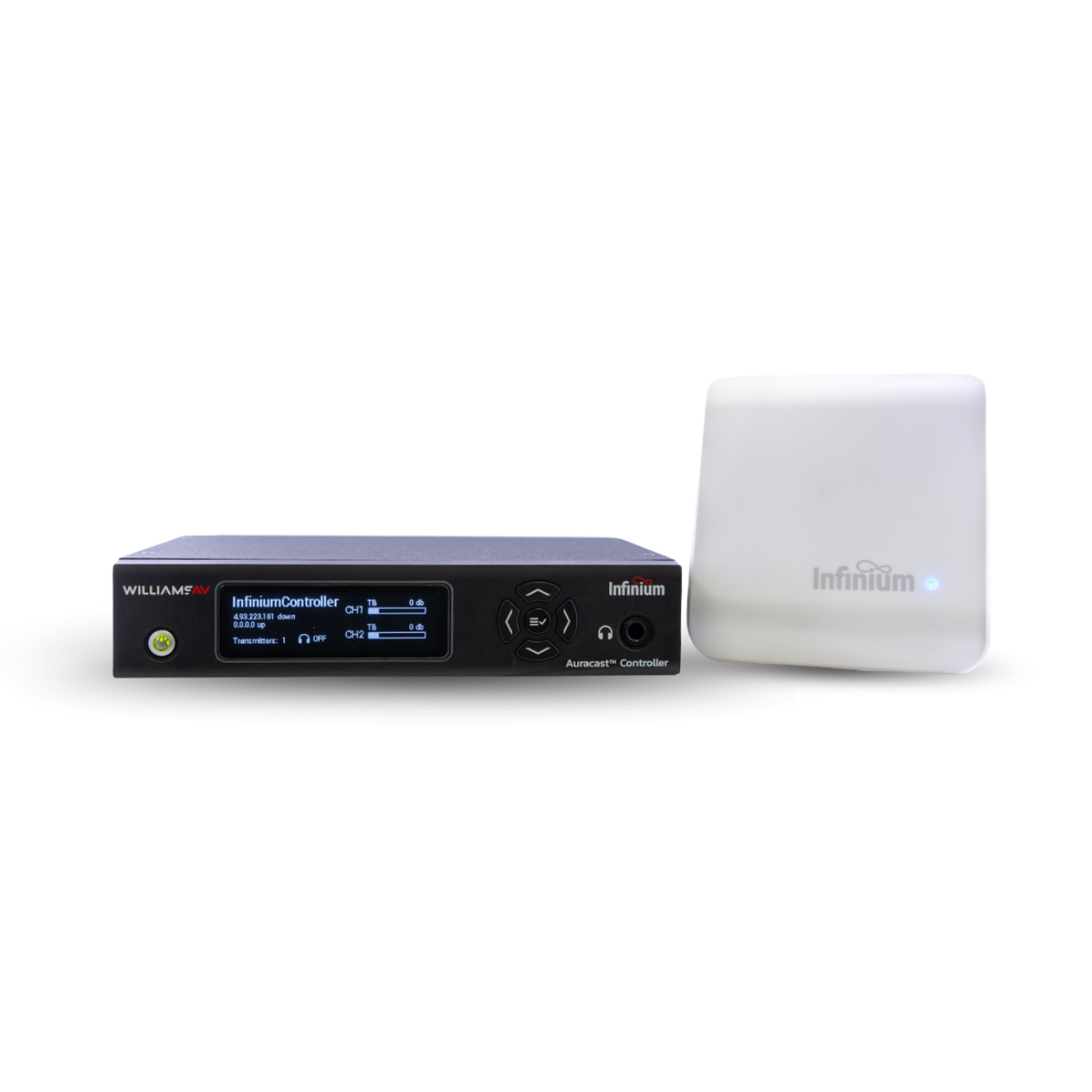

Infinium™ Auracast™ Controller and Transmitter

• Features:

  • Modular System Design - The transmitter and controller are housed separately, allowing flexible placement and smooth integration into AV racks.
  • Simplified Transmitter Installation - The transmitter requires just a single CAT cable for power and audio, reducing setup time for integrators.
  • Remote & Onsite Management - Configure, monitor, and troubleshoot via the front panel or web interface, with the added ability to listen to audio outside the coverage area.
  • Auracast™ Compatibility - Supports a wide range of personal listening devices, and a dedicated Infinium receiver, ensuring inclusive audio access.
  • Dante® Integration - Easily connects to professional AV networks, enabling efficient audio routing and management.


• Specifications:

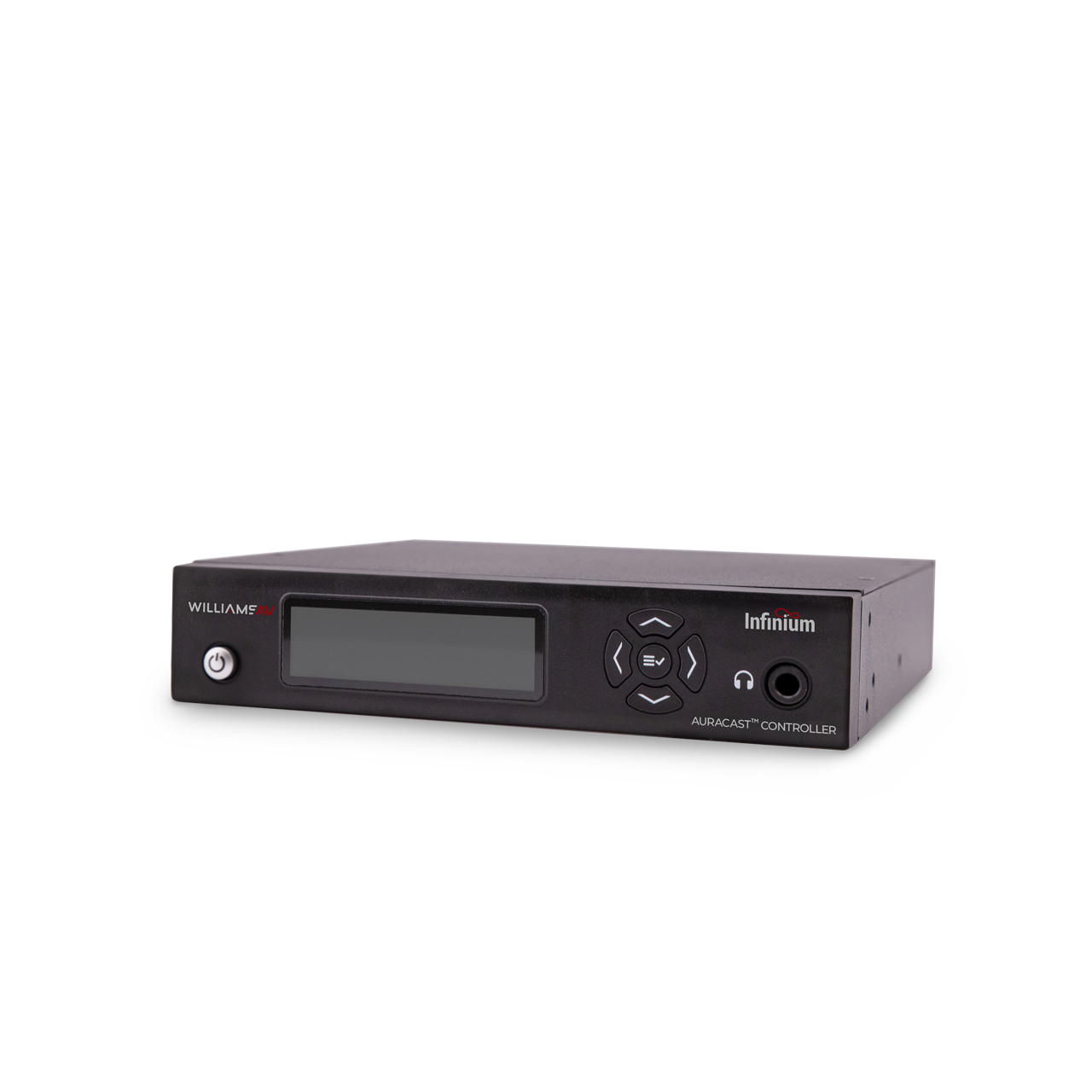

  Controller
  • Dimensions (HxWxD): 1.72" x 8.45" x 8.25"
  • Weight: 2.3lbs (1.04kg)
  • Color: Black
  • Installation Configurations: Rack Mount: Standard 19" Rack, one EIA rack space high, 1/2 space wide
  • 1-2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits
  • Shelf: Can sit on shelf, table, podium, etc.
  • Temperature Range:
    - Operating: 32°F - 122°F
    - Storage: -4°F - 158°F
  • Power Supply - Desktop Style Transformer (TFP 062):
    - Input: 100V - 240V AC, 50/60 Hz
    - Output: 24V DC, 750mA, 18W. 2.5mm ID center positive barrel connector
  • Power Button: Push On/Push Off latching power button.

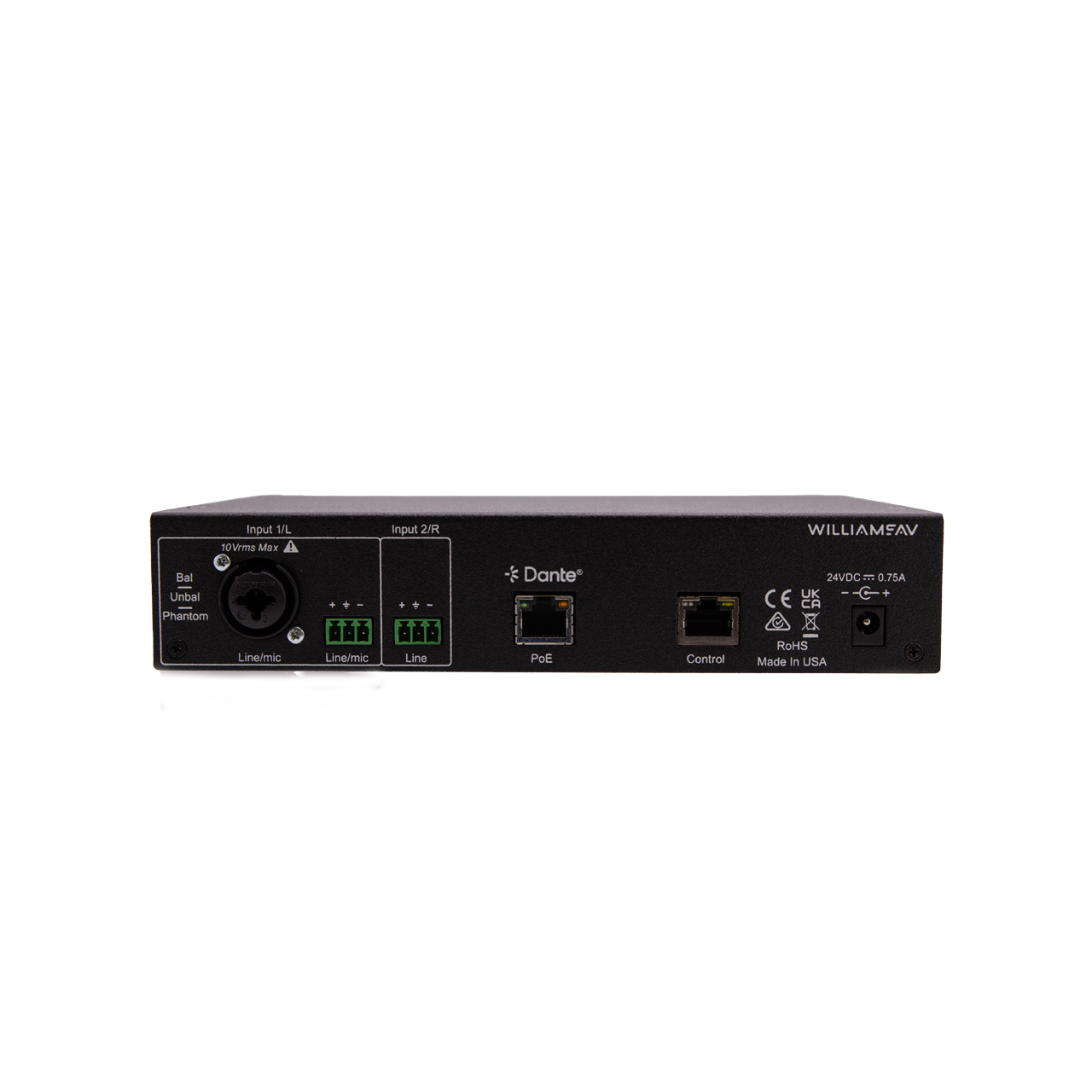

  • Ethernet Control Port: 1x RJ-45 used for web UI, programming, and status display. Supports CAT 5e cable lengths up to 328 feet; 10/100 Base-T
  • Front Panel Display: 3.12" High Resolution OLED Direct Entry UI with button entry programming and status indicator selections
  • Dante: 1x RJ-45 jack
  • Power Supply: Desktop Style Transformer (TFP 062); Input: 100V - 240V AC, 50/60Hz. IEC Line Cord; Output: 24V DC, 750mA, 18W. 2.5mm ID center positive barrel connector
  • PoE Power Out: PoE
  • Compliance Approvals: FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme

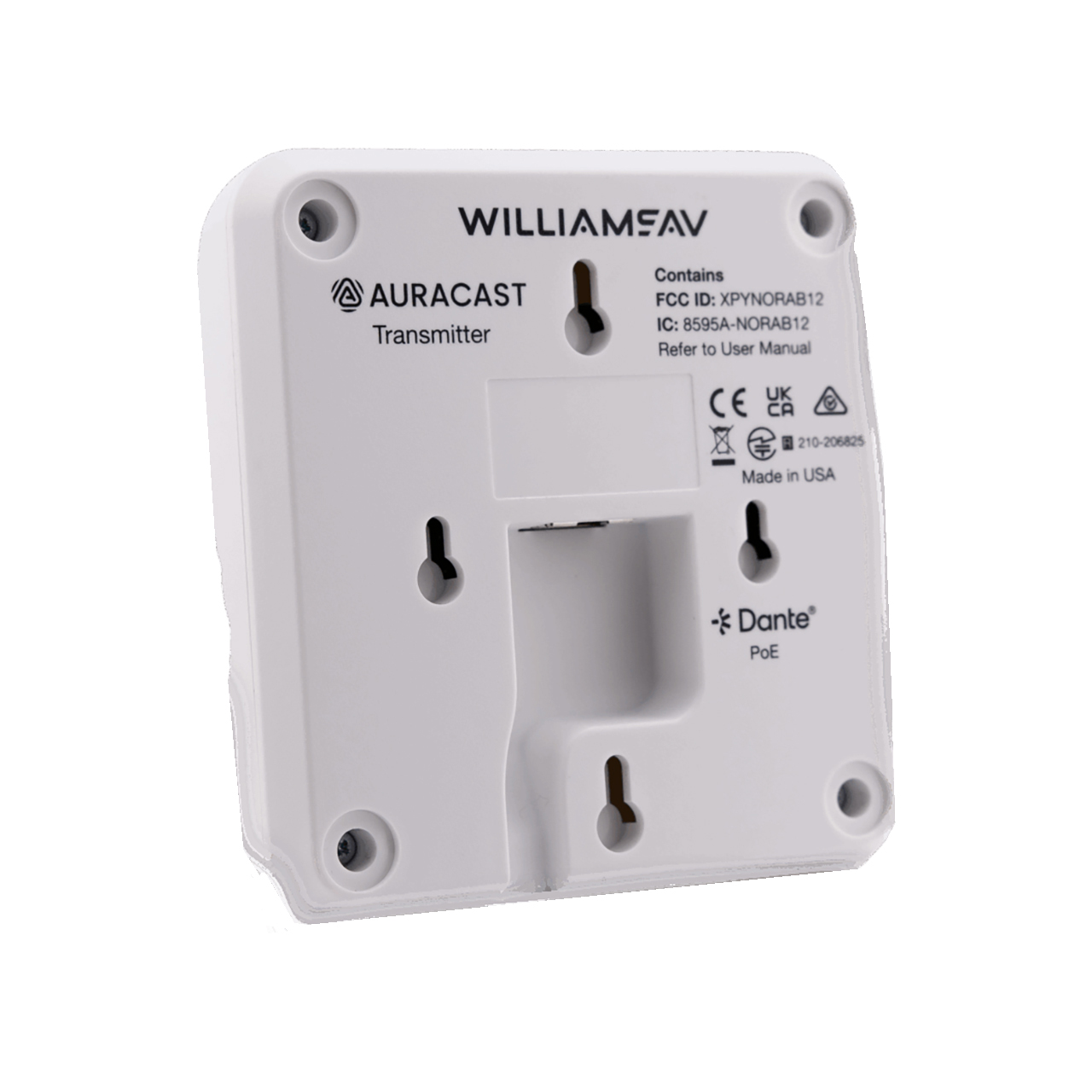

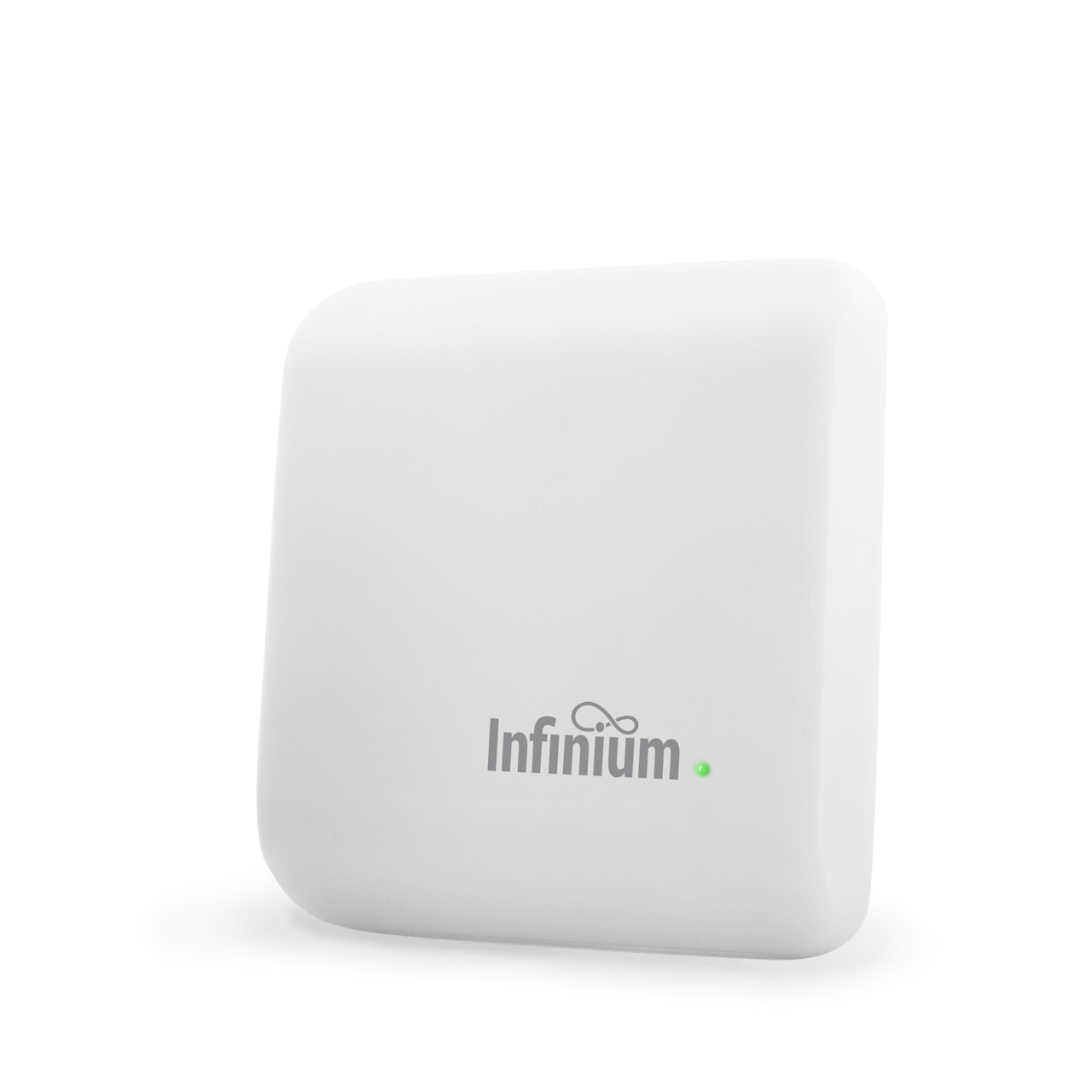

    Transmitter
  • Dimensions (HxWxD): 1.19" x 4.7" x 5.0"
  • Weight: 0.4lbs (0.18kg)
  • Color: White
  • Installation Configurations: Ceiling Mount, Wall Mount, Shelf
  • Temperature Range - Operating: 32°F - 122°F
  • Temperature Range - Storage: -4°F - 158°F
  • Power: PoE (Input)
  • Connection: 1x RJ45 with audio, control and PoE
  • Power ON Indicator: Programmable LED
  • Transmitter Power Output: Programmable
  • Compliance Approvals: FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme, Gitecki (Japan)

    Cable
  • Ethernet Cable: 10' - CAT 5e Ethernet; 10/100 Base-T IEEE 802.3 compliant


• Item Includes:

  • 1x BA CT1 Contoller & transmitter and 10 ft (3m) Ethernet cable


• Warranty:

  • 2 Year Warranty
