224WH1000 - Overview

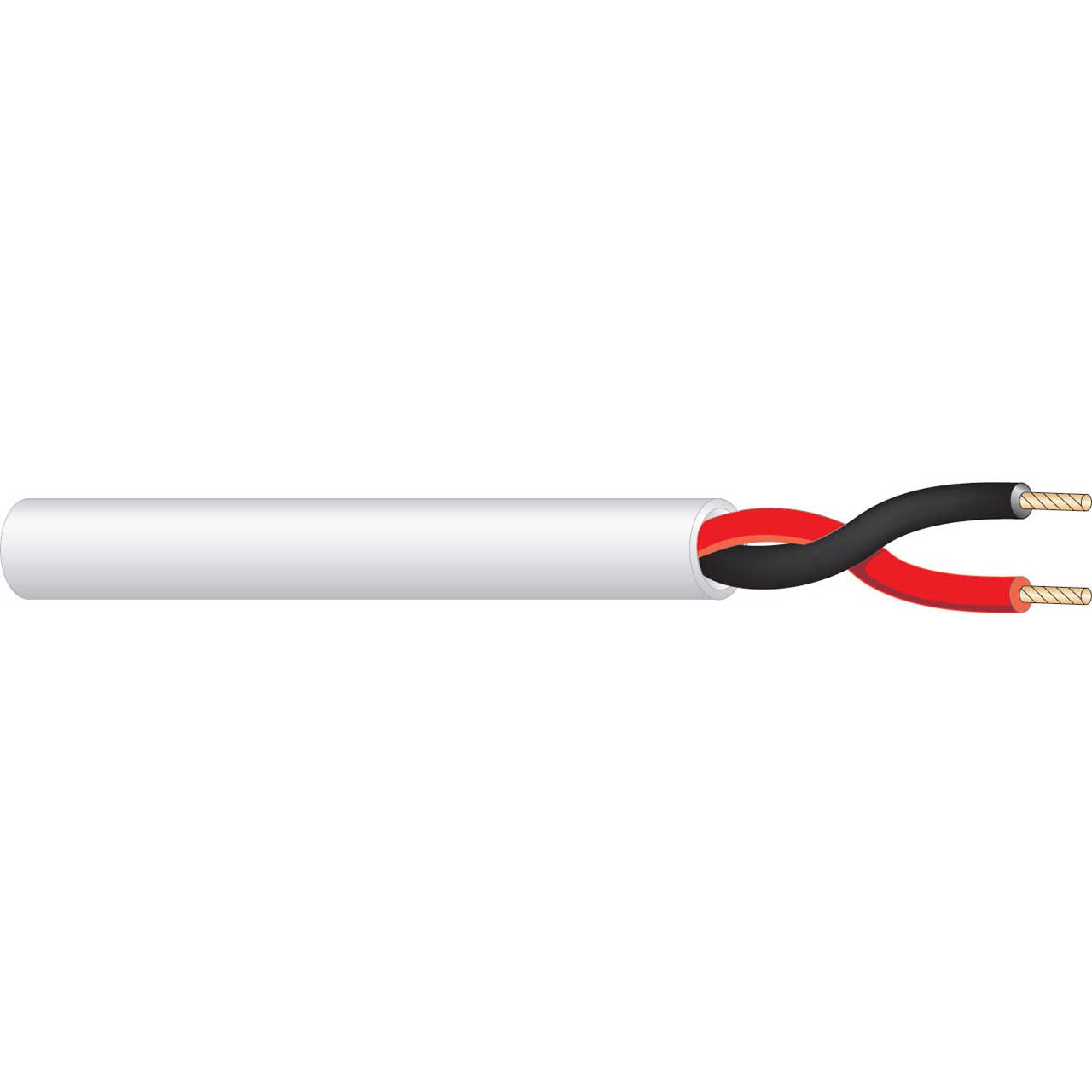

The West Penn 224WH1000 is an 18/2 stranded bare copper conductors, unshielded with an overall jacket.

Applications:
Intercom
Security
Sound
Audio
Background Music
Power Limited Control Circuits

  • Specifications:

    • Conductor: 18 AWG Bare Copper
    • Stranding: 7x26
    • Insulation Material: PVC
    • Insulation Thickness: 0.008'' Nom.
    • Number of Conductors: 2
    • Shield: None
    • Drain: None
    • Jacket Material: PVC
    • Jacket Thickness: 0.017'' Nom.
    • Overall Cable Diameter: 0.156'' Nom.
    • Approximate Cable Weight: 16.1 Lbs/1M' Nom.
    • Flame Rating UL: 1666 Riser Flame Test
    • Operating Voltage: 300 V RMS
    • Max.Capacitance Between Conductors @ 1 KHz: 30 pf/ftNom.
    • DC Resistance per Conductor @ 20deg C: 6.2 Ohms/1M'Nom.
    • Insulation Colors: Black ,Red
    • Jacket Color: Brown
    • RoHS Compliant: Yes
    • Max. Recommended Pull Tension: 42 lbs.
    • Min. Bend Radius (Install): 1.6"


  • GTIN:

    0612825043461
