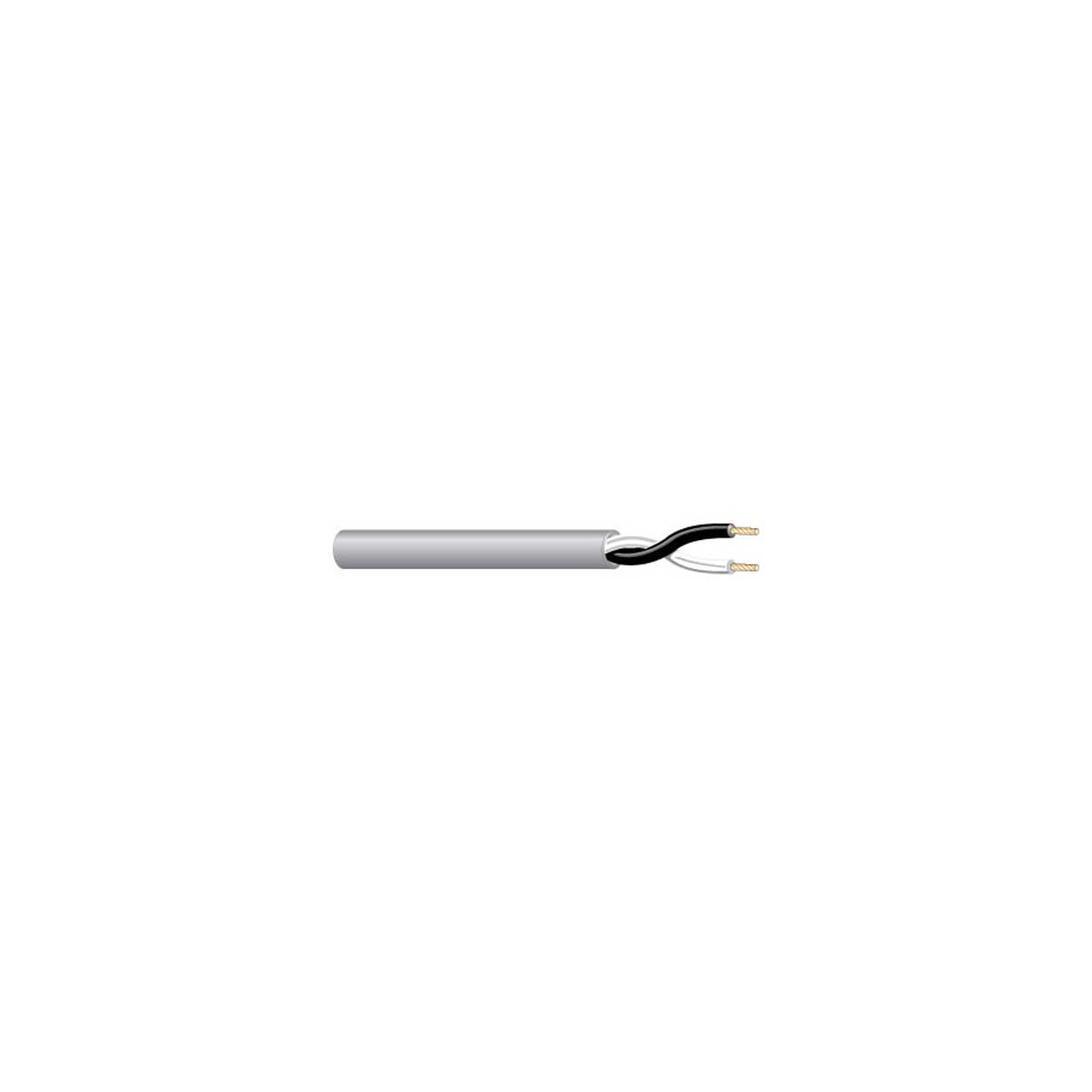

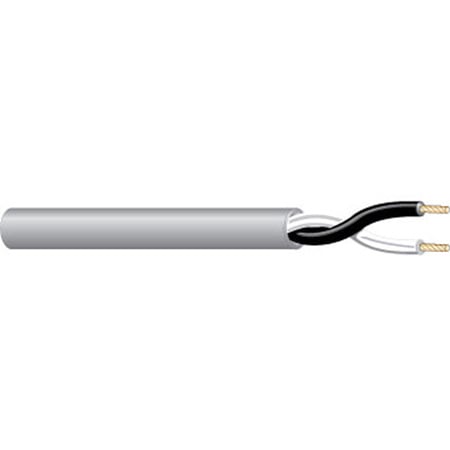

West Penn 227 Unshielded 12/2 Cable with Overall Jacket - 500 - Feet Black

ITEM #: WP-227-500 MFG #: WEST PENN 227-500

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$361.65

Our Price:

$318.71

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

WEST PENN 227-500 - Overview

This West Penn 227 12/2 stranded bare copper wire is ideal for intercom, security, sound, audio, background music and power limited control circuit applications.

  • Specifications:

    • Conductor: 12 AWG Bare Copper
    • Stranding: 19 x 25
    • Insulation Material: PVC
    • Insulation Thickness: 0.010" Nom.
    • Number of Conductors: 2
    • Shield: No
    • Drain: No
    • Jacket Material: PVC
    • Jacket Thickness: 0.017" Nom
    • Overall Cable Diameter: 0.260" Nom
    • Approximate Cable Weight: 53.6lbs per 1,000' Nom.
    • Flame Rating: UL 1666 Riser Flame Test
    • Temperature Rating: -4°F To +140°F
    • Operating Voltage: 150V RMS
    • Max Capacitance Between Conductors @ 1kHz: 33.5pf/ft Nom.
    • DC Resistance per Conductor @ 68°F: 1.7 ohms per 1,000' Nom.
    • Insulation Colors: Black, White
    • Jacket Color: Gray, Black


  • GTIN:

    0612825043881
