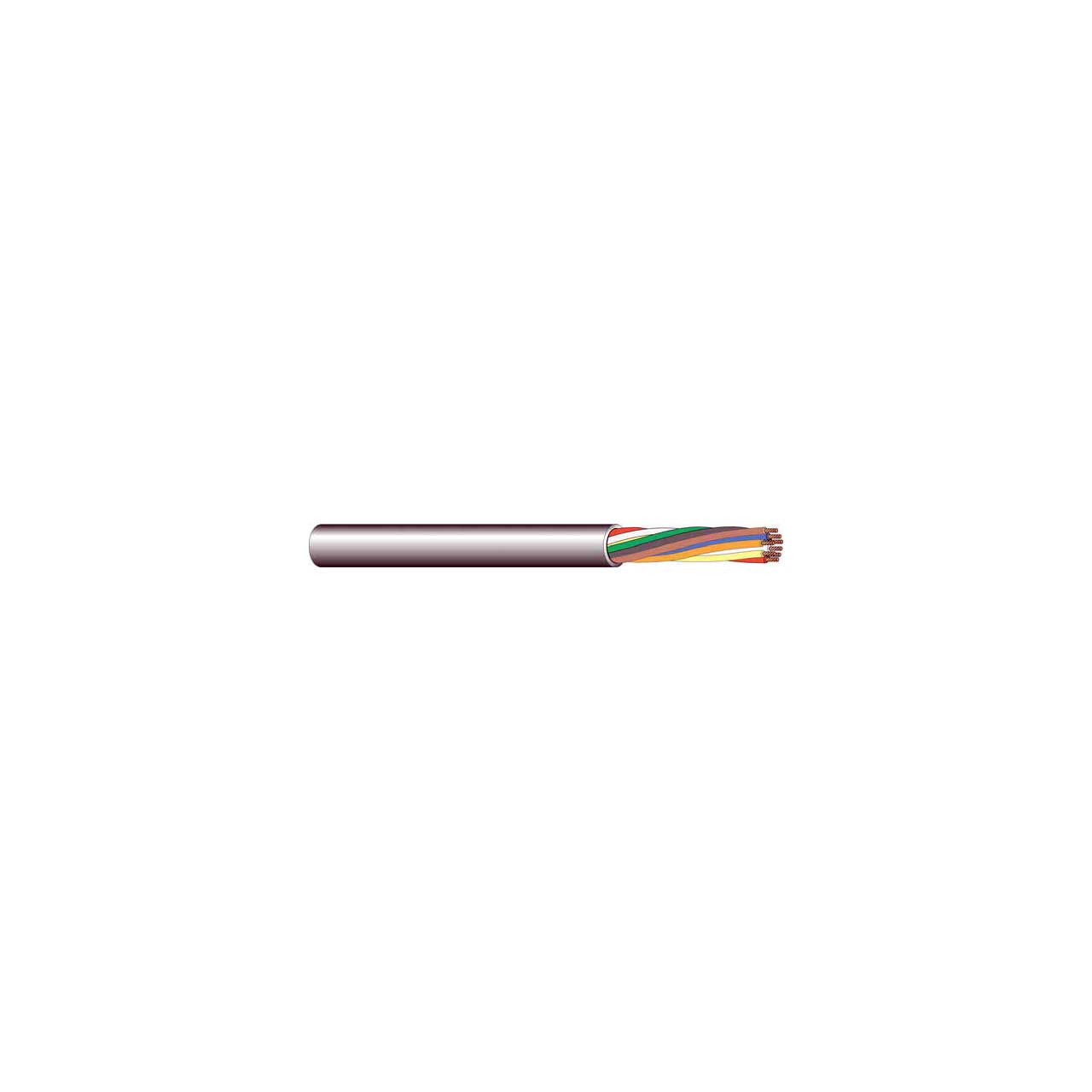

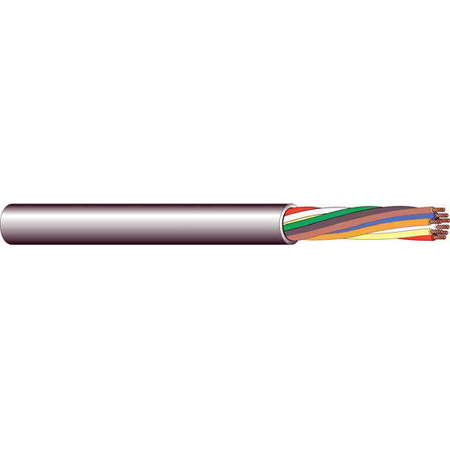

West Penn 25186B Reel in a Box 6 Conductor 18 AWG (7X26) Bare Copper - CMP Rated

ITEM #: WP-25186B MFG #: 25186B

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$566.70

Our Price:

$457.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

25186B - Overview

The West Penn 25186B is a 1000ft roll of 18 gauge ,6 stranded bare copper conductors, unshielded with an overall jacket.Applications include Indoor within ducts, plenums, and other spaces used for environmental air for (Pro Audio, Intercom
Systems, Security Systems, Sound, Background Music) .

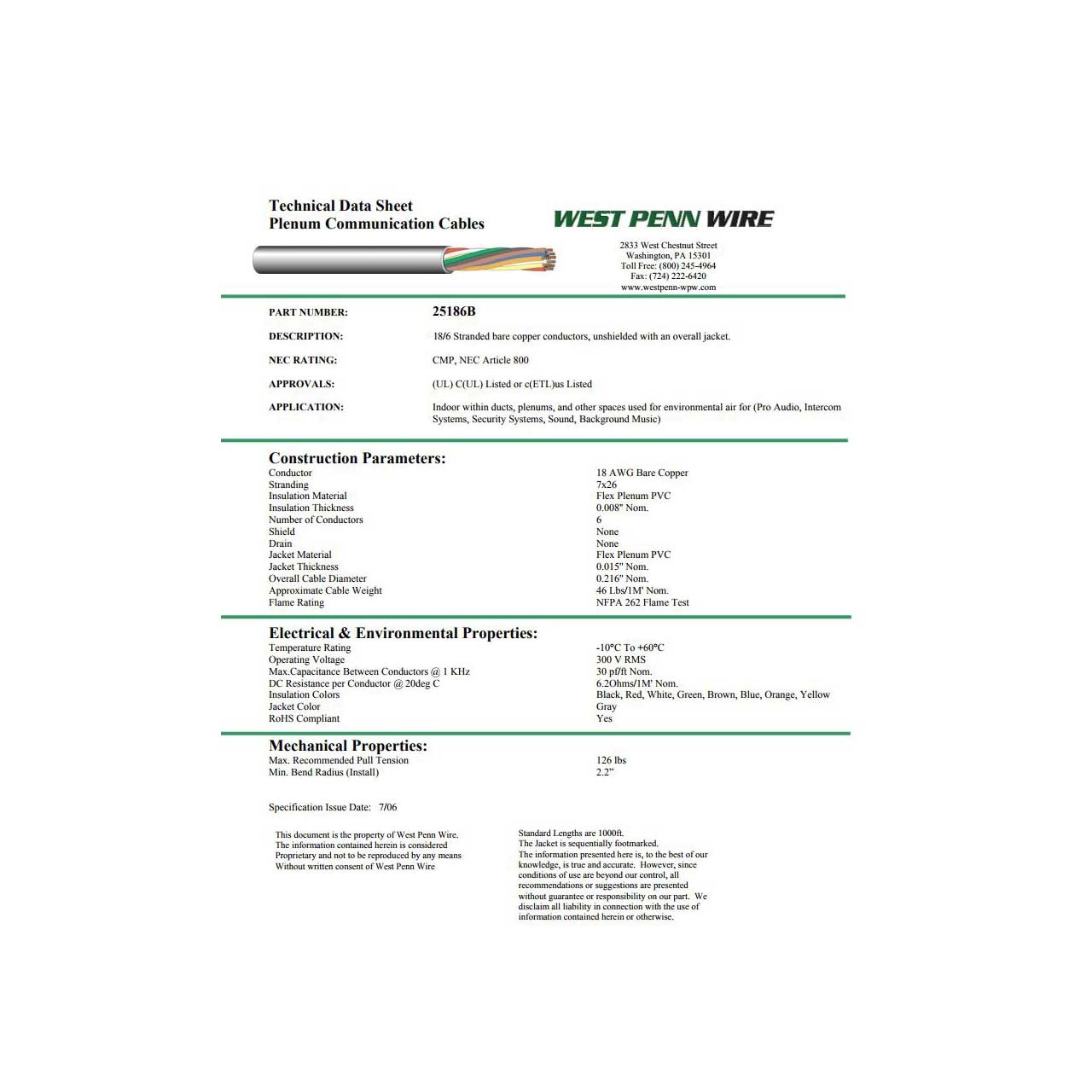

  • Specifications:

    • Number of Conductors: 6
    • AWG Size: 18
    • Conductor Stranding: 7x26
    • Conductor Type: Bare copper
    • Nominal DCR: 6.2Ω/1000ft
    • Insulation Type: Plenum PVC
    • Insulation Thickness: 0.008"
    • Insulation Color Code: 1. Black, 2. White, 3. Red, 4. Green, 5. Brown, 6. Blue
    • Shield Type: None
    • Jacket Type: Flexible PVC
    • Jacket Thickness: 0.015"
    • Nominal Cable O.D.: 0.216"
    • Plenum: Yes
    • NEC UL Rating: CMP
    • RoHS Compliant: Yes
    • Bend Radius: 1.944"
    • Cable Weight: 46lbs
    • UL Flammability: NFPA 262 Plenum
    • Operating Range: -4° to 140°F
    • UL Voltage Rating: 300


  • GTIN:

    0612825044901
