West Penn 25210 10/2 Stranded Bare Copper Conductors - Unshielded Ivory - 1000 feet

ITEM #: WP-25210IV-1000 MFG #: 25210IV1000

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$1,542.20

Our Price:

$1,242.71

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

25210IV1000 - Overview

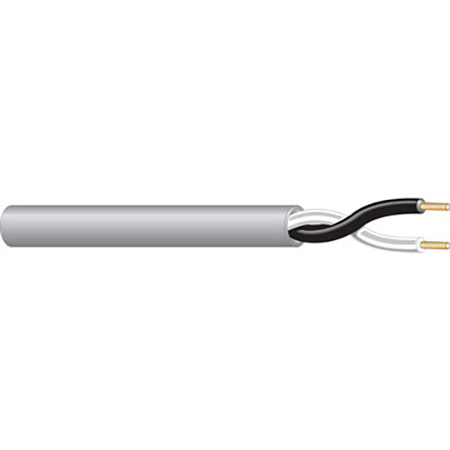

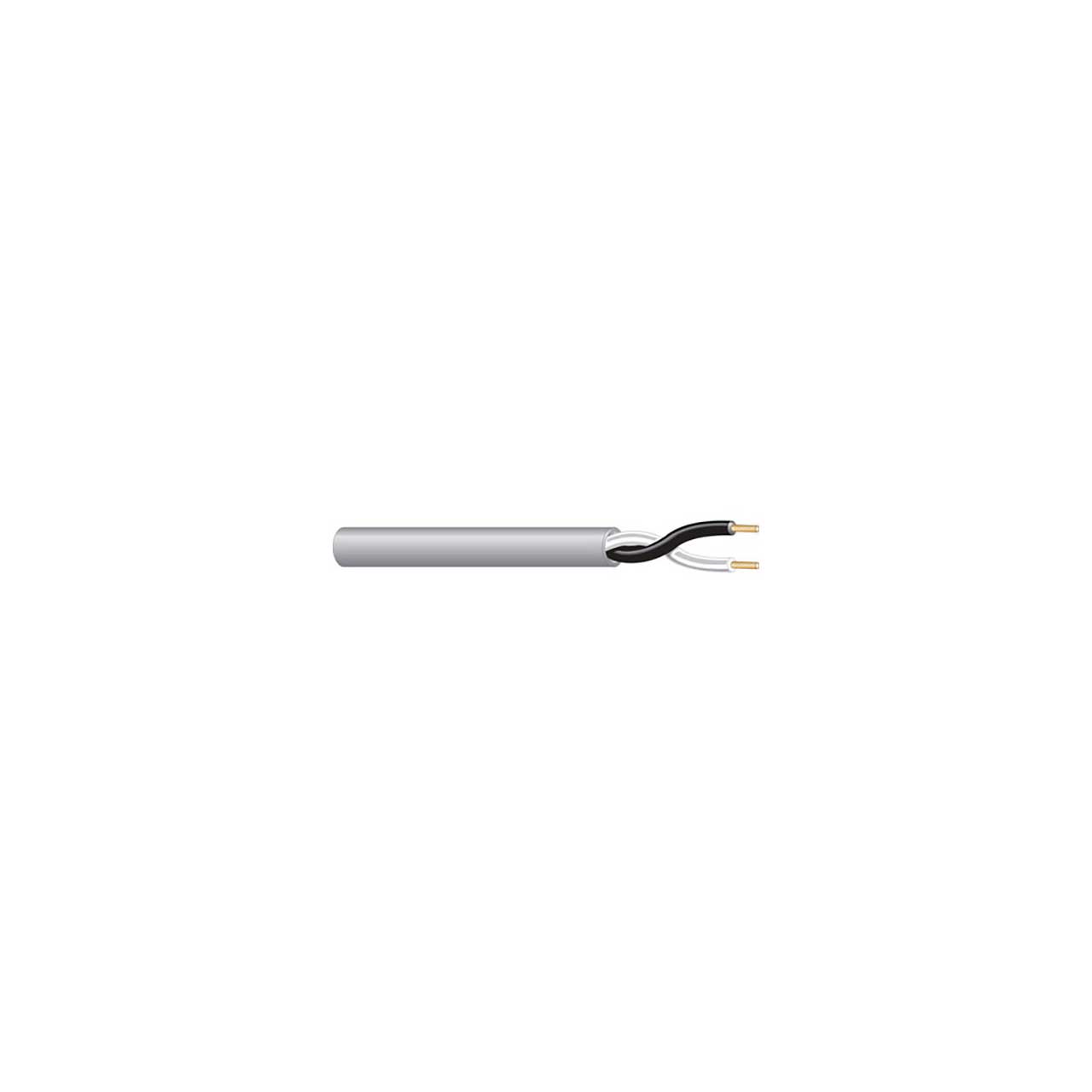

The West Penn 25210 is an audio, control and low voltage power bare cluster Plenum speaker cable.

  • Specifications:

    • Conductor Parameter
    • Number of Conductors: 2
    • AWG Size: 10
    • Conductor Stranding: 65x28
    • Conductor Type: Bare copper
    • Nominal DCR: 1.1 Ohm/1000ft
      Insulation Parameter
    • Insulation Type: Plenum PVC
    • Insulation Thickness: 0.012 in
    • Insulation Color Code: 1. Black 2.White
      Overall Construction Parameters
    • Jacket Type: Flexible Plenum
    • Jacket Thickness: 0.015 in
    • Nominal Cable O.D.: 0.257 in
    • Plenum: Yes
    • NEC UL Rating: CMP
    • RoHS Compliant: Yes
    • Pull Tension: 250 lbs
    • Bend Radius: 1.20 in
    • Cable Weight: 90 lbs
    • Color: White


  • GTIN:

    0612825045113
