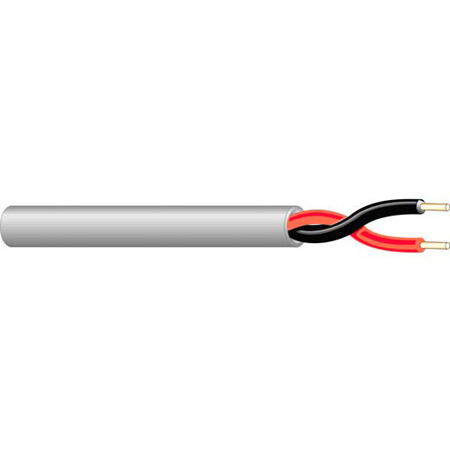

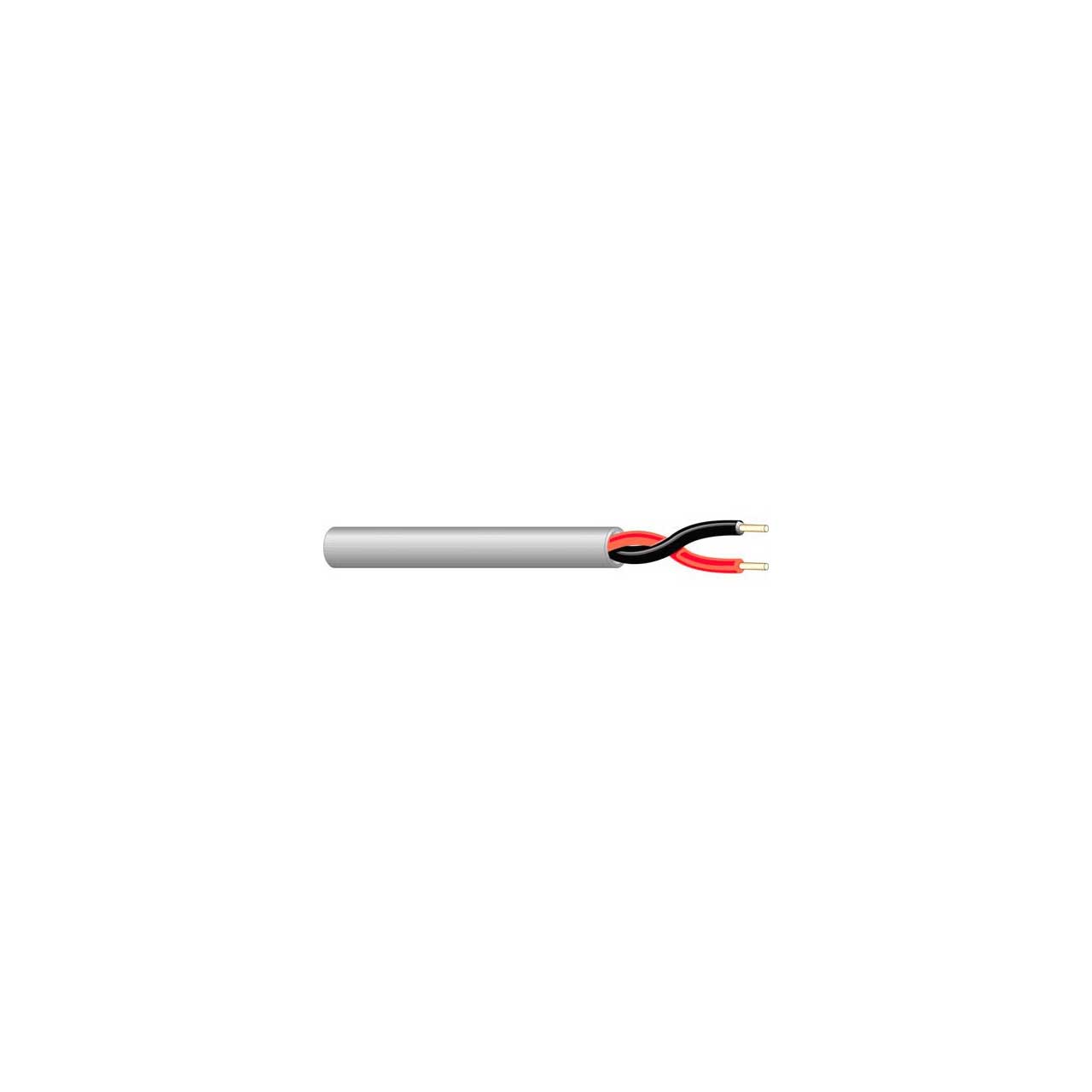

West Penn Wire 25225B Super Plenum Speaker Cable 16AWG - Gray - 500 Foot

ITEM #: WP-25225B-500GY MFG #: 25225BGY500

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$160.30

Our Price:

$145.35

Availability: In Stock
iAvailability Description Popup


    25225BGY500 - Overview

    The first speaker cable designed to give high definition sound quality and meet all the requirements of plenum applications. These cables feature Oxygen Free Copper multi-stranded conductors which generate outstanding sound reproduction. Meets all NEC fire codes. Color: Gray. O.D.: .295"

    The 25225B features 16/2 Stranded bare copper conductors and unshielded with an overall jacket.

    Normal applications include indoor within ducts, plenums and other spaces used for environmental air for: (Intercom, Security, Sound, Audio, Background music).

    • Specifications:

      • Conductor Parameters
      • Number Of Conductors: 2
      • AWG Size: 16
      • Conductor Stranding: 19x29
      • Conductor Type: Bare copper
      • Nominal DCR: 4.2 Ohm/1000ft
      • Cabling Lay Length: 3 in
      • Twists / Foot: 4 twist/ft

        Insulation Parameters
      • Insulation Type: Plenum PVC
      • Insulation Thickness: 0.008 in
      • Insulation Color Code: 1. Black 2.Red

    • GTIN:

      0612825045656
