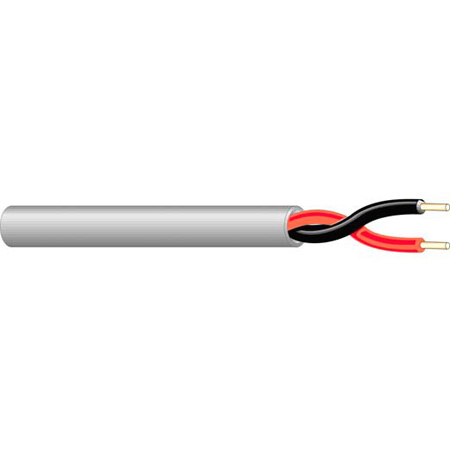

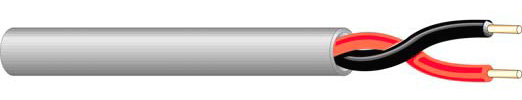

West Penn Wire 25225B - 16 GA Unshielded Plenum Speaker Cable - 1000ft


    West Penn Wire 25225B - 16 GA Unshielded Plenum Speaker Cable - 1000ft

    Manufacturer: West Penn Wire Corp

    Item #: WP-25225B   •   MFG #: 25225B



    This item is no longer available.
    Ask a Markertek Expert if you need assistance finding an appropriate substitute.

    800-522-2025Email





    Item unavailable. Please select another option.

    Items similar to the WP-25225B

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    16/2 Stranded bare copper conductors, unshielded with an overall jacket.
    APPLICATION:
    Indoor within ducts, plenums and other spaces used for environmental air for: (Intercom, Security, Sound, Audio, Background music)


    • Specifications

      • Conductor 16 AWG Bare Copper
      • Stranding 19x29
      • Insulation Material Flex Plenum PVC
      • Insulation Thickness 0.008'' Nom.
      • Number of Conductors 2
      • Shield None
      • Drain None
      • Jacket Material Flex Plenum PVC
      • Jacket Thickness 0.015'' Nom.
      • Overall Cable Diameter 0.176'' Nom.
      • Approximate Cable Weight 25 Lbs/1M' Nom.
      • Flame Rating NFPA 262 Flame Test
      • Temperature Rating -10°C To +60°C
      • Operating Voltage 300 V RMS
      • Max.Capacitance Between Conductors @ 1 KHz 33 pf/ft Nom.
      • DC Resistance per Conductor @ 20deg C 4.2 Ohms/1M' Nom.
      • Insulation Colors Black, Red
      • Jacket Color Gray, Black, Green
      • RoHS Compliant Yes
      • Max. Recommended Pull Tension 54 lbs
      • Min. Bend Radius (Install) 1.8"

    • GTIN:

      0612825045663
