West Penn 25236B Plenum 14/3 Stranded Bare Copper Conductors - Unshielded - 1000 Foot - Gray

ITEM #: WP-25236B-1000GY MFG #: 25236BGY1000

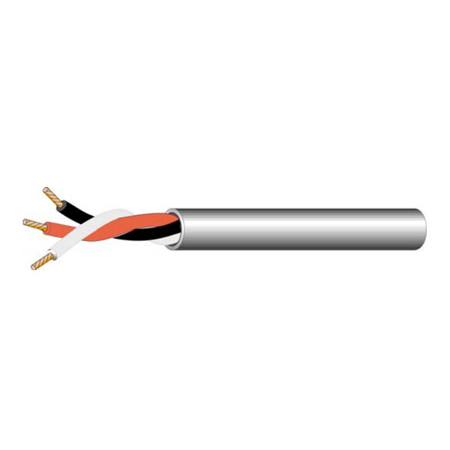

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the WP-25236B-1000GY

25236BGY1000 - Overview

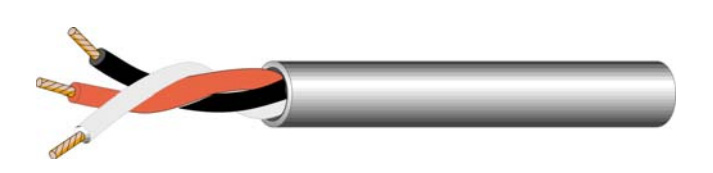

The 25236BGY1000 from West Penn is a 3-conductor, 14AWG, unshielded communication cable with stranded bare copper conductors (insulated) and an overall jacket.

  • Features:

    • Applications
    • Indoor within ducts, plenums, and other spaces used for environmental air for Intercom Systems, Security Systems, Sound, Audio, Background Music.


  • Specifications:

    • Construction Parameters
    • Conductor: 14 AWG Bare Copper
    • Stranding: 19x27
    • Insulation Material: Flex Plenum PVC
    • Insulation Thickness: 0.010'' Nom.
    • Number of Conductors: 3
    • Shield: None
    • Drain: None
    • Jacket Material: Flex Plenum PVC
    • Jacket Thickness: 0.015'' Nom.
    • Overall Cable Diameter: 0.236'' Nom.
    • Approximate Cable Weight: 53 Lbs/1M' Nom.
    • Flame Rating: NFPA 262 Flame Test

    • Electrical & Environmental Properties
    • Temperature Rating: -10°C To +60°C
    • Operating Voltage: 150 V RMS
    • Max.Capacitance Between Conductors @ 1 KHz: 34 pf/ft Nom.
    • DC Resistance per Conductor @ 20deg C: 2.7 Ohms/1M' Nom.
    • Insulation Colors: Black, Red, White

    • Mechanical Properties
    • Max. Recommended Pull Tension: 146 lbs
    • Min. Bend Radius (Install): 2.25"
    • Jacket Color: Gray
    • RoHS Compliant: Yes


  • GTIN:

    0612825046257
