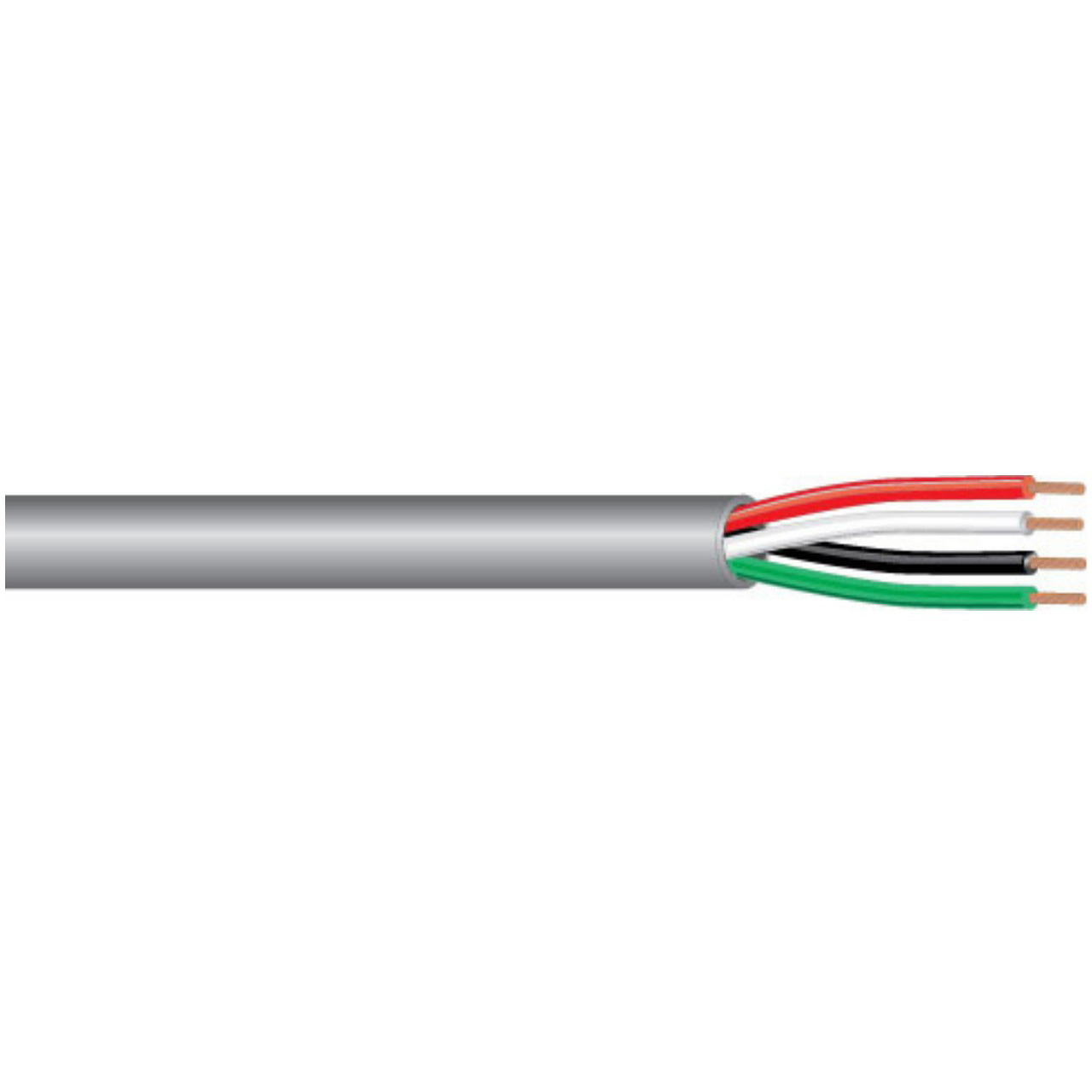

West Penn 25244BGY0500 18/4 Stranded Unshielded Plenum Audio Cable - 500-Foot - Gray

25244BGY0500 - Overview

18 AWG Plenum Communication Cable - 500 ft - Gray

• Specifications:

  • Number of Conductors: 4
  • AWG Size: 18
  • Conductor Stranding: 7x26
  • Conductor Type: Bare copper
  • Nominal DCR: 6.2Ω/1000ft
  • Cabling Lay Length: 3.5"
  • Twists/Foot: 3.4 twist/f
  • Insulation Type: Plenum PVC
  • Insulation Thickness: 0.008"
  • Insulation Color Code:
    - 1: Black
    - 2: Red
    - 3: White
    - 4: Green
  • Shield Type: None
  • Jacket Type: Flexible Plenum
  • Jacket Thickness: 0.015"
  • Nominal Cable O.D.: 0.18"
  • Plenum: Yes
  • UL Flammability: NFPA 262 Plenum
  • Operating Range: 32°F- 140°F (0°C - 60°C)
  • NEC UL Rating: CMP
  • RoHS Compliant: Yes
  • UL Voltage Rating: 300
  • Pull Tension: 80lbs
  • Bend Radius: 1.61"
  • Cable Weight: 32lbs
