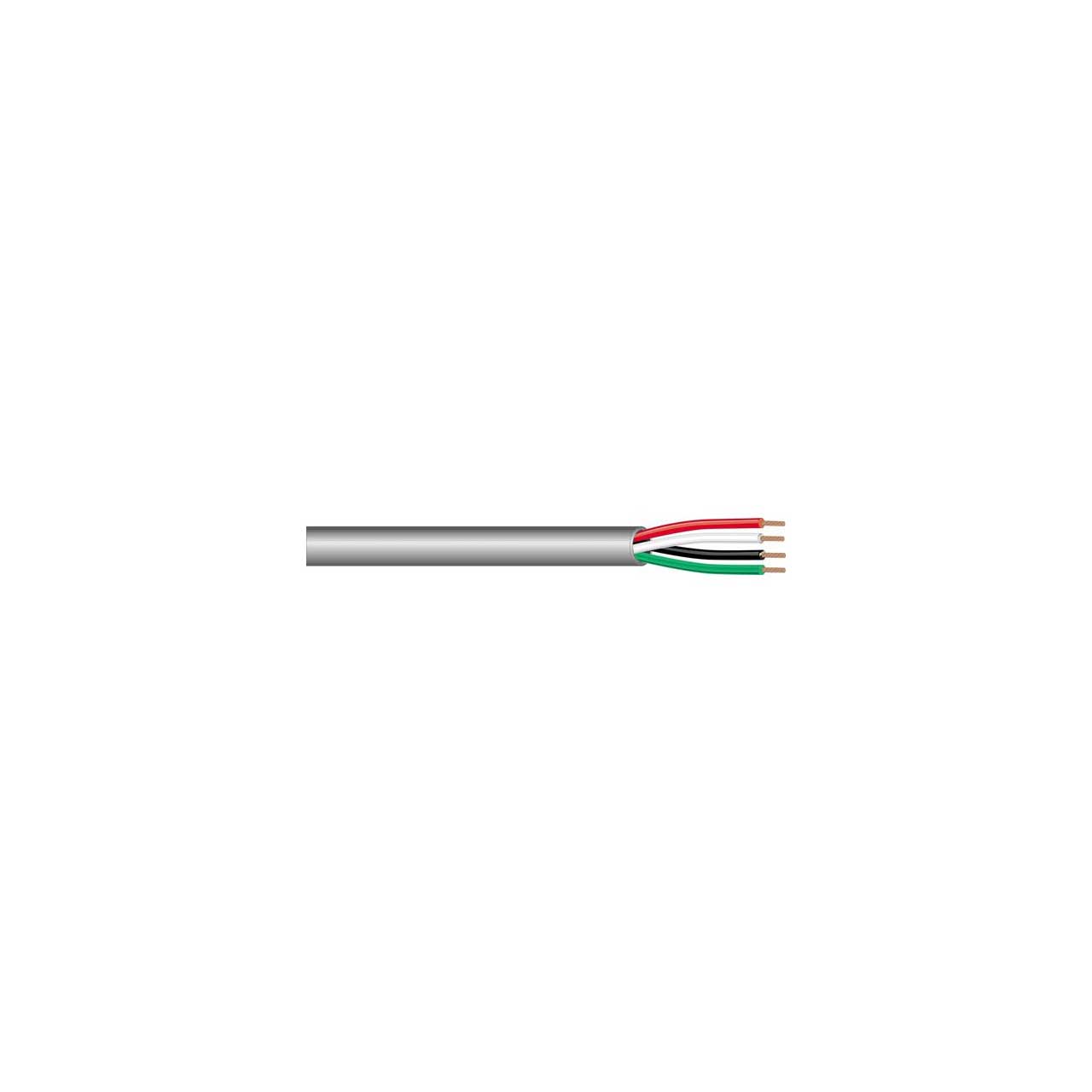

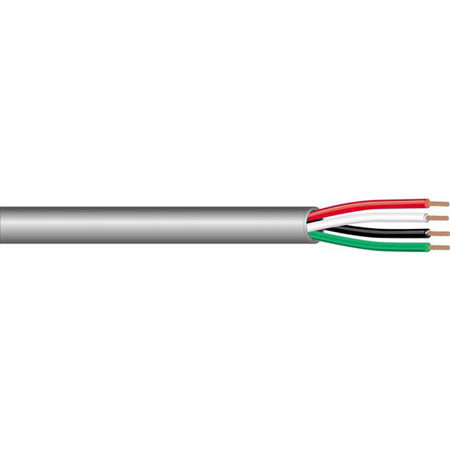

West Penn 25248B 12 AWG 4 Conductor Plenum Communication Cable Gray Jacket - 500 Foot

25248B 500 FT. - Overview

• Specifications:

  • Number of Conductors: 4
  • AWG Size: 12
  • Conductor Stranding: 19x25
  • Conductor Type: Bare copper
  • Nominal DCR: 1.7 Ohm/1000ft
  • Cabling Lay Length: 5.25 in
  • Insulation Type: Plenum PVC
  • Insulation Thickness: 0.012 in
  • Insulation Color Code: 1.Black,2.Red,3.White,4.Green
  • Jacket Type: Flexible Plenum
  • Jacket Thickness: 0.015 in
  • Nominal Cable O.D.: 0.308 in
  • Plenum: Yes
  • NEC UL Rating: CL3P, FPLP
  • RoHS Compliant: Yes
  • Pull Tension: 250 lbs
  • Bend Radius: 2.772 in
  • Cable Weight: 104 lbs


• Applications:

  • Indoor within ducts, plenums, and other spaces used for environmental air for (Intercom Systems, Security Systems, Sound, Audio, Background Music)


• GTIN:

  0612825046783
