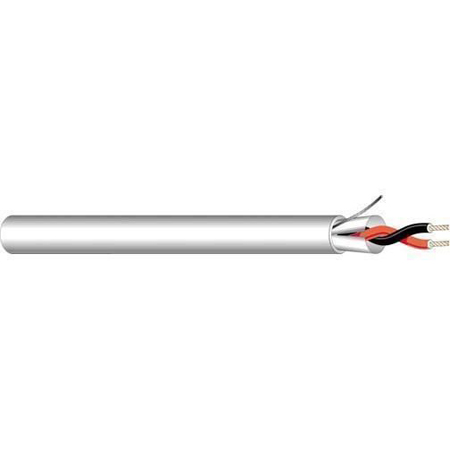

West Penn 25296BGY1000 1P 12G Stranded Shielded Plenum Communication Cable - Gray - 1000 Foot

25296BGY1000 - Overview

• Features:

  • 1000' Length
  • ASTM Bare Copper
  • Polymer alloy insulation
  • Short overall twist lengths
  • Overall shield coverage 100% aluminum polyester foil with TC drain wire
  • Overall plenum PVC jacket


• Specifications:

  • Construction Parameters:
  • Conductor: 12
  • AWG: Bare Copper
  • Stranding: 19x25
  • Insulation Material: Flex: Plenum: PVC
  • Insulation Thickness: 0.010'': Nom.
  • Number of Conductors: 2
  • Shield: 100% Aluminum
  • Polyester: Foil
  • Drain Stranded: Tinned: Copper
  • Jacket Material: Flex: Plenum: PVC
  • Jacket Thickness: 0.015'': Nom.
  • Overall Cable: Diameter: 0.260'': Nom.
  • Approximate Cable: Weight: 54: Lbs/1M': Nom.
  • Flame Rating: NFPA: 262: Flame: Test
  • Electrical & Environmental: Properties:
  • Temperature Rating: -10°C: To: +60°C
  • Operating Voltage: 150: V: RMS
  • Max.Capacitance Between Conductors: @: 1: KHz: 88: pf/ft: Nom.
  • Capacitance Between Conductors: to: Shield: @: 1: KHz: 158: pf/ft: Nom.
  • DC Resistance per Conductor: @: 20deg: C: 1.7: Ohms/1M': Nom.
  • Insulation Colors: Black, Red
  • Jacket Color: Gray
  • RoHS Compliant: Yes

    Mechanical Properties:
  • Max. Recommended Pull: Tension: 161 lbs
  • Min. Bend Radius (Install): 2.4"


• GTIN:

  0612825047865
