253241B - Overview

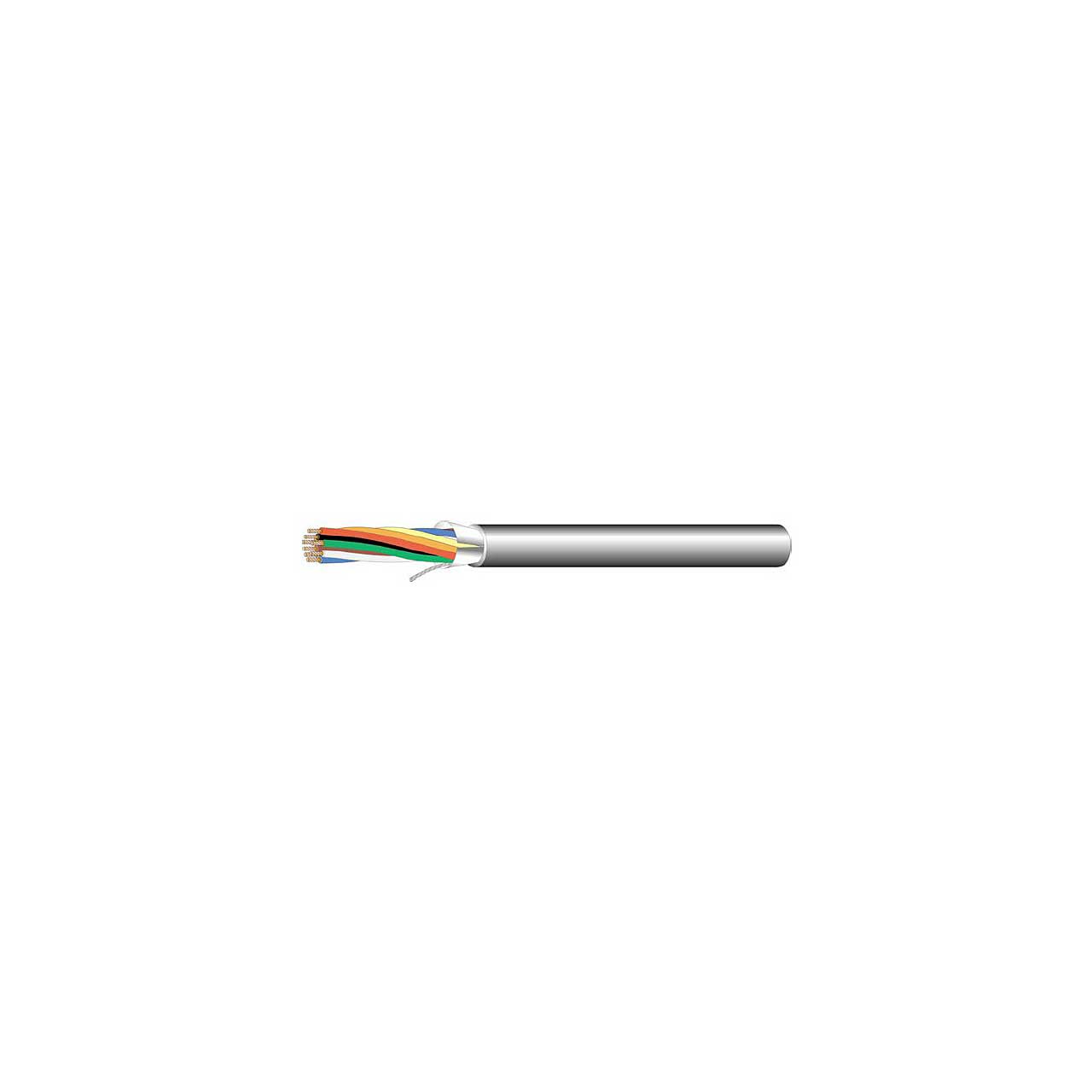

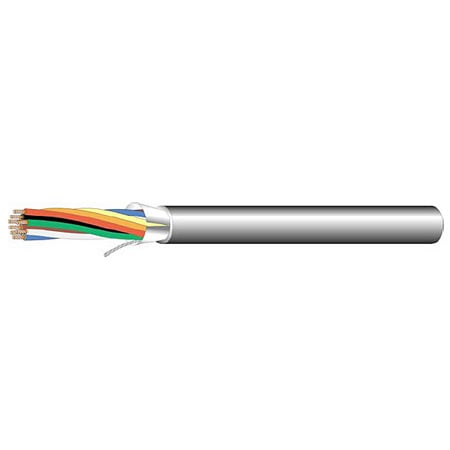

22/4 Stranded bare copper conductors, shielded with an overall jacket.

APPLICATION: Indoor within ducts, plenums, and other spaces used for environmental air for (Intercom Systems, Security Systems, Sound, Audio, Background Music)

  • Features:

    • Conductor 22 AWG Bare Copper
    • Stranding 7x30
    • Insulation Material Polymer Alloy
    • Insulation Thickness 0.010'' Nom.
    • Number of Conductors 4
    • Shield 100% Aluminum Polyester Foil
    • Drain Stranded Tinned Copper
    • Jacket Material Flexible Plenum
    • Jacket Thickness 0.015'' Nom.
    • Overall Cable Diameter 0.153'' Nom.
    • Approximate Cable Weight 18 Lbs/1M' Nom.
    • Flame Rating NFPA 262 Flame Test


  • GTIN:

    0612825048305
