West Penn 253244BWE1000 253244B 18/4 Stranded Speaker Wire - White - 1000 Feet

ITEM #: WP-253244BWE1000 MFG #: 253244BWE1000

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$449.60

Our Price:

$366.38

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

253244BWE1000 - Overview

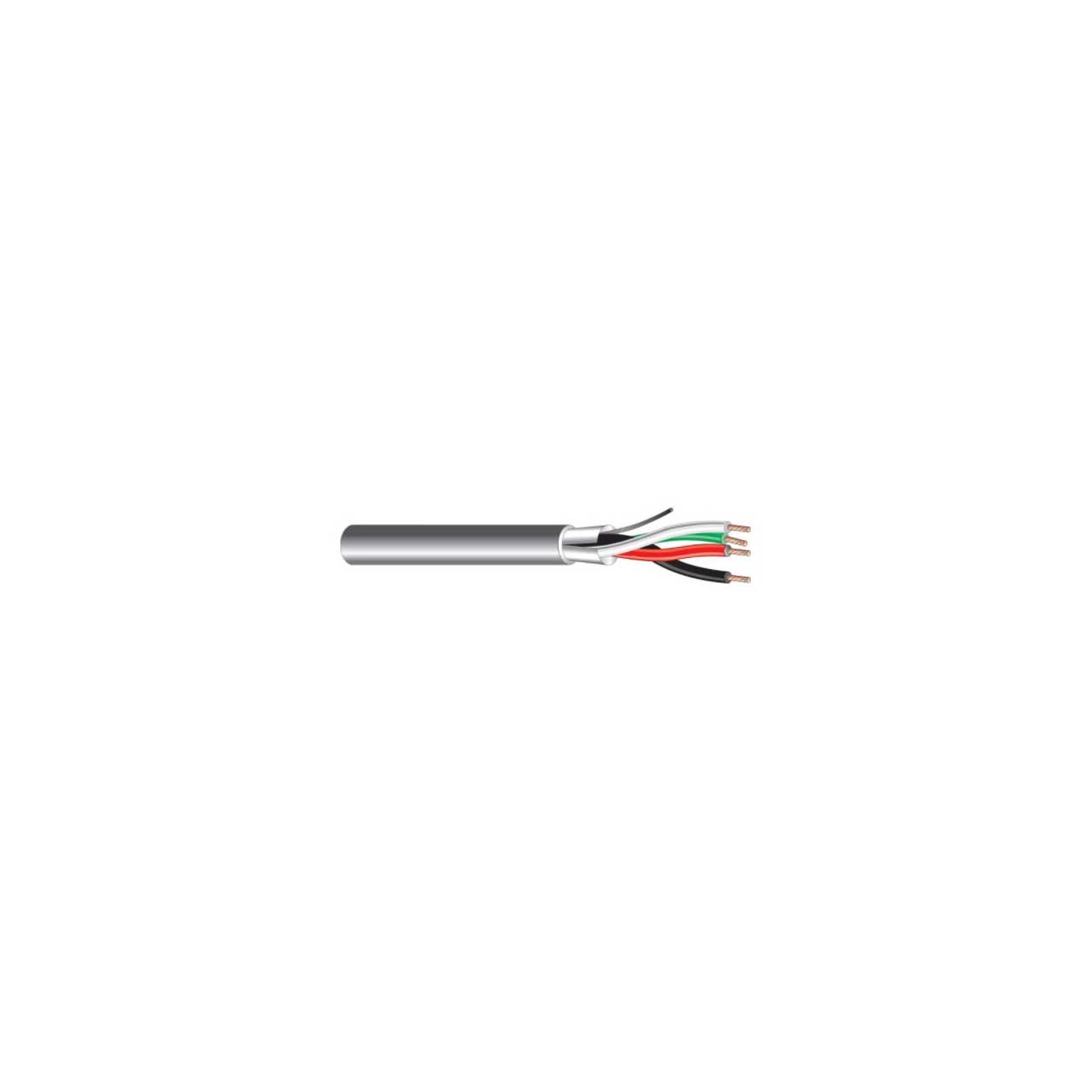

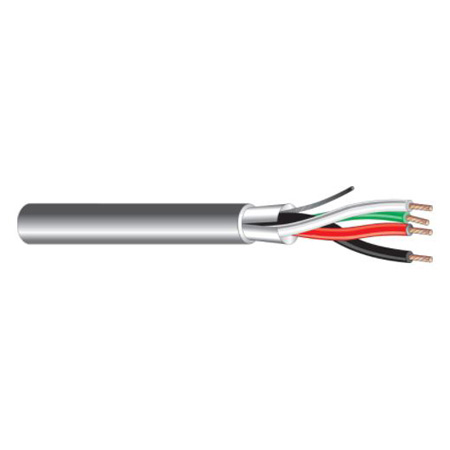

West Penn 253244BWH1000 is 4 conductor 18 AWG stranded speaker wire with flexible plenum jacket - 1000 foot, white.

  • Specifications:

    • Number of Conductors: 4
    • AWG Size: 18
    • Conductor Stranding: 7x26
    • Conductor Type: Bare copper
    • Nominal DCR: 6.2 Ohm/1000ft
    • Insulation Type: Plenum PVC
    • Insulation Thickness: 0.008 in
    • Insulation Color Code: 1.Black,2.Red,3.White,4.Green
    • Shield Type: Overall 100% Aluminum Foil
    • Drain Wire Type: Tinned Copper
    • Drain Wire AWG: 24 AWG
    • Nom. Cap. Between Conductor: 60 pF/ft
    • Nom. Cap. Conductor to Shield: 122 pF/ft
    • Jacket Type: Flexible Plenum
    • Jacket Thickness: 0.015 in
    • Nominal Cable O.D.: 0.182 in
    • Plenum: Yes
    • NEC UL Rating: CMP
    • RoHS Compliant: Yes
    • Bend Radius: 1.638 in
    • Cable Weight: 36 lbs


  • GTIN:

    0612825048442
