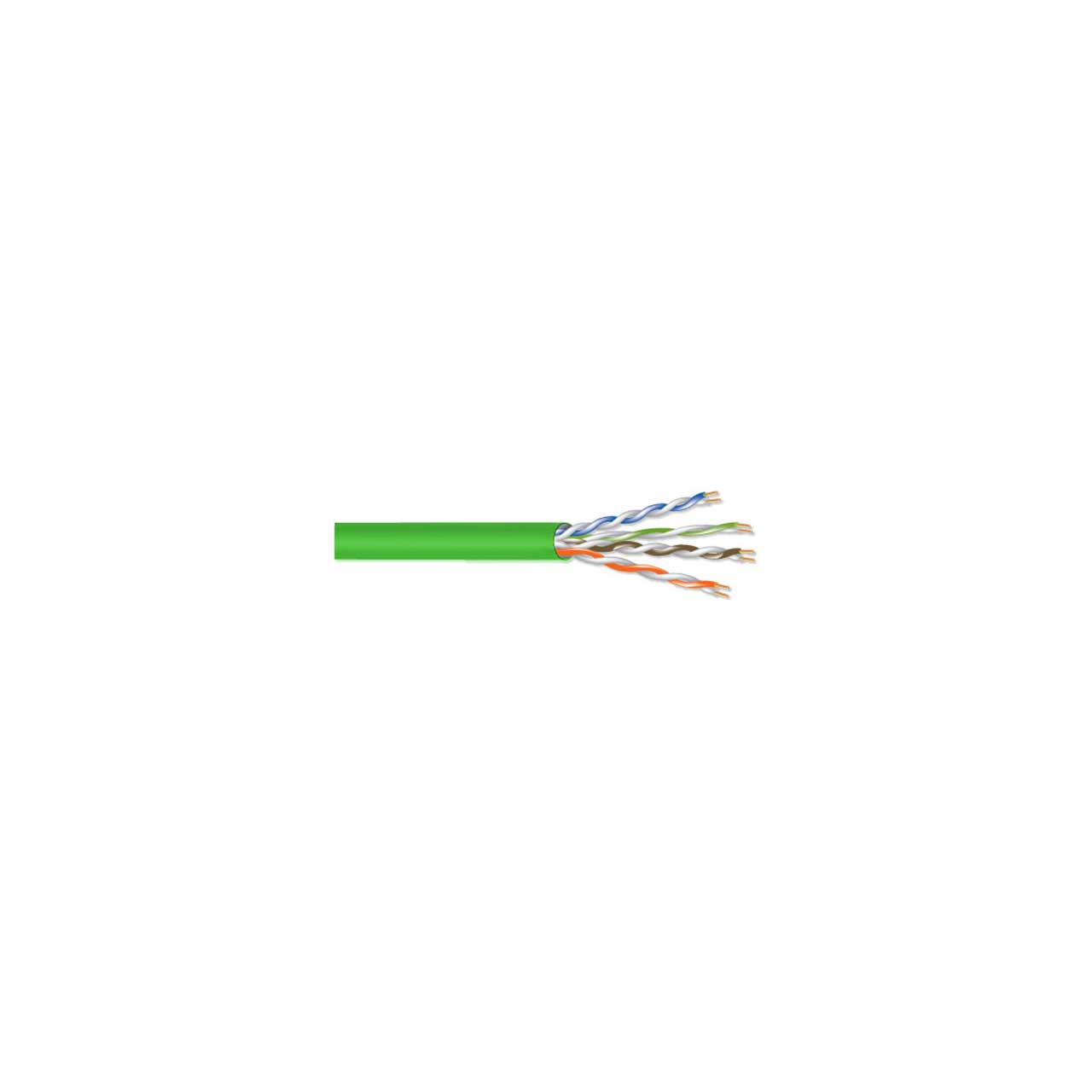

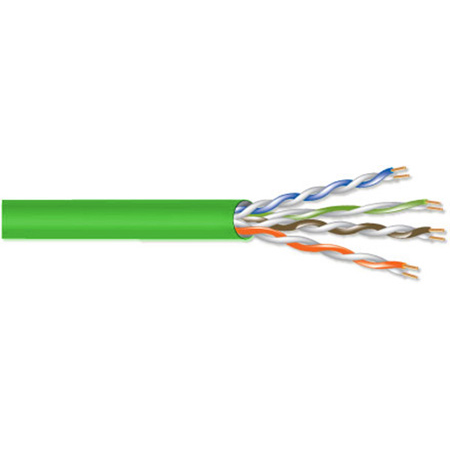

West Penn Wire 4245 CAT5E Cable - Green - 1000 Feet

4245EZGN1000 - Overview

• Specifications:

  • Number of Pairs: 4
  • AWG Size: 24
  • Conductor Stranding: Solid
  • Conductor Type: Bare copper
  • Nominal DCR: 26 Ohm/1000ft
  • Insulation Type: Polyolefin
  • Insulation Color Code: 1.Blue,WH-Blue 2.Orange,WH-Orange 3.Green,WH-Green 4.Brown, WH-Brown
  • Shield Type: UTP
  • Nominal Impedance: 100 Ohm
  • Nom. Cap. Between Conductor: 14 pF/ft
  • Nom. Cap. Conductor to Shield: 122 pF/ft
  • Total Number of Con ductors: 8
  • Jacket Type: PVC
  • Nominal Cable O.D.: 0.191 in
  • Plenum: No
  • NEC UL Rating: CMR
  • RoHS Compliant: Yes
  • ANSI/TIA Category: Category 5E TIA/EIA 568C.2
  • TIA Test: ANSI/TIA-568-C.2
  • Pull Tension: 25 lbs
  • Bend Radius: 0.955 in
  • Cable Weight: 21 lbs


• GTIN:

  0612825378631
