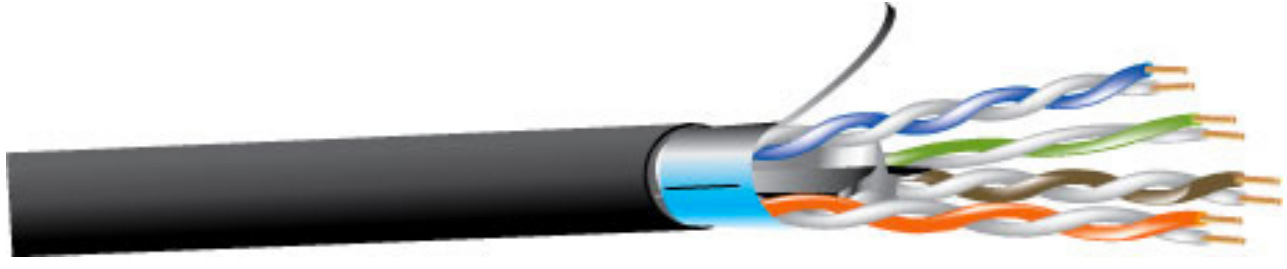

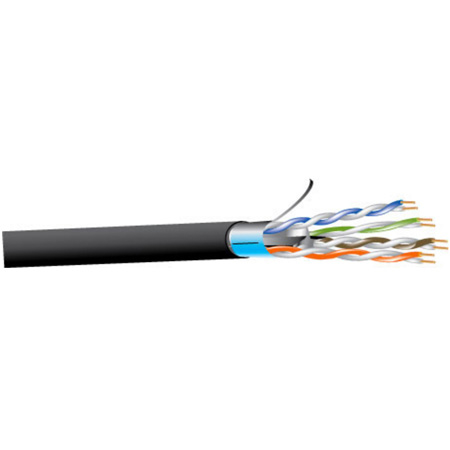

West Penn 4246F 4 Pair Cat 6 F/UTP CMR Cable - 1000ft Black

ITEM #: WP-4246F-1000 MFG #: 4246F-1000

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$649.00

Our Price:

$563.42

Availability: In Stock
iAvailability Description Popup


    4246F-1000 - Overview

    23 AWG.- 4 PAIR Solid bare copper conductors, Shielded with an overall jacket.

    APPLICATION: Indoor - Category 6 Applications- Ethernet, IP Cameras, Digital Integration, DVI, HDMI
    Meets or exceeds TIA/EIA 568C.2 Category 6 Specifications

    • Features:

      • NEC RATING: CMR
      • APPROVALS: C(UL)Us or ETL Listed

    • Specifications:

      • Construction Parameters:
      • Conductor 23 AWG Bare Copper
      • Stranding Solid
      • Number of Conductors 8 (4 Pair)
      • Insulation Thermoplastic
      • Barrier Internal FlexWeb Core Separator
      • Shield-Screen 100% Aluminum Foil -25% overlap
      • Drain 24 AWG Solid Tin
      • Core Separator Yes
      • Jacket Material PVC
      • Overall Cable Diameter 0.290'' Nom.
      • Approximate Cable Weight 43 Lbs/1M' Nom.
      • Flame Rating UL-1666

      • Electrical & Environmental Properties:
      • Operating Temperature Rating -20°C To +60°C
      • Operating Voltage Rating 300 V RMS
      • DC Resistance per Conductor @ 20deg C 20.4 Ohms/1000ft
      • Mutual Capacitance 14pf/ft Nominal
      • Nominal Impedance 100 Ohms+/-15% (1-100Mhz)
      • Velocity of Propagation 68% Nominal
      • Delay Skew 30ns/100m MAX
      • Standards TIA/EIA568-C.2
      • Insulation Colors 1.Blue/White-Blue, 2. Orange/White-Orange
      • 3. Green/White-Green, 4. Brown/White-Brown
      • Jacket Color Black
      • RoHS Compliant Yes

    • GTIN:

      0612825054283
