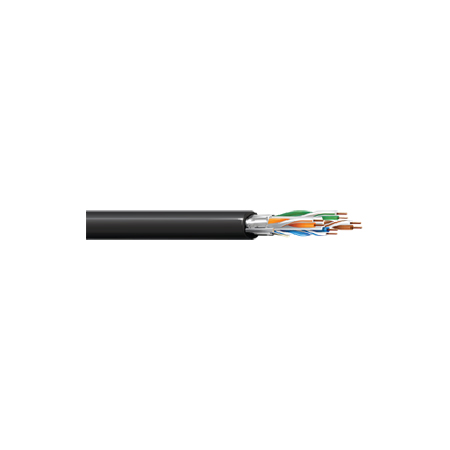

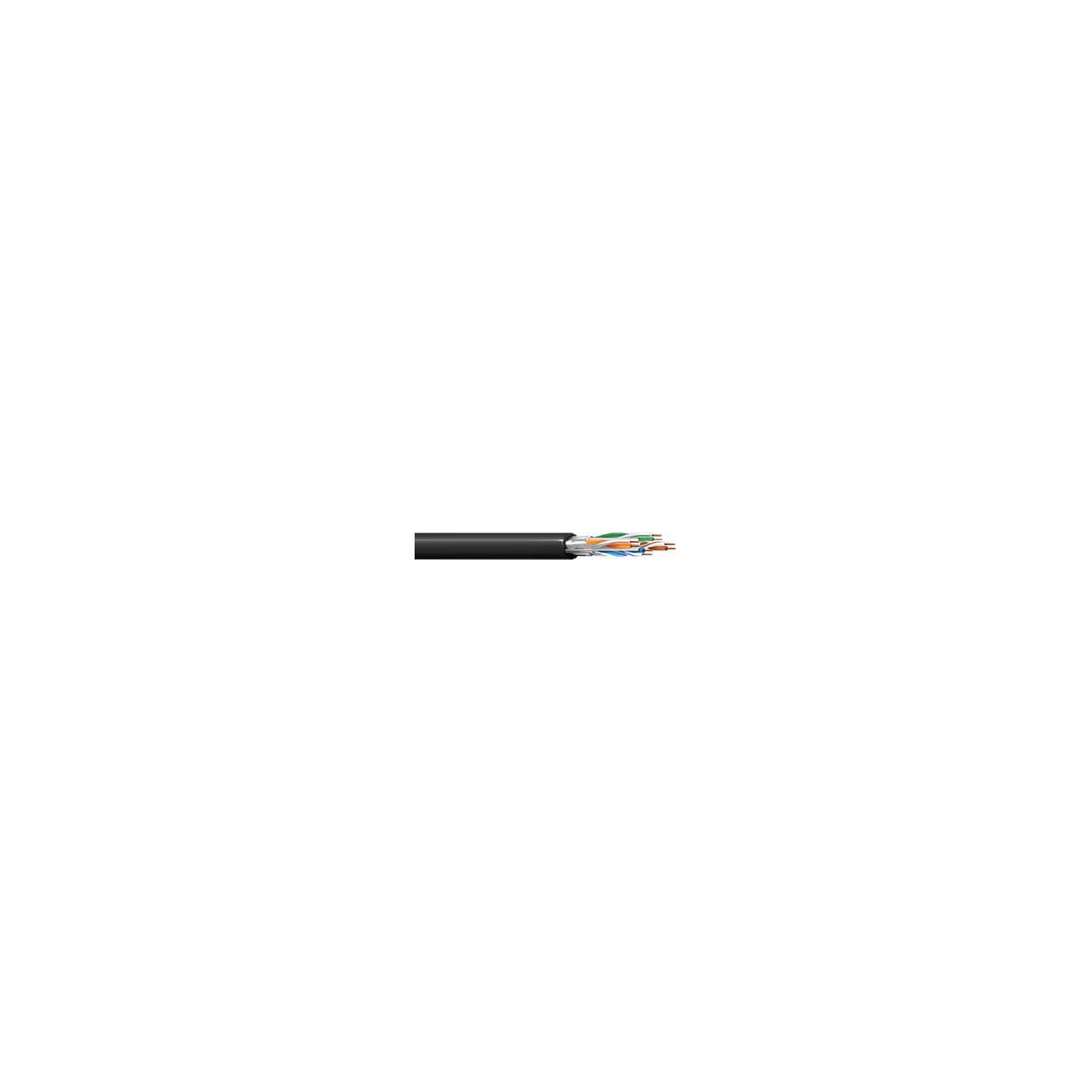

West Penn 4236F 4-Pair 23 AWG F/UTP Shielded Category 6+ 350 MHz CMP Cable - Black - 1000 Foot

4236FBK1000 - Overview

• Specifications:

  • Conductor Parameters
  • Number Of Pairs: 4
  • AWG Size: 23
  • Conductor Stranding: Solid
  • Conductor Type: Bare Copper
  • Nominal DCR: 28.6 Ohm/1000ft

    Insulation Parameters
  • Insulation Type: Polyolefin
  • Insulation Color Code: 1.Blue,WH-Blue 2.Orange,WH-Orange 3.Green,WH-Green 4.Brown, WH-Brown

    Shielding Parameters
  • Shield Type: Overall 100% Aluminum Foil (F/UTP)
  • Drain Wire AWG Size: 26 AWG
  • Drain Wire Type: Tinned Copper

    Electrical Characteristics
  • Nominal Impedance: 100 Ohm
  • Nominal Capacitance Between Conductors: 14 pF/ft

    Overall Construction Parameters
  • Total Number of Conductors: 8
  • Jacket Type: PVC
  • Nominal Cable O.D.: 0.275 in
  • Plenum: No
  • NEC UL Rating: CMR
  • RoHS Compliant: Yes
  • ANSI/TIA Category: Category 6 TIA/EIA 568.2-D
  • TIA Test: ANSI/TIA-568.2-D
  • Pull Tension: 25 lbs
  • Bend Radius: 1.45 in
  • Cable Weight: 37 lbs

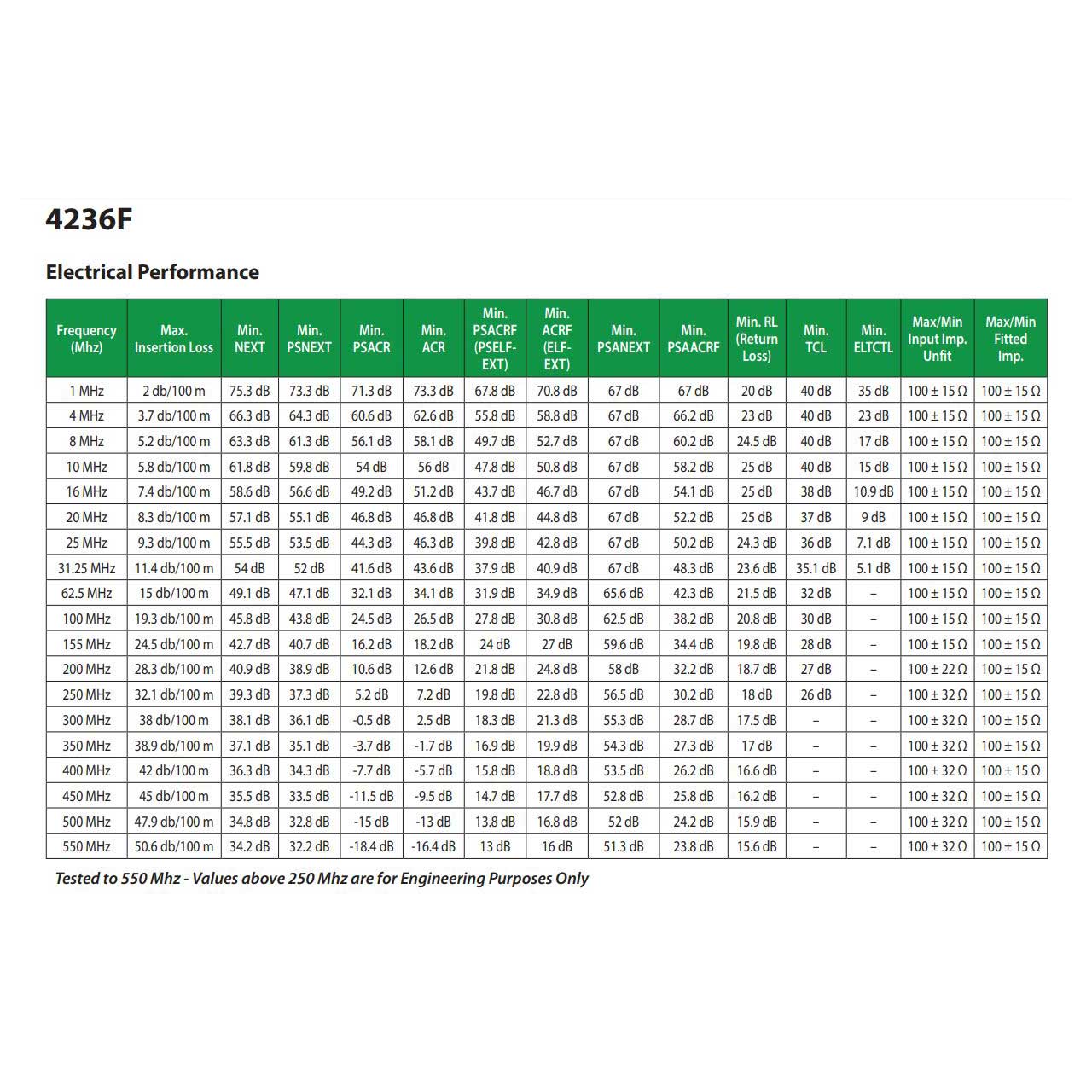

    Overall Electrical/Optical Characteristics
  • Nominal Velocity of Propagation (VP): 68 %
  • Delay Skew: 45 ns/100m
  • UL Flammability: UL1666 Vertical Shaft
  • CSA Flammability: FT4
  • Operating Range: -20 to 75 Deg C
  • UL Voltage Rating: 300


• Item Includes:

  • 1x West Penn 4236F 4-Pair 23 AWG F/UTP Category 6+ 350 MHz CMP Cable - Black - 1000 Foot
