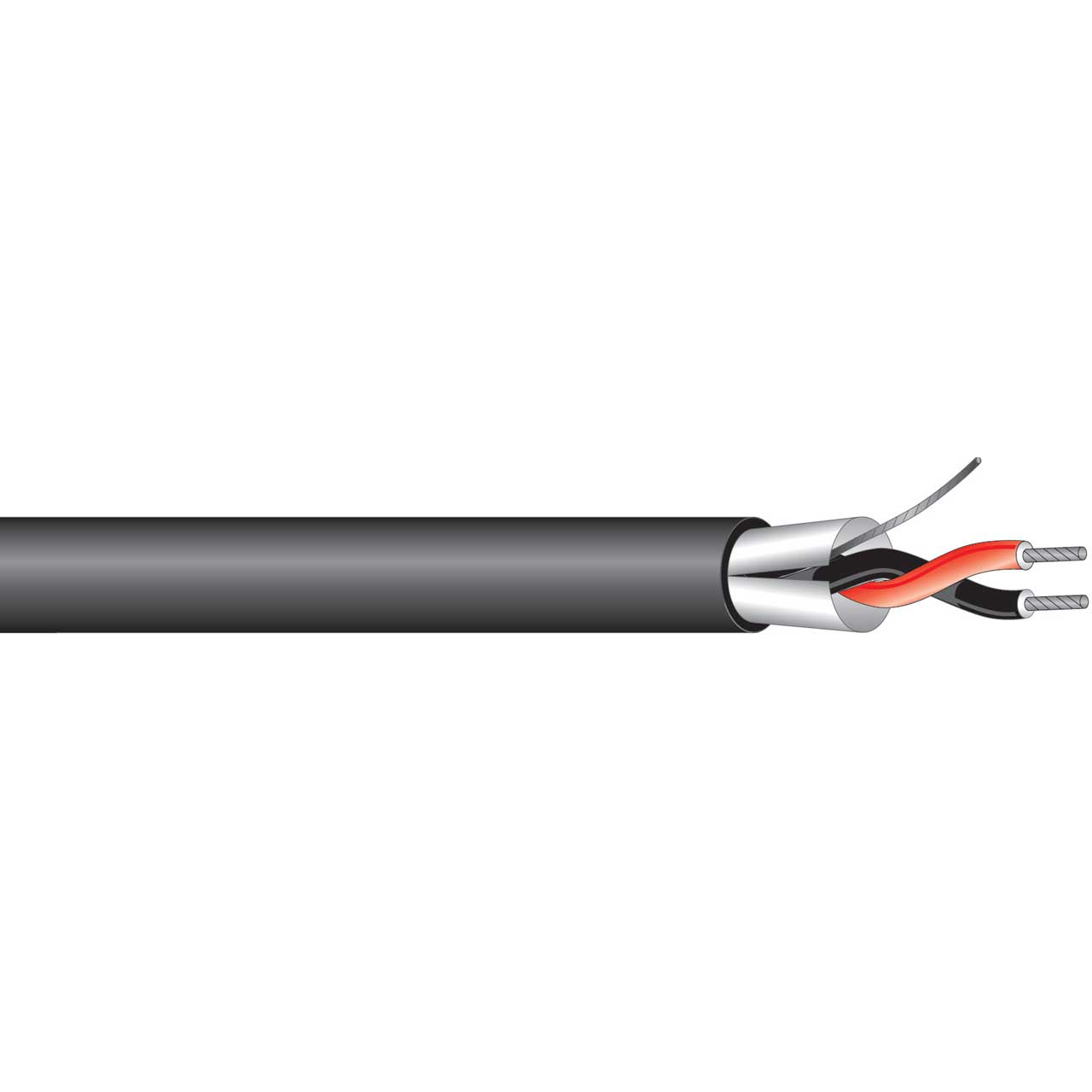

West Penn 455BK1000 1P 22G Stranded Shielded Rack Conformable Audio Cable - 1000 Foot

455BK1000 - Overview

• Specifications:

  • Conductor Parameter
  • Number of Pairs: 1
  • AWG Size: 22
  • Conductor Stranding: 7x30
  • Conductor Type: Overcoat Tinned Copper
  • Nominal DCR: 17 Ohm/1000ft

    Insulation Parameter
  • Insulation Type: Polypropylene - PP
  • Insulation Thickness: 0.008"
  • Insulation Color Code: 1. Black 2.White

    Shielding Parameter
  • Shield Type: Bonded Overall 100% Aluminum Foil
  • Drain Wire Type: Tinned Copper
  • Drain Wire AWG: 22 AWG

    Electrical Characteristics
  • Nominal Impedance: 45Ω
  • Nom. Cap. Between Conductors: 34 pF/ft
  • Nom. Cap. Conductor to Shield: 67 pF/ft
  • Nominal Velocity of Propagation (VP): 66%
  • UL Flammability: UL1666 Vertical Shaft
  • Operating Range: -4° to 140°F (-20° to 60°C)
  • UL Voltage Rating: 300

    Overall Construction Parameters
  • Jacket Type: PVC
  • Jacket Thickness: 0.021"
  • Nominal Cable O.D.: 0.137"
  • Plenum: No
  • NEC UL Rating: CMR
  • RoHS Compliant: Yes
  • Pull Tension: 30Lbs
  • Bend Radius: 1.215"
  • Cable Weight: 17Lbs


• GTIN:

  0612825054986
