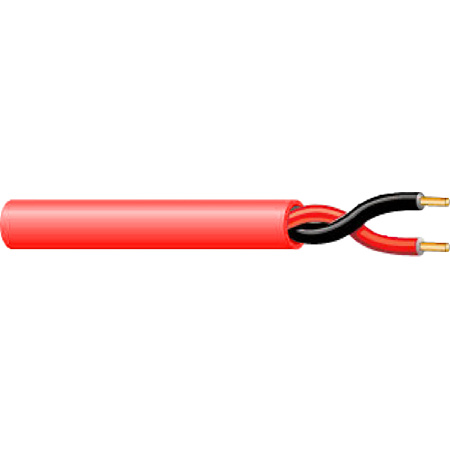

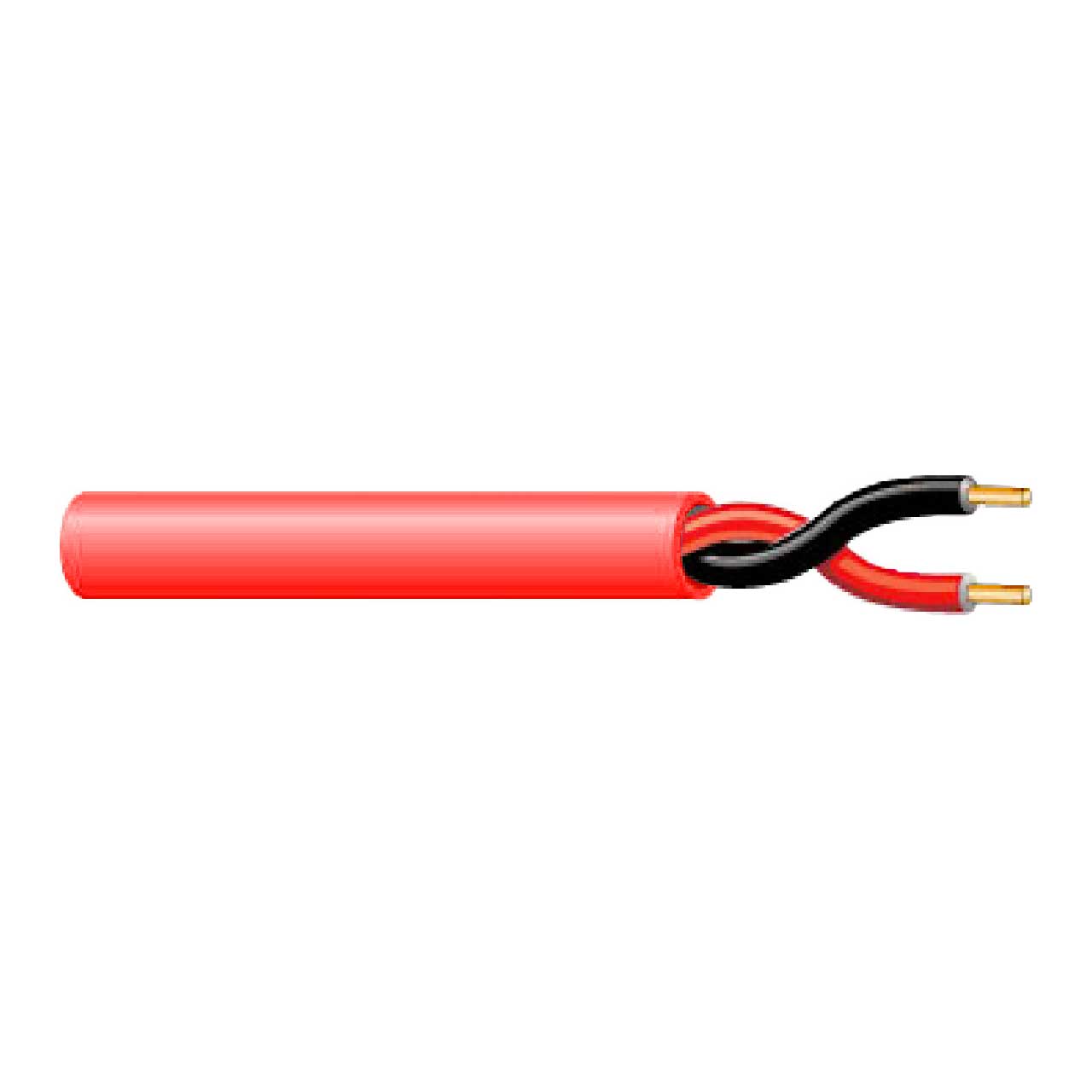

West Penn 980 18 AWG Fire Alarm Cable - 1000 Foot - Red

980-1000RD - Overview

• Specifications:

  • Conductor Parameter
  • Number of Conductors: 2
  • AWG Size: 18
  • Conductor Stranding: Solid
  • Conductor Type: Bare Copper
  • Nominal DCR: 6.5 Ohm/1000ft
  • Cabling Lay Length: 3 in
  • Twists/Foot: 4 twist/ft

    Insulation Parameter
  • Insulation Type: Thermoplastic
  • Insulation Thickness: 0.008 in
  • Insulation Color Code: 1. Black 2.Red

    Shielding Parameter
  • Shield Type: None

    Electrical Characteristics
  • Nom. Cap. Between Conductors: 20 pF/ft

    Overall Construction Parameters
  • Jacket Type: PVC
  • Jacket Thickness: 0.022 in
  • Nominal Cable O.D.: 0.146 in
  • Plenum: No
  • NEC UL Rating: FPLR
  • RoHS Compliant: Yes
  • Pull Tension: 39 lbs
  • Bend Radius: 1.313 in
  • Cable Weight: 18 lbs

    Overall Electrical/Optical Characteristics
  • UL Flammability: UL1666 Vertical Shaft
  • Operating Range: -4 to 140°F
  • UL Voltage Rating: 300


• GTIN:

  0612825059004
