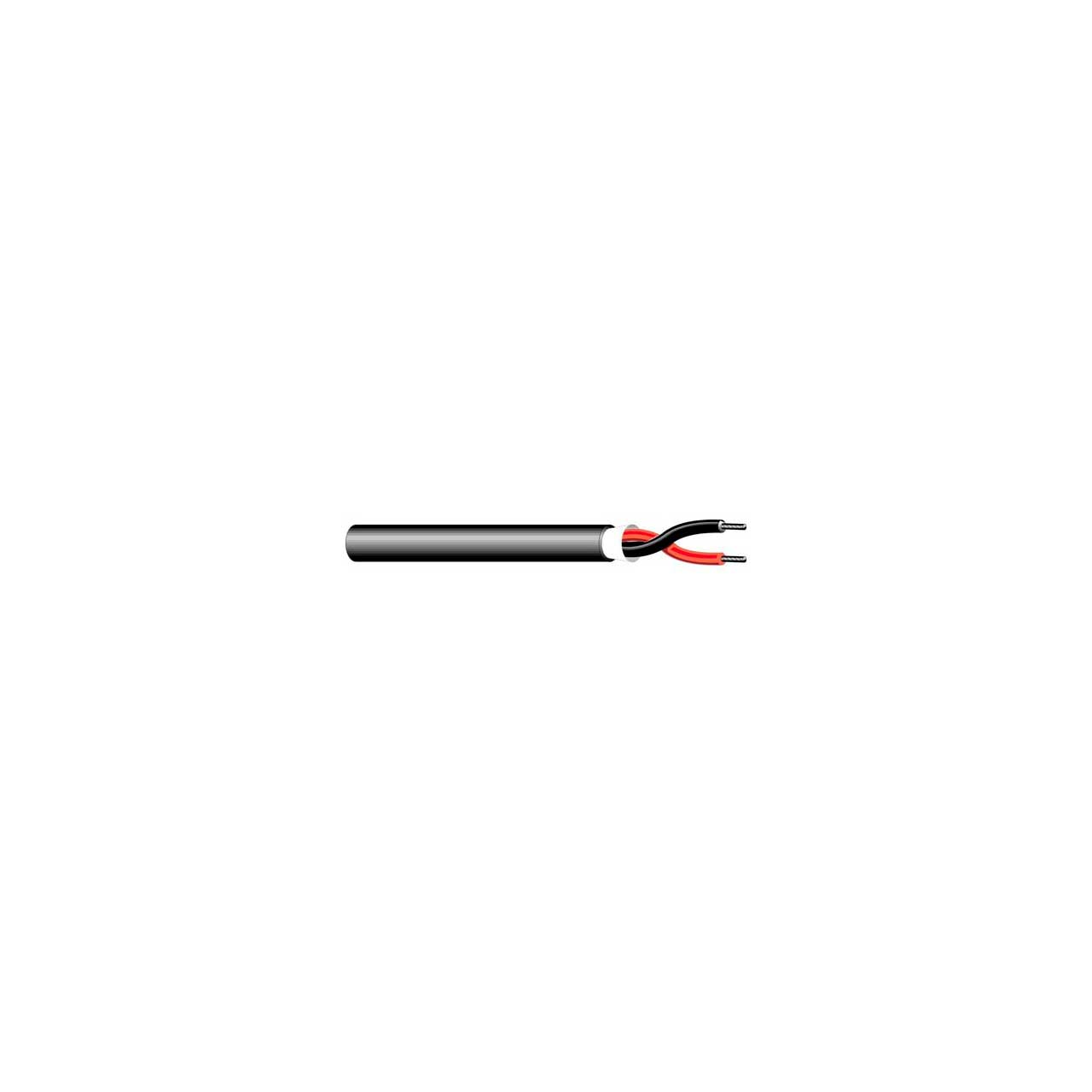

    West Penn AQ227 1 Pair 12 (19X25) Bare Water Block FPL PLTC 1000ft

    Manufacturer: West Penn Wire Corp

    Item #: WP-AQ227-1000   •   MFG #: AQ227




    Our Price:$808.30

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


    Share!





    DESCRIPTION: 12/2 Stranded bare copper conductors, overall
    unshielded with Aquaseal tape and overall jacket.

    NEC RATING: FPL - PLTC, CL3 NEC Article 760 And 725

    APPROVALS: (UL) Listed - Direct Burial

    APPLICATION: Materials suitable for outdoor use, and indoor trays, allows a variety of uses for (Low voltage industrial process control circuits, Power-Limited circuits, Power-Limited fire alarm circuits, Power-Limited tray cable PLTC)


    • Specifications

      • Conductor 12 AWG Bare Copper
      • Stranding 19x25
      • Insulation Material PVC with Nylon
      • Insulation Thickness PVC 0.015'' Nom.
      • Nylon .005" Nom.
      • Number of Conductors 2 (1 Pair)
      • Shield None
      • Drain None
      • Water-Blocking Tape 2 Ply water swellable tape
      • Jacket Material Sunlight/ Moisture Resistant PVC
      • Jacket Thickness 0.040'' Nom.
      • Overall Cable Diameter 0.340'' Nom.
      • Approximate Cable Weight 78 Lbs/1M' Nom.
      • Flame Rating UL 1685 Vertical Tray
      • Electrical & Environmental Properties:
      • Temperature Rating -20deg C to 90deg C
      • Operating Voltage 300 V RMS
      • Max.Capacitance Between Conductors @ 1 KHz 36 pf/ft Nom.
      • DC Resistance per Conductor @ 20deg C 1.7 Ohms/1M' Nom.
      • Insulation Colors Black, Red
      • Jacket Color Black
      • RoHS Compliant --
      • TIA455-82B Water Infiltration Test Compliant Yes
      • UL 444 & 13 Compliant Yes
