West Penn AQ246 Aquaseal 14/4 Stranded Unshielded Cable - 1000 Ft. - Black

ITEM #: WP-AQ246BK1000 MFG #: AQ246BK1000

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$1,498.90

Our Price:

$1,497.77

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

AQ246BK1000 - Overview

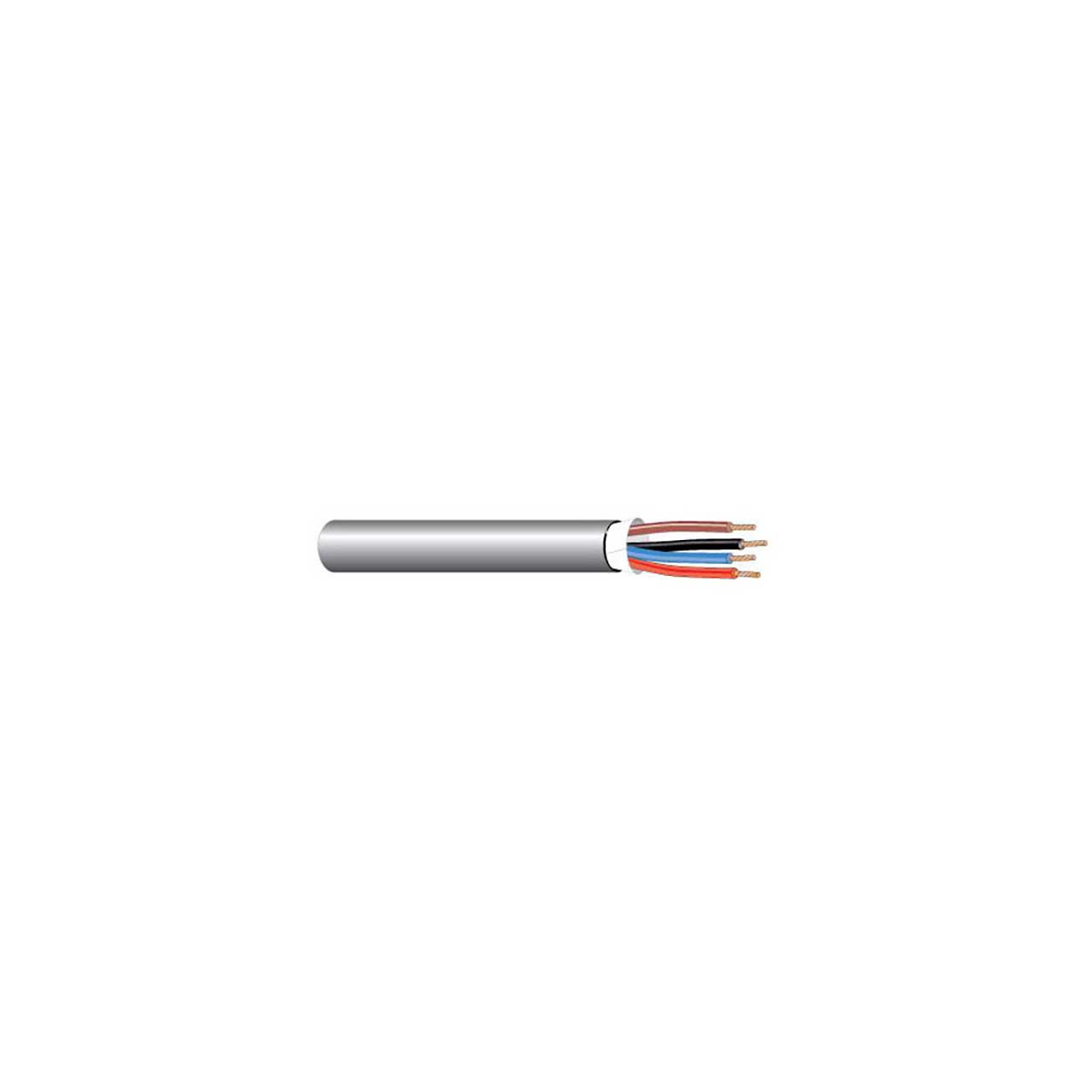

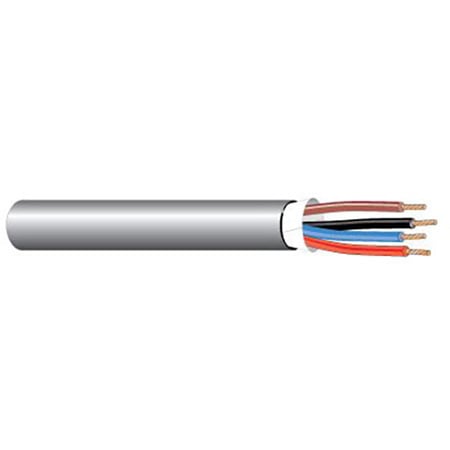

The AQ246BK1000 from West Penn is 14/4 Stranded bare copper conductors, overall unshielded with Aquaseal tape and overall jacket, 1000'.
Materials suitable for outdoor use, and indoor trays, allows a variety of uses for low voltage industrial process control circuits, Power-Limited circuits, Power-Limited fire alarm circuits, Power Limited tray cable (PLTC).

  • Specifications:

    • Conductor 14 AWG Bare Copper
    • Stranding 19x27
    • Insulation Material PVC with Nylon
    • Insulation Thickness PVC 0.015'' Nom.
    • Nylon .005" Nom.
    • Number of Conductors 4
    • Shield None
    • Drain None
    • Water-Blocking Tape 2 Ply water swellable tape
    • Jacket Material Sunlight/ Moisture Resistant PVC
    • Jacket Thickness 0.040'' Nom.
    • Overall Cable Diameter 0.395'' Nom.
    • Approximate Cable Weight 85 Lbs/1M' Nom.
    • Flame Rating UL 1685 Vertical Tray
    • Temperature Rating -20deg C to 90deg C
    • Operating Voltage 300 V RMS
    • Max.Capacitance Between Conductors @ 1 KHz 32 pf/ft Nom.
    • DC Resistance per Conductor @ 20deg C 2.7 Ohms/1M' Nom.
    • Insulation Colors Black, Red, Brown, Blue
    • Jacket Color Black
    • TIA455-82B Water Infiltration Test Compliant Yes
    • UL 444 & 13 Compliant Yes
    • Max. Recommended Pull Tension 164 lbs.
    • Min. Bend Radius (Install) 3.9"


  • GTIN:

    0612825006824
