AQ3244BK0500 - Overview

18/4 shielded Indoor/Outdoor Direct Burial CL3/FPL Rated

West Penn AQ3244 is an 18/4, Shielded, Indoor/Outdoor, Direct Burial Aquaseal cable in black on a 500 Foot Reel. It's used for Audio, Control and Alarm. It's also direct Burial CL3/FPL rated.

APPLICATIONS:
Materials suitable for outdoor use (direct burial), and indoor trays, allows a variety of uses for (Low voltage industrial process control circuits, Power-Limited circuits, Power-Limited fire alarm circuits, Power-Limited tray cable PLTC).

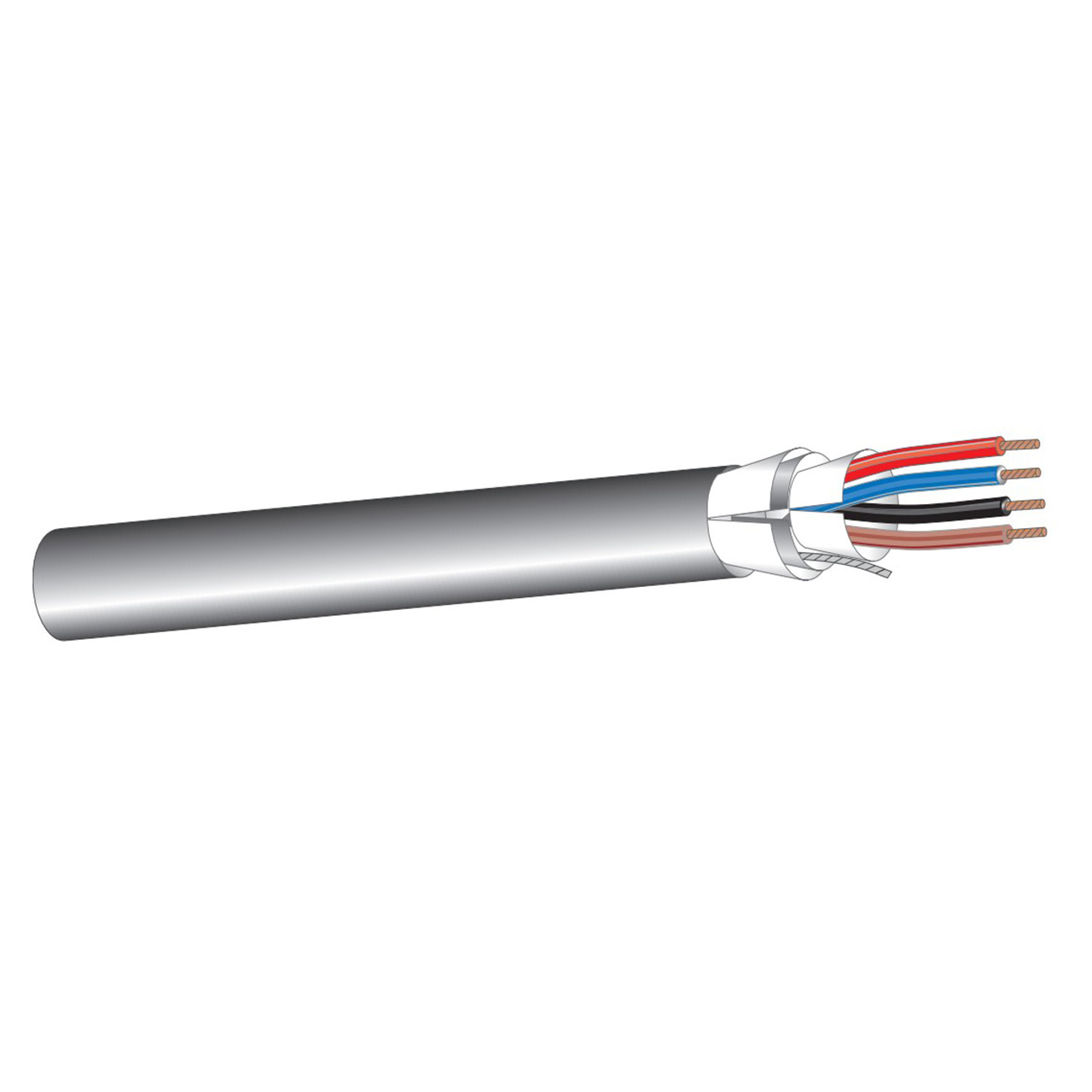

Please Note: Image is for reference only. Color of jacket is Black.

Specifications:
- Number of Conductors: 4
- AWG Size: 18
- Conductor Stranding: 7x26
- Conductor Type: Bare copper
- Nominal DCR: 6.2Ω/1000ft
- Insulation Type: PVC
- Insulation Thickness: 0.02"
- Insulation Color Code: Black, Red, Blue, Brown
- Shield Type: Overall 100% Aluminum Foil
- Shield Type 2: Aquaseal Water Blocking Tape
- Drain Wire Type: Tinned Copper
- Drain Wire AWG: 24 AWG
- Nom. Cap. Between Conductors: 32pF/ft
- Nom. Cap. Conductor to Shield: 58pF/ft
- Jacket Type: UV Resistant PVC
- Jacket Thickness: 0.04"
- Nominal Cable O.D: 0.371"
- Plenum: No
- NEC UL Rating: CL3, FPL, PLTC
- RoHS Compliant: Yes
- TIA Test: TIA455-82 Water Penetration Test
- Bend Radius: 3.339"
- UL Flammability: UL1685
- Operating Range: -4°F - 194°F (-20°C - 90°C)
