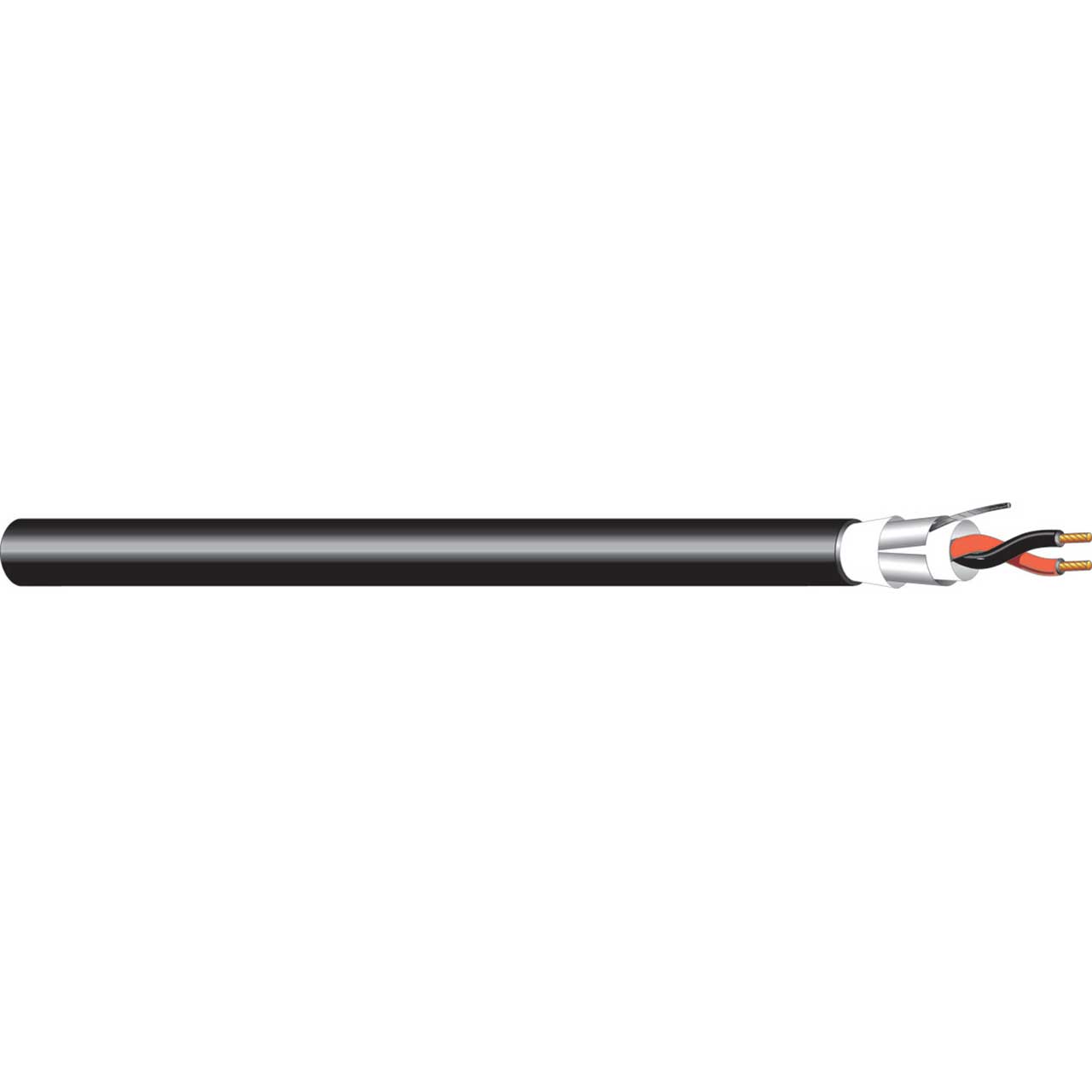

West Penn AQC292 20/2 Aquaseal Communication Cable (1000 ft.)

AQC292 - Overview

• Features:

  • NEC RATING: CM or CL3, NEC Article 800 and 725
  • APPROVALS: (UL) C(UL) Listed, (ETL)us Listed
  • APPLICATION: Materials suitable for outdoor use, and indoor trays, allows a variety of uses for (Intercom, Security, Sound, Audio, Background music)
  • Conductor 20 AWG Bare Copper
  • Stranding 7x28
  • Insulation Material PVC
  • Insulation Thickness 0.010'' Nom.
  • Number of Conductors 2 (1 Pair)
  • Shield 100% Aluminum Polyester Foil
  • Drain Stranded Tinned Copper
  • Water-Blocking Tape 2 ply water swellable tape
  • Jacket Material Sunlight/Moisture Resistance PVC
  • Jacket Thickness 0.025'' Nom.
  • Overall Cable Diameter 0.220'' Nom.
  • Approximate Cable Weight 25 Lbs/1M' Nom.
  • Flame Rating UL 1685 Vertical Tray
  • Temperature Rating -20deg C to 60deg C
  • Operating Voltage 300 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz 60 pf/ft Nom.
  • Capacitance Between Conductors to Shield @ 1 KHz 108 pf/ft Nom.
  • DC Resistance per Conductor @ 20deg C 10.5 Ohms/1M' Nom.
  • Insulation Colors Black, Red
  • Jacket Color Gray
  • RoHS Compliant --
  • TIA455-82B Water Infiltration Test Compliant Yes
  • UL 444 & 13 Compliant Yes


• GTIN:

  0612825005780
