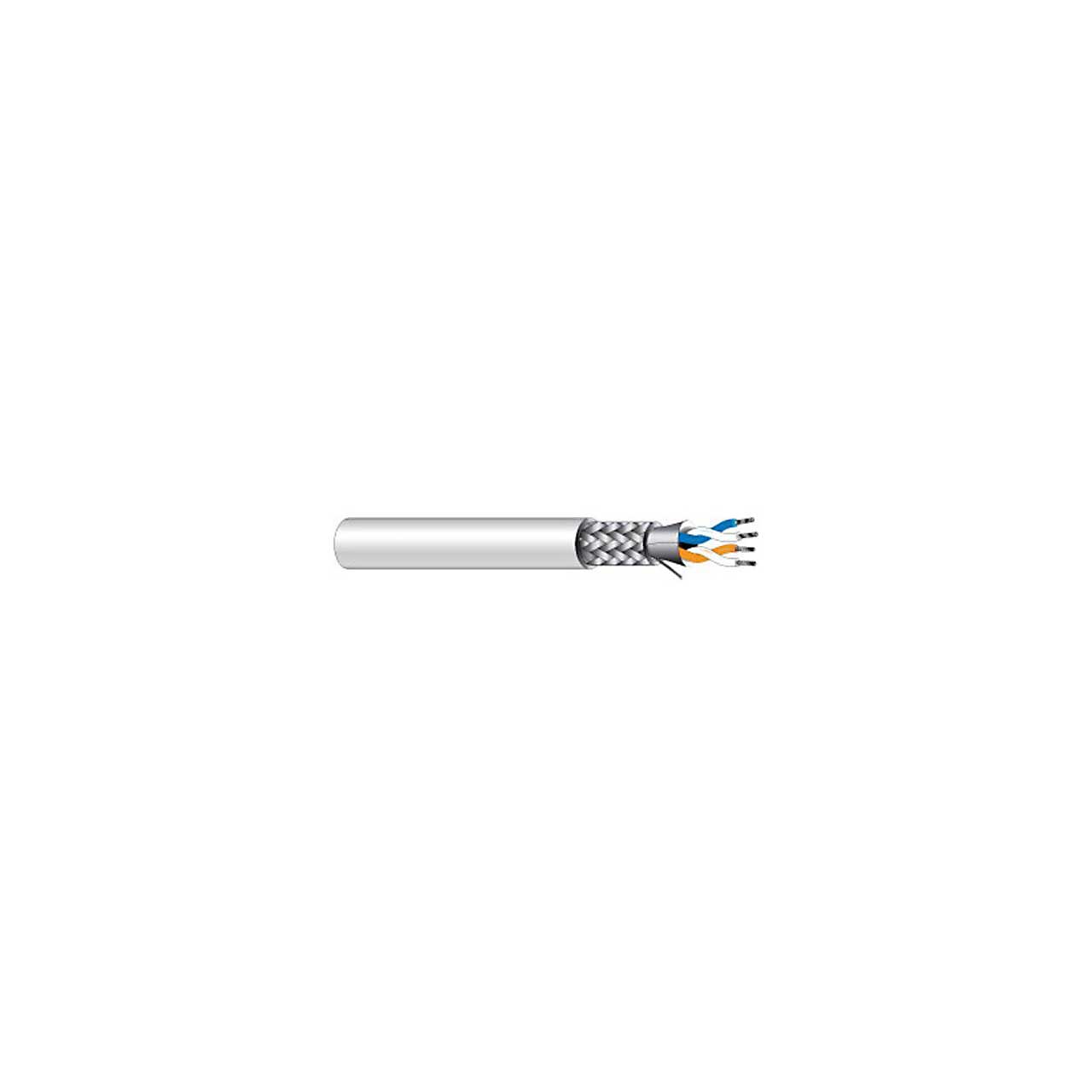

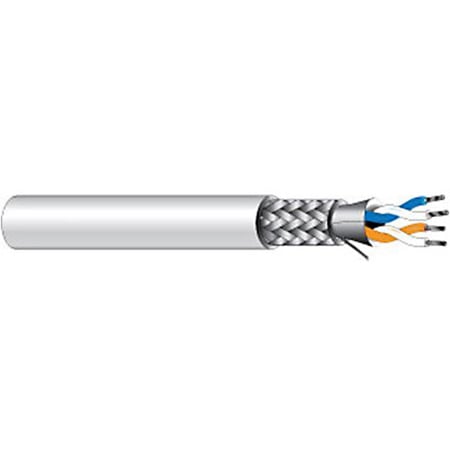

West Penn D4852GY1000 2 Pair 24 AWG Shielded Cable - 1000 Foot Roll Grey

D4852GY1000 - Overview

• Specifications:

  • Conductor 24 AWG Tinned Copper
  • Stranding 7x32
  • Insulation Material Polyolefin
  • Insulation Thickness 0.035'' Nom.
  • Number of Conductors 4 (2 Pair)
  • Shield 100% Aluminum Polyester Foil
  • 95% Al. Braid
  • Drain Stranded Tinned Copper
  • Jacket Material PVC
  • Jacket Thickness 0.032'' Nom.
  • Overall Cable Diameter 0.305'' Nom.
  • Approximate Cable Weight 62 Lbs/1M' Nom.
  • Flame Rating UL 1685


  • Temperature Rating -20° C to 60° C
  • Operating Voltage 300 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz 12.8 pf/ft Nom.
  • Capacitance Between Conductors to Shield @ 1 KHz 23 pf/ft Nom.
  • DC Resistance per Conductor @ 20deg C 24 Ohms/1M' Nom.
  • Velocity of Propagation 66% Nom.
  • Impedance 120U Nom
  • Insulation Colors 1. Blue- White/Blue, 2. Orange-White/Orange
  • Jacket Color Gray
  • RoHS Compliant
  • Max. Recommended Pull Tension 87 lbs.
  • Min. Bend Radius (Install) 3"


• GTIN:

  0612825028901
