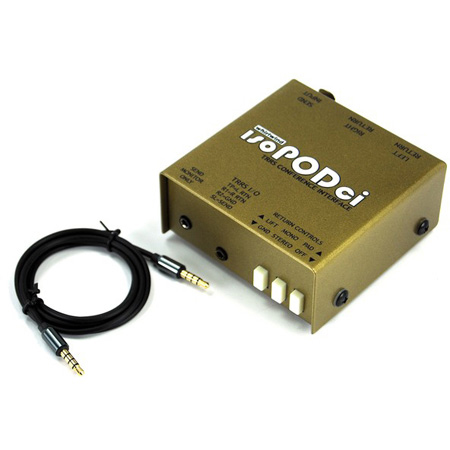

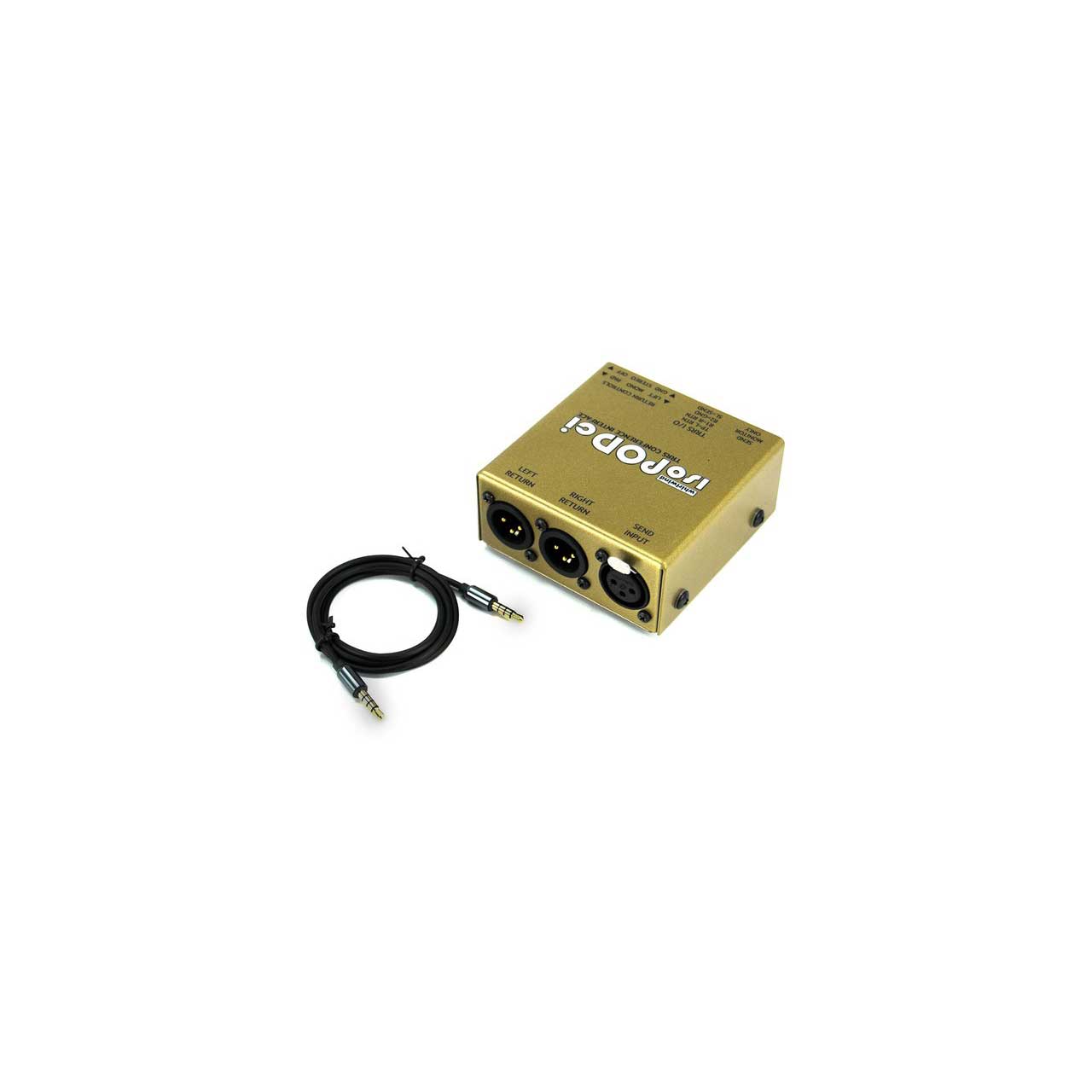

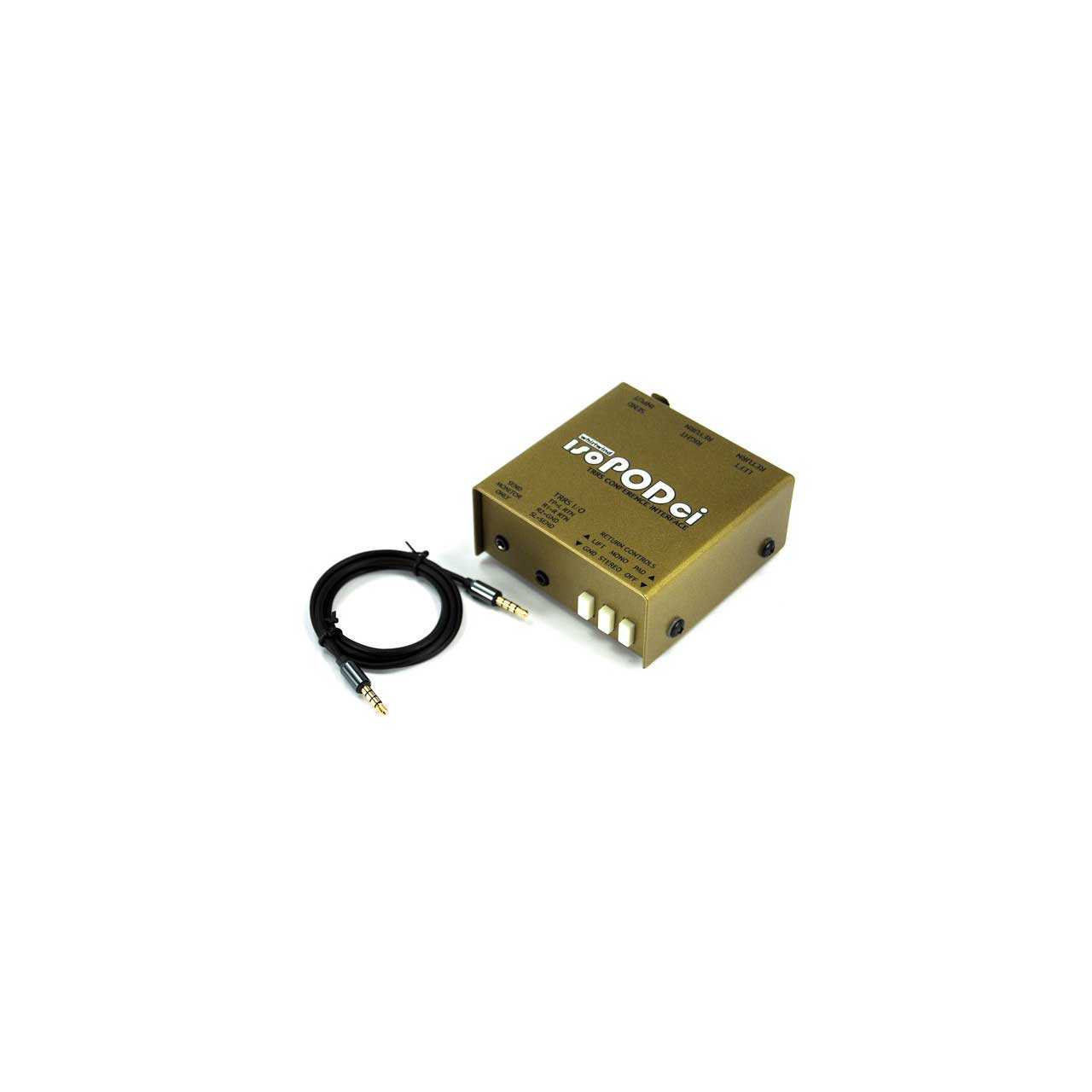

The Whirlwind ISOPODCI is a unique adapter that converts the TRRS jack audio of any mobile device into professional balanced signals. Output signals from the headphone section are transformer balanced and returned through 3 pin male XLR jacks. Line level audio sources can be sent into the microphone input of the mobile device through a balanced XLR input. A four conductor 3.5TRRS cable is included.
Optimized for connecting personal mobile devices to professional audio systems, this unit is used to connect mini headphone audio outputs to professional equipment with balanced inputs such as a mixing console. Use to connect professional balanced audio sources to the headset mic input.

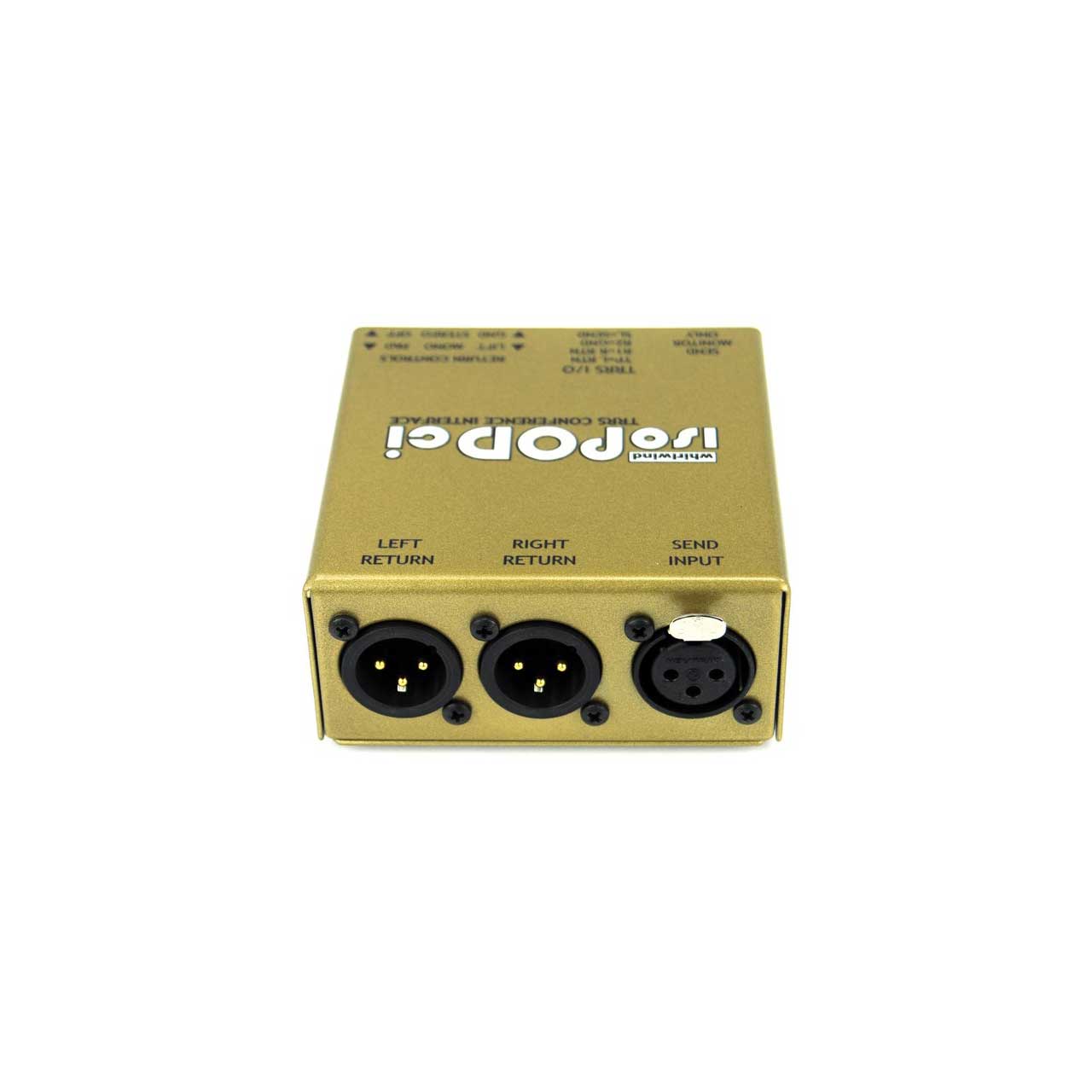

The signal is connected via a 3.5mm four conductor TRRS jack . Balanced connec tions to professional audio equipment are via XLR jacks. Headset signals are balanced and passed through with minimal loss from input to the return XLRs. Send input signals are attenuated
approximately 40 dB for the mic connection of the headset jack.

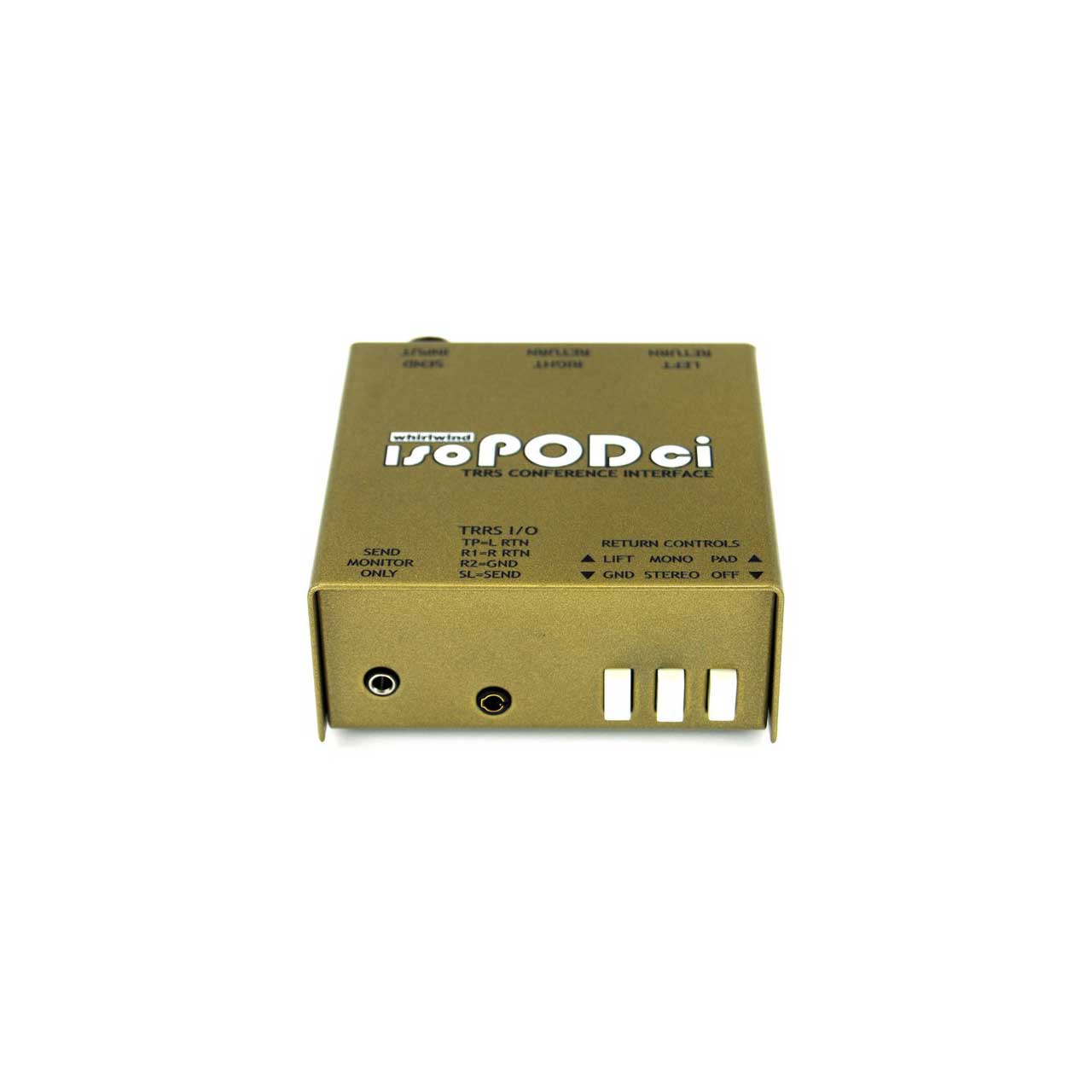

Features a "STEREO / MONO" switch to combine stereo returns into a mono signal and a 10 dB "PAD" switch for reducing the return level, if required. A "GROUND LIFT" switch disconnects input ground from the outputs to help eliminate hum and buzz. A 3.5mm TRS "SEND MONITOR" jack allows use of mini headphones to monitor the audio being sent into the mic input.
