Xantec XT-DL-IRK Exclusive Standard Range Universal IR Kit

XT-DL-IRK - Overview

Extend the IR receiver up to 5000 feet - Works with all types of cable boxes, satellite boxes, remotes and TVs

• Features:

  • Low profile-easy to hide
  • Proprietary ambient noise-suppression technology for reliable operation in any lighting environment, including compact fluorescents
  • IR modulation frequency bandwidth: 25-60kHz
  • Reception range: up to 80 ft/24 m*
  • Color-coded connectors for fast, easy installation
  • Controls up to 6 devices at once with enough power to control 4 dual emitters or 8 devices
  • BOT 1.0 extends IR receiver up to 200' with 24 AWG, 600' with 22 AWG, 2000' with 20 AWG, 5000' with 18 AWG (Actual range depends on remote control output and ambient lighting condition)
  • Drives IR emitters through Xantech Connecting Blocks, Controllers, etc.


• Specifications:

  • Infrared carrier frequency bandwidth: 25 - 60 kHz.
  • Reception range: Up to 80 feet.
  • Reception angle: +/- 60 degrees.
  • Max Transmission length: 1 mile using 18 gauge wire.
  • Maximum current output: 100mA.
  • Dimensions: 2.55" x 0.55" x 0.35" (65mm x 14mm x 9mm).
  • Power requirements: +12VDC, 10mA.

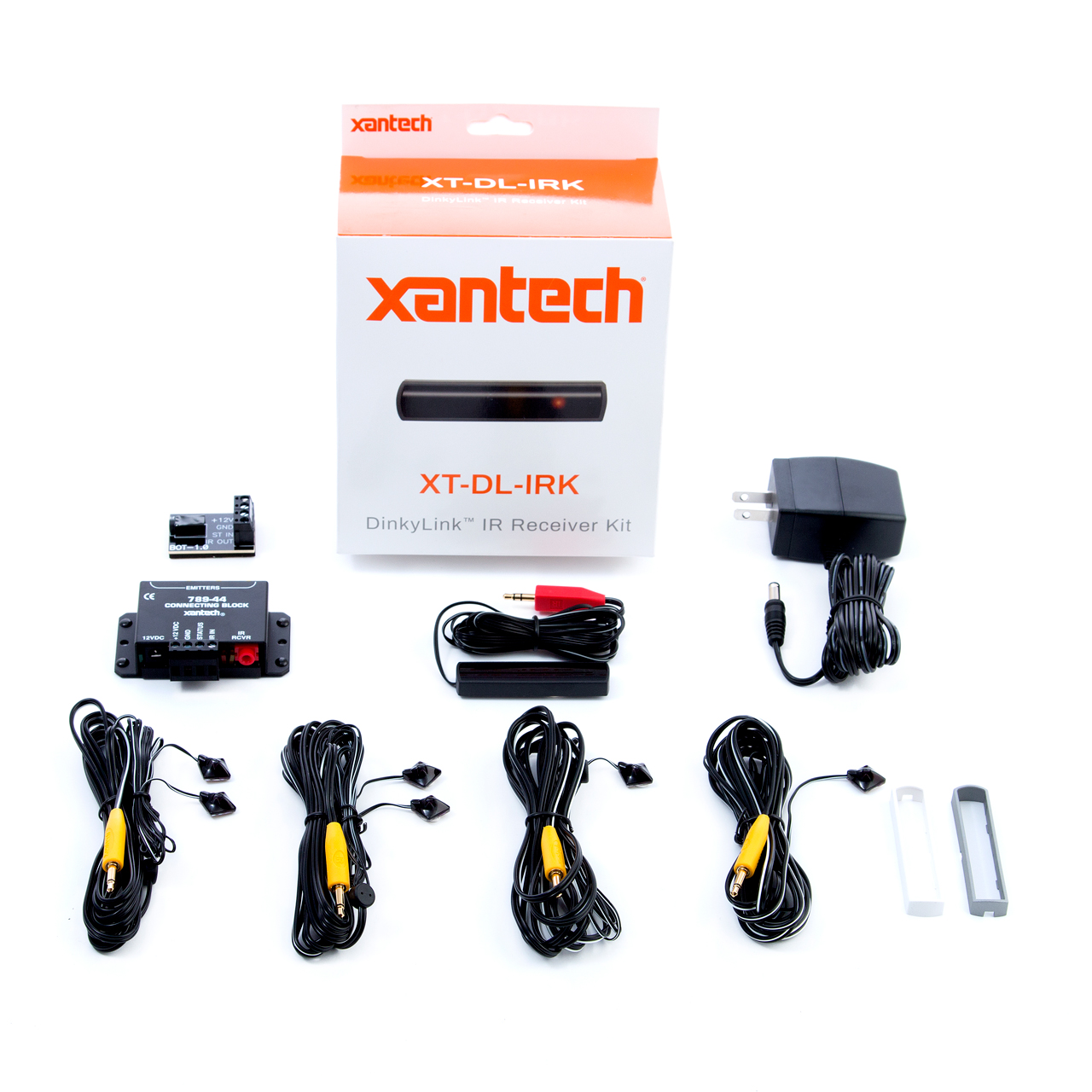

• Item Includes:

  • 1 x DL Series IR Receiver
  • 1 x 789-44 Connecting Block
  • 2 x 283D Single Designer Emitters
  • 2 x 286D Dual Designer Emitters
  • 1 x PS12-0.5
  • 1 x BOT-1.0


• GTIN:

  0042777796953
