Yamaha DANTE-MY16-AUD2 Audinate 16-Ch Dante2 Network I/O Card


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    DANTE-MY16-AUD2 - Overview

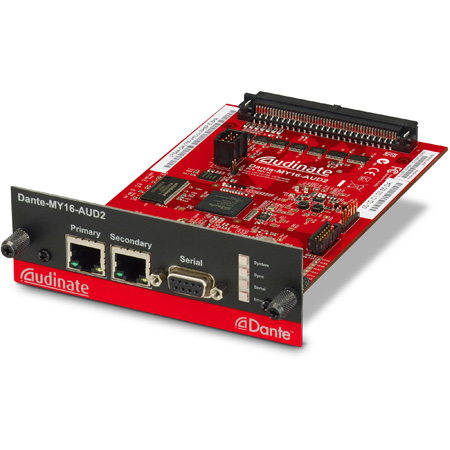

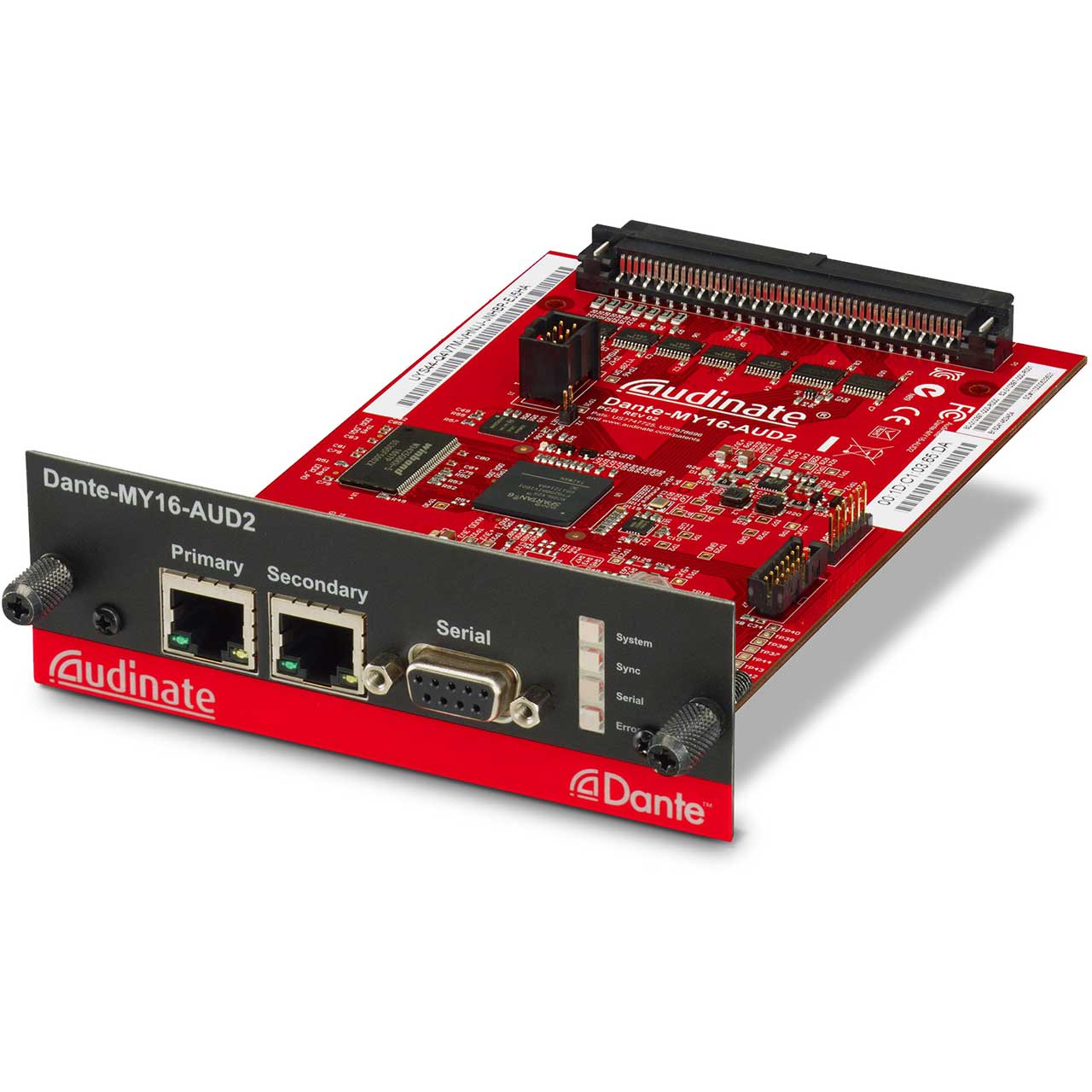

    The Dante-MY16-AUD2 card is an expansion card for use with compatible Yamaha professional audio equipment. It allows the transmission and reception of up to 32 (16x16) channels at 44.1kHz or 48kHz, or 16 (8x8) channels at 88.2kHz or 96kHz of uncompressed 16, 24 or 32- bit digital audio data, using Audinate’s Dante audio networking standard. Dante allows real-time very low latency transmission and reception of multiple channels of uncompressed digital audio over IP networks and Gigabit or 100Megabit Ethernet. A single 1 Gigabit link can handle many hundreds of bidirectional channels of audio data on a network shared with control and other traffic.

    • Features:

      • Supports 44.1 and 88.2kHz sample rates, in addition to the previously-supported 48 and 96 kHz sample rates.
      • Sample rate pull-up/down can be used to synchronise audio with video that has undergone frame rate conversion.
      • Dante-MY16-AUD2 cards can be daisy chained together via the secondary Ethernet port.
      • Dante-MY16-AUD2 can be PIN-locked and unlocked using Dante Controller.

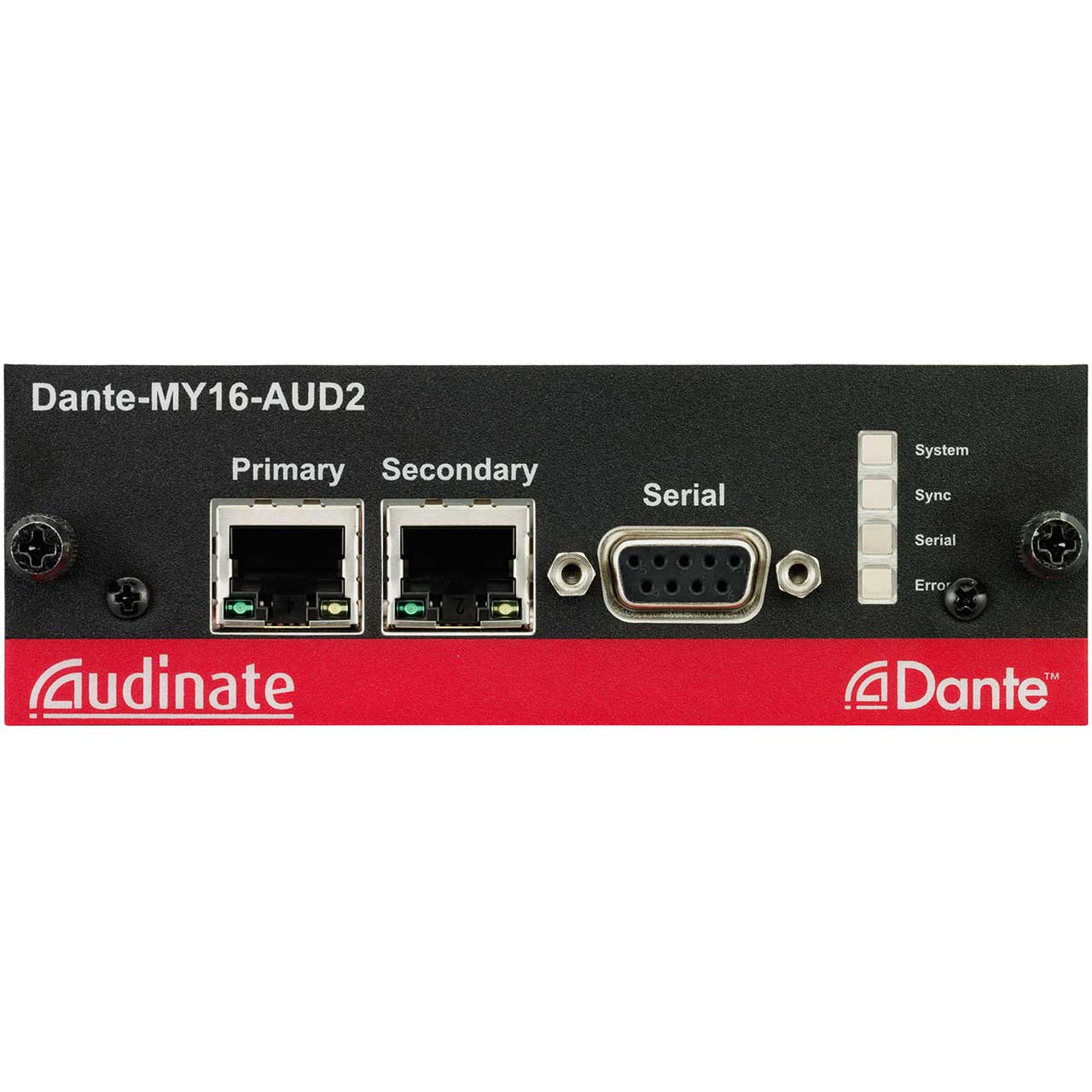

      • 2x RJ-45 connectors for Dante I/O, 1x D-sub 9 pin connector for RS232-C.
      • Latency can be selected from five preset values: 0.25 ms, 0.5 ms, 1.0 ms, 2.0 ms, or 5.0 ms.
      • More than 16 audio channels can be transferred when used with multiple Dante-MY16-AUD2 cards.
      • Automatic discovery and setup for network devices. Devices names can be specified as required.
      • Allows direct PC or Mac audio input and output without the need for an audio interface.
    • Item Includes:

      • Dante-MY16-AUD2 card
      • Getting Started Guide
    • GTIN:


    DANTE-MY16-AUD2 - Required Accessories

      DANTE-MY16-AUD2 - Recommended Accessories
