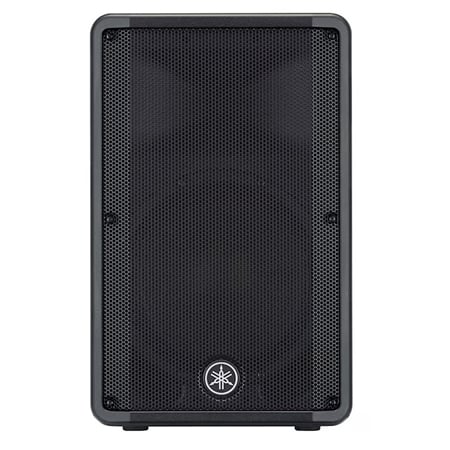

Yamaha CBR12 Passive Loudspeaker 2-Way 700 Watt Peak 12-Inch LF & 1-inch Titanium HF - Molded Enclosure

ITEM #: YMH-CBR12 MFG #: CBR12

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$465.00

Our Price:

$334.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CBR12 - Overview

12", 2-way Passive Speaker, 350W RMS Power Handling, with 12" LF Driver and 1.4" HF Driver

The Yamaha CBR12 represents a perfect balance of size and performance. Ideal for front-of-house, floor monitoring or even rigged applications, the CBR12 is an ideal choice for a wide range of applications.

The CBR Series is a new lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker designand acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind. Combining a meticulous materials selection process, thorough customization of the audio components, and a fresh, innovativeapproach to speaker design, our engineering team's primary focus was to deliver high-power, high-definition sound in a highlyportable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.

  • Features:

    • Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound
    • HF Protection Function and Highly Responsive LF Unit for Reliable Performance at Any Output Level
    • Rugged, Highly Portable Enclosure Design
    • Simple Connectivity
    • Versatility for a Variety of Applications

  • Specifications:

    • Speaker Type: 2-way speaker, bass-reflex type
    • Frequency Range (-10dB): 48Hz - 20kHz
    • Nominal Coverage: 90° (H)/60° (V)
    • Components:
      - LF: 12" Cone, 2" Voice Coil (Ferrite Magnet)
      - HF: 1.4" Voice Coil, Compression Driver (Ferrite Magnet)
    • Crossover: 2.1kHz
    • Power Rating:
      - NOISE: 175W
      - PGM: 350W
      - PEAK: 700W
    • Nominal Impedance:
    • SPL:
      - Sensitivity (1W; 1m on axis): 96dB SPL
      - Peak (Calculated): 125dB SPL

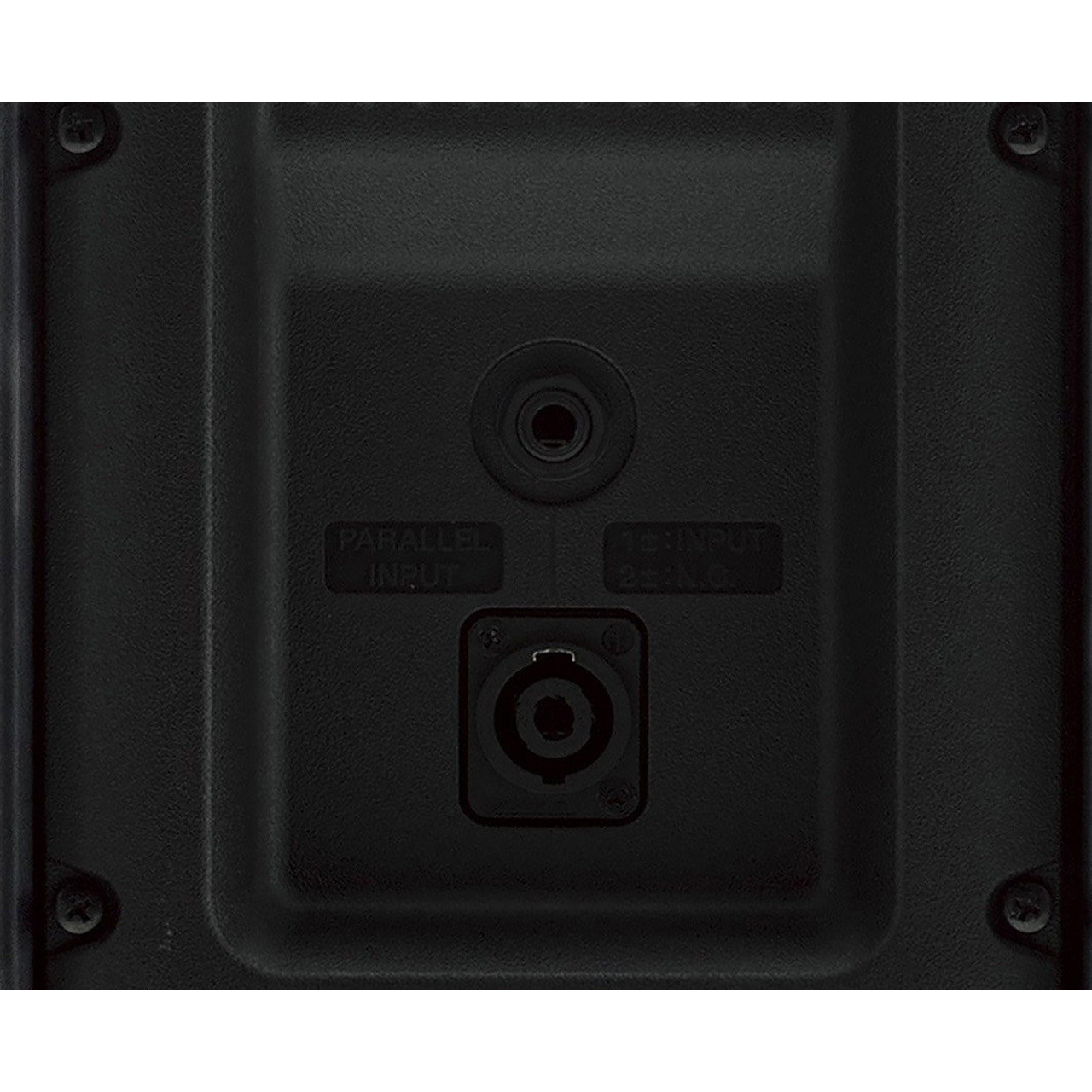

    • I/O Connectors:
      - 1x ¼" Phone
      - 1x speakON NL4MP
    • Cabinet Material: Plastic
    • Finish: Black
    • Handle: 2x Side
    • Flying and Mounting Hardware:
      - 2x Bottom
      - 1x Rear
      (Fit for M8 x 15mm eyebolts)
    • Pole Socket: Ø35mm, 1x Bottom
    • Dimensions (HxWxD): 23.7" x 14.8" x 13.7" (601mm x 376mm x 348mm)
    • Net Weight: 30.6lbs (13.9kg)
