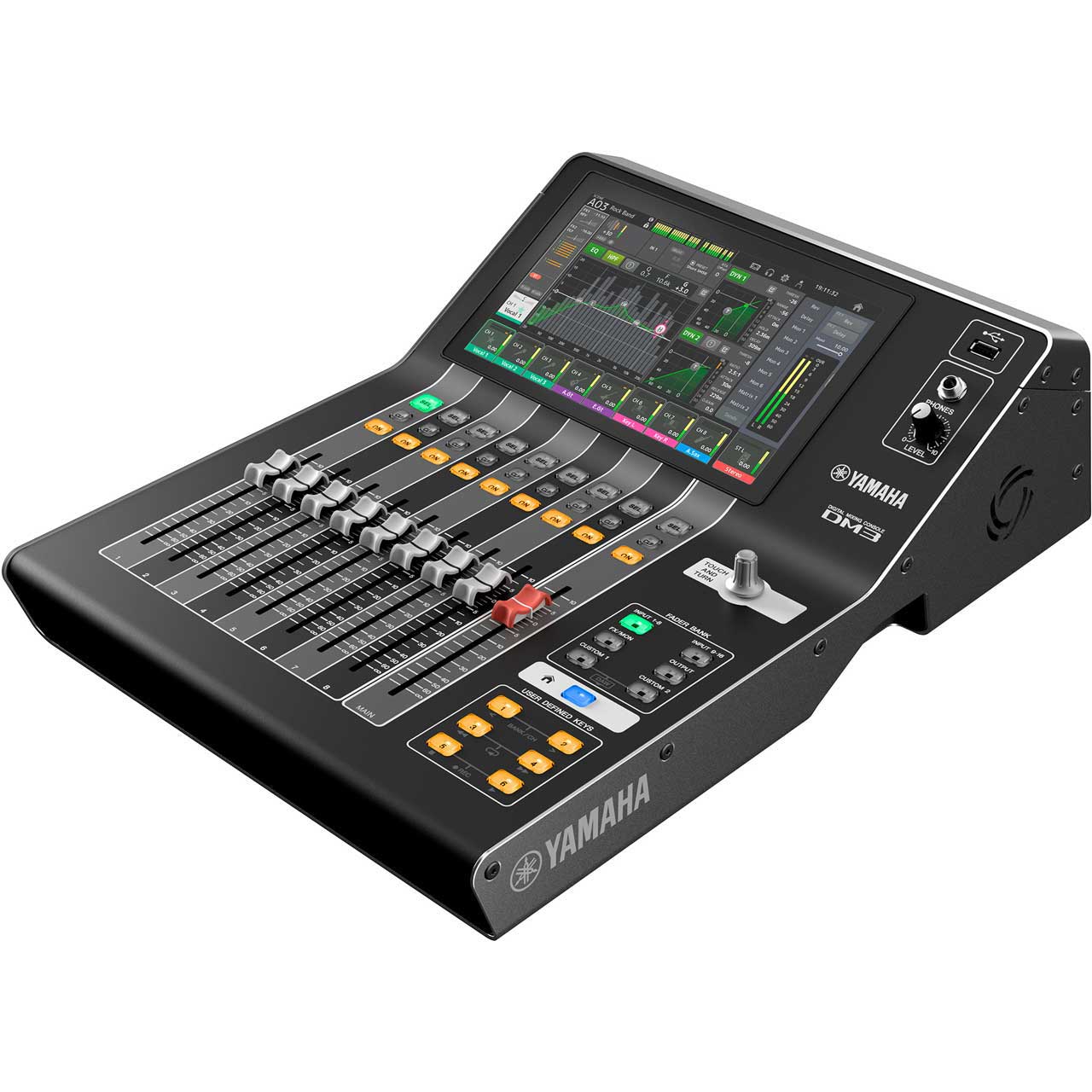

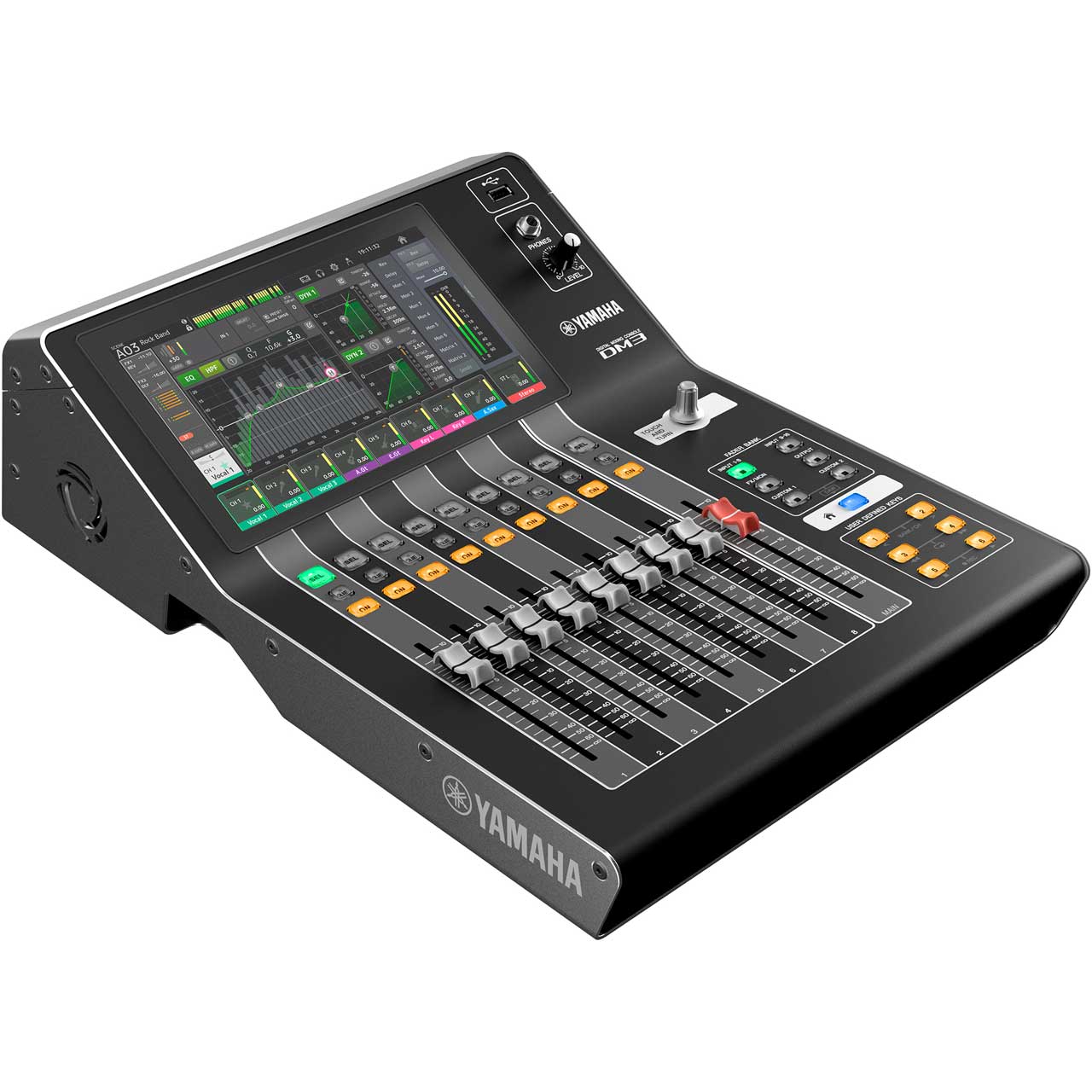

Yamaha DM3S Professional 22 Channel Ultracompact Digital Mixer with 9-Inch Touch Screen - Standard

DM3S - Overview

• Features:

  • Renowned Yamaha sound quality with 96kHz sample rate
  • 22 Channels (16 Mono / 1 ST / 2 ST FX RTNs)
  • 6 Mono or 3 ST Mixes / 2 Matrixes / 1 ST Bus
  • 16 Professional Yamaha Pre-Amps (12x XLR + 4x Como Jack)
  • 8 Analog Outpus (XLR)
  • 18 x18 USB Audio Interface for playback and recording and 2x2 USB recorder
  • Best in Class 9" Touch Screen
  • DAW Remote Mode including transport control
  • Custom control via OSC, USB-MIDI and Provisionaire
  • Bundled with Cubase AI


• Specifications:

  • Mixing Capacity
  • Input Channels: 16 Mono, 1 Stereo, 2 FX Return
  • Buses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Input to Matrix supported)

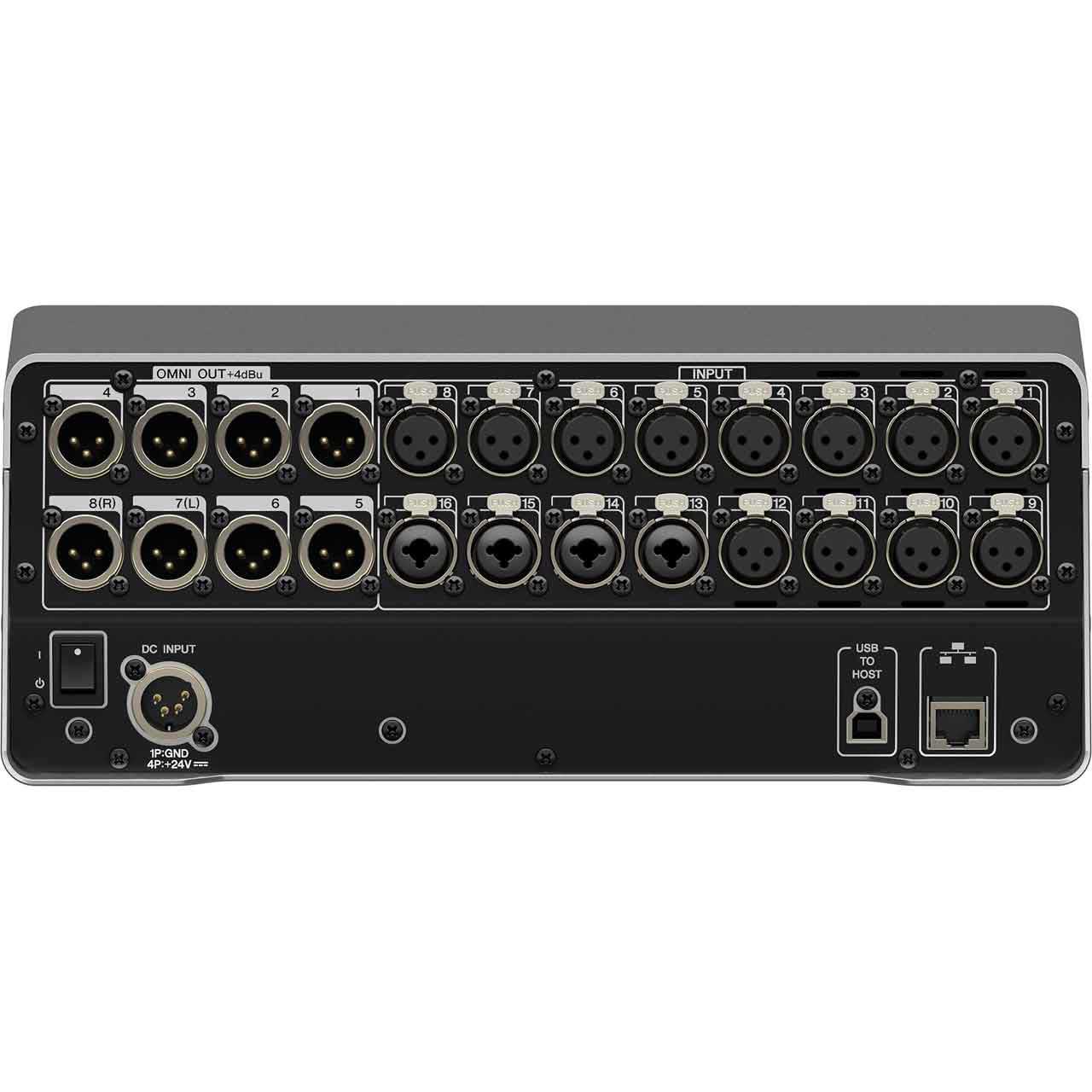

    Local Connectors
  • Analog In: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
  • Analog Out: 8 (XLR)
  • Dante I/O ): 2 (etherCON : Primary/Secondary, 16 In/Out)
  • Ethernet: 1 (RJ-45)
  • USB to Host: 1 (USB Type-B)
  • USB to Device: 1 (USB Type-A)
  • Phones: 1 (TRS Phones)
  • DC IN: 1 (XLR 4pin)

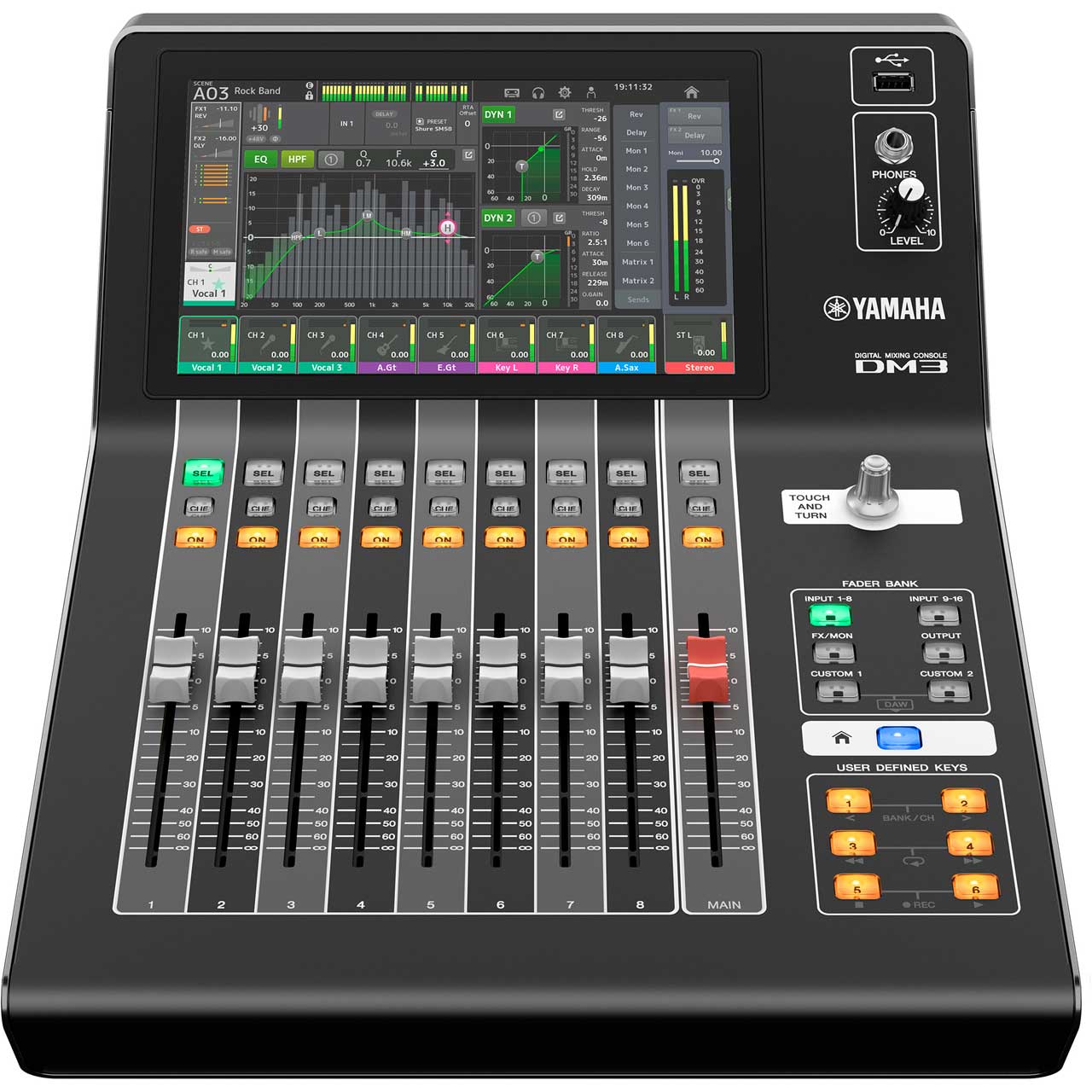

    User Interface
  • 9-inch multi-touch screen
  • 9 x 100mm Motorized fader (8 channels + 1 master)
  • 1 x Rotary Encoder (Touch and Turn)

    Recording & Playback
  • PC (via USB to Host) (USB 2.0): 18 track recording/playback
  • USB Storage Device: 2 track recording/playback


  • Sampling Rate: 96 kHz/48 kHz
  • Power Requirements: DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)
  • Power Consumption: 45W
  • Operating Temperature Range: 0 to 104°F (0 to 40°C)
  • Storage Temperature Range: -4°F to 140°F (-20 to 60°C)
  • Dimensions (W x H x D) Inches: 12.6 x 17.9 x 5.5
  • Weight: 14.33 lbs

    Software
  • DM3 StageMix
  • MonitorMix
  • ProVisionaire Control/Touch


• Item Includes:

  • 1x DM3 Ultra-compact 22 Channel Mixer
  • 1x Power Adapter (PA-L500)
  • 1x Owner's Manual
  • 1x Cubase AI Download Information


• GTIN:

  0889025137577
