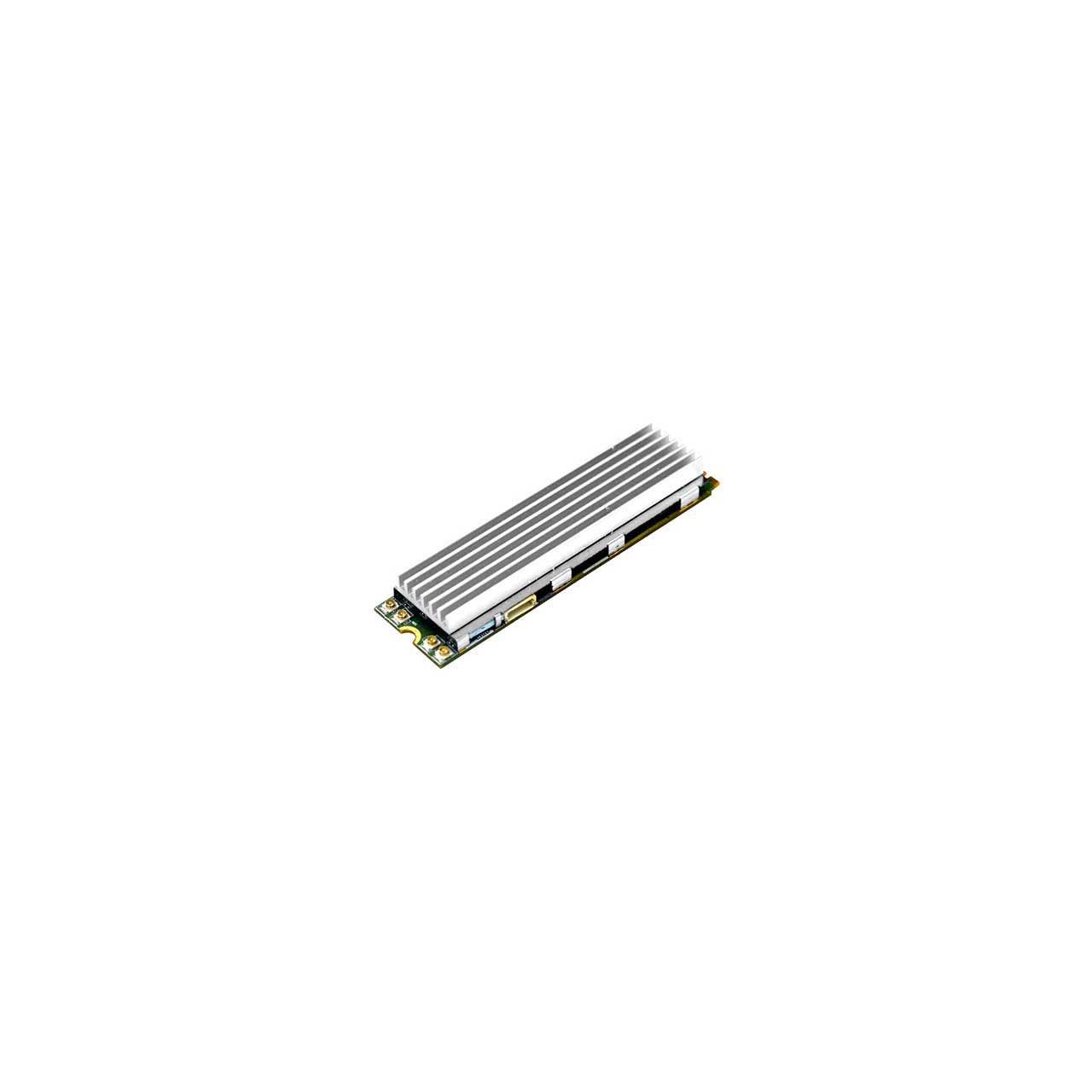

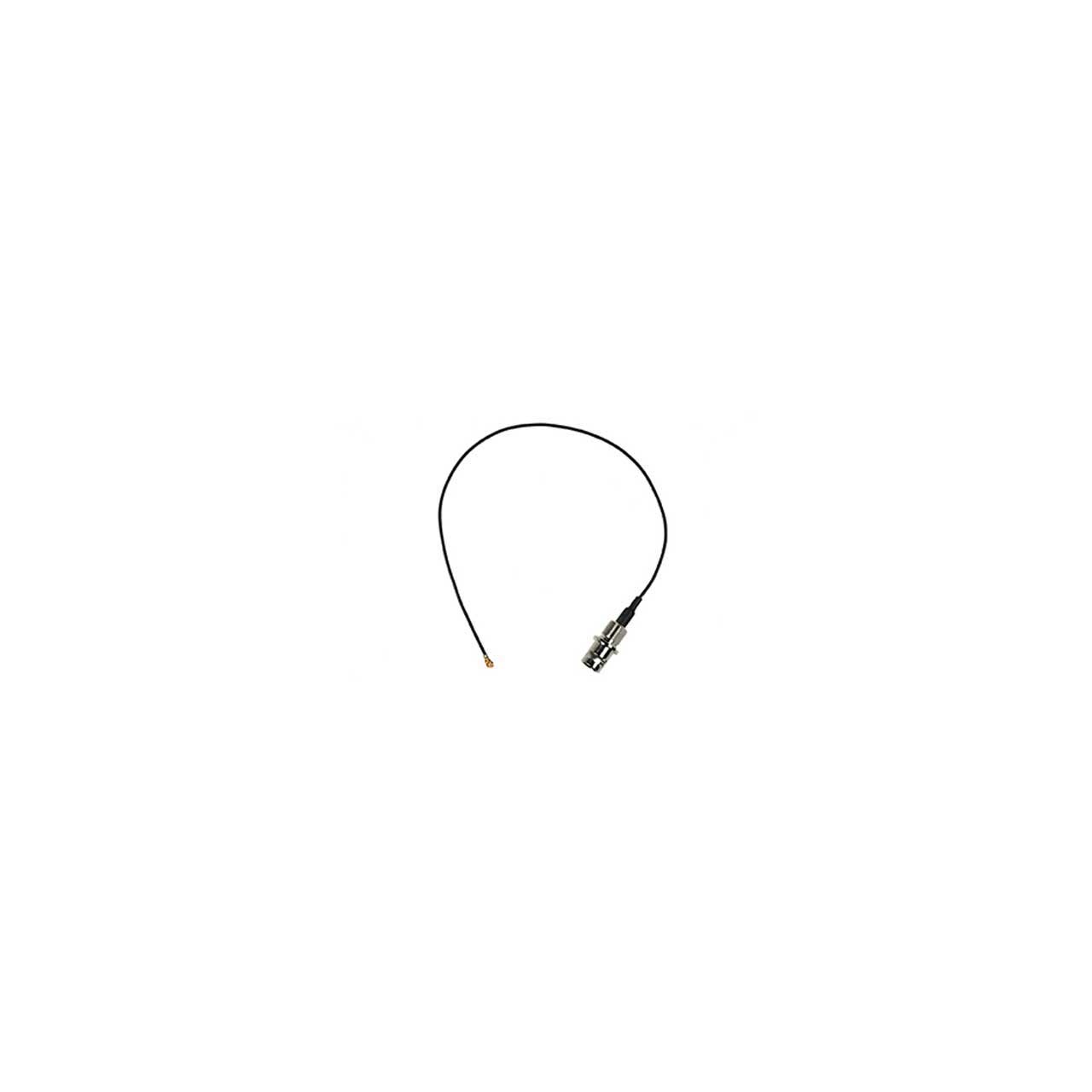

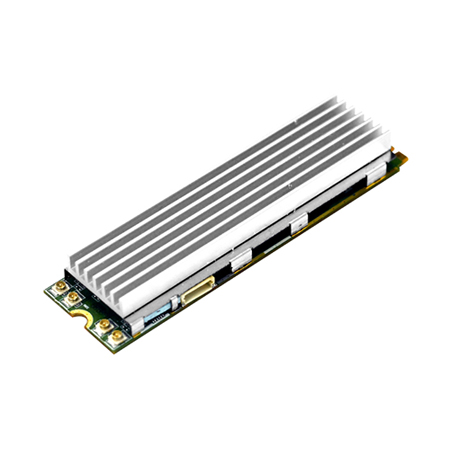

Yuan High-Tech SC400N4-SDI-M.2 M.2 PCIe x4 Form-Factor 4-Input 1080p60 3G-SDI Capture Card with 4x BNC Adapter Cables

ITEM #: YN-SC400N4SDIM-2 MFG #: YN-SC400N4-SDI-M.2

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$595.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    YN-SC400N4-SDI-M.2 - Overview

    Yuan High-Tech SC400N4 SDI M.2 is a high-performance solid-state drive (SSD) that utilizes the M.2 form factor and SDI interface. It offers fast read and write speeds, allowing for quick data transfer and improved system responsiveness. The M.2 form factor provides a compact and efficient solution for storage expansion in small form factor systems, while the SDI interface delivers maximum bandwidth and low latency for demanding applications. The drive is designed for use in a variety of industries, including digital media production, broadcasting, and post-production.

    • Specifications:

      • Inputs
      • 4x 3G-SDI (via included cables)

        Computer Interface
      • M.2 NGFF 2280 PCI Express x4

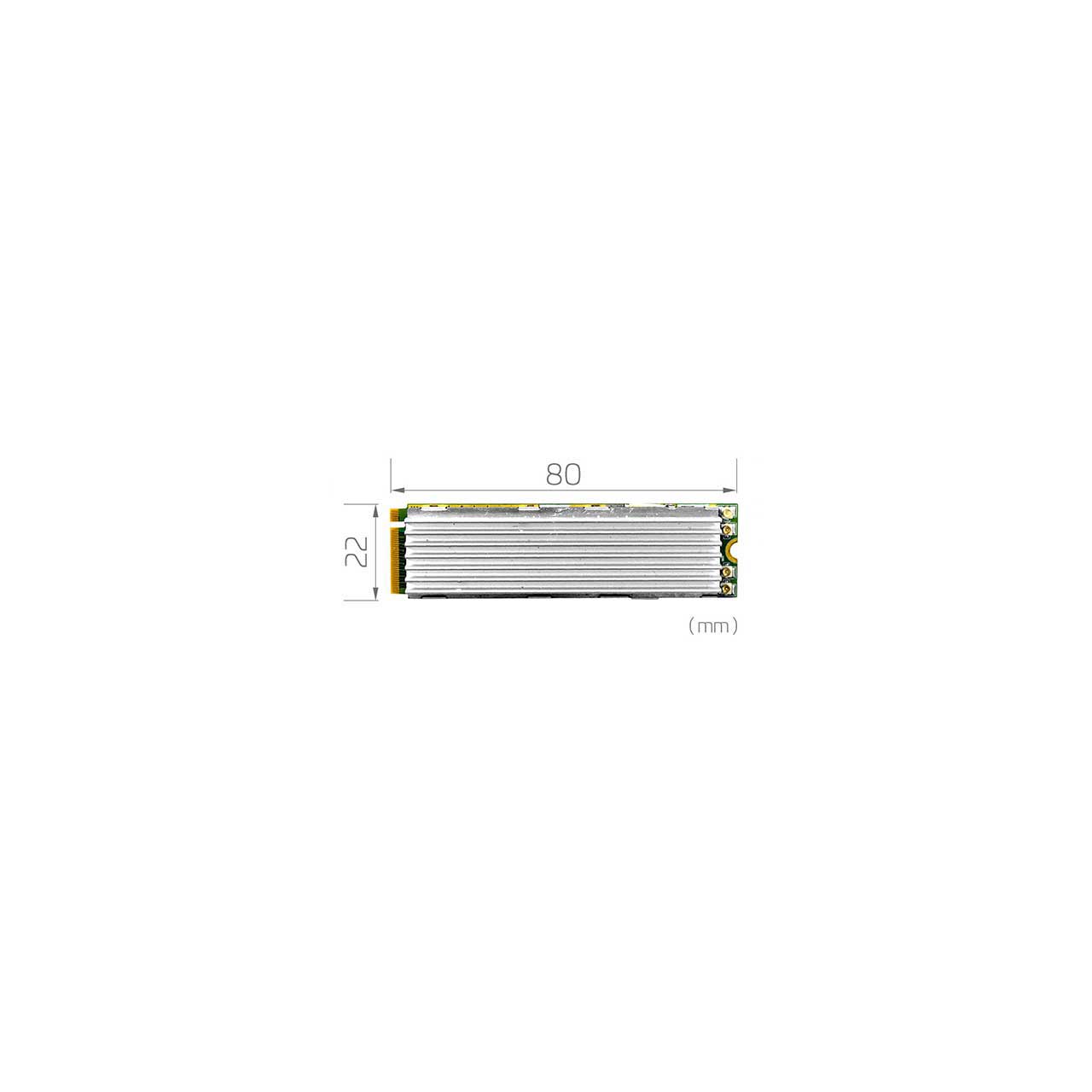

        Dimensions (WxL)
      • 0.866 x 3.15" (20mm x 80mm)

        Supported Video Resolutions
      • 3G-SDI: 1920x1080p@60/50fps
      • HD-SDI: 1920x1080p@30/25/24fps, 1920x1080i@60/50fps, 1280x720p@60/50fps
      • SD-SDI: 720x480i@60fps, 720x576i@50fps

        Video Processing
      • Video, Audio and VANC Capture
      • Video Cropping and Scaling
      • Auto Signal Detection
      • Deinterlace Engine
      • Multi Instances

        Color Formats
      • 4:4:4 8Bit RGB24
      • 4:4:4 8Bit RGB32
      • 4:2:2 8Bit YUY2
      • 4:2:0 8Bit YV12, NV12
      • 4:2:0 10Bit P010

        Audio:
      • 4x Embedded Stereo Audio Channels, Up to 16-bit / 48KHz

        Supported Software
      • vMix
      • OBS
      • ZOOM
      • Skype
      • Teams
      • Discord
      • Slack
      • Cisco Webex
      • GoToMeeting
      • (Other software applications that support Windows DirectShow or Linux V4L2 drivers are also generally compatible)

        Operating System Support
      • Windows 7/Windows 8/Windows 8.1/Windows 10
      • Linux 2.6.14 or Higher (32-bit and 64-bit)
      • Linux ARM
      • NVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
