Zigen ZIG-SW42Plus 4K 18G HDMI 2.0 4x2 Matrix Switch with HDCP 2.2/Scaler/System Diagnostics/IP & Buffering

ITEM #: ZIG-SW42PLUS MFG #: ZIG-SW42PLUS

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$595.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    ZIG-SW42PLUS - Overview

    HDMI 2.0 - 600 MHz HDMI switcher perfect for switching between high bandwidth (2160P60 RGB/4:4:4) HDCP 2.2 content in between sources and displays. Weather you need full bandwidth DCI content switching in a commercial environment or home environment, the Zigen ZIG-SW42Plus is for you. Robust technology designed, engineered and manufactured in the USA. Zigen's products are designed for the demanding professionals that are seeking robust and reliable performance. These products are not for just anyone, these products are designed for you!

    Zigen wants to put you in the driver's seat and allow you to take control of your HDMI content. With the added tools such as HDID management, system diagnostics, Up/Down scaling, hot plug and audio de-embedding from source and or ARC; you now have full control over your system and can dictate as to how your system performs.

    • Features:

      • 600 MHz HDMI 2.0 (2160P60 4:4:4) and HDCP 2.2 on all I/O
      • Supports 8-bit, 10-bit, 12-bit and 16-bit per pixel
      • Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
      • Advanced EDID management
      • Supports HDR-10, HDR-10+, Dolby Vision HDR
      • Supports uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio and more
      • Supports ARC
      • Supports CEC
      • Built in IR sensor plus 3.5mm jack and remote control
      • Bi-directional RS-232 - Control switch or integrate 3rd party control
      • ZigNet Control

    • Specifications:

      • Video Bandwidth
      • HDMI 18 GBP/sec

        Video Resolutions
      • All SMPTE & VESA in HDMI 2.0
      • Specification. Max SMPTE UHD - 4096x2160P60/RGB/4:4:4

        Color Space
      • RGB, YUV

        Color Bit Depth
      • 8-bit, 10-bit, 12-bit & 16-bit per pixel

        Chroma Subsampling
      • 4:4:4, 4:2:2, 4:2:0

        Audio
      • HDMI in & Out - Up to Dolby TrueHD and DTS-HD Master
      • Distance - HDMI Cable Distance - Up to 2M @ 4K/60Hz
      • Distance - HDMI - Up to 5M @ 4K
      • HDCP - 2.2, 1.4 or None
      • CEC - Pass through

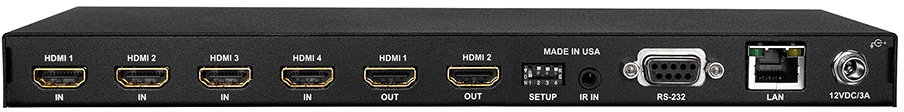

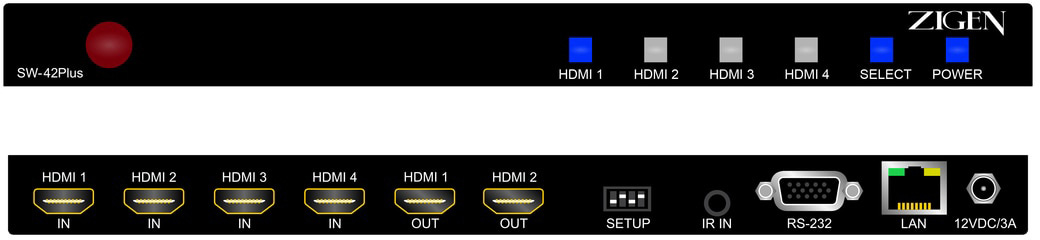

        Connections
      • 4 x HDMI type A HDMI Input
      • 2 x HDMI type A HDMI Output
      • 1 x RJ45 LAN Port for TCP/IP Control
      • 1 x 9-pin RS-232 Port
      • 1 x 3.5mm IR In Port
      • 1 x IR Sensor (In)
      • 1 x 12 VDC Locking Connector

        Temperature
      • Operating 32-122 F (0-50 C), Humidity: 20-90% non-condensing.

        Dimensions
      • 1/2 RU

        Weight
      • .67 pounds
      • 303 grams

    • Item Includes:

      • 1 x ZIG-SW42Plus
      • 1 x 12-V / 2.5-A Power Pack
      • 1 x Remote Control
      • 1 x User Manual


    ZIG-SW42PLUS - Required Accessories

      ZIG-SW42PLUS - Recommended Accessories
