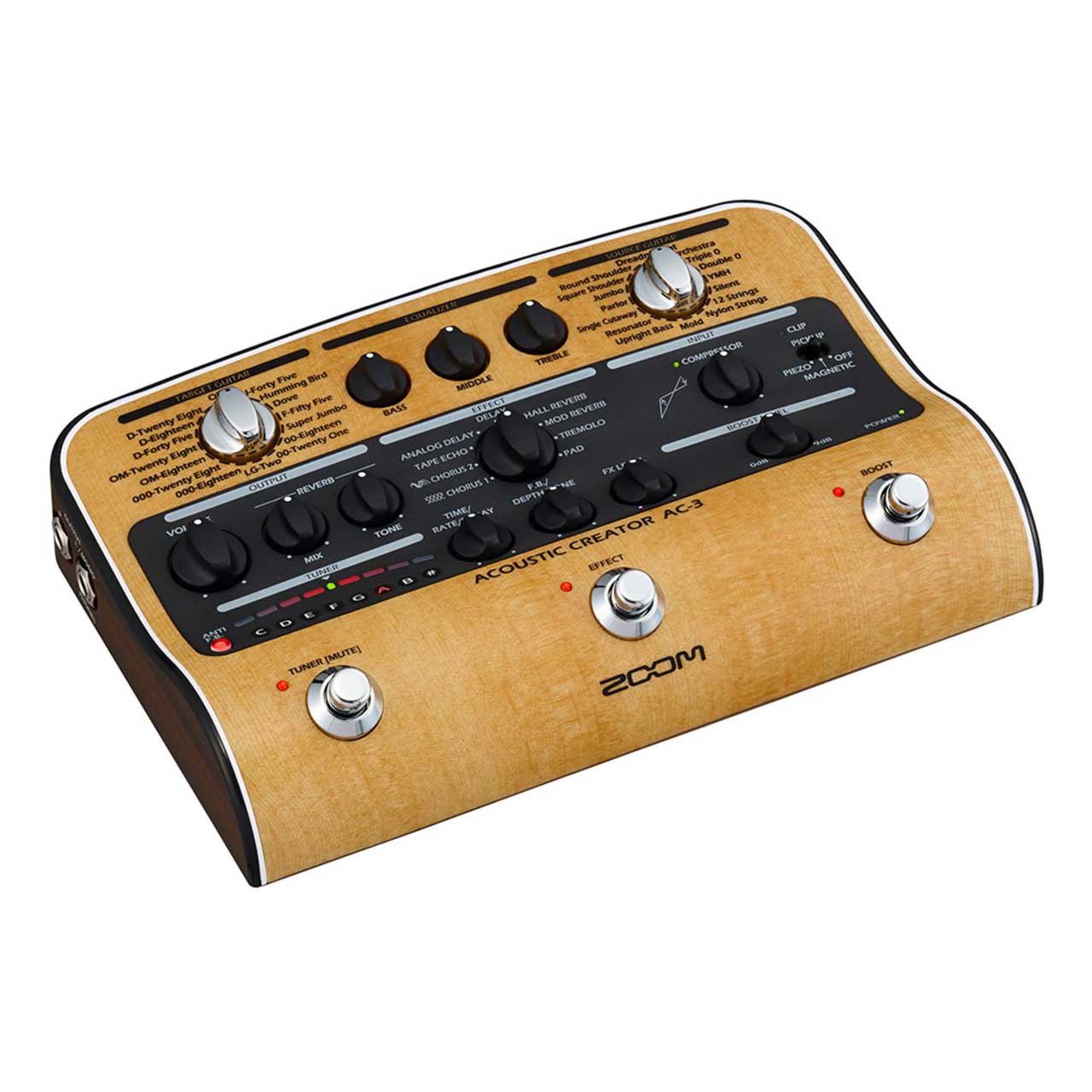

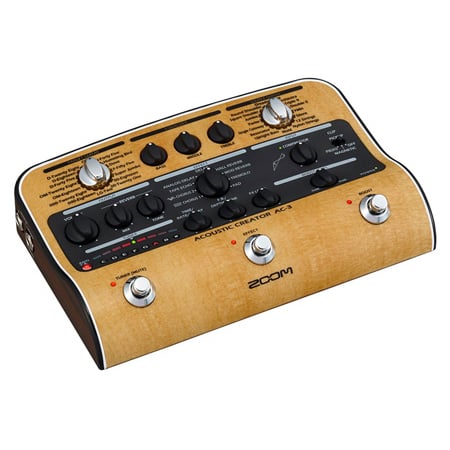

ZOOM AC-3 Acoustic Creator Multi-Effects Processor Direct Box

ITEM #: ZOOM-AC-3 MFG #: AC-3

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$299.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    AC-3 - Overview

    Like its little brother, the ZOOM AC-3 Acoustic Creator is an enhanced direct box with essential DI features that help you achieve great tone no matter where you play. The AC-3 is equipped with an effects generator, stereo outputs, and a compressor. With these features plus the same high-quality preamp and 3-band EQ as the AC-2, the AC-3 is an all-in-one acoustic toolkit that's perfect for live performance and studio.

    The AC-3 puts essential DI features right at your fingertips. Its high-quality preamp boosts your signal and helps restore your true acoustic sound. Plus, its 3-band EQ lets you quickly make the perfect adjustments to refine your tone. To add depth and color to your tone, AC-3 also features the best effects ZOOM has ever designed for acoustics. Choose from 9 different effects such as delay, chorus, and reverb, each of which has with adjustable parameters for fine-tuning your sound.

    With 16 source guitar presets, the AC-3 recovers the sonic characteristics of a variety of guitar types and body shapes. You can choose from dreadnought, upright bass, nylon strings, 12 string, and more. Simply select your guitar of choice, then choose piezo or magnetic pickup. From there, the AC-3 is ready to reproduce and amplify your guitar's tone with complete accuracy.

    Whether you're lightly strumming or playing with a little more intensity, the AC-3's single-knob compressor is one of the finest you've ever heard. ZOOM's single-knob compressor makes it easy to smooth out and control your guitar's dynamics for a full, balanced sound. Plus, the compressor's LED indicator makes it simple to adjust dynamics parameters during a live set. he AC-3's balanced XLR mono/stereo outputs with pre/post control allow you to connect to any PA mixing board or studio console. It also includes two ¼" outputs for simultaneous mono/stereo connection to amps, headphones, or audio interfaces. This allows audiences to hear the full character of stereo or delay effects.

    • Features:

      • 16 source guitar type/body presets for accurate tone re-creation
      • 15 target guitar type/body presets for tonal refinement

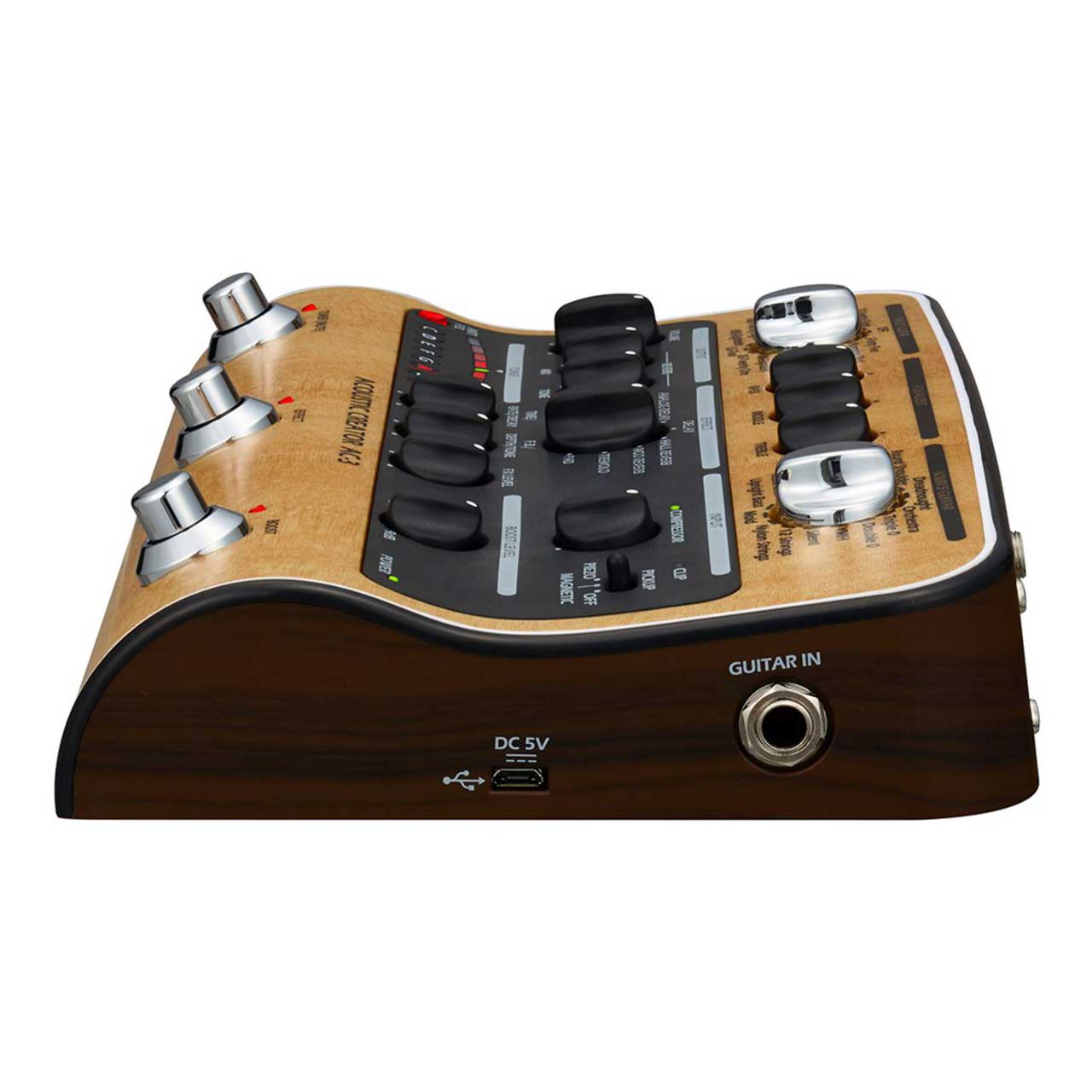

      • ¼" input
      • Two XLR balanced outs
      • Two ¼" outputs for mono or stereo connection to guitar amps, headphones, and audio interfaces
      • High-quality, low noise preamp
      • 9 effects with adjustable parameters
      • Piezo/magnetic input pickup select
      • Built-in compressor
      • 3-band equalizer
      • Input and output gain/sensitivity adjustable via single volume knob (patent pending)
      • Clipping indicator
      • Anti-feedback control
      • Boost switch for up to 9 dB of additional gain
      • Built-in chromatic visual-LED tuner
      • USB connection for firmware updates
      • Dual output jacks for connection to guitar amps and mono or stereo PA systems
      • Three power options: 2 x AA batteries, the included Zoom AD-16 power adapter (9V DC in), or bus power via micro-USB port

    • Specifications:

      • General
      • Source Guitars: 16 Types
      • Target Guitars: 15 Types
      • Effect Types: 9 Types
      • Sampling Frequency: 44.1 kHz
      • A/D conversion: 24-bit with 128x oversampling
      • D/A conversion: 24-bit with 128x oversampling
      • Signal processing: 32-bit
      • Frequency characteristics: 20 Hz - 20 kHz (+1 dB/-3 dB) (10 kΩ load)

        Input/Outputs
      • Input: Standard mono phone jack
      • Rated input level: -20 dBu
      • Input impedance: 10 MΩ

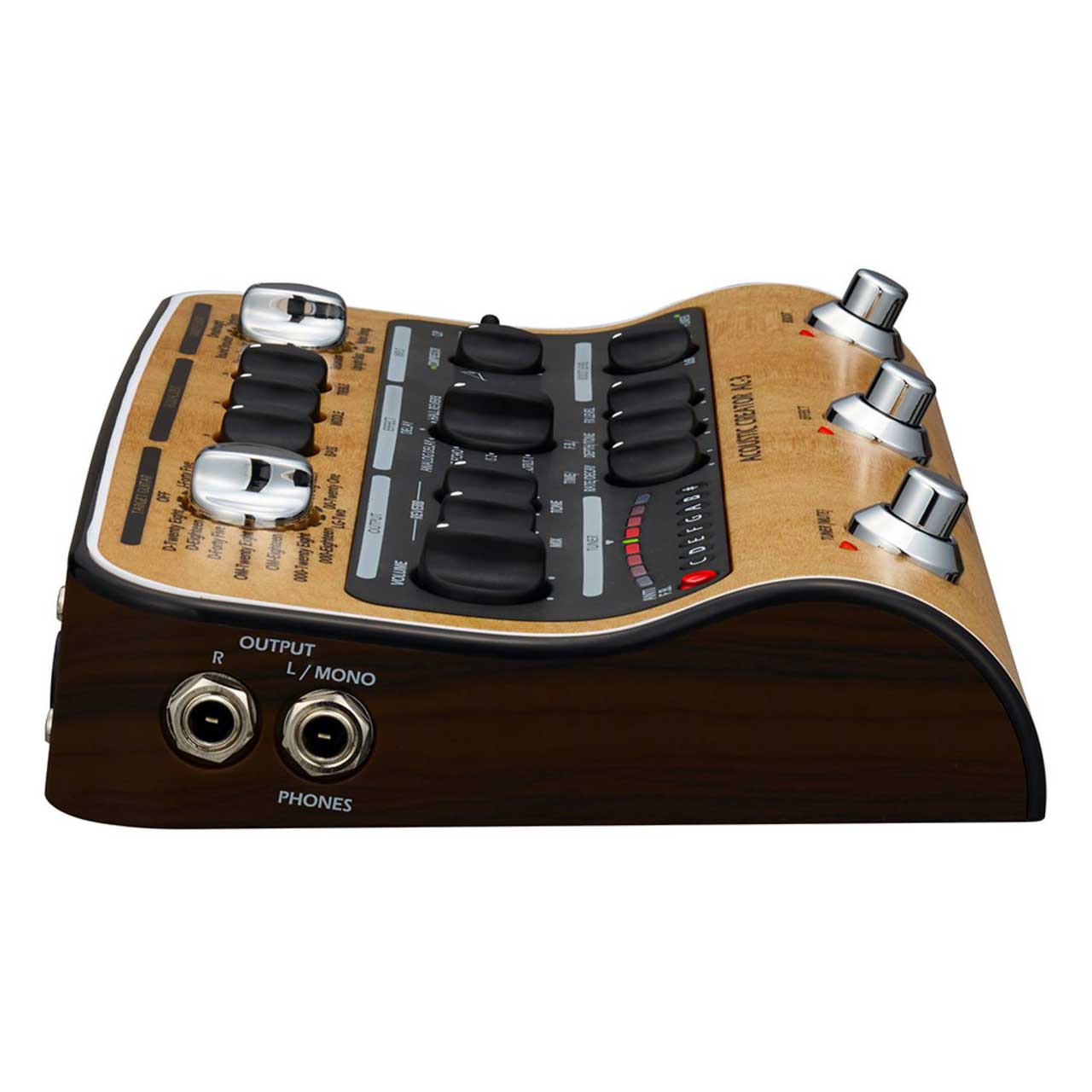

      • L/MONO/PHONES Output: Standard stereo phone jack (combined line/headphones)
      • Maximum output level: Line +7 dBu (10 kΩ or more output impedance)
      • Headphones: 8 mW + 8 mW (32 Ω load)
      • R Output: Standard mono phone jack
      • Maximum output level: Line +7 dBu (10 kΩ or more output impedance)

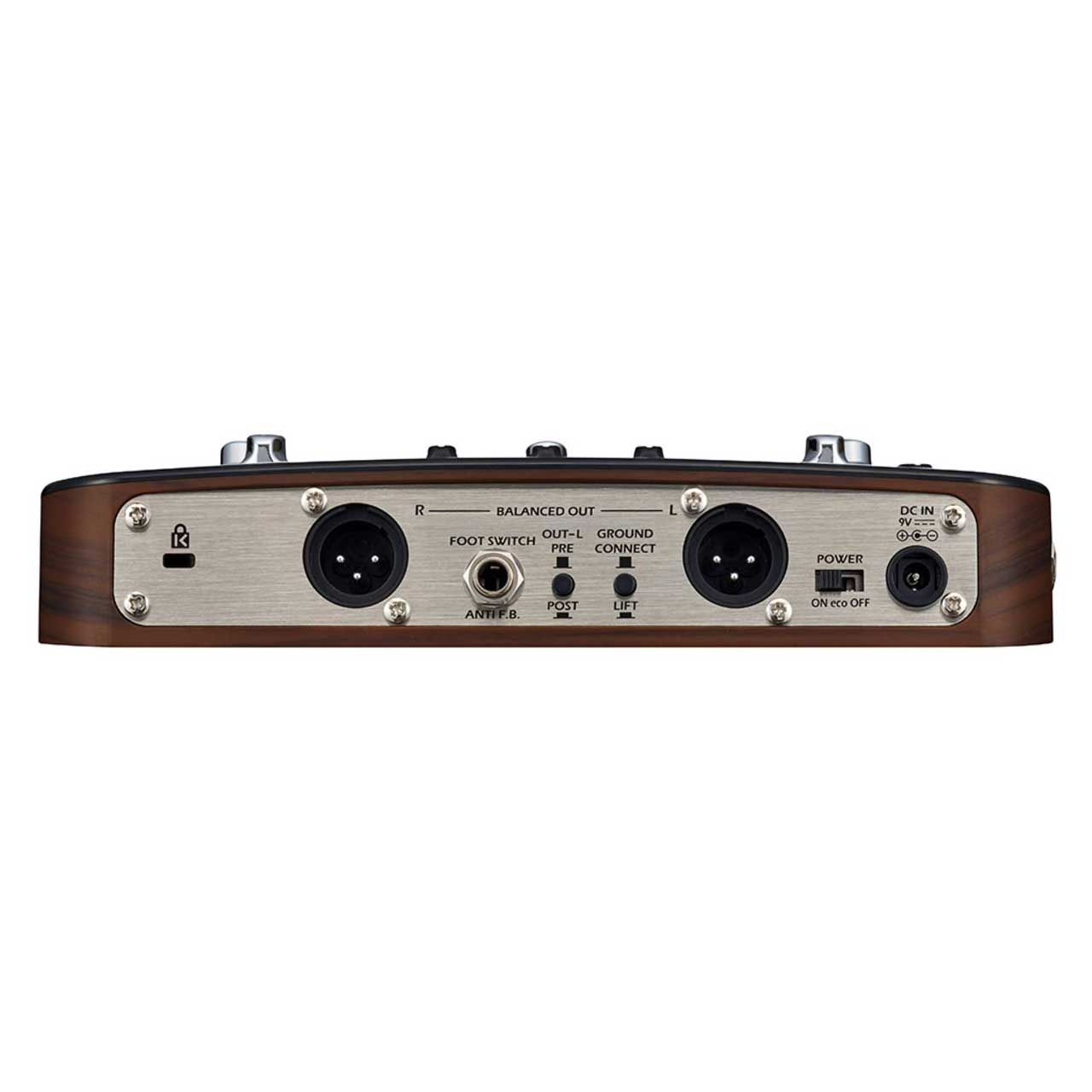

      • Balanced Out-L: XLR jack
      • Output impedance: 100 Ω (HOT-GND, COLD-GND), 200 Ω (HOT-COLD); Pre/Post (switchable); Ground Lift (switchable)
      • Balanced Out-R: XLR jack
      • Output impedance: 100 Ω (HOT-GND, COLD-GND), 200 Ω (HOT-COLD); GND LIFT (switchable)

        Physical
      • Equivalent input noise: 120 dBu
      • Noise floor (residual noise): -100 dBu
      • Control input: FS01 Input
      • Power: AC adapter: 9 V DC 500 mA center negative (ZOOM AD-16); Batteries: 2 AA (about 3 hrs continuous operation time using alkaline batteries)
      • USB: USB MIDI USB Micro-B
      • Dimensions: 6.22 in (D) X 4.21 in (W) X 2.04 in (H)
      • Weight: 2.5 lbs (Not including batteries)

    • Item Includes:

      • Zoom AD-16 AC adapter
      • Operation manual

    • GTIN:

      0884354017835
