26-01077 - Overview

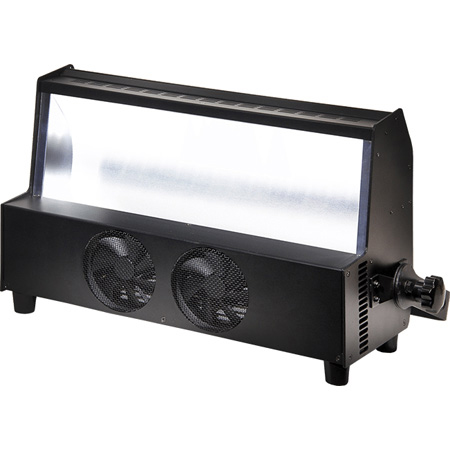

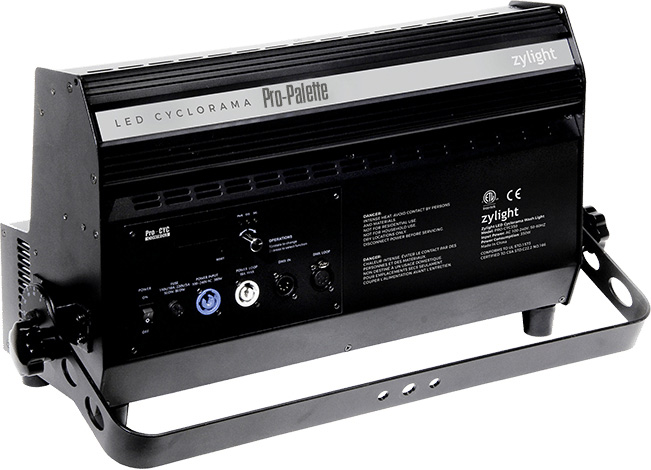

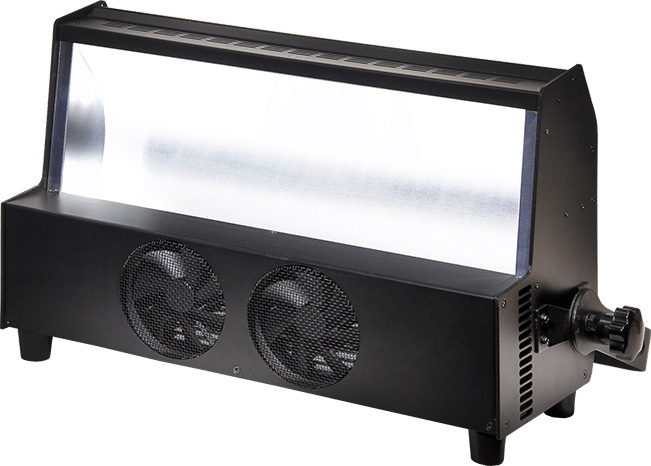

The Zylight Pro-Palette is a LED cyclorama lights designed for TV studios and theatres. It is powerful, energy-efficient and able to change colors smoothly through DMX controls. It produces a soft and even field of asymmetrical light in a choice of RGBW (for a backdrop of multi-color mixes), or pure white light.

Available as a single unit, the Pro-Palette can be easily daisy chained through 4 units side by side providing greater saturation of light. The Pro-Palette has a simple and intuitive local control panel for setup, control and addressing, can be dimmed smoothly from 0 to 100%, and is RDM ready.

  • Features:

    • Red, Green, Blue and White LEDs
    • Max Output 350W
    • 0-100% Smooth Dimming, Flicker Free
    • Dual Auto Cooling Fans
    • 100-240V AC International Power Input
    • DMX-512 & RDM Ready
    • Light Weight Aluminium & Rigid Steel Housing


  • Specifications:

    • Mechanical
    • Construction: Extruded aluminum alloy and steel plates to form light weight and rigid fixture construction
    • Paint / finish: Epoxy-polyester powder paint
    • Mounting & suspension Floor use: Steel stirrup with 12mm centre hole + DIN mounting, Four plastic feet at fixture bottom

      Electrical
    • Power input: 100~240VAC single phase
    • Frequency/Current: 50/60Hz - 1.5A@220V
    • Power consumption: 350W at full power, 5W in sleep mode
    • Power Input: PowerCon , Locking 3 pole connector, Blue
    • Power Output: PowerCon , Locking 3 pole connector, White
    • Power loss: Last Scene Hold
    • Cable: 2m, 3 x 1.5mm flexible cable
    • Standard compliance: EN60598-2-17, CE marked

      Operational
    • Working position: 0° - 180°, suitable for truss mount and floor use
    • Signal input/output: XLR 5-pin male/female connectors, USITT DMX-512A
    • Control modes: RGBW / HSI / CCT / Effects
    • DMX channel: 4(RGBW); 3(HSI); 2(effects mode); 2 (CCT mode)
    • Input DMX signal loss: Last scene hold
    • RDM: ANSI E1.20-2006 RDM
    • Dimming range: 0 -100%, 1:4096
    • LED temperature: Built-in sensor real time monitoring
    • Cooling: Dual cooling fan, automatic control
    • LED lifetime: ≥20.000 hr @25°C max.

      Optic & Effect
    • Light source: 128 high power CREE LEDs (RGBW)
    • Beam angle: 54° horizontal, 80° vertical, fixed angle
    • Beam performance ratio: 3.33:1
    • Distance to cyclorama: 4.9' - 8.2' (1.5m ~ 2.5m)
    • Color control modes: RGBW; HSI (Hue, Saturation, Intensity); CCT (colour temperature adjusting); Effect (Built-in colour marcos)
    • Total Lumens (5m(H)x4m(W) Cyc): 4630 (16' H x 13' W)
    • Beam Angle: 73°

      Physical
    • Model: 26-01077 - Pro-Palette - 350w Asymmetric LED CYC Light
    • Weight: 12.6 kg (28 lb.)
    • Size (mm ) w/o yoke: 24 inch W x 12.1 inch H x 8.1 inch D (630mm W x 308mm H x 208mm D)
    • with yoke: 24 inch W x 16 inch H x 8.1 inch D (630mm W x 408mm H x 208mm D)
    • Operation temperature: 0-35°C (32-104°F)
    • Installation place: Indoor
    • Noise level: ≤35dB @1m
